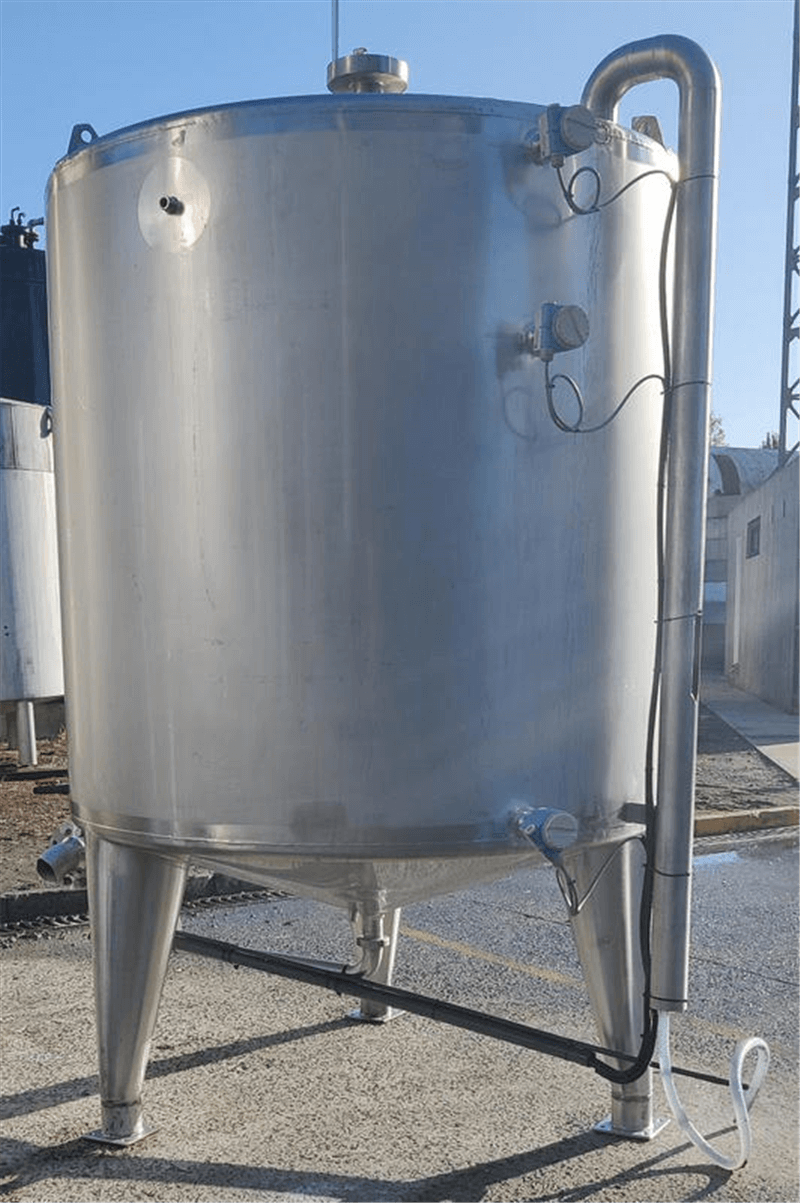

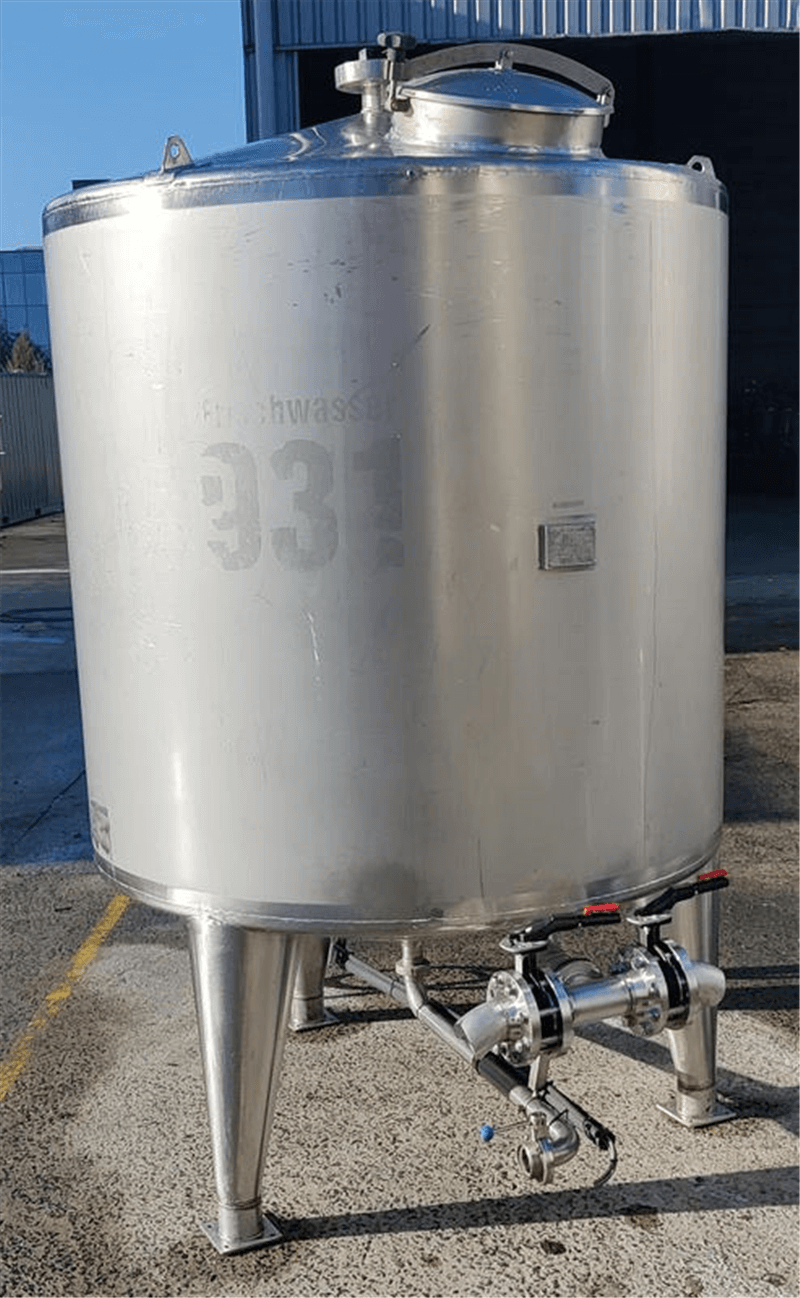

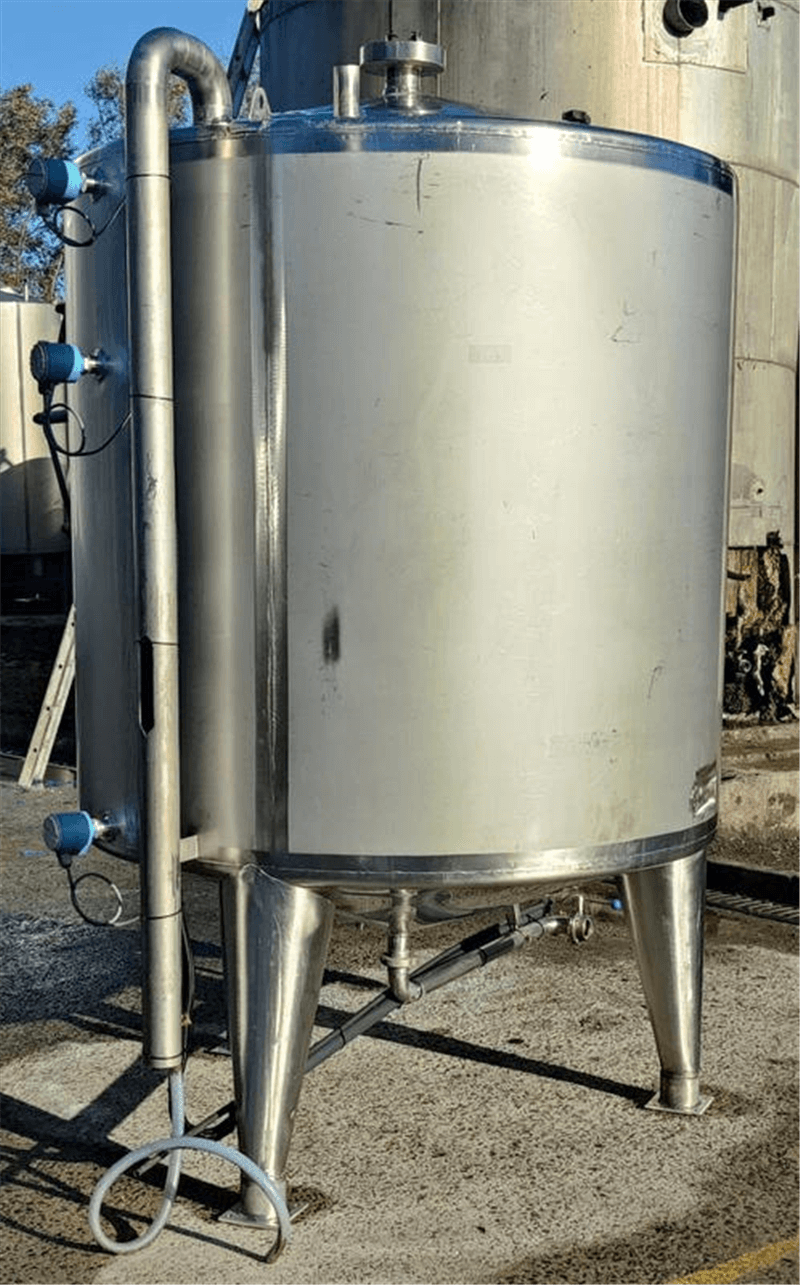

Used storage tank
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 3000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.45.SE.02 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Raw brushed |
| Number | 1 |
| Capacity (Liters) | 3000 |
| Type tank | Storage tank |
| Fixation | 3 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

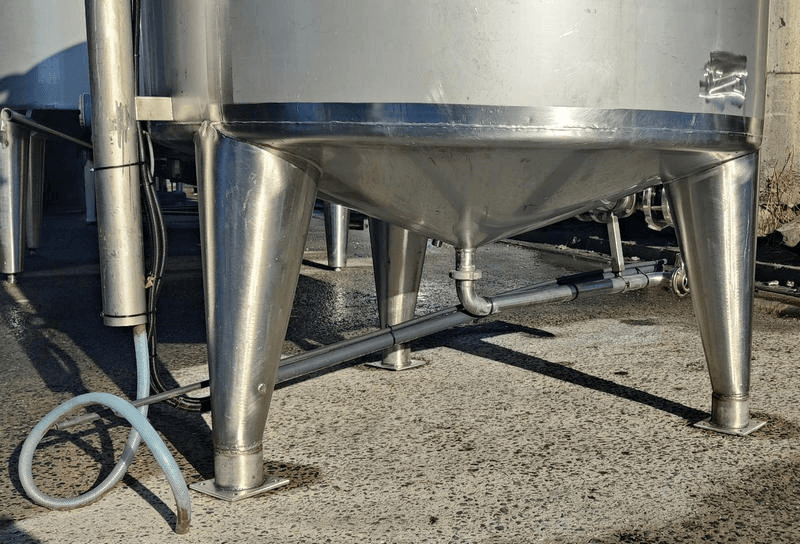

| Bottom | Conical bottom |
| Tank model | Single wall |
| Number lifting lugs | 3 |

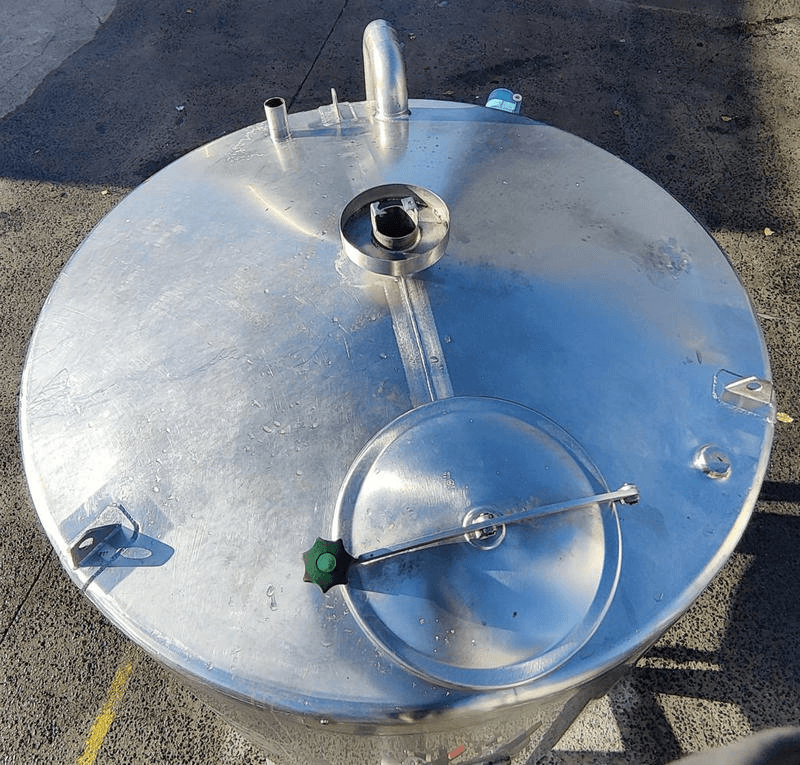

| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | dia. 425mm |
| Tank with total drain? | Yes |

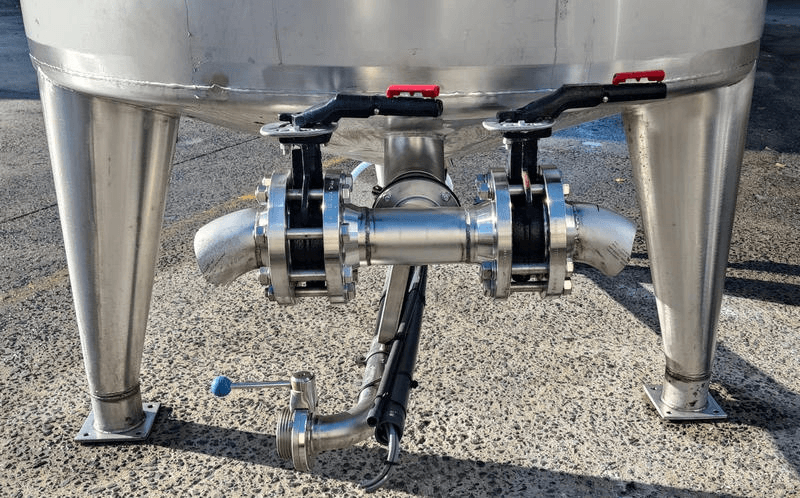

| Type of outlet (s) | man. vlinderklep |
| Diameter of outlet (mm) | 50 |
| locality | B-7711 Belgium |
| Provision tank cleaning | None |
| Weight (kg) | 600 |
| Condition | Used |

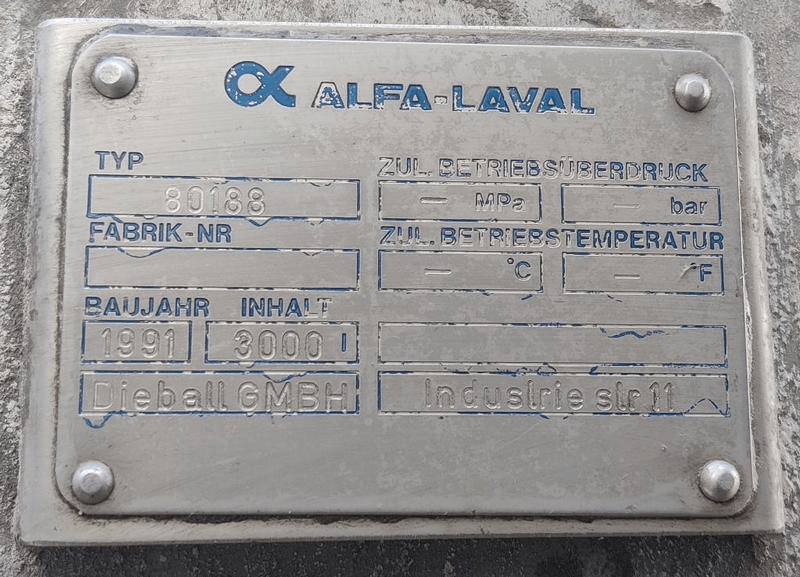

| Type plate manufacturer | Yes |
| Manufacturer | Alfa-Laval |
| Year Built | 1991 |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Thickness closed dome (mm) | 2,8 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 2,9 |
| Bottom thickness (mm) | 2,6 |
| Periphery (mm) | 5050 |
| Cylindrical length (mm) | 1500 |
| Height bottom (mm) | 200 |
| Total height (mm) | 2700 |
| Length (mm) | 1960 |
| Diameter tank (mm) | 1600 |
| Width (mm) | 1610 |
| Insulation | |
|---|---|
| Insulation | No |
