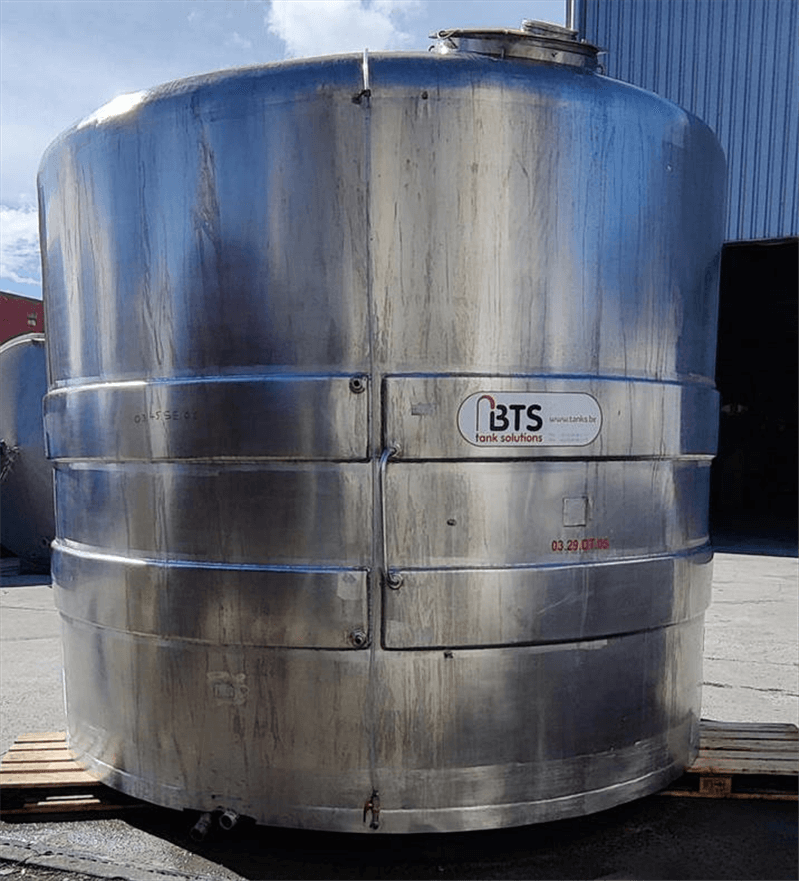

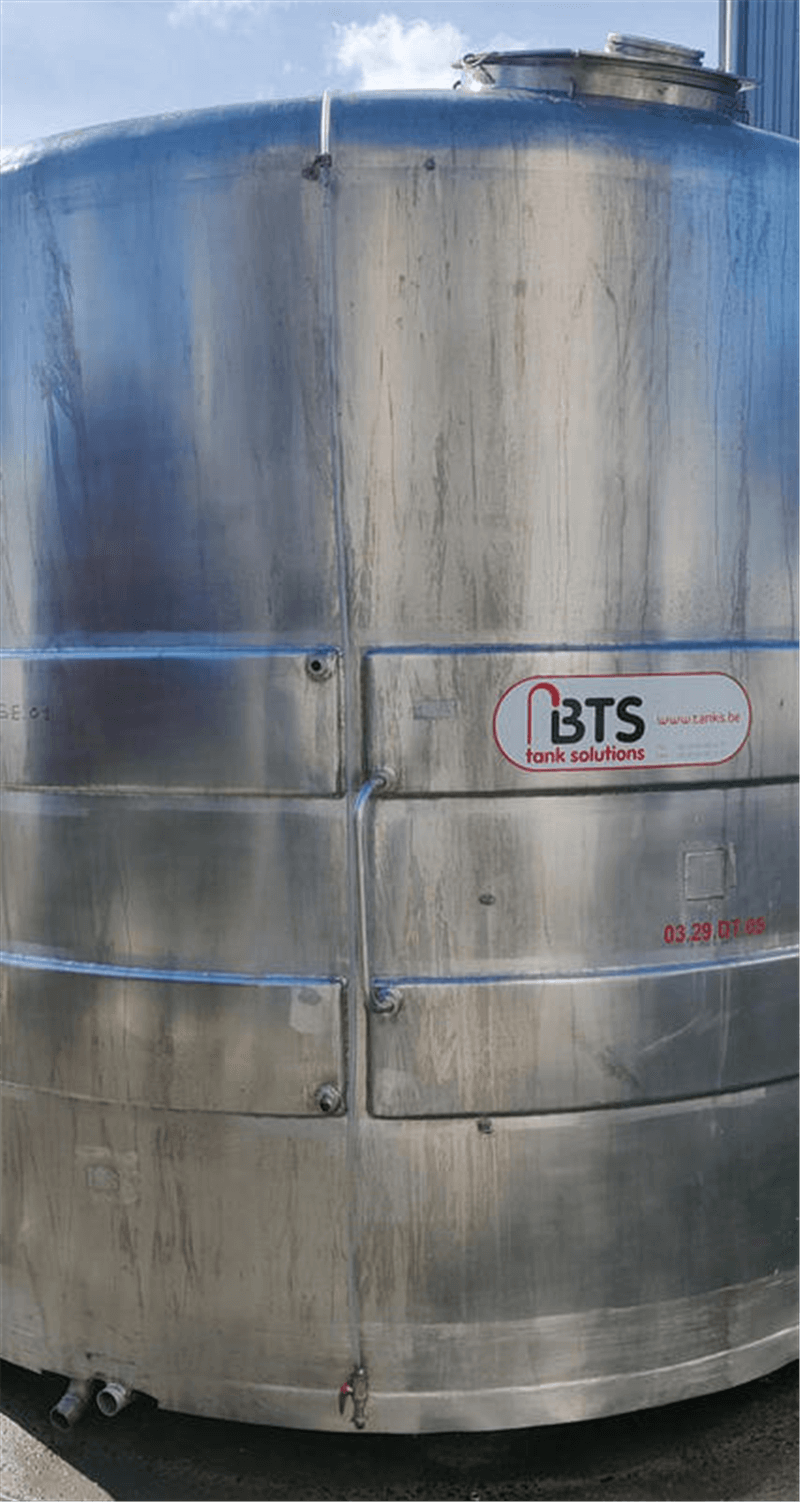

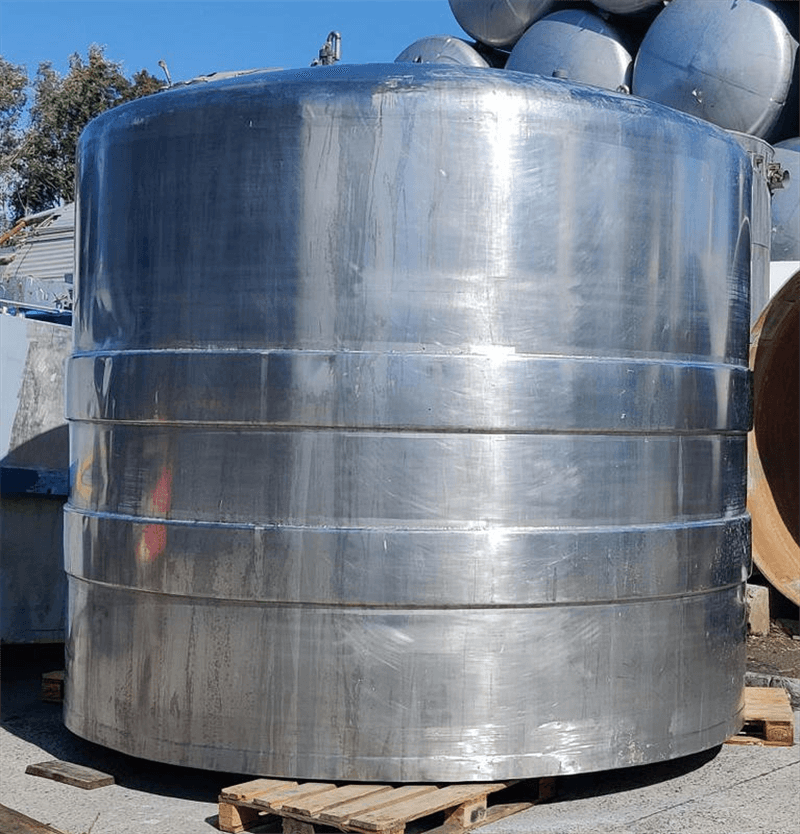

Used storage tank
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 25000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.45.SE.01 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 25000 |
| Type tank | Storage tank |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Flat bottom |

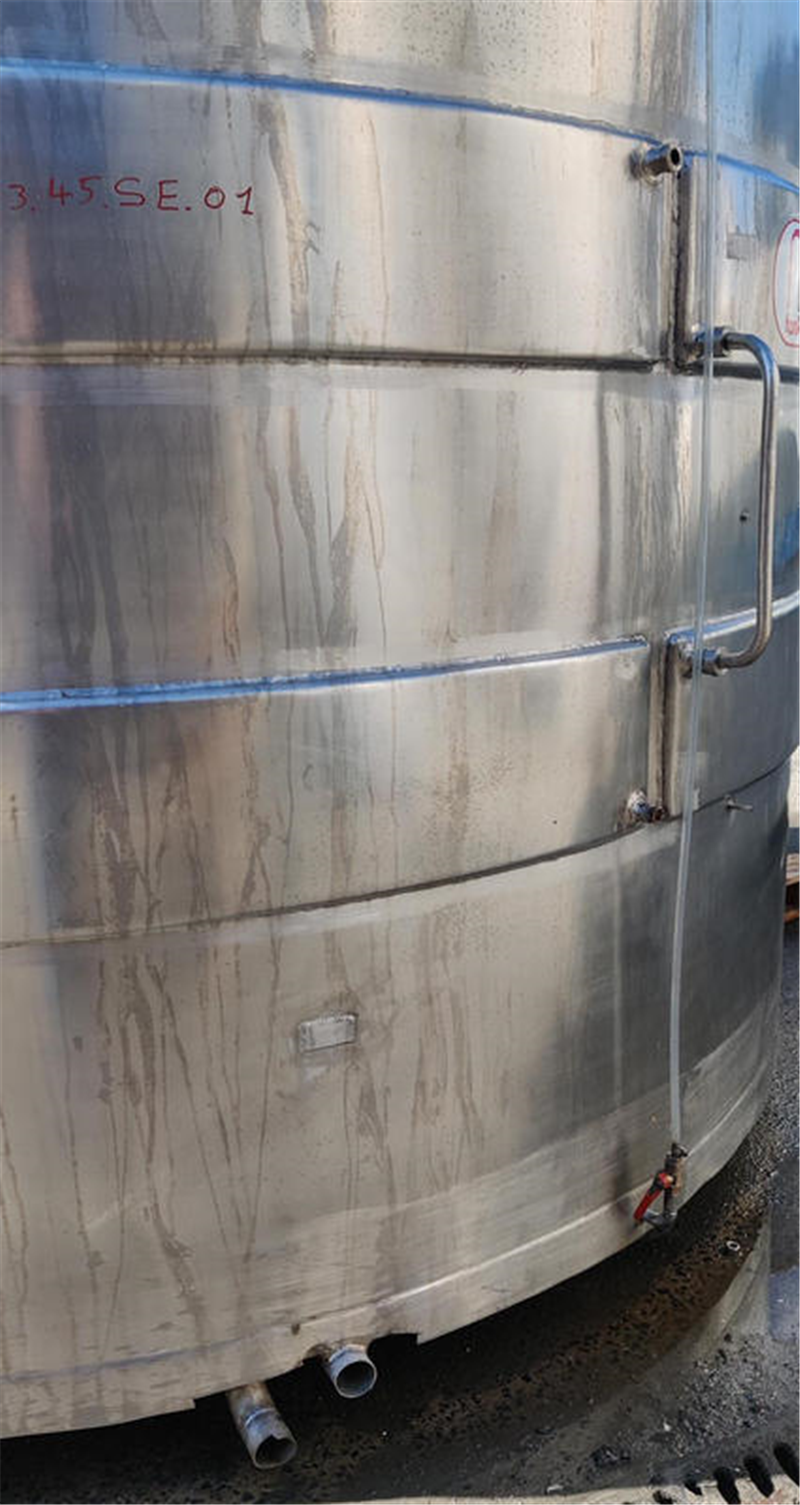

| Tank model | Jacketed (Heating/Cooling) |
| Number lifting lugs | 1 |

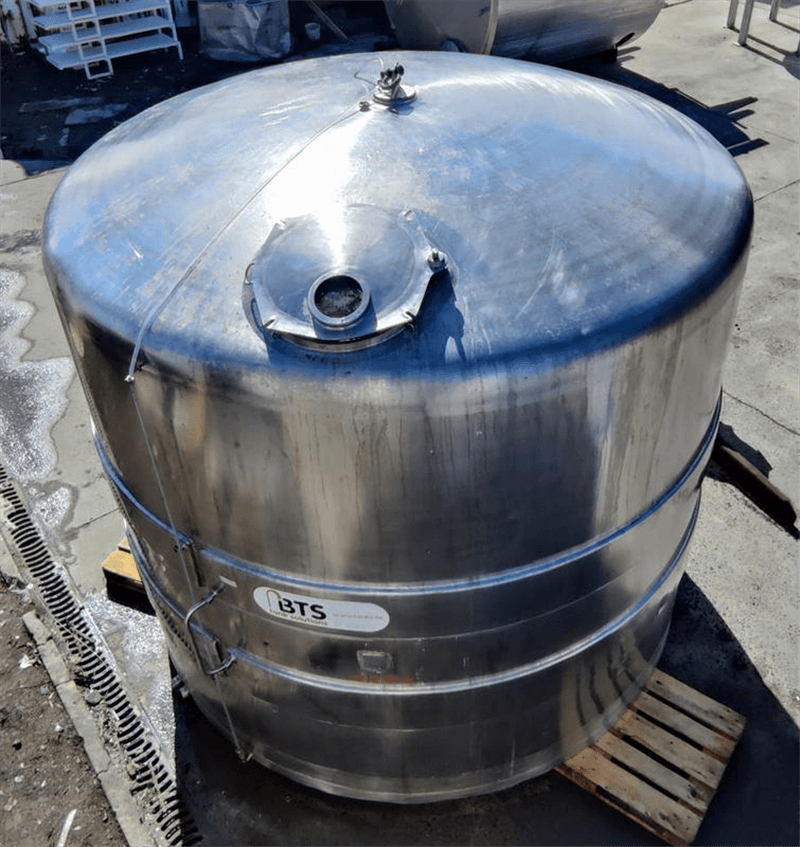

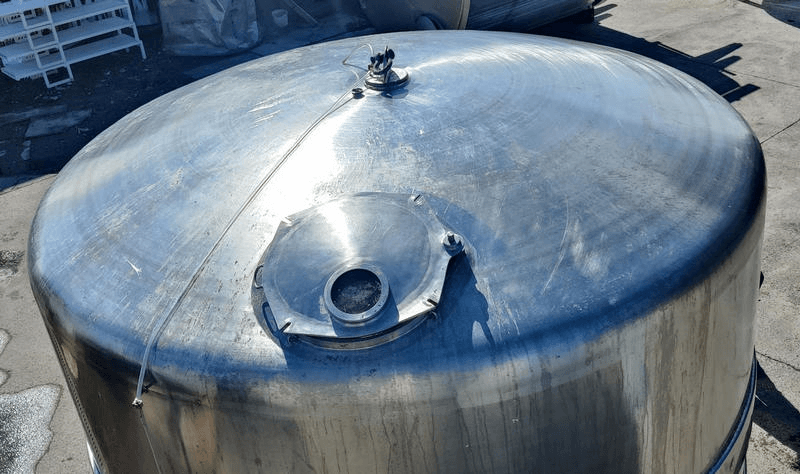

| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | dia 600mm |
| Tank with total drain? | Yes |

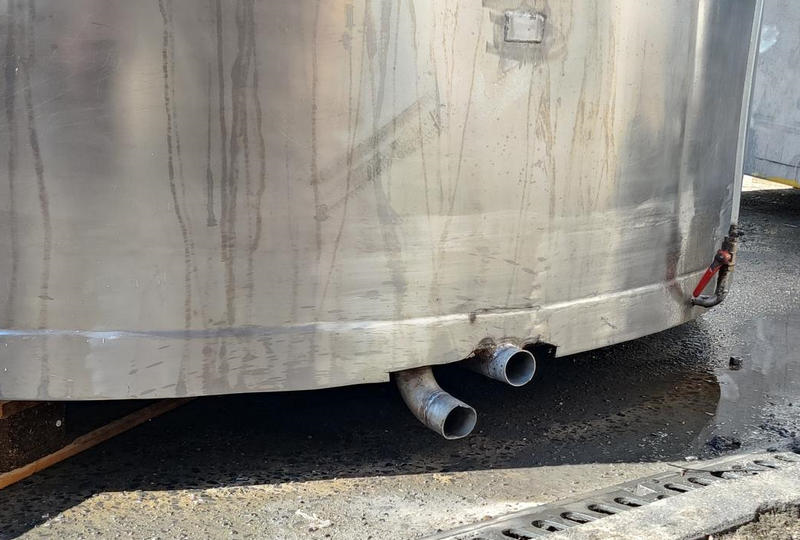

| Type of outlet (s) | buiseind |
| Diameter of outlet (mm) | 55 |
| locality | B-7711 Belgium |
| Provision tank cleaning | None |
| Weight (kg) | 2000 |
| Condition | Used |
| Type plate manufacturer | No |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Dished bottom |
| Thickness closed dome (mm) | 3,3 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 3,5 |
| Bottom thickness (mm) | 3,6 |
| Periphery (mm) | 10640 |
| Cylindrical length (mm) | 2650 |
| Outside diameter tank (mm) | 3390 |
| Total height (mm) | 3400 |
| Length (mm) | 3390 |
| Diameter tank (mm) | 3330 |
| Width (mm) | 3390 |
| Insulation | |
|---|---|
| Insulation | No |
| Heating | |
|---|---|
| Number of heating type | 1 |
| Heating 1: Type | jacket au bain-marie |
| Remarks | |
|---|---|

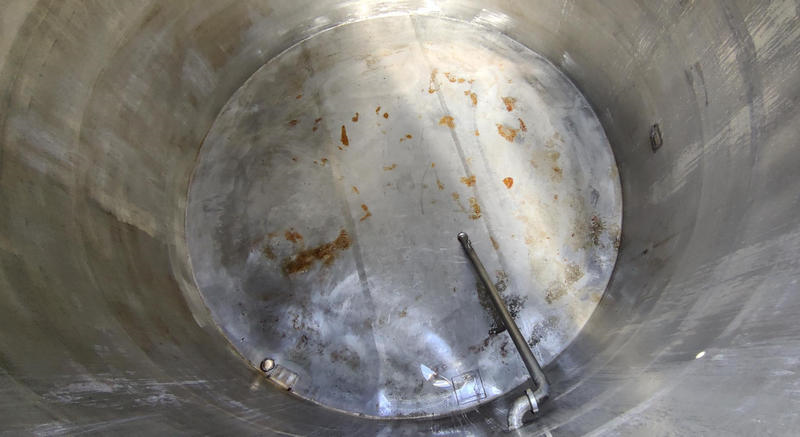

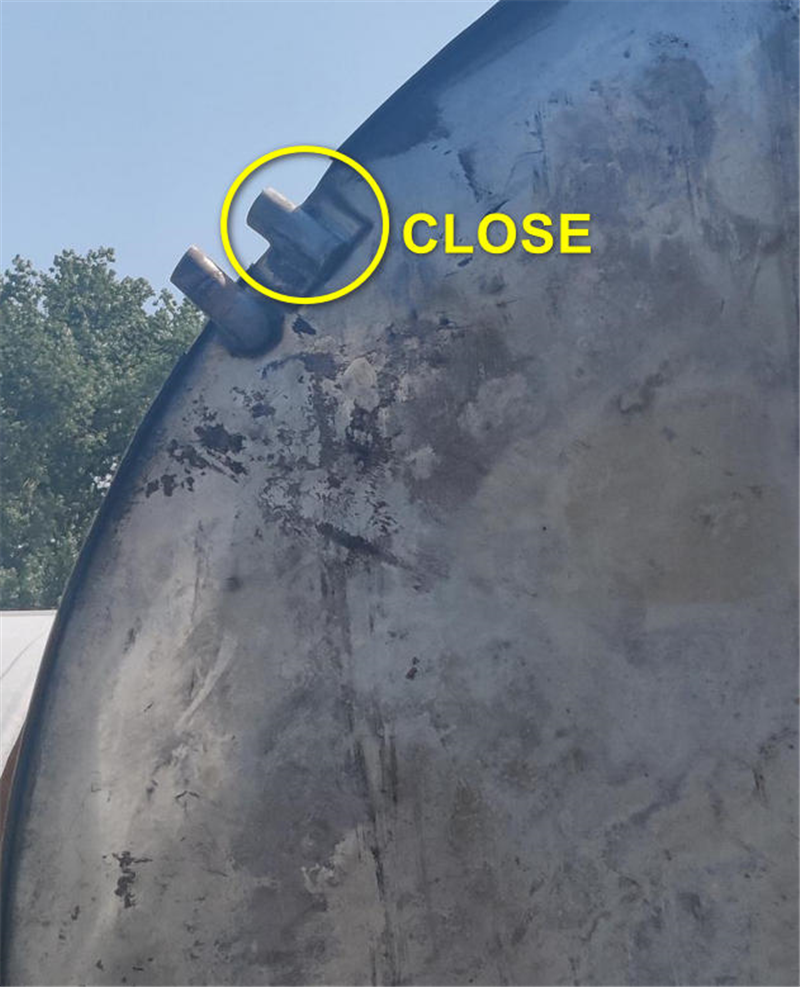

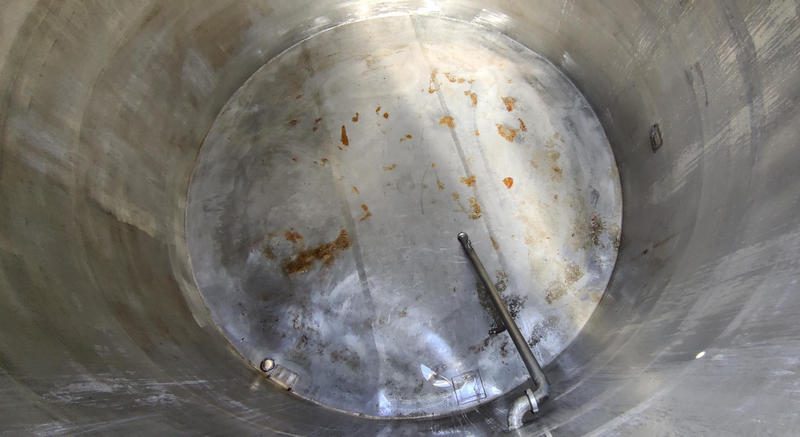

| Description (EN) | one drain is closed (welded) inside the tank |
