Used storage tank
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 4750 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.45.RA.04 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 4750 |
| Type tank | Storage tank |

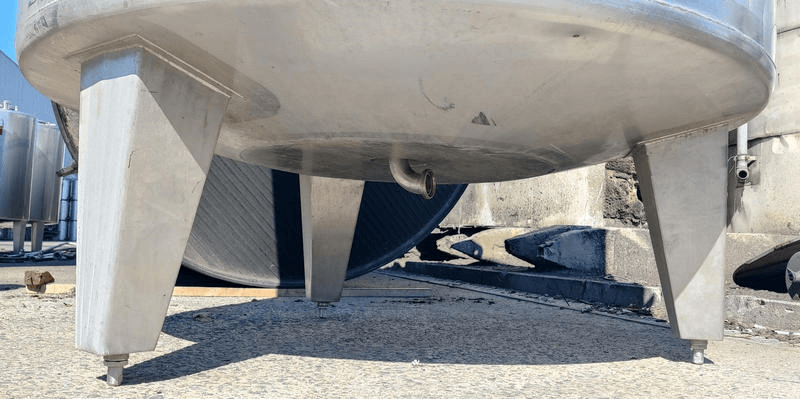

| Fixation | 3 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Dished bottom |
| Tank model | Jacketed (Heating/Cooling) |
| Number lifting lugs | 2 |

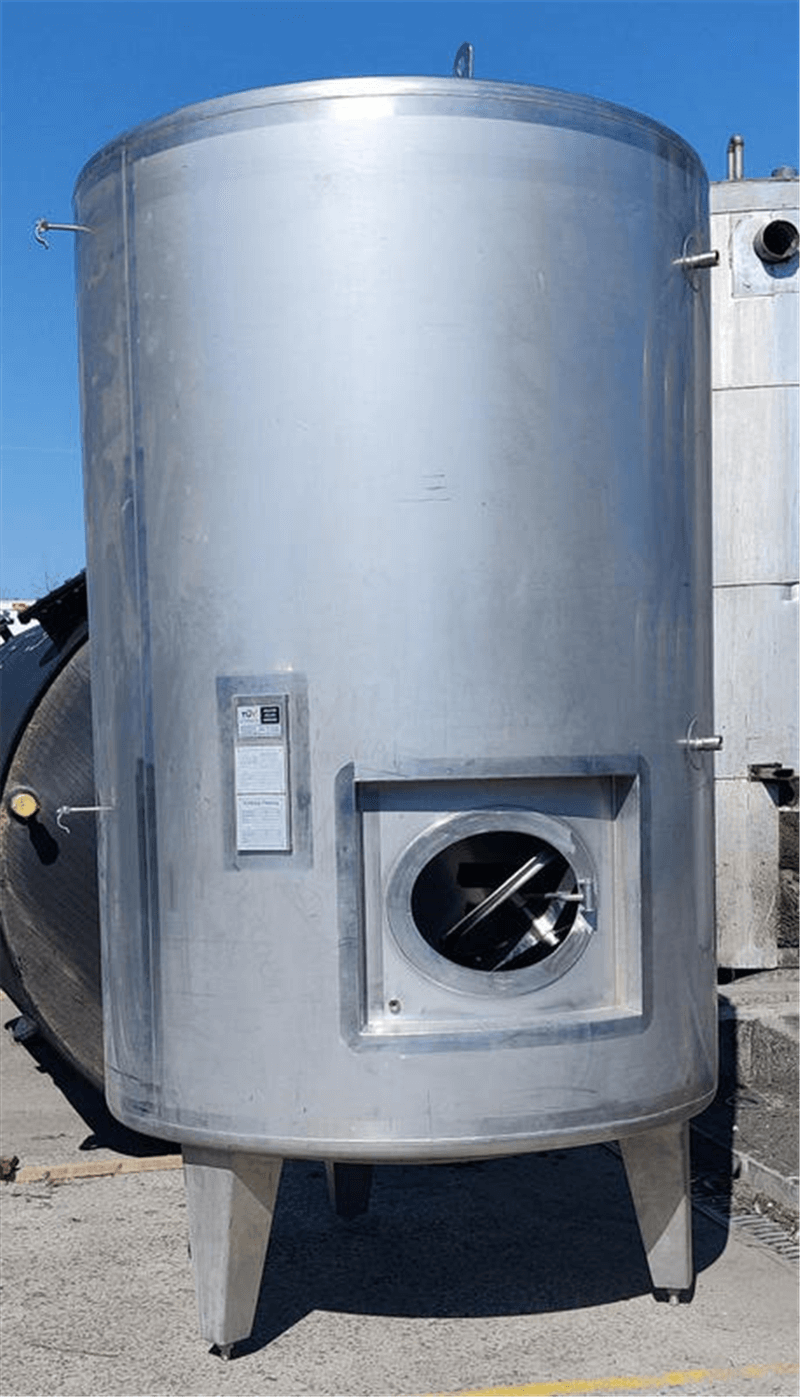

| Number of manhole | 1 |
| Position of manhole (s) | cylindrical part |
| Dimensions of manholes | 440x345mm |
| Tank with total drain? | Yes |
| Type of outlet (s) | voedingskoppeling |
| Diameter of outlet (mm) | DN50 |
| locality | B-7711 Belgium |
| Last application | Food |
| Provision tank cleaning | CIP ball |
| Weight (kg) | 1400 |
| Condition | Used |

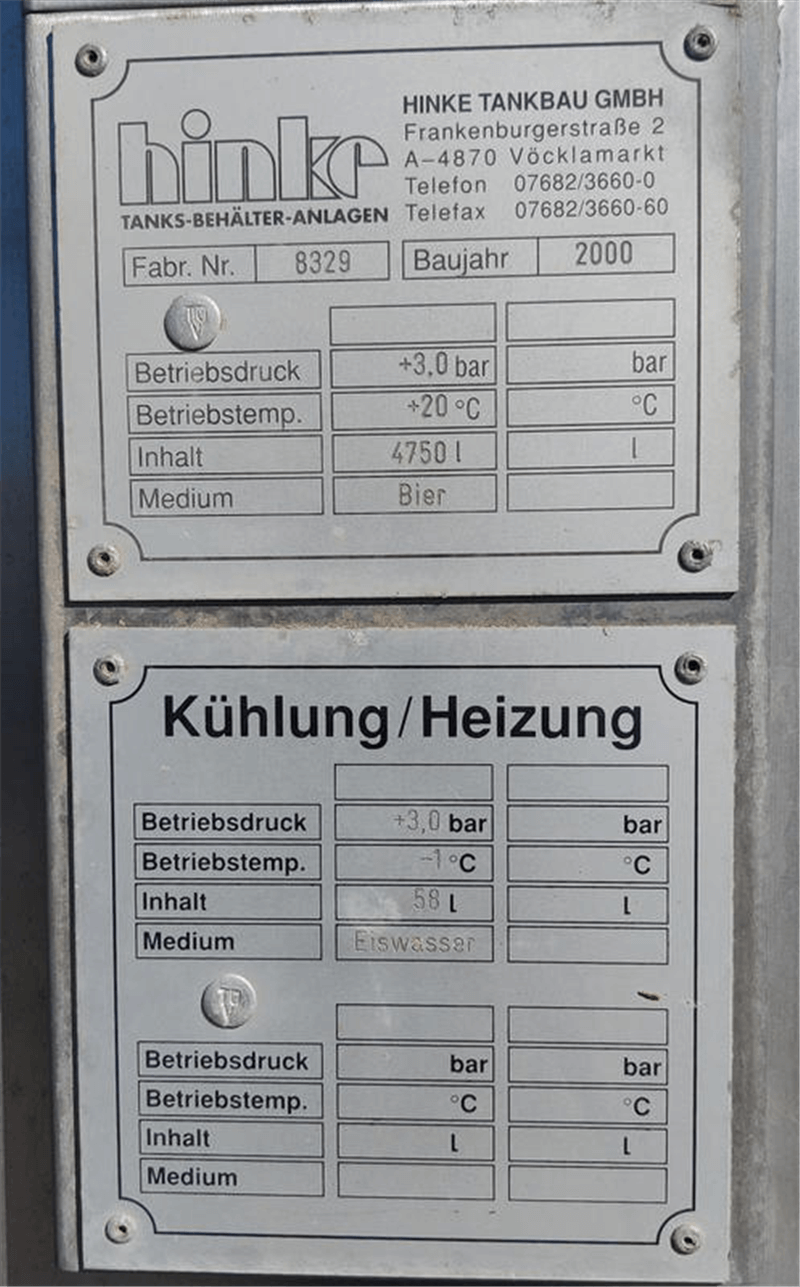

| Type plate manufacturer | Yes |
| Manufacturer | HINKE |
| Year Built | 2000 |
| Top side | |
|---|---|

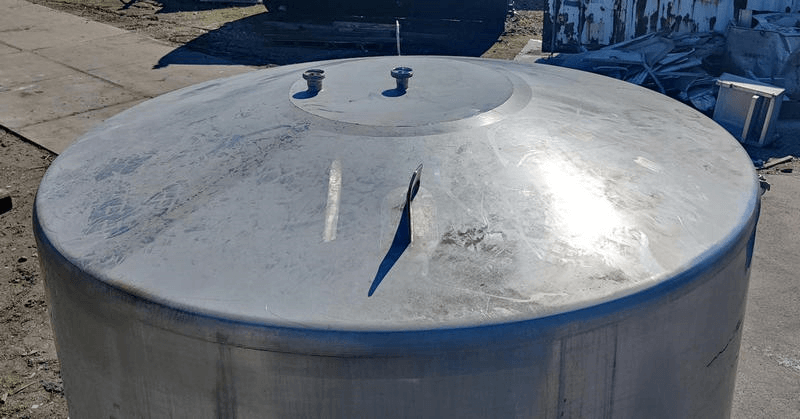

| Configuration top-side | Closed |
| Detail closed top side | Dished bottom |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 4,3 |
| Bottom thickness (mm) | 5,2 |
| Periphery (mm) | 5480 |
| Cylindrical length (mm) | 2400 |
| Height bottom (mm) | 100 |
| Outside diameter tank (mm) | 1745 |
| Total height (mm) | 3300 |
| Length (mm) | 1845 |
| Diameter tank (mm) | 1575 |
| Width (mm) | 1745 |
| Heating | |
|---|---|
| Number of heating type | 1 |
| Heating 1: Type | jacket au bain-marie |
| Remarks | |
|---|---|
| Description (EN) | working pressure +3 bar --- working temp +20°C --- working pressure jacket +3 bar --- working temp jacket -1°C (ice water) |
