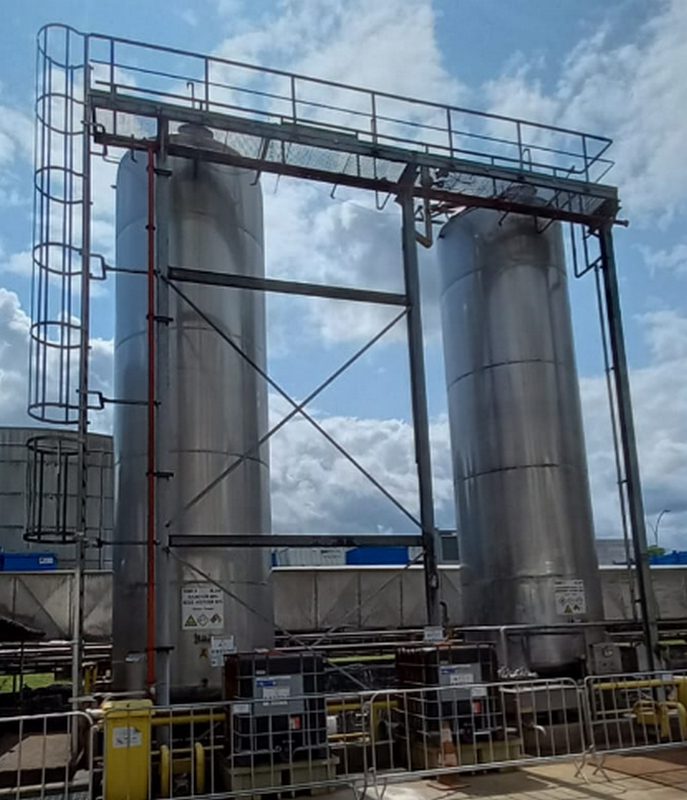

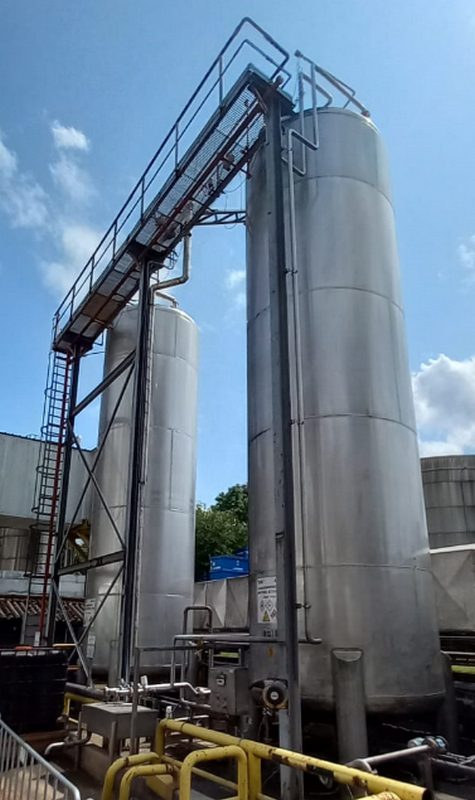

Used storage tank
- Material: Stainless steel 316
- Condition: Used
- Volume (in litres): 48200 L
- In stock: 1
| General | |
|---|---|
| Material | Stainless steel 316 |
| Number | 1 |
| Group | Tank |
| Co-owner | Belgian Tanks Solutions |
| Condition | Used |
| Year Built | 1999 |
| Design Code | ASME VIII div1 |
| Show Online? | Yes |
| Tank | |
|---|---|
| Capacity (Liters) | 48200 |
| Type tank | Storage tank |
| Fixation | 4 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Dished bottom |
| Tank model | Jacketed (leak detection) |
| Number lifting lugs | 3 |
| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | dia. 500mm |
| Tank with total drain? | Yes |
| Type of outlet (s) | flens |
| Diameter of outlet (mm) | DN80 |
| locality | On location |
| Municipality or region | Groot-Bijgaarden |
| Dimensions | |
|---|---|
| Thickness closed dome (mm) | 6 |
| Cylinder Thickness (mm) | 6 |
| Bottom thickness (mm) | 6 |
| Cylindrical length (mm) | 8750 |
| height bottom (mm) | 500 |
| height bottom (mm) | 500 |
| height bottom (mm) | 500 |
| Outer wall thickness (mm) | 3 |
| Outer wall thickness (mm) | 3 |
| Outside diameter tank (mm) | 2620 |
| Total height (mm) | 11000 |
| Diameter tank (mm) | 2600 |
| Width (mm) | 2620 |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Dished head |
