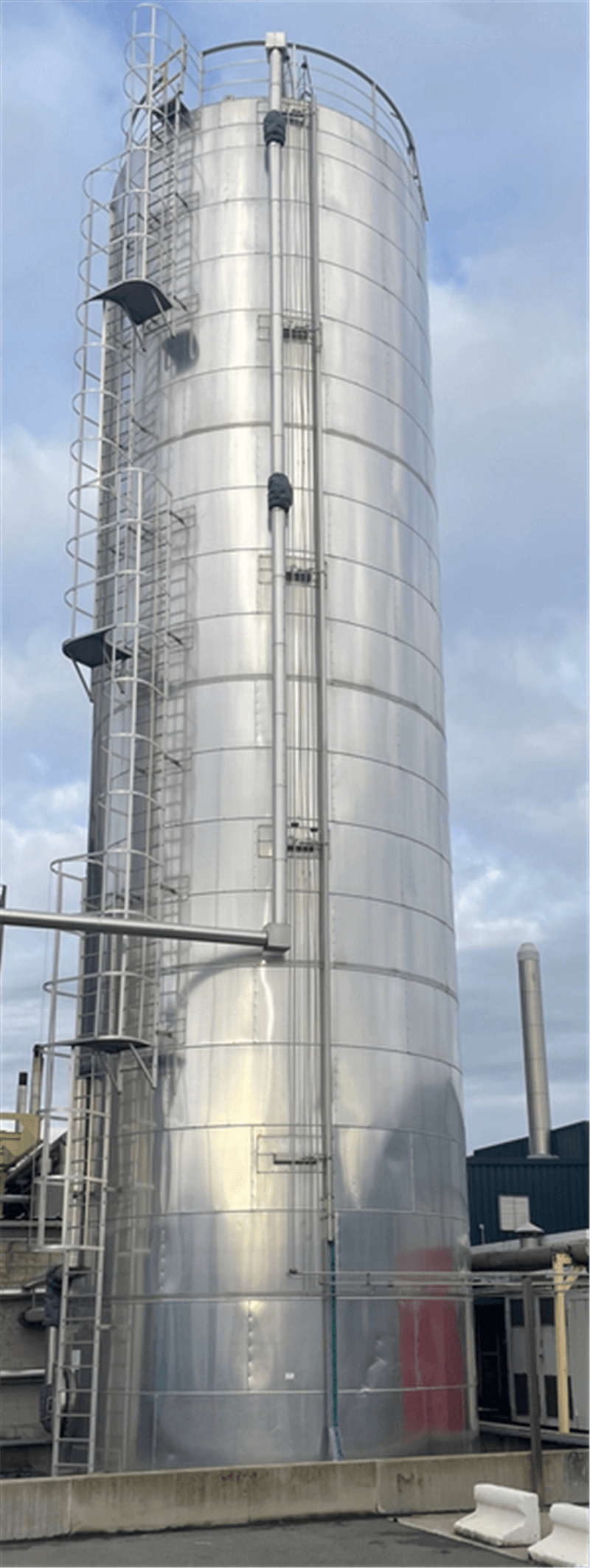

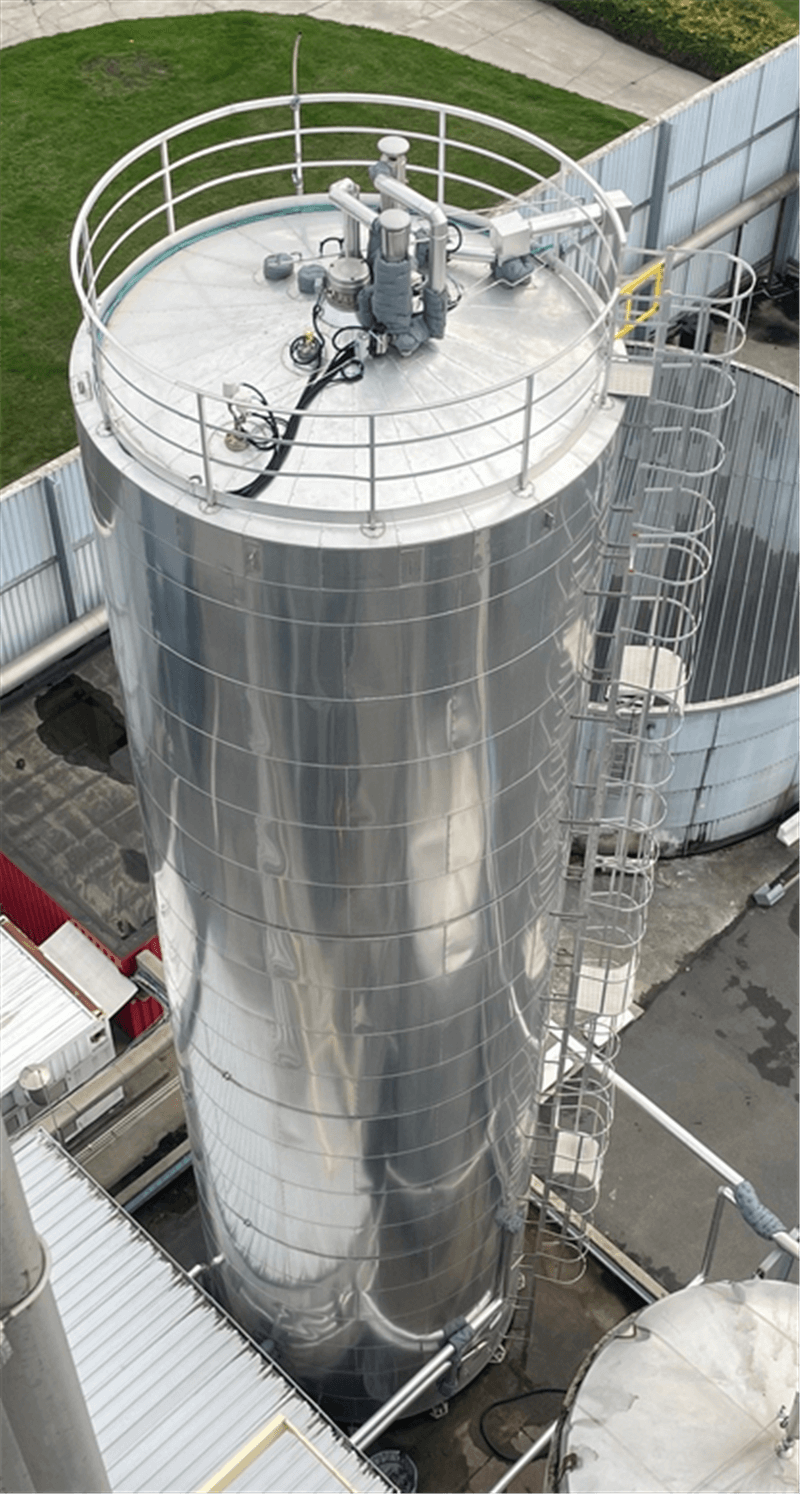

Used storage tank
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 350000 L
- In stock: 1
| General | |
|---|---|
| Material | Stainless steel 304 |
| Number | 1 |
| Group | Tank |
| Co-owner | Belgian Tanks Solutions |
| Condition | Used |

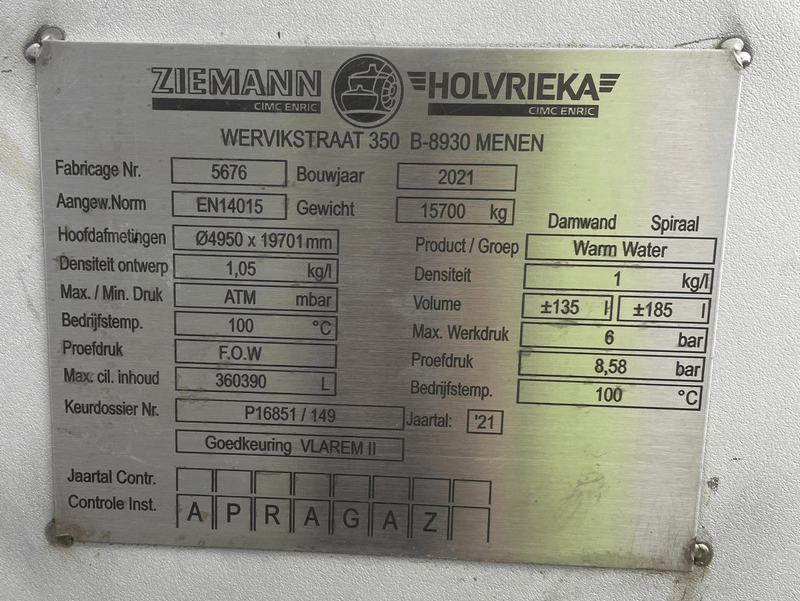

| Type plate manufacturer | Yes |
| Manufacturer | Ziemann/Holvrieka |
| Year Built | 2021 |
| Construction data available | Yes |
| Working temperature (° C) | 95 |
| Show Online? | Yes |
| Tank | |
|---|---|
| Finishing weldings inside | Grinded |
| Finishing weldings inside | Grinded |
| Finishing weldings inside | Grinded |
| Finishing weldings inside | Grinded |
| Capacity (Liters) | 350000 |
| Type tank | Storage tank |

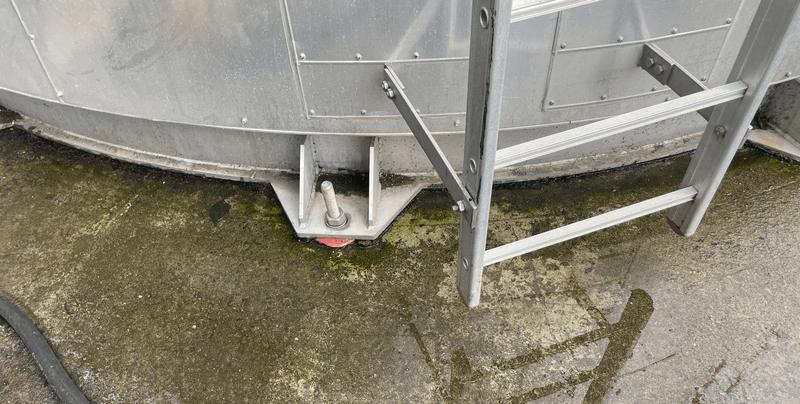

| Fixation | Skirt |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Inclined bottom |
| Tank model | Jacketed (Heating/Cooling) |
| Number lifting lugs | 2 |
| Density (kg/dm³) | 1.05 |

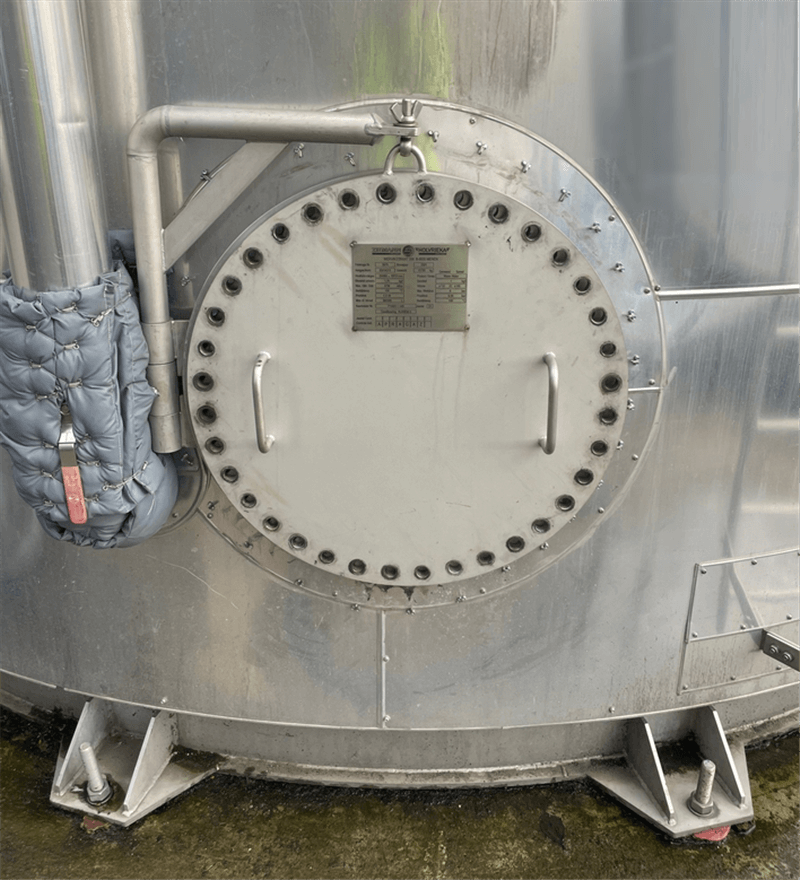

| Number of manhole | 1 |
| Position of manhole (s) | cylindrical part |
| Dimensions of manholes | dia 600mm |
| Tank with total drain? | Yes |
| Type of outlet (s) | DN40 |
| locality | On location |
| Municipality or region | Kruisem |
| Provision tank cleaning | None |
| Dimensions | |
|---|---|
| Thickness closed dome (mm) | 5 |
| Cylinder Thickness (mm) | 4.5 |
| Bottom thickness (mm) | 6 |
| Cylindrical length (mm) | 18750 |
| Thickness (mm) | 100 |
| Outside diameter tank (mm) | 5320 |
| Total height (mm) | 20435 |
| Diameter tank (mm) | 4950 |
| Width (mm) | 5320 |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Conical head |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | cylinder and top isolated |
| Type of insulation | Insulating wool |
| Finishing insulation | Rivited sheet cladding |
| Insulation material | Aluminium |
| Heating | |
|---|---|
| Number of heating type | 1 |

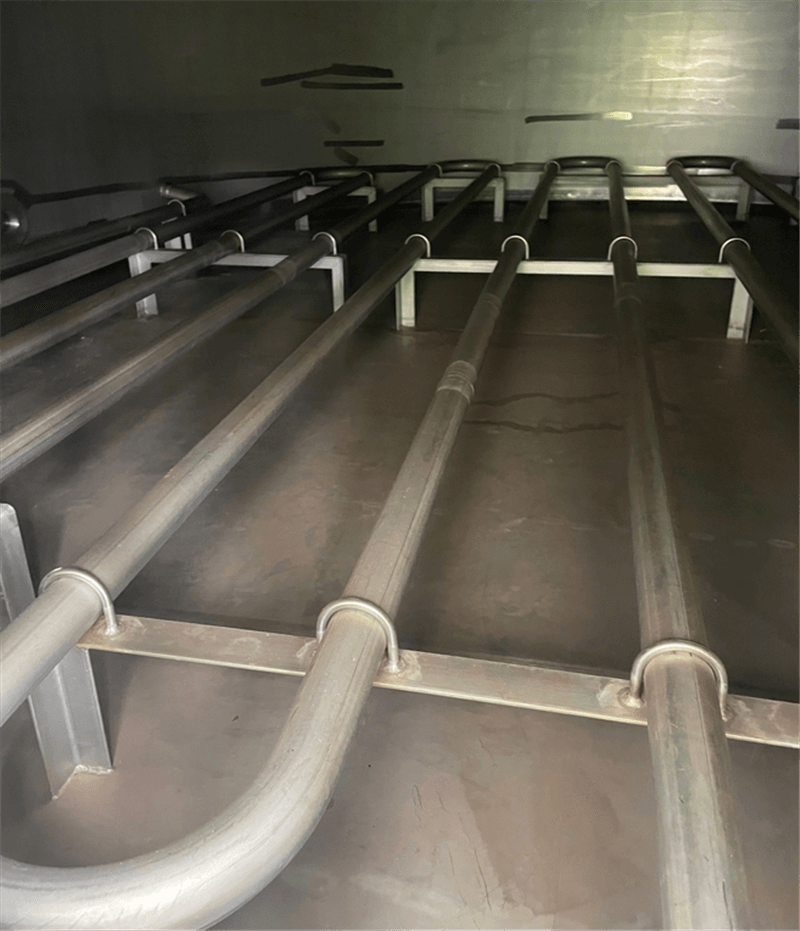

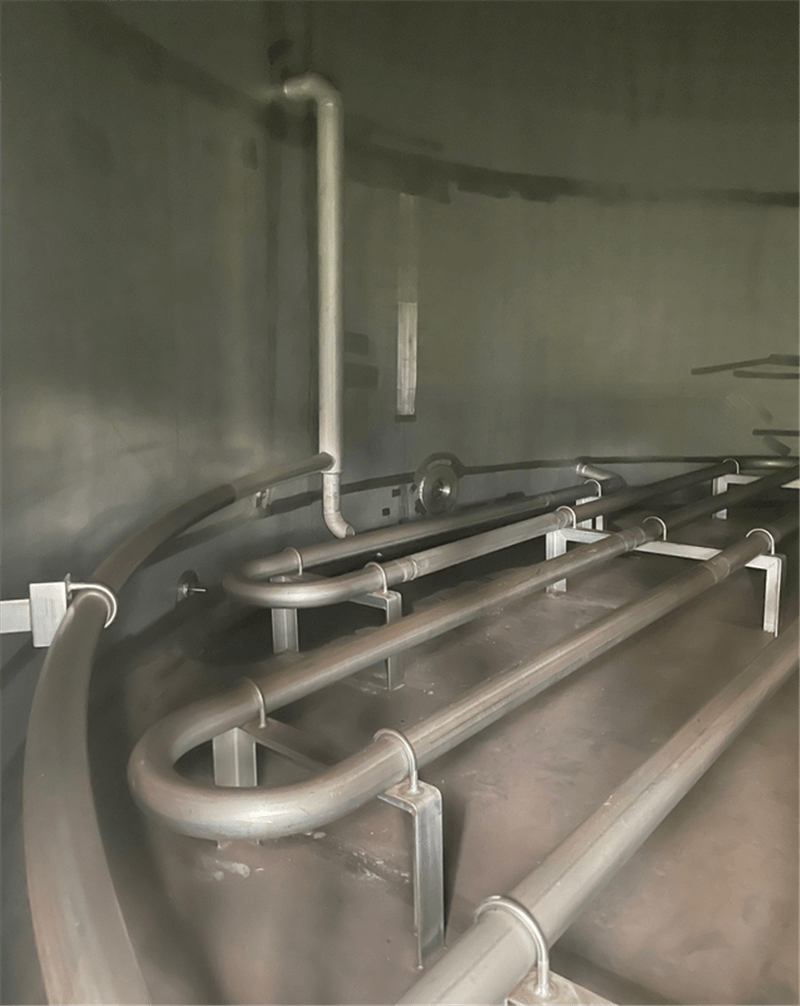

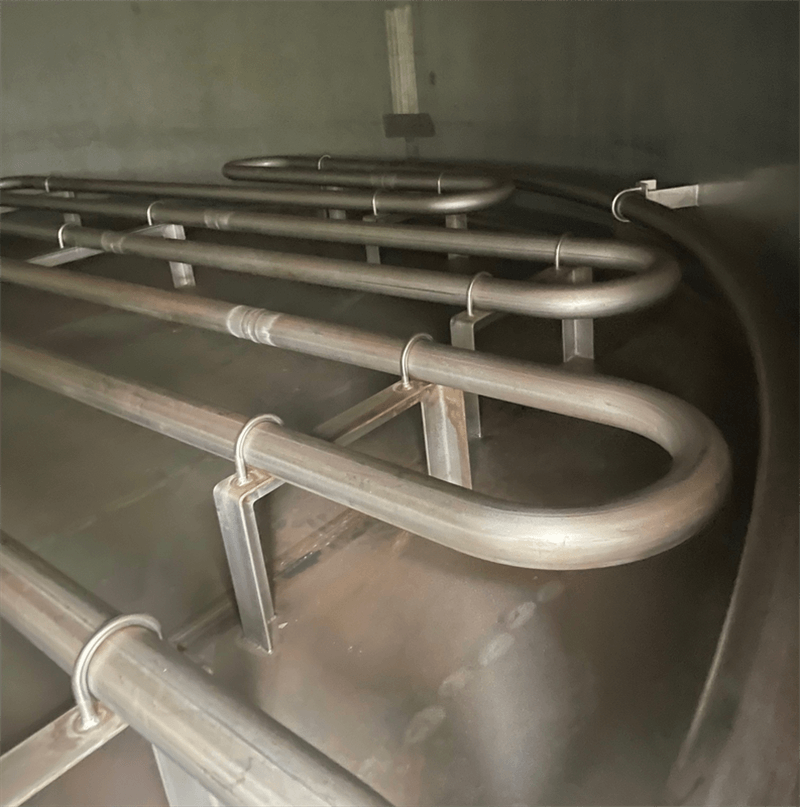

| Heating 1: Type | Heating coil on bottom and cylinder |
| Heating 1: Max. service pressure | 6 |
| Heating 1: Max. test pressure | 8.58 |
| Heating 1: Max. design pressure °C | 95 |
