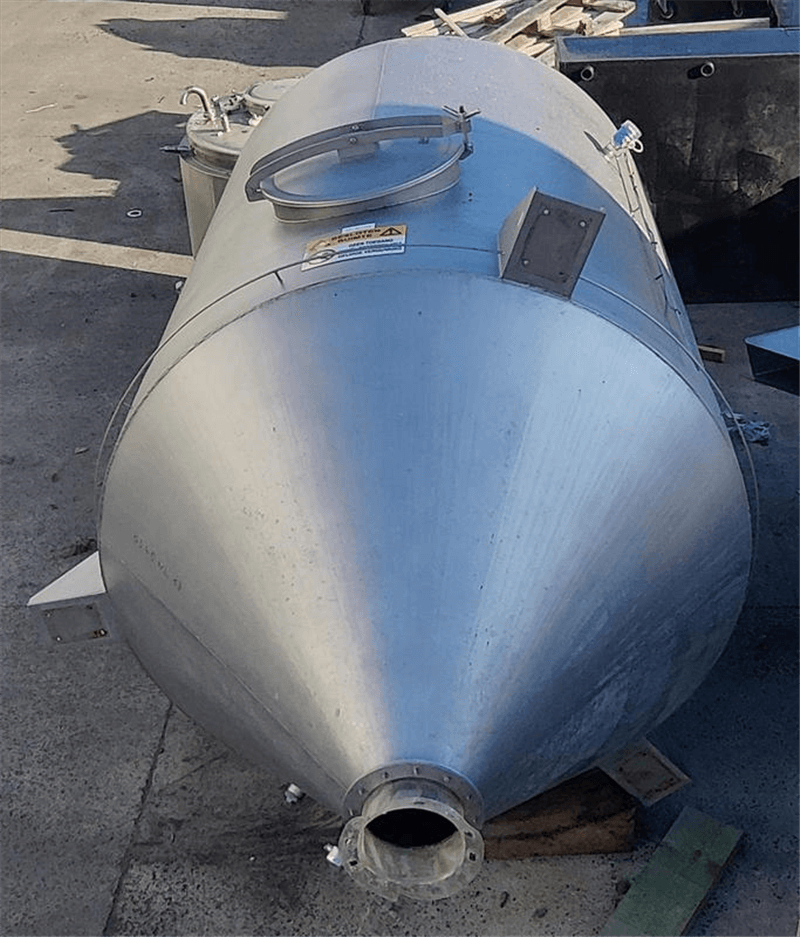

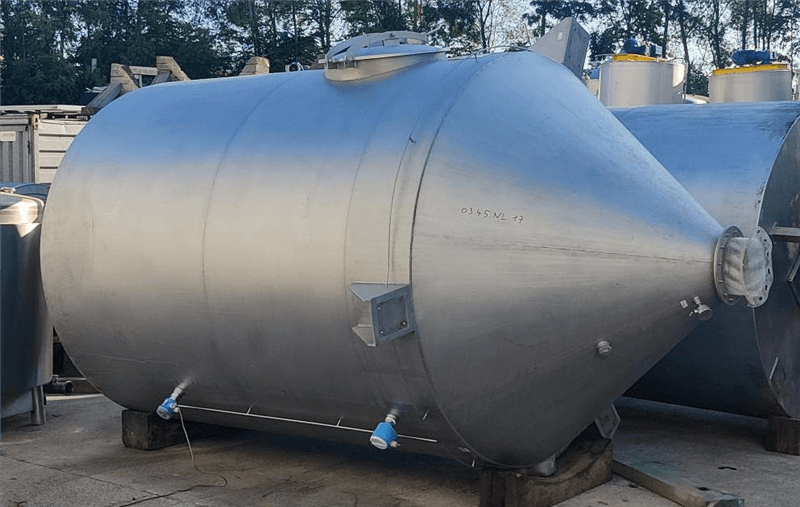

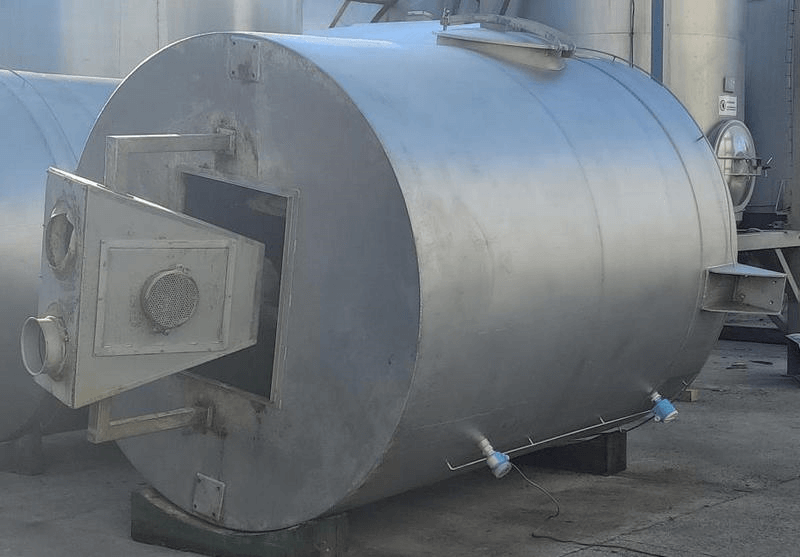

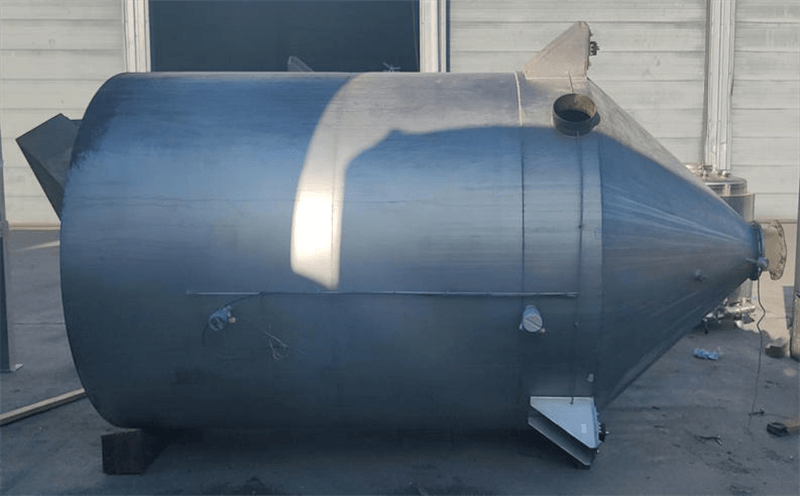

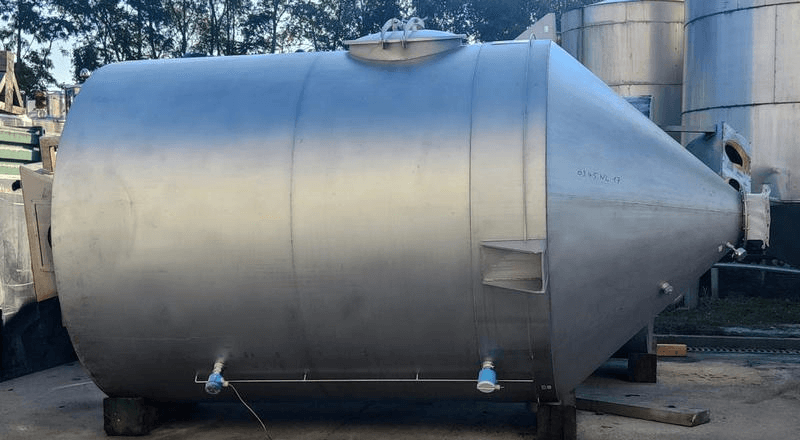

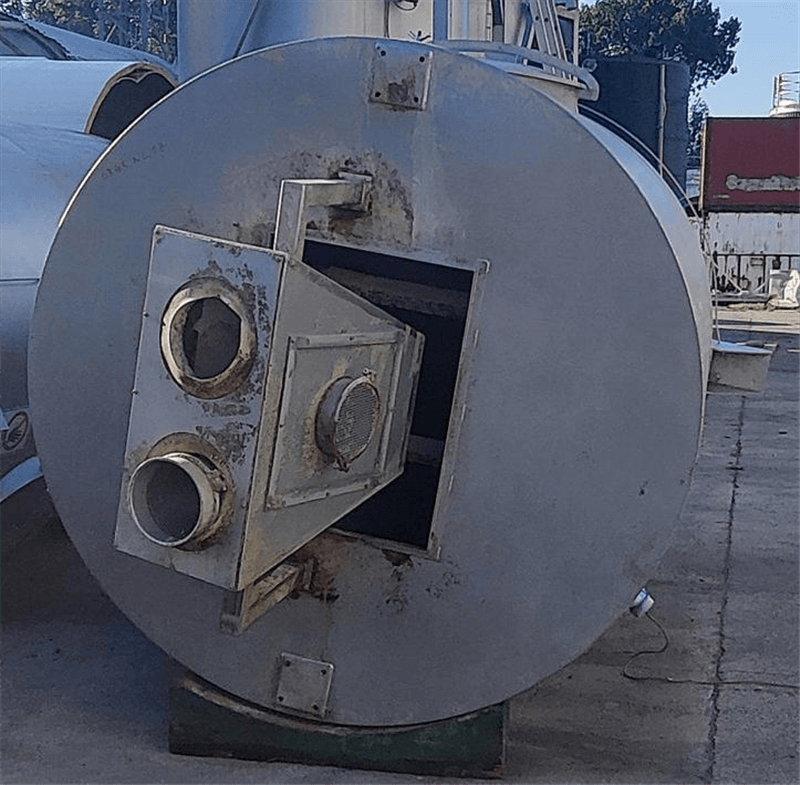

Used silo
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 9000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.45.NL.18 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 9000 |
| Type tank | Silo |
| Fixation | supports |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Conical bottom |
| Tank model | Single wall |
| Number of manhole | 1 |
| Position of manhole (s) | cylindrical part |
| Dimensions of manholes | dia 610mm |
| Tank with total drain? | Yes |
| Type of outlet (s) | flens |
| Diameter of outlet (mm) | 250 |
| locality | B-7711 Belgium |
| Provision tank cleaning | None |
| Weight (kg) | 1500 |
| Condition | Used |
| Type plate manufacturer | No |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Flat bottom |
| Thickness closed dome (mm) | 3,3 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 3,3 |
| Bottom thickness (mm) | 3,4 |
| Periphery (mm) | 6300 |
| Cylindrical length (mm) | 2500 |
| Slope bottom (°) | 18 |
| Height bottom (mm) | 1000 |
| Total height (mm) | 4350 |
| Length (mm) | 2450 |
| Diameter tank (mm) | 2000 |
| Width (mm) | 2300 |
| Insulation | |
|---|---|
| Insulation | No |
| Remarks | |
|---|---|

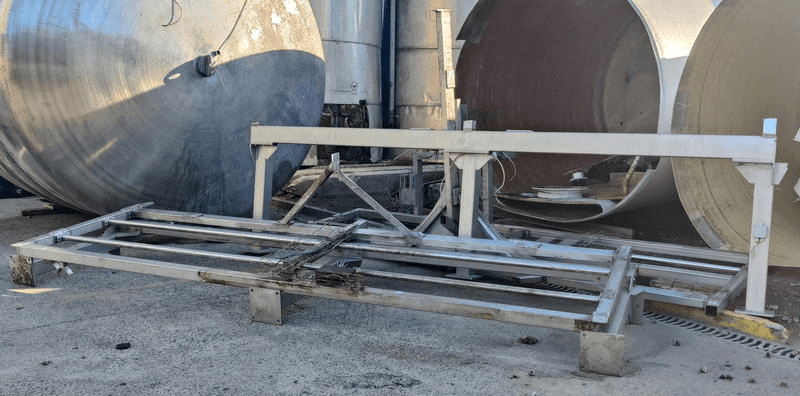

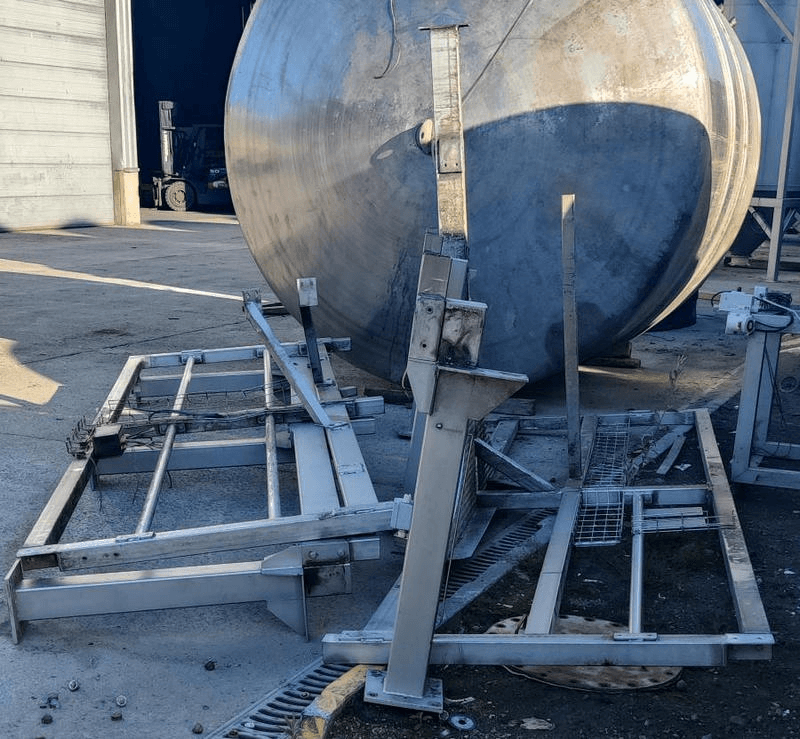

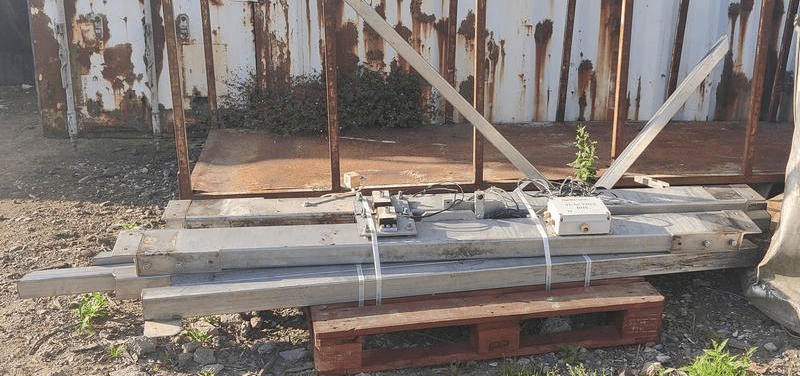

| Description (EN) | Support frame available for 03.45.NL.17 and 03.45.NL.18 together |
