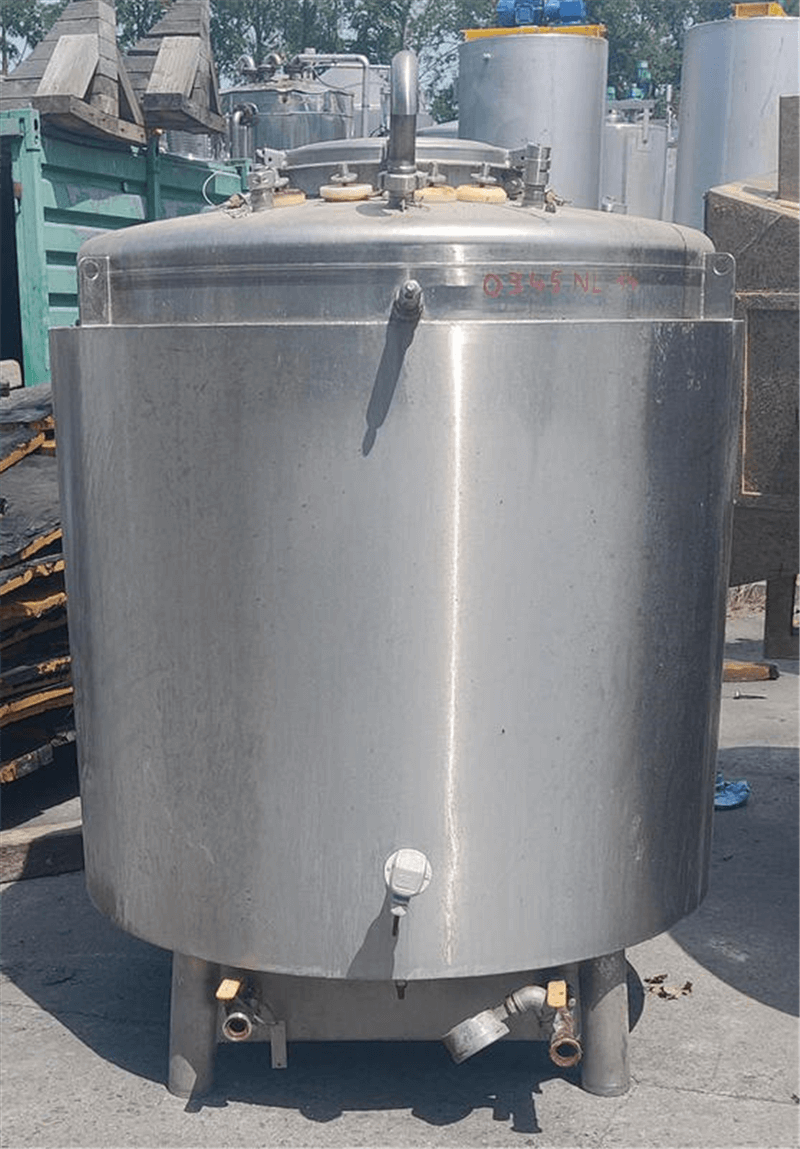

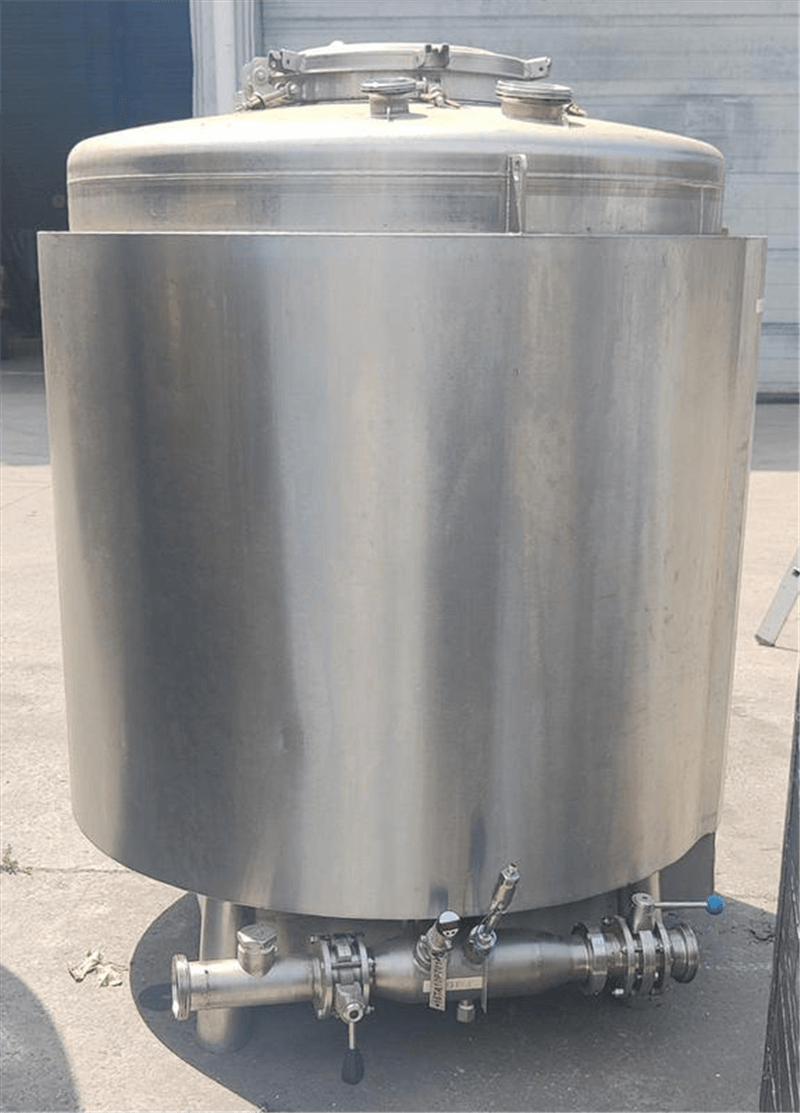

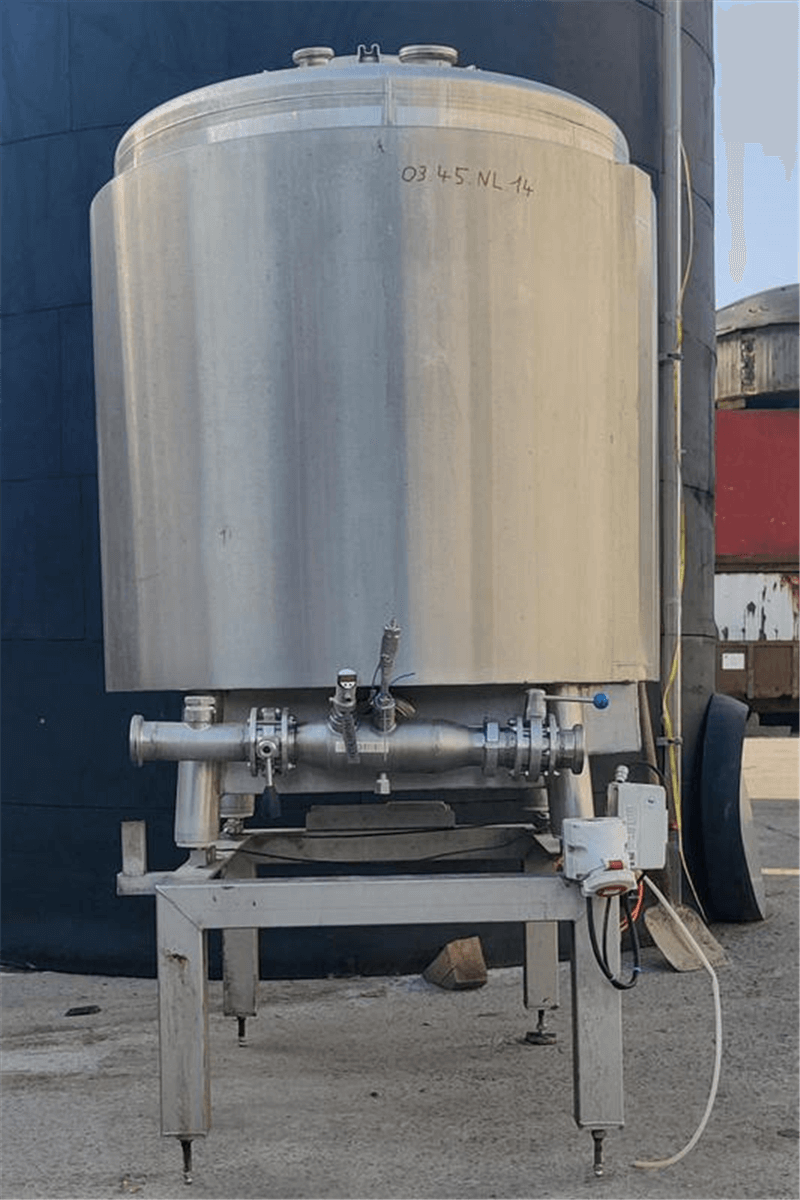

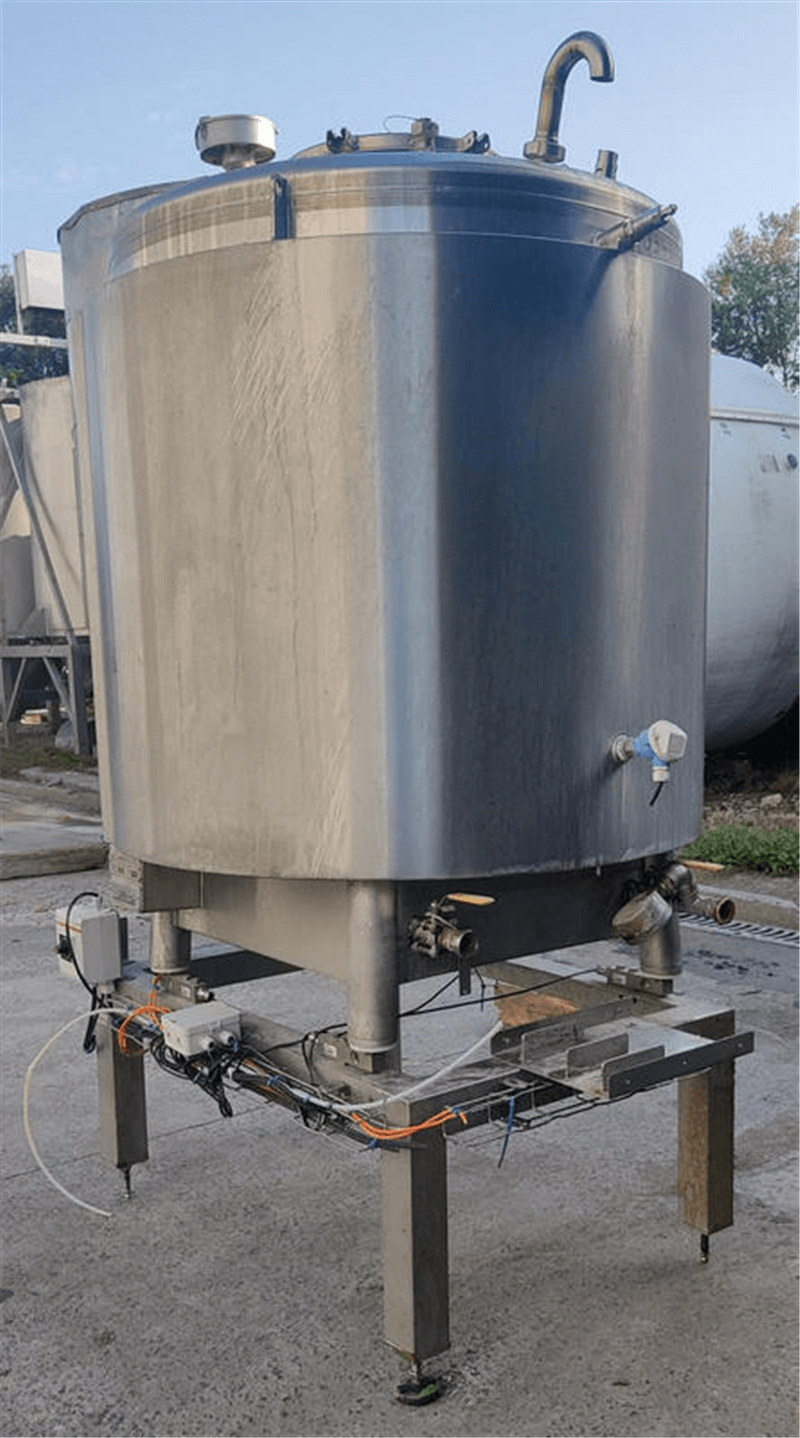

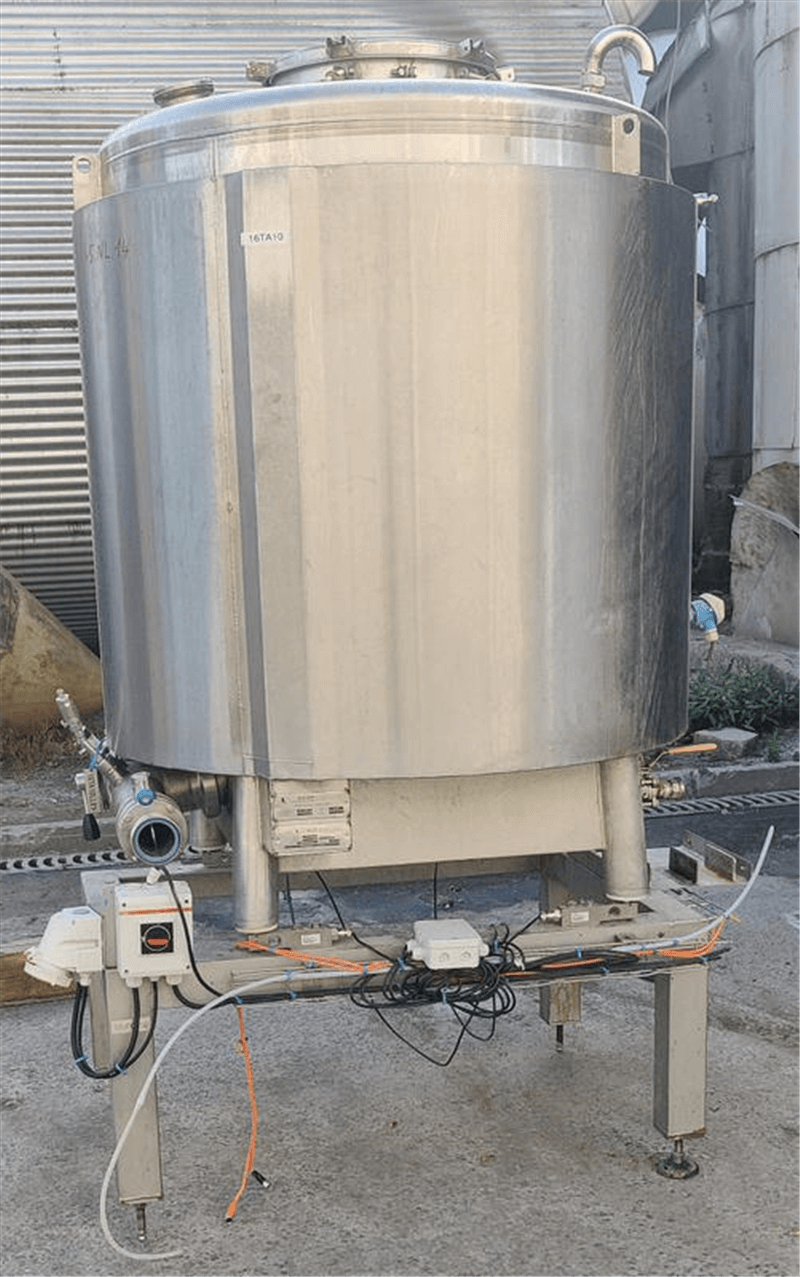

Used storage tank
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 1000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.45.NL.14 |
| Material | Stainless steel 304 |

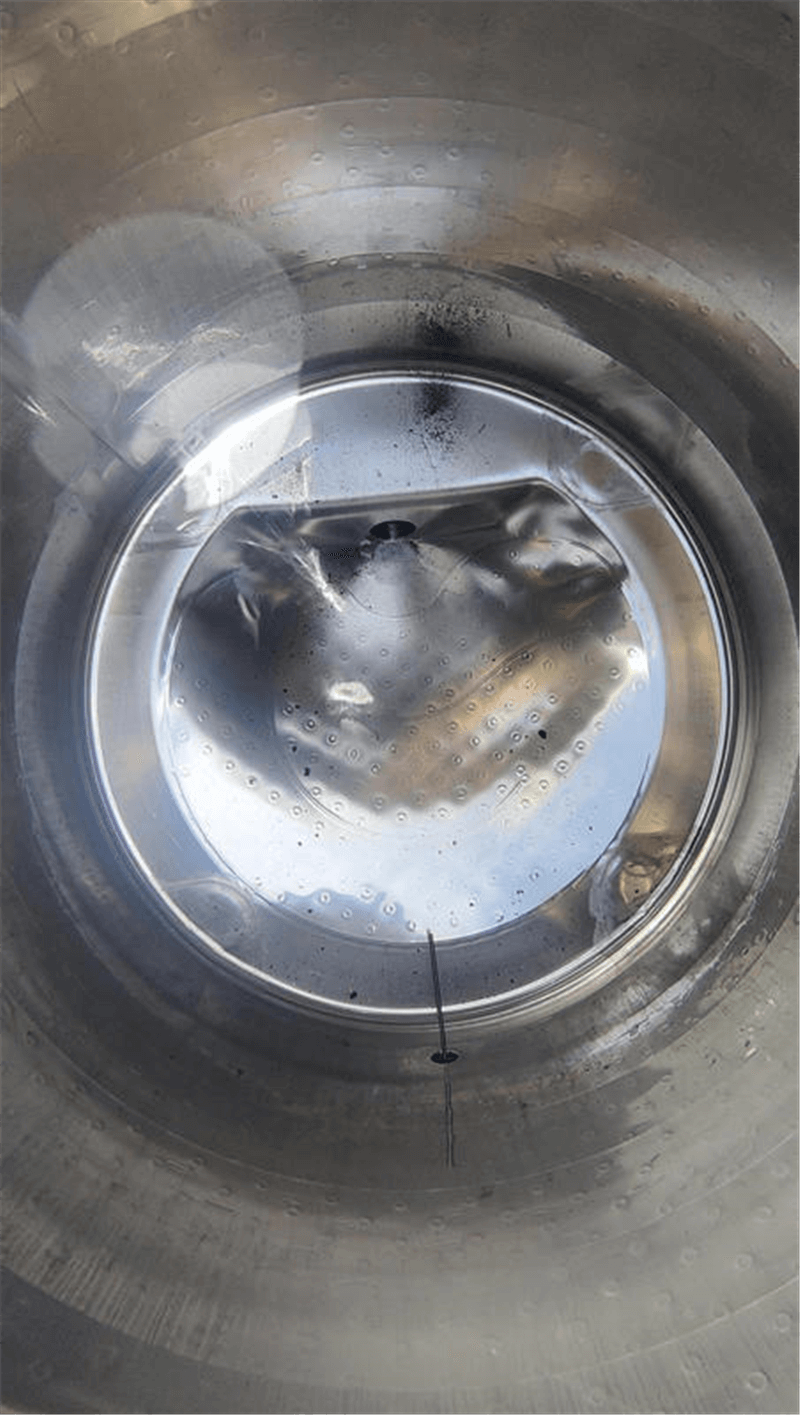

| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 1000 |
| Type tank | Storage tank |

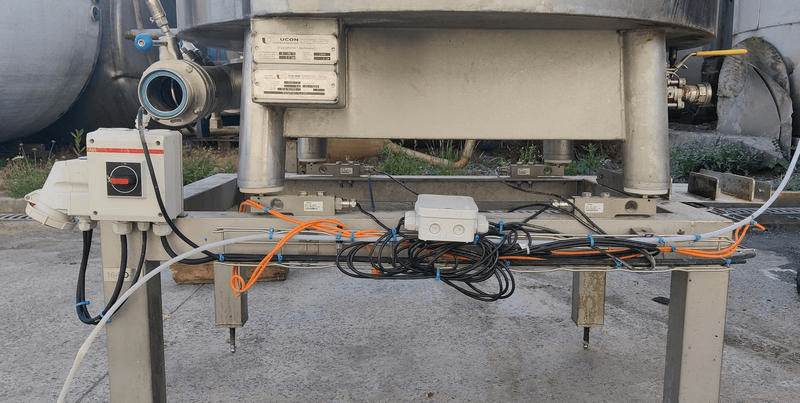

| Fixation | 4 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Dished bottom |
| Tank model | Jacketed (Heating/Cooling) |
| Number lifting lugs | 3 |

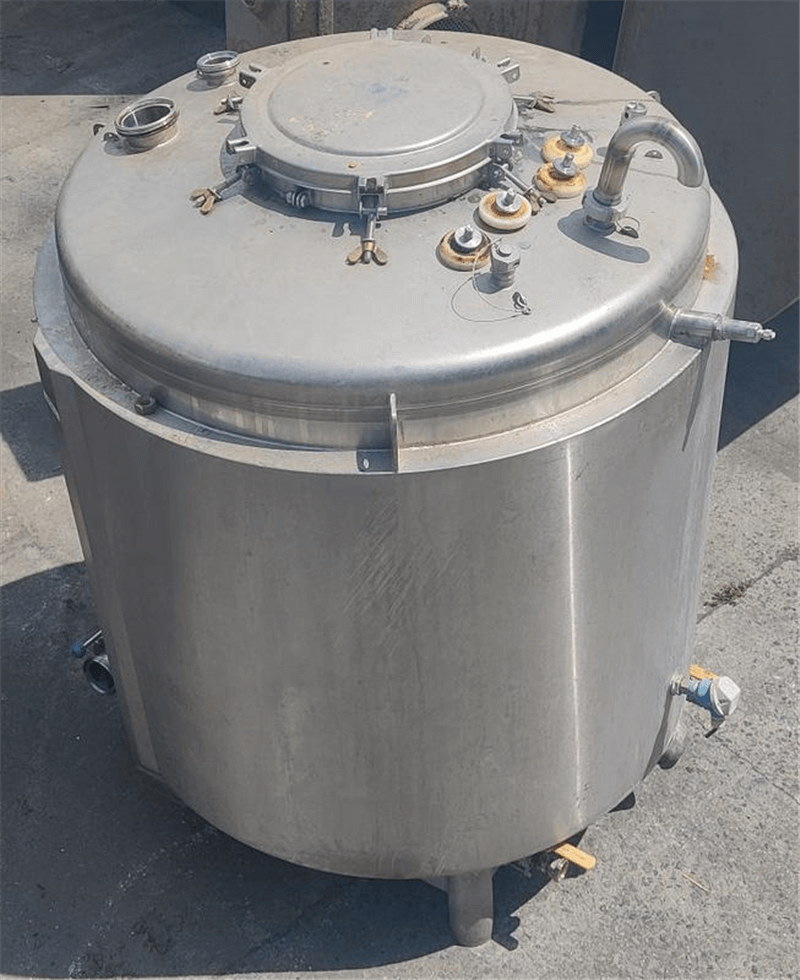

| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | dia 400mm |

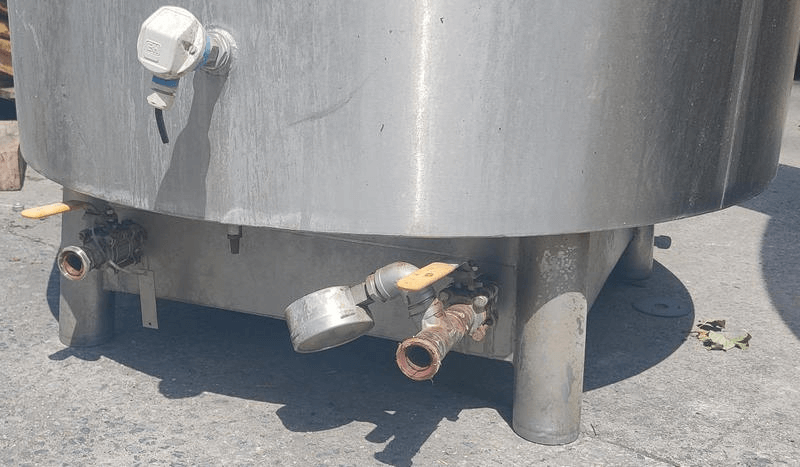

| Tank with total drain? | Yes |

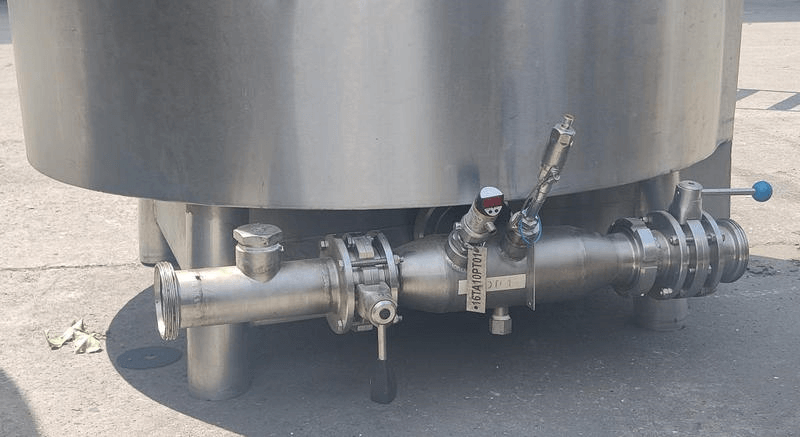

| Type of outlet (s) | man. vlinderklep |
| Diameter of outlet (mm) | DN65 voedingskoppeling |
| locality | B-7711 Belgium |
| Last application | Food |
| Provision tank cleaning | None |
| Weight (kg) | 300 |
| Condition | Used |

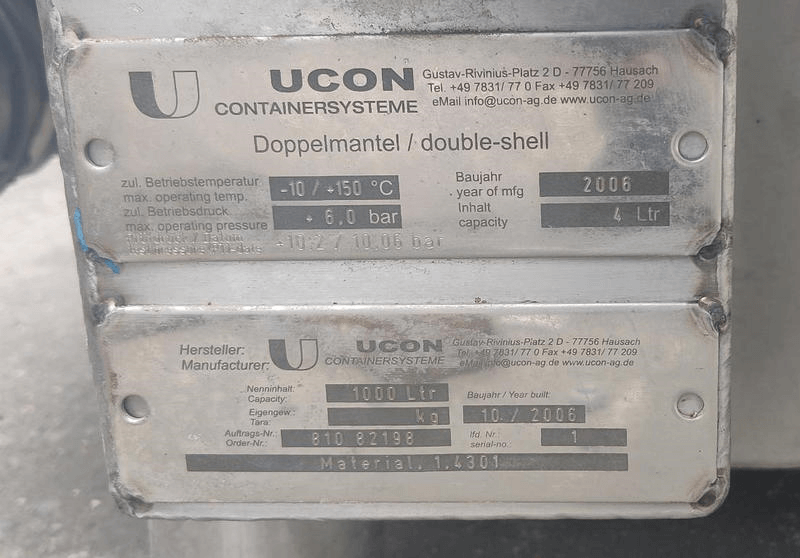

| Type plate manufacturer | Yes |
| Manufacturer | UCON |
| Year Built | 2006 |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Dished bottom |
| Thickness closed dome (mm) | 2,5 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 3 |
| Periphery (mm) | 3700 |
| Cylindrical length (mm) | 1000 |
| Height bottom (mm) | 150 |
| Outside diameter tank (mm) | 1178 |
| Total height (mm) | 1630 |
| Length (mm) | 1470 |
| Diameter tank (mm) | 1072 |
| Width (mm) | 1180 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | cylinder and bottom isolated |
| Thickness (mm) | 50 |
| Finishing insulation | fully welded cladding |
| Heating | |
|---|---|
| Number of heating type | 1 |
| Heating 1: Type | Dimple plate |
| Heating 1: Max. service pressure | 6 |
| Heating 1: Max. test pressure | 10 |
| Heating 1: Max. design pressure °C | 150 |
| Remarks | |
|---|---|
| Description (EN) | IN/OUT heating: 1" |
