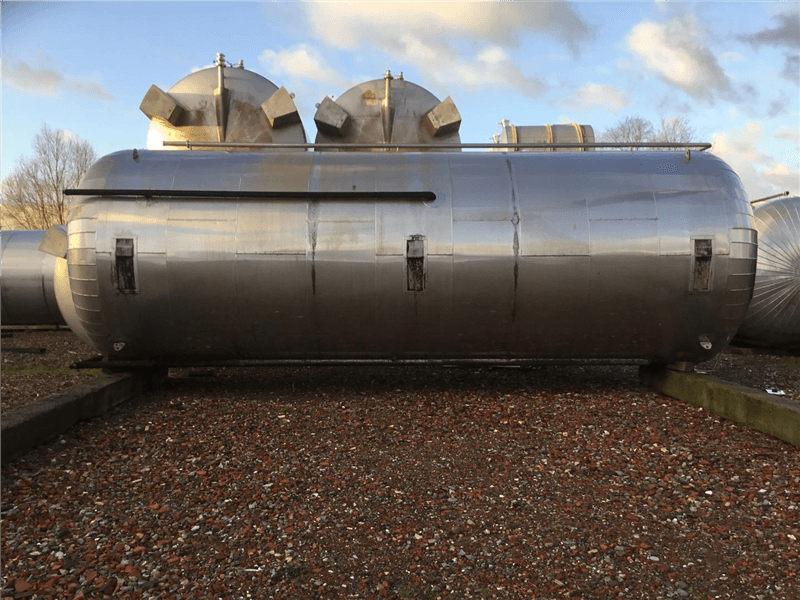

Used storage tank
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 60000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.45.DO.03 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 60000 |
| Type tank | Storage tank |
| Fixation | NON |
| Model of the tank | Horizontal |
| placement | Overground |
| Shape of the tank | Cylindrical |
| Bottom | Dished bottom |
| Tank model | Jacketed (Heating/Cooling) |
| Number lifting lugs | 4 |
| Density (kg/dm³) | 1 |

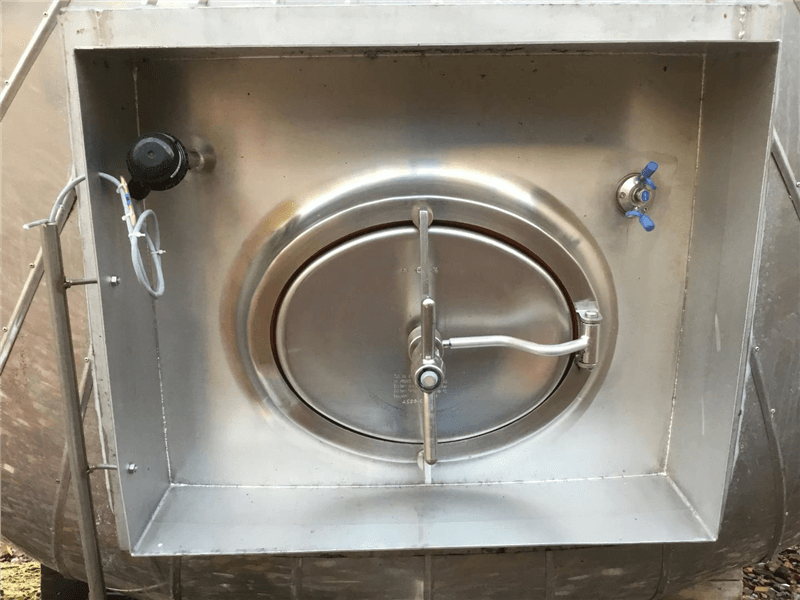

| Number of manhole | 3 |
| Position of manhole (s) | Cylindrical part and bottom |
| Dimensions of manholes | 640*480mm / dia 600mm (2x) |
| Tank with total drain? | Yes |
| Type of outlet (s) | manuele vlinderklep |
| Diameter of outlet (mm) | DN50 |
| locality | B-7711 Belgium |
| Last application | Food |

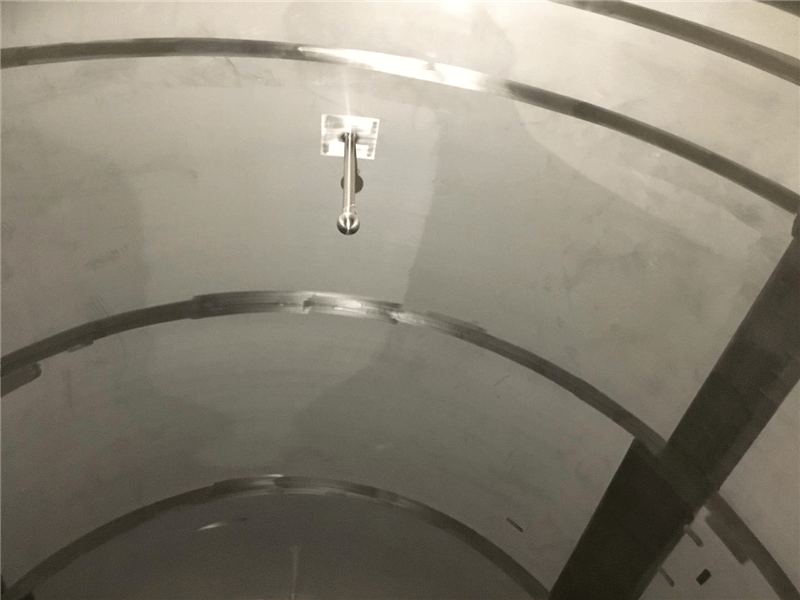

| Provision tank cleaning | CIP ball |
| Weight (kg) | 6500 |
| Condition | Used |
| Type plate manufacturer | Yes |
| Manufacturer | Holvrieka |
| Year Built | 2004 |
| Design Code | AD2000 Merkblatt |
| Construction data available | Yes |
| Working temperature (° C) | 20 |
| Drawing 1 | 20170705_162456_resized.jpg |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 4 |
| Bottom thickness (mm) | 5,5 |
| Cylindrical length (mm) | 8000 |
| Height bottom (mm) | 590 |
| Outer wall thickness (mm) | 1,25 |
| Outside diameter tank (mm) | 3140 |
| Total height (mm) | 3500 |
| Length (mm) | 9400 |
| Diameter tank (mm) | 2940 |
| Width (mm) | 3250 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | Fully insulated |
| Type of insulation | PUR Foam |
| Thickness (mm) | 100 |
| Finishing insulation | Rivited sheet cladding |
| Insulation material | Stainless steel 304 |
| Heating | |
|---|---|
| Number of heating type | 1 |
| Heating 1: Type | Halfpipe |
| Heating 1: Max. service pressure | 5 |
| Heating 1: Max. test pressure | 7,15 |
| Heating 1: Max. design pressure °C | -20 |
| Remarks | |
|---|---|
| Description (EN) | Beer tank with cooling jacket glycol --- vol. cooling jacket = 110L --- Working temperature cooling jacket = -5C° --- Working temperature tank = 20C° --- Tank working pressure max: 1.5bar --- Tank test pressure 2.145bar --- 8 matching galvanized frames 7400x2000mm Density up to 1.4 is possible, provided the supports are reinforced (extra charge) |
