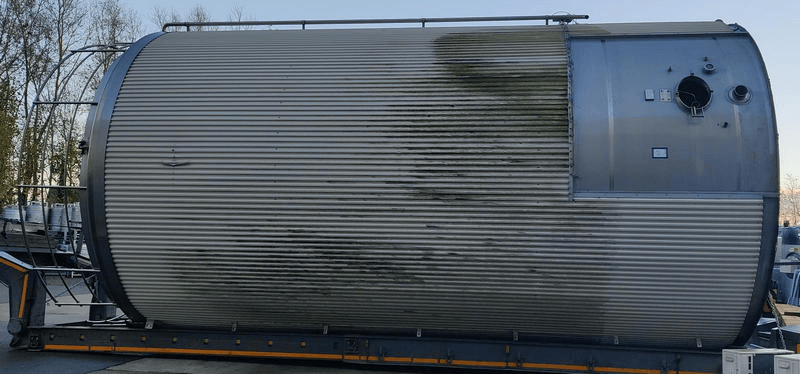

Used mixing vessel
- Material: Stainless steel 316
- Condition: Used
- Volume (in litres): 162000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.45.CA.16 |
| Material | Stainless steel 316 |

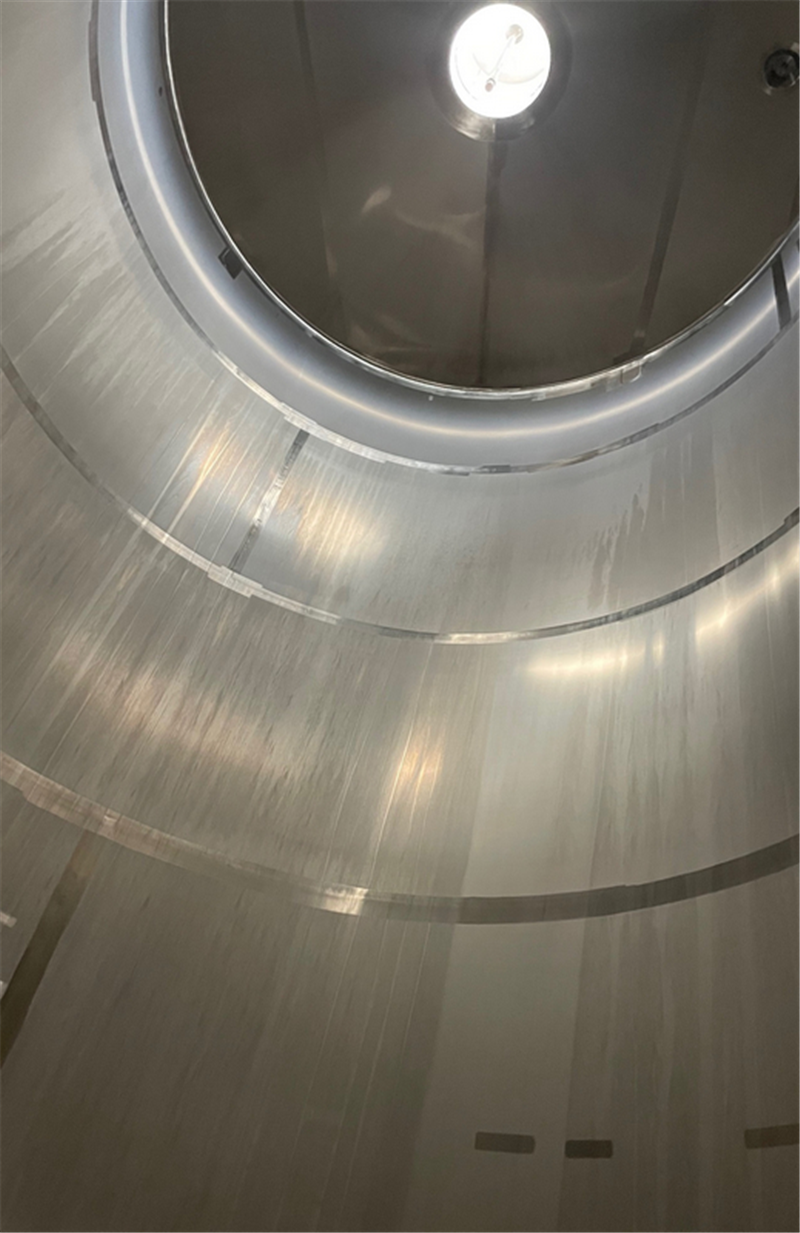

| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 162000 |
| Type tank | Mixing vessel |

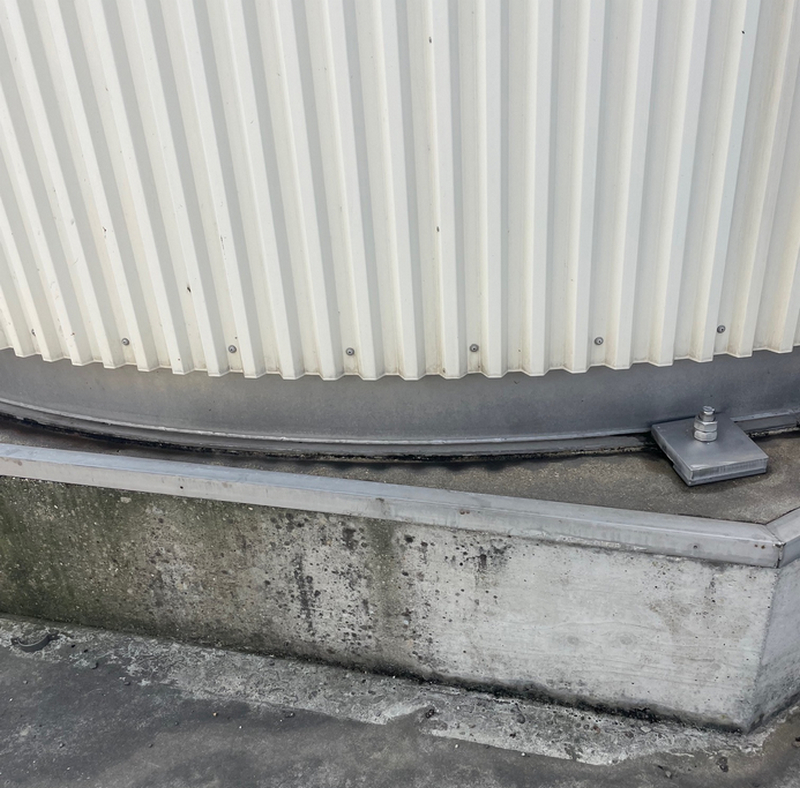

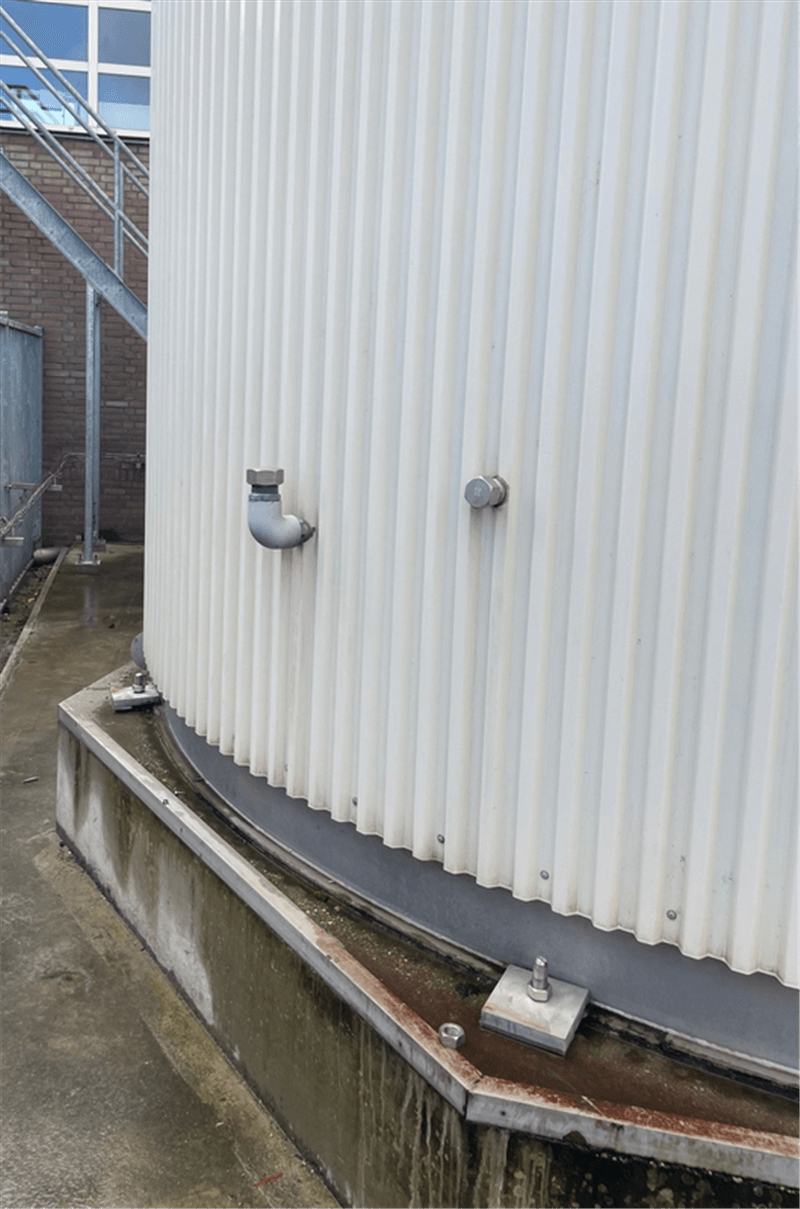

| Fixation | Skirt |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Inclined bottom |
| Tank model | Single wall |
| Number lifting lugs | 4 |
| Density (kg/dm³) | 1 |
| Number of manhole | 1 |
| Position of manhole (s) | cylindrical part |
| Dimensions of manholes | 435x535mm |
| Tank with total drain? | Yes |
| Type of outlet (s) | flens |
| Diameter of outlet (mm) | DN150 |
| locality | B-7711 Belgium |
| Last application | Food |
| Provision tank cleaning | CIP ball |
| Weight (kg) | 15500 |
| Condition | Used |

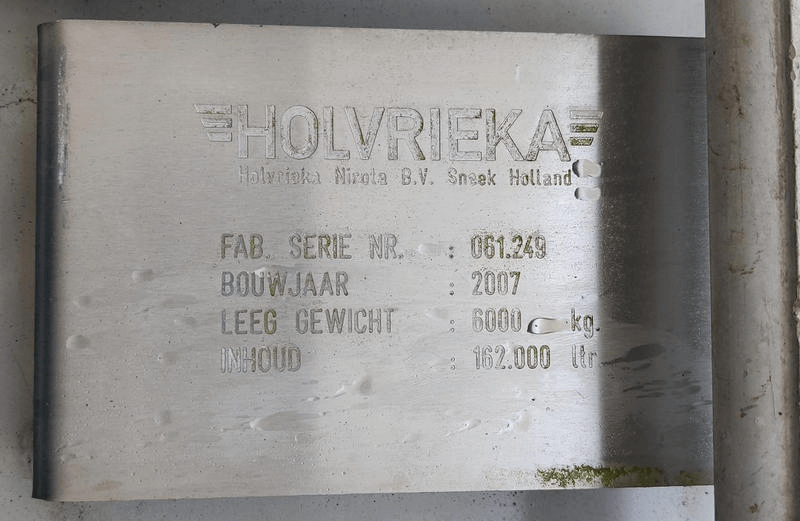

| Type plate manufacturer | Yes |
| Manufacturer | Holvrieka |
| Year Built | 2007 |
| Construction data available | Yes |
| Appendix 1 | 0345CA16_17-131.035 Tekening 131035-0002-E.pdf |
| Top side | |
|---|---|

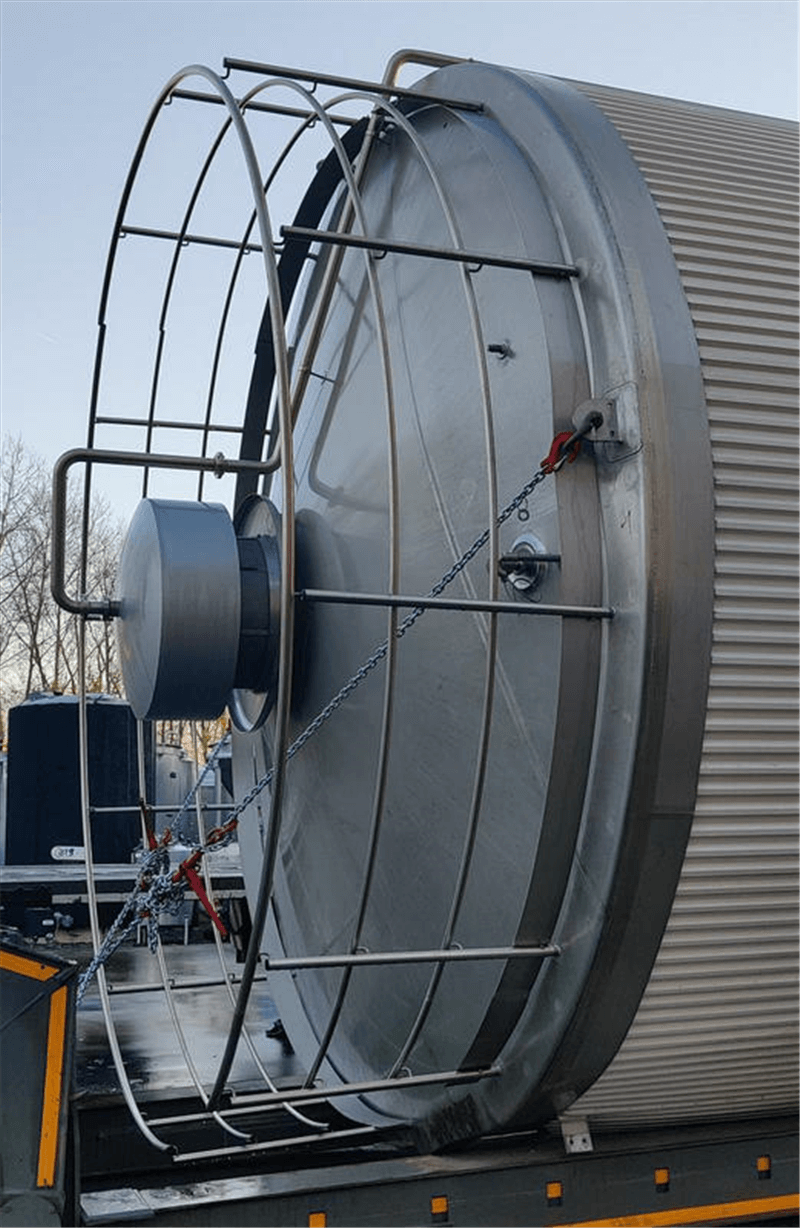

| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 4,1 |
| Cylindrical length (mm) | 9200 |
| Slope bottom (°) | 4 |
| Outside diameter tank (mm) | 5150 |
| Total height (mm) | 10950 |
| Length (mm) | 5230 |
| Diameter tank (mm) | 5000 |
| Width (mm) | 5150 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | cylinder and top isolated |
| Type of insulation | Insulating wool |
| Thickness (mm) | 50 |
| Finishing insulation | Profile Cladding |
| Agitators | |
|---|---|
| Number of agitators | 1 |

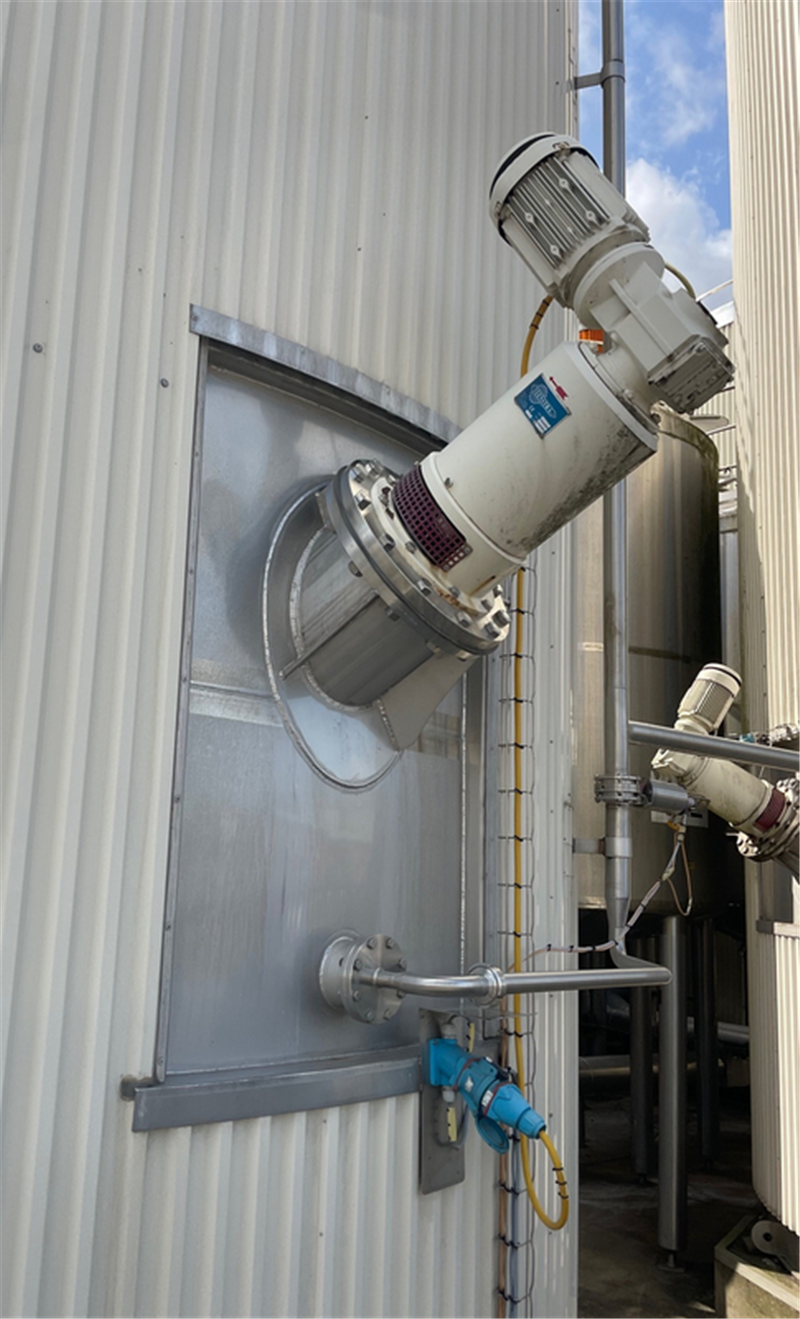

| Agitator 1: Type | Slowly rotating mixer |
| Agitator 1: Position | Side -entry |

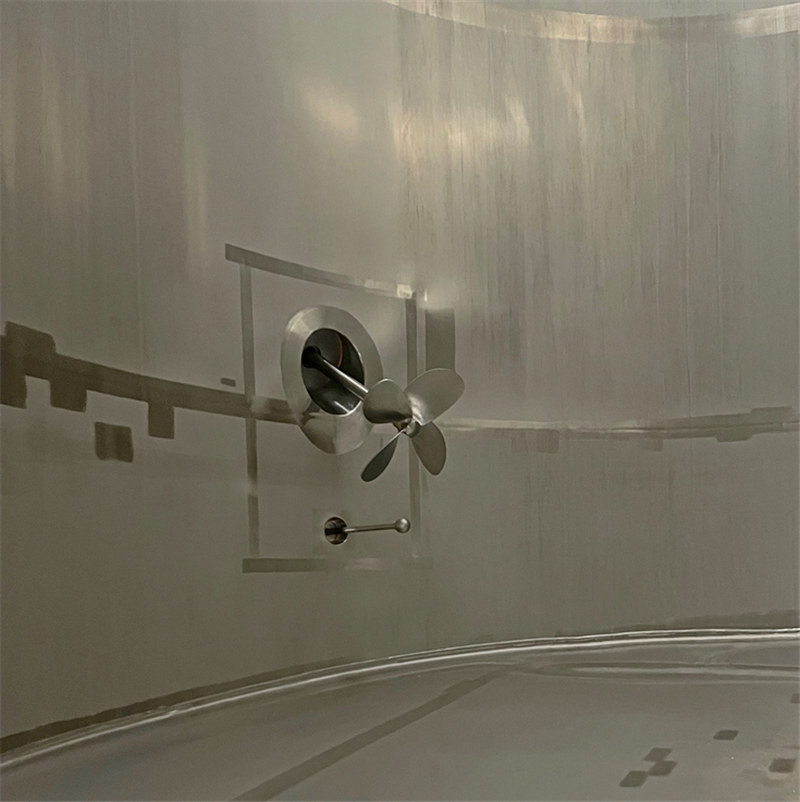

| Agitator 1: stirring element type | Propeller |
| Agitator 1: Engine Type | electric motor |
| Agitator 1: Voltage (V) | 400 |
| Agitator 1: Power (kw) | 2,2 |
| Agitator 1: Drive Type | Reductor |
| Agitator 1: Speed (r / min) | 133 |
| Remarks | |
|---|---|

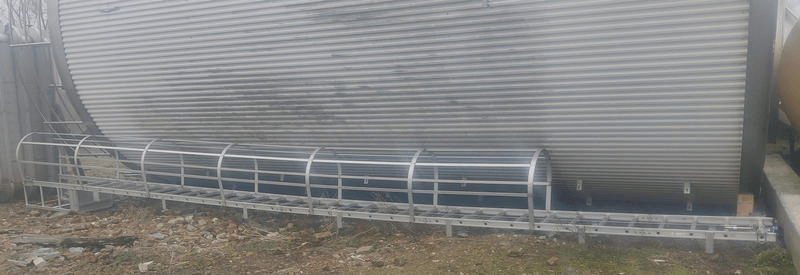

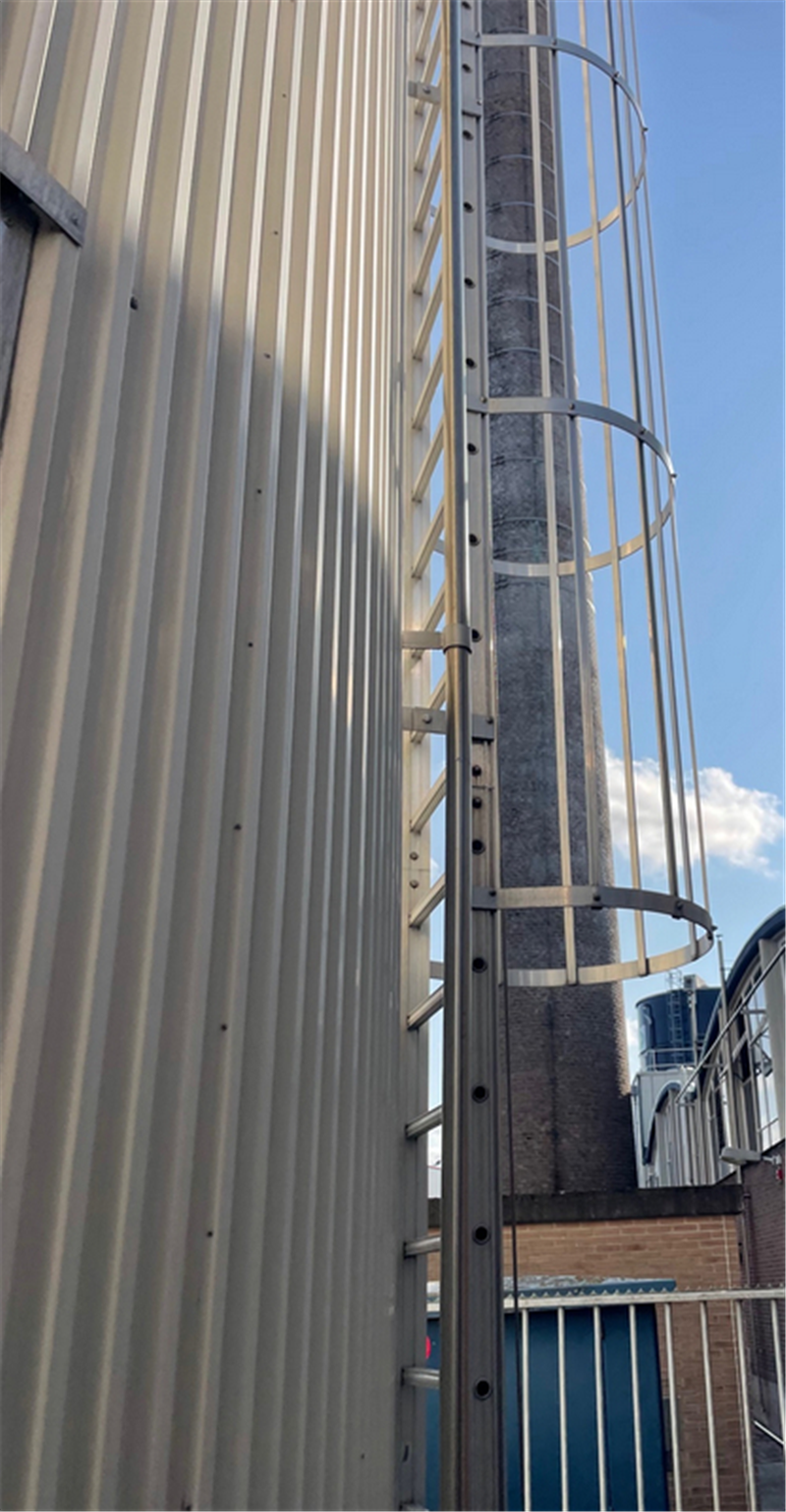

| Description (EN) | 15.3m³ foam concrete under sloping bottom (=9200kg) --- design pressure -2.5 / +7.5 mbarg --- working pressure ATM --- design temperature -5°C/+90°C --- matching 1-piece cage ladder |
