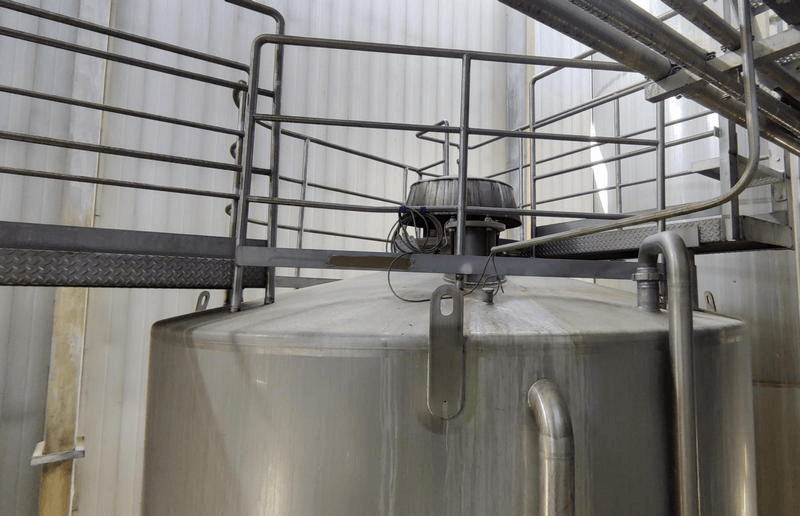

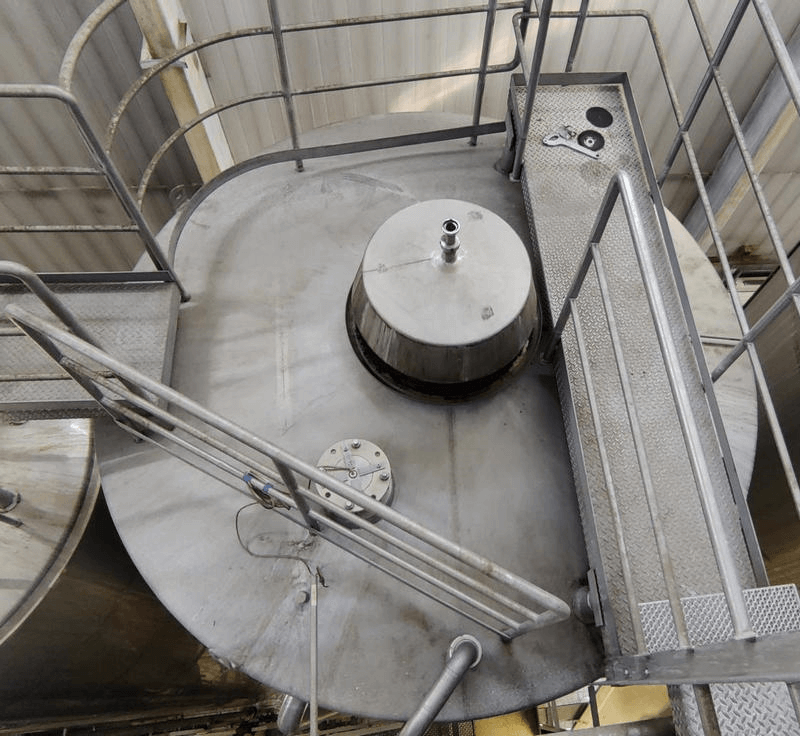

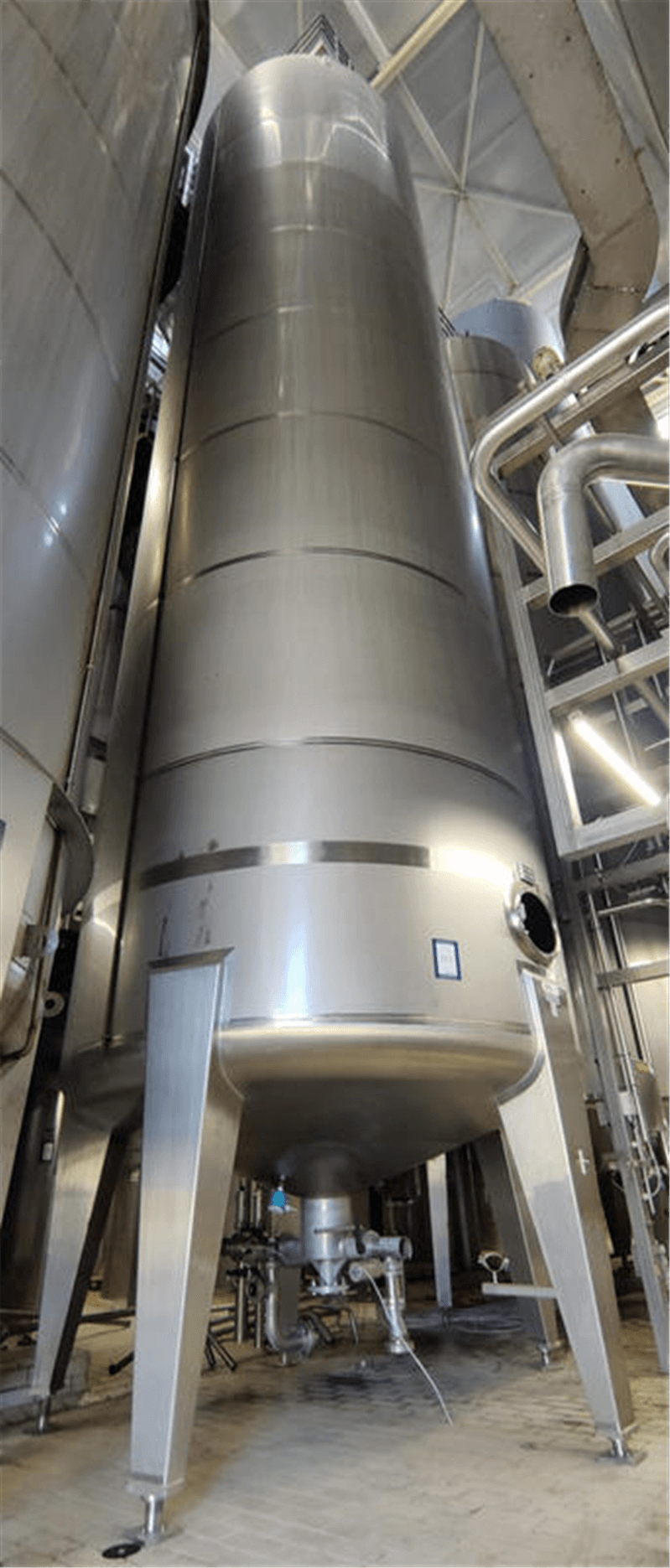

Used storage tank
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 100000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.45.CA.13 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 100000 |
| Type tank | Storage tank |
| Fixation | 5 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

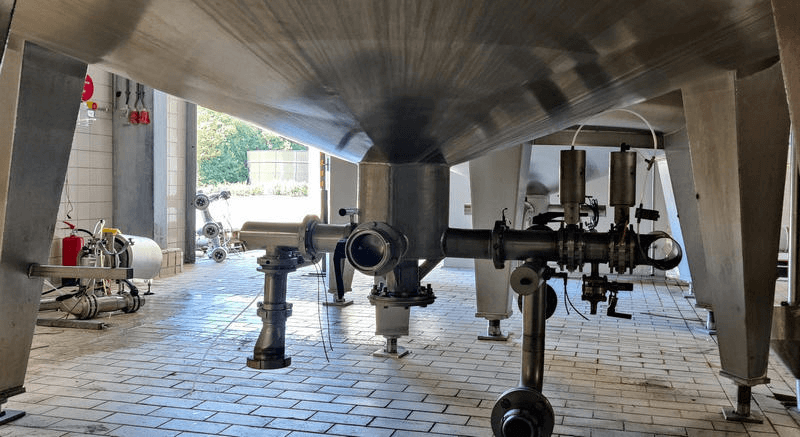

| Bottom | Conical bottom |
| Tank model | Single wall |
| Number lifting lugs | 4 |
| Number of manhole | 1 |
| Position of manhole (s) | cylindrical part |
| Dimensions of manholes | 440 x 340mm |
| Tank with total drain? | Yes |
| Type of outlet (s) | 3x man. vlinderklep |
| Diameter of outlet (mm) | 100 |
| locality | On location |
| Last application | Food |

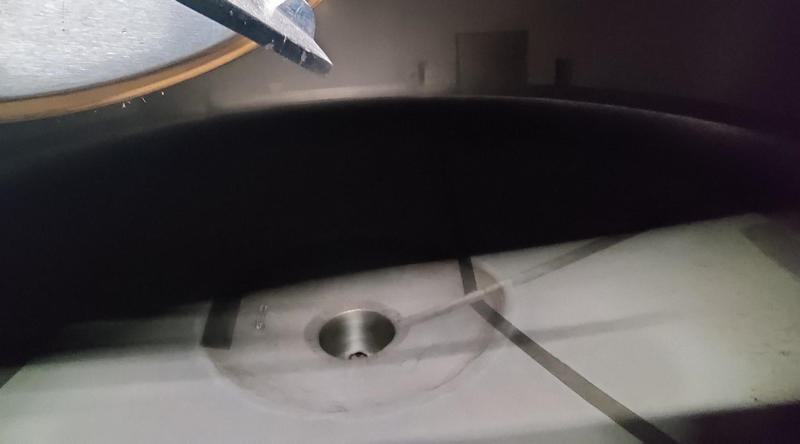

| Provision tank cleaning | Rotating spray head |
| Weight (kg) | 5000 |
| Condition | Used |
| Type plate manufacturer | Yes |
| Manufacturer | HOLVRIEKA |
| Year Built | 1994 |
| Construction data available | Yes |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 4,4 |
| Bottom thickness (mm) | 5,2 |
| Periphery (mm) | 10080 |
| Cylindrical length (mm) | 12250 |
| Height bottom (mm) | 700 |
| Total height (mm) | 15000 |
| Length (mm) | 3310 |
| Diameter tank (mm) | 3200 |
| Width (mm) | 3210 |
| Insulation | |
|---|---|
| Insulation | No |
