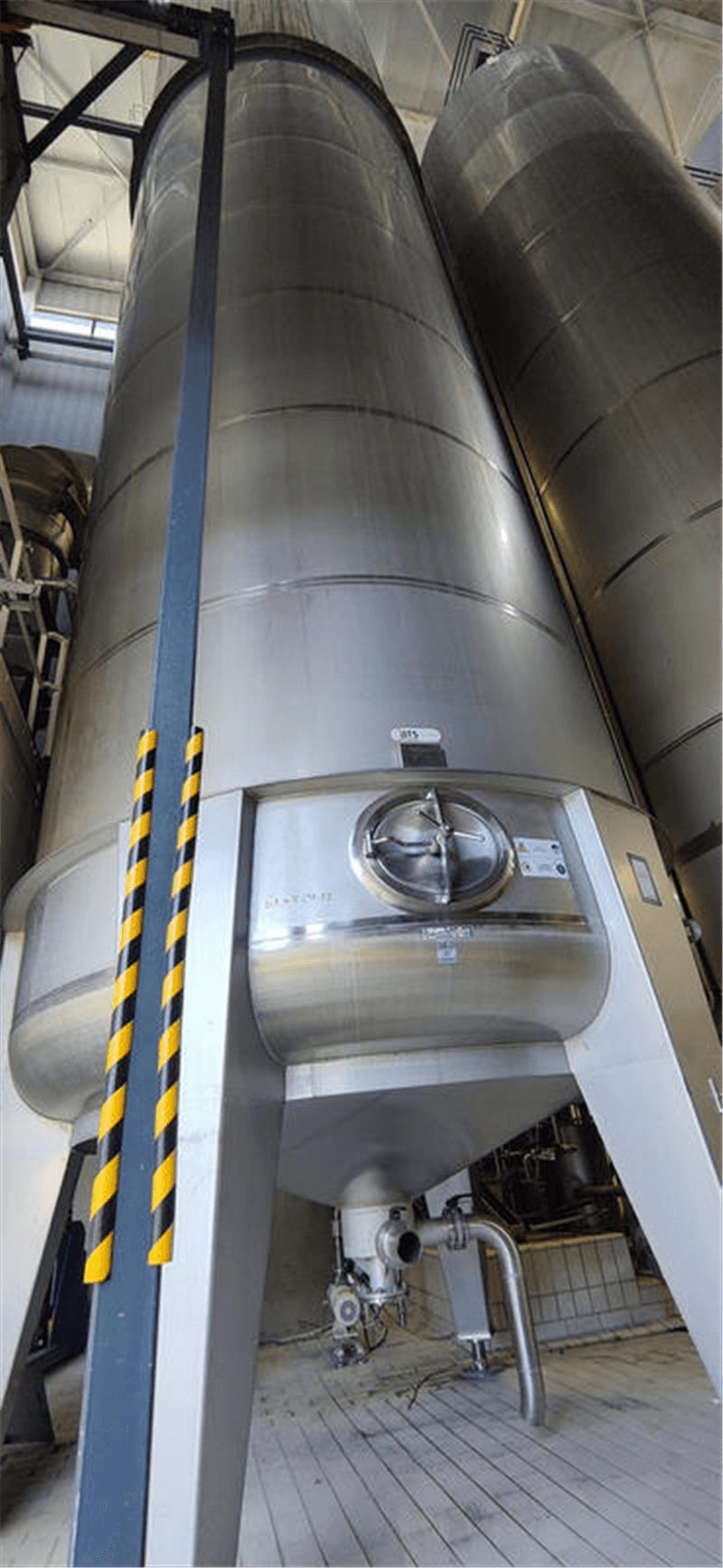

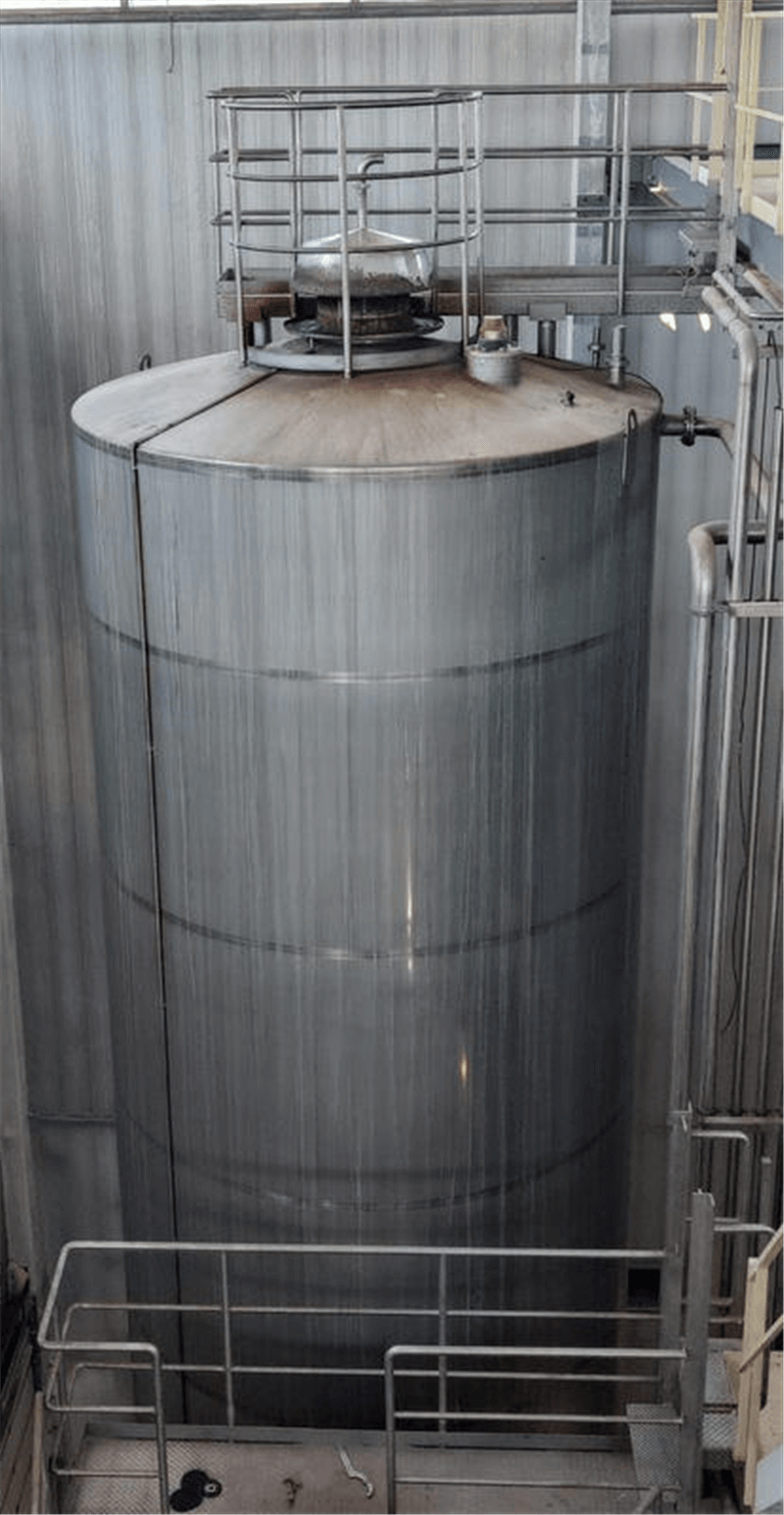

Used storage tank
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 140000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.45.CA.11 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 140000 |
| Type tank | Storage tank |

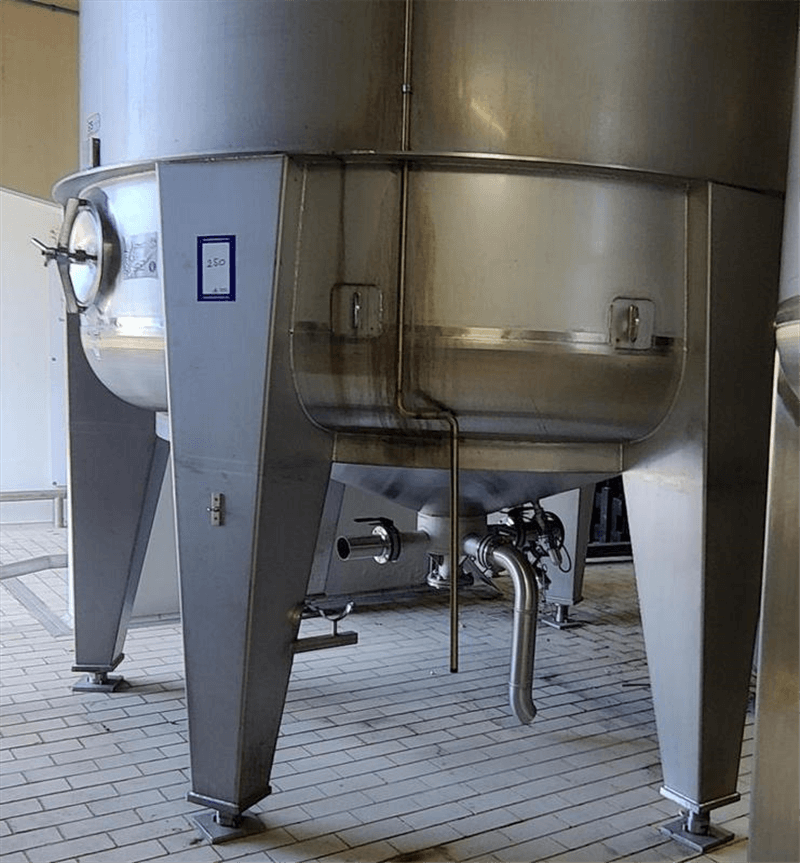

| Fixation | 6 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Conical bottom |
| Tank model | Single wall |
| Number lifting lugs | 2 |
| Number of manhole | 1 |
| Position of manhole (s) | cylindrical part |
| Dimensions of manholes | 440 x 345mm |
| Tank with total drain? | Yes |

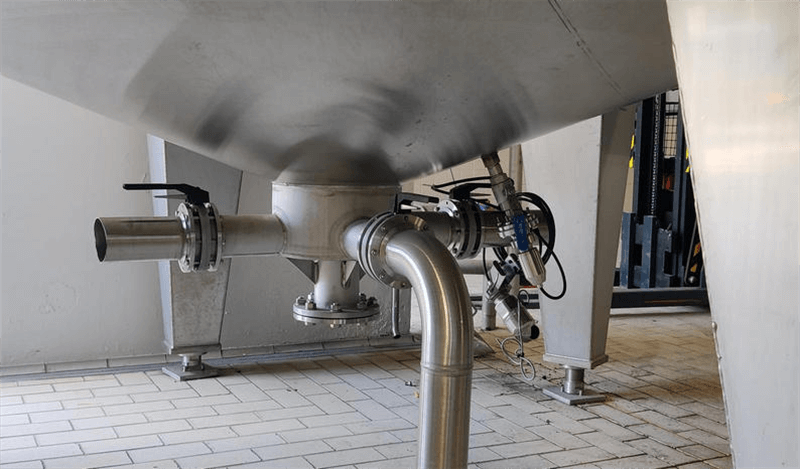

| Type of outlet (s) | 3x vlinderklep |
| Diameter of outlet (mm) | 100 |
| locality | B-7711 Belgium |
| Last application | Food |
| Provision tank cleaning | CIP ball |
| Weight (kg) | 6500 |
| Condition | Used |

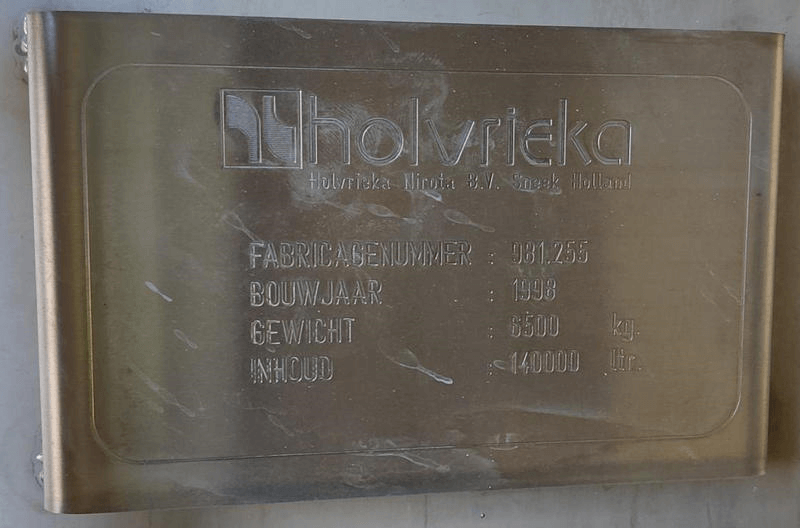

| Type plate manufacturer | No |
| Manufacturer | HOLVRIEKA |
| Year Built | 1998 |
| Construction data available | Yes |

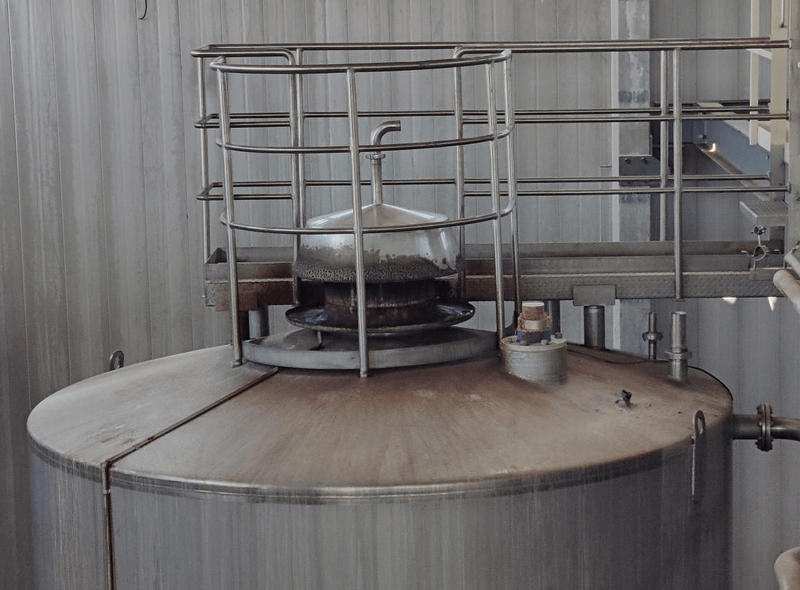

| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 4,4 |
| Bottom thickness (mm) | 6,5 |
| Periphery (mm) | 10100 |
| Cylindrical length (mm) | 17200 |
| Height bottom (mm) | 700 |
| Total height (mm) | 20000 |
| Length (mm) | 3500 |
| Diameter tank (mm) | 3205 |
| Width (mm) | 3375 |
| Insulation | |
|---|---|
| Insulation | No |
