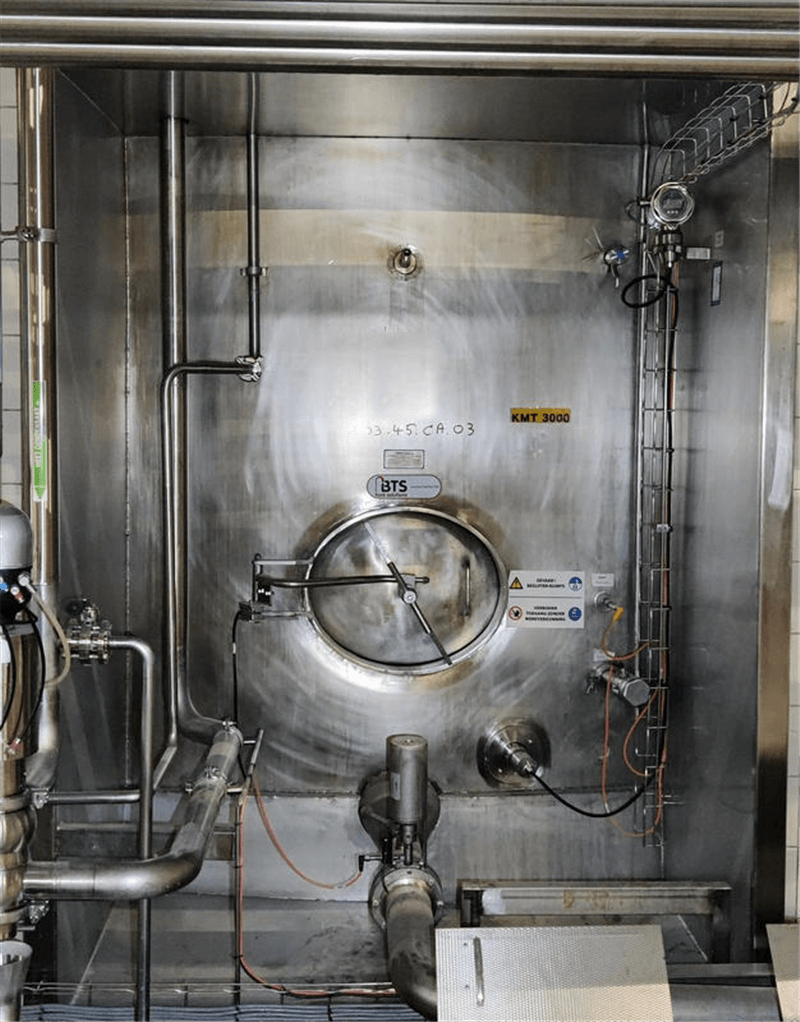

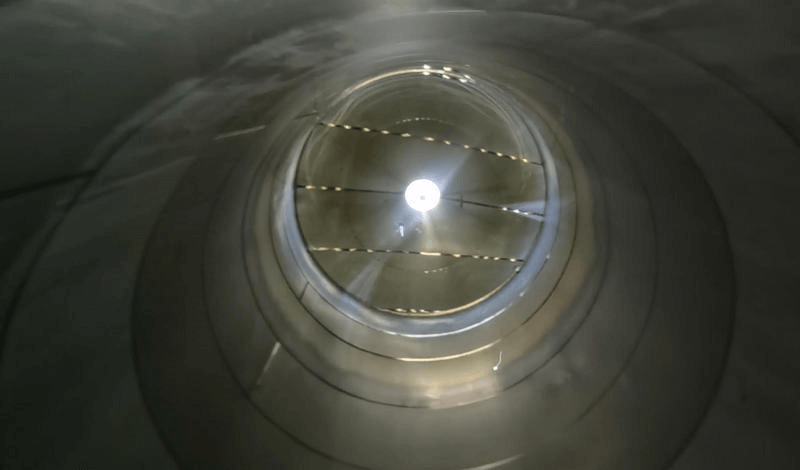

Used storage tank
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 360000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.45.CA.03 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 360000 |
| Type tank | Storage tank |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Inclined bottom |
| Tank model | Single wall |
| Number lifting lugs | 3 |
| Number of manhole | 1 |
| Position of manhole (s) | cylindrical part |
| Dimensions of manholes | 505 x 410mm |
| Tank with total drain? | Yes |
| Diameter of outlet (mm) | 200 |
| locality | On location |
| Last application | Food |
| Provision tank cleaning | None |
| Weight (kg) | 17000 |
| Condition | Used |
| Type plate manufacturer | No |
| Construction data available | No |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 4,3 |
| Bottom thickness (mm) | 4,4 |
| Periphery (mm) | 19410 |
| Cylindrical length (mm) | 12700 |
| Slope bottom (°) | 2 |
| Outside diameter tank (mm) | 6180 |
| Total height (mm) | 14200 |
| Length (mm) | 6180 |
| Diameter tank (mm) | 6020 |
| Width (mm) | 6180 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | Only cylindrical portion isolated |
| Type of insulation | Insulating wool |
| Thickness (mm) | 40 |
| Finishing insulation | Profile Cladding |
