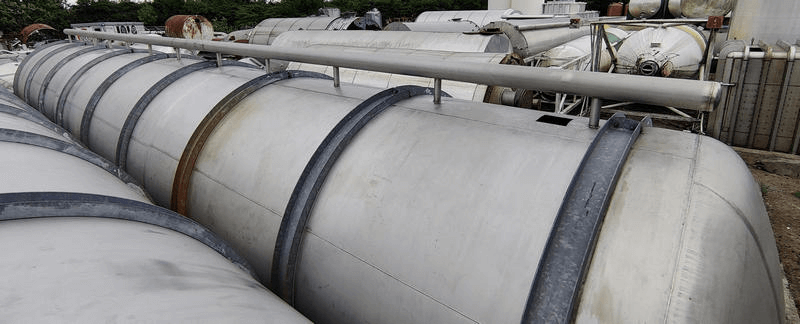

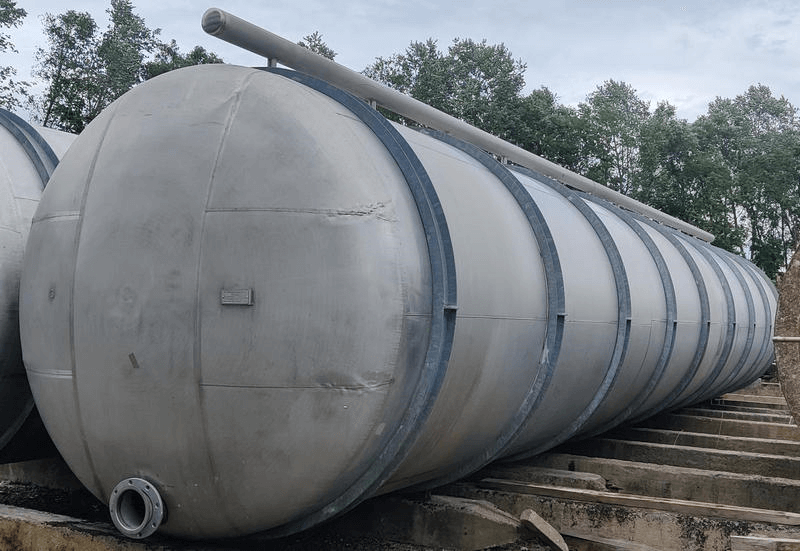

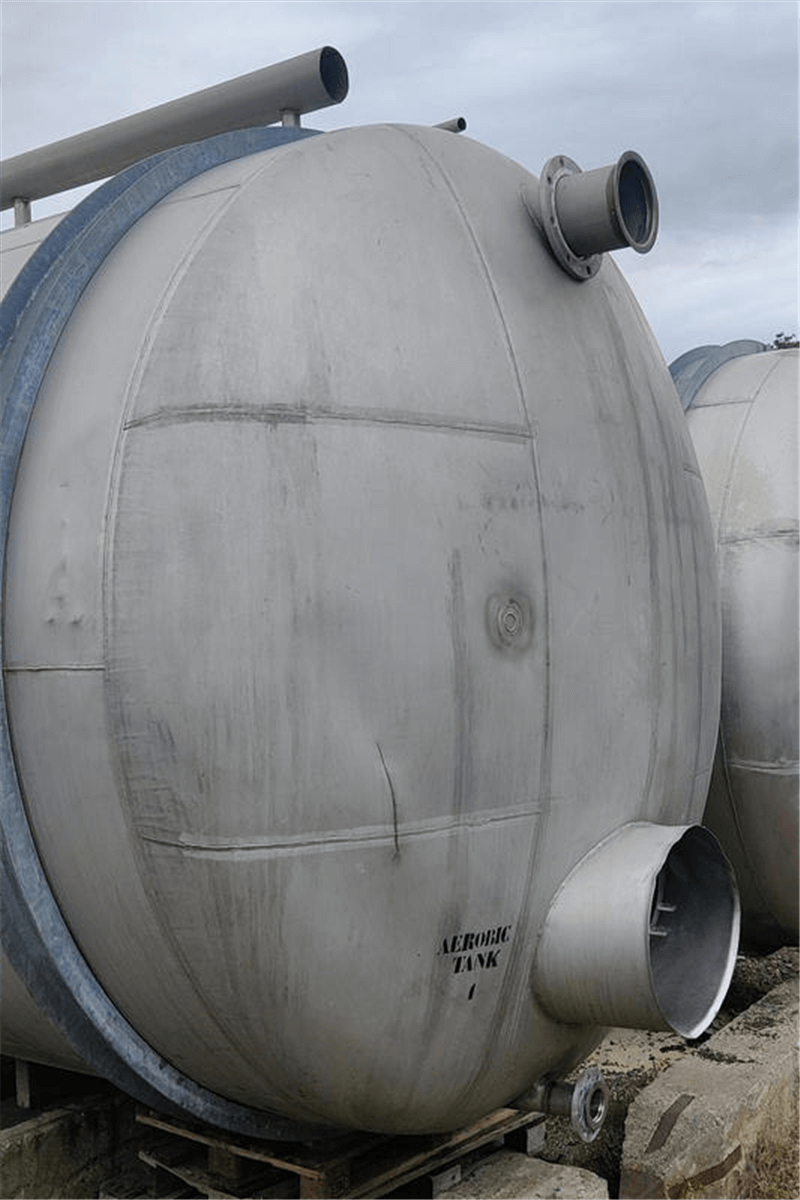

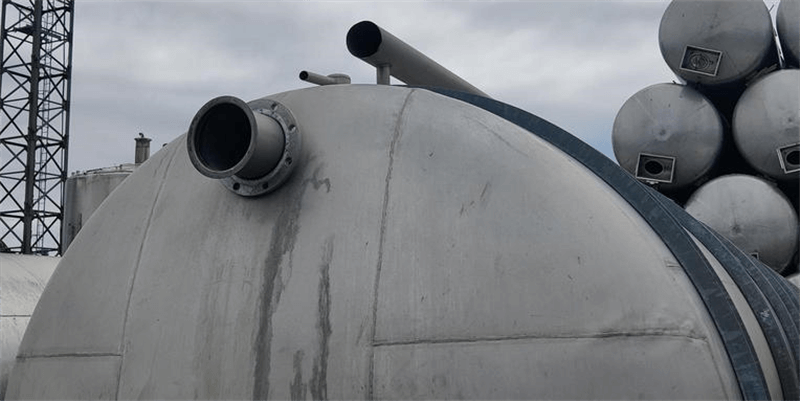

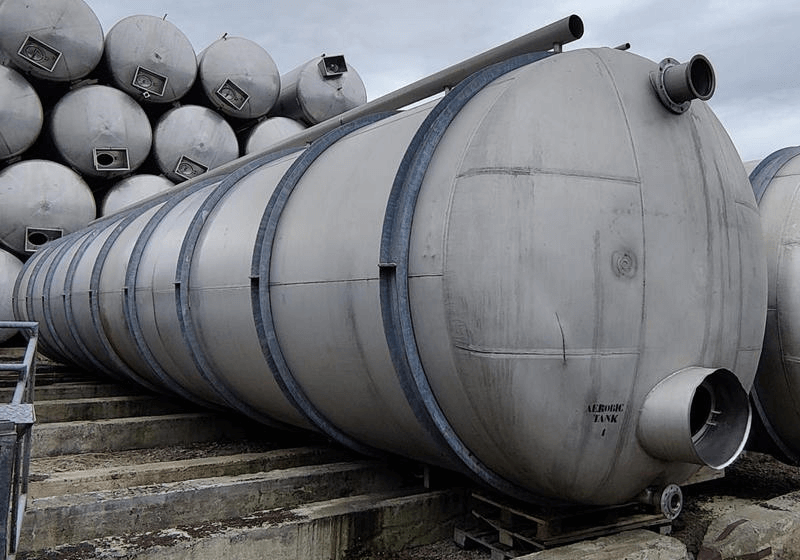

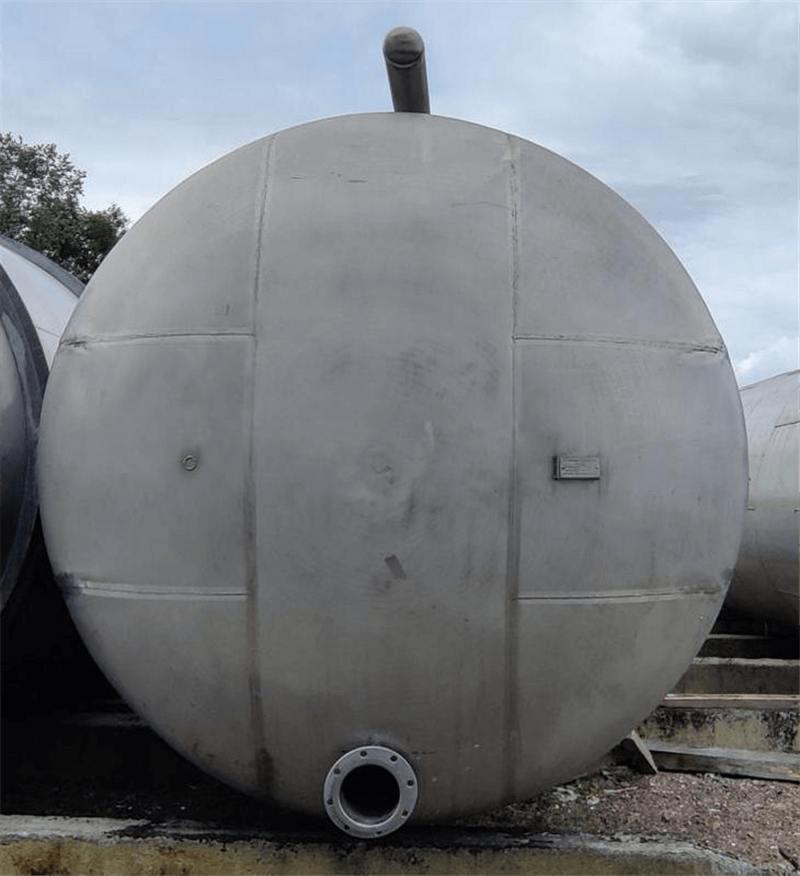

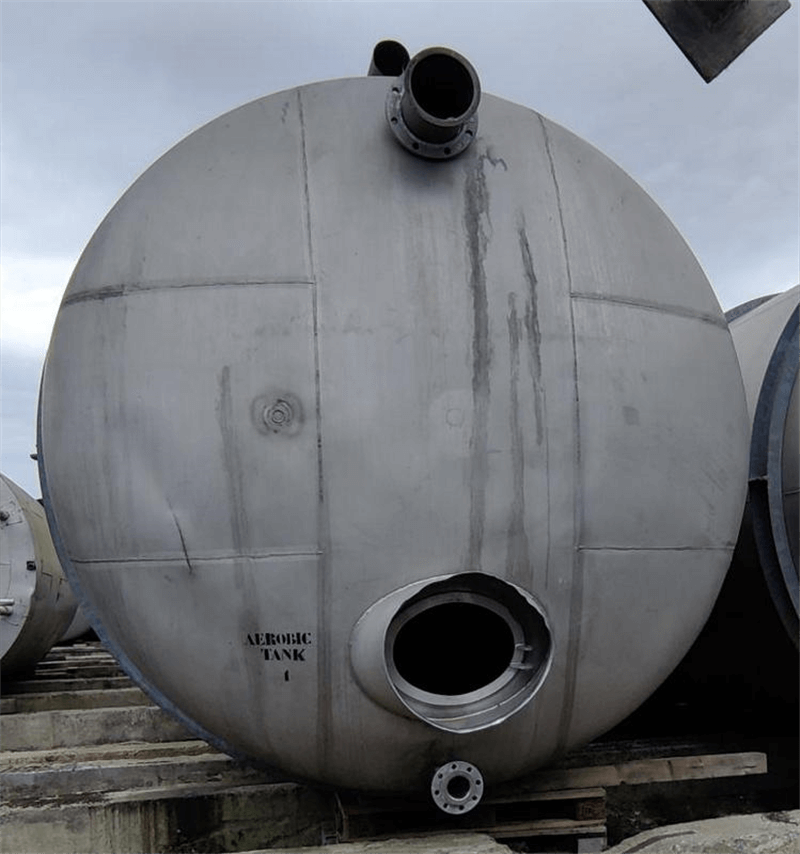

Used storage tank
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 103590 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.45.BA.02 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 103590 |
| Type tank | Storage tank |
| Fixation | NON |
| Model of the tank | Horizontal |
| placement | Overground |
| Shape of the tank | Cylindrical |
| Bottom | Dished bottom |
| Tank model | Single wall |
| Number lifting lugs | 18 |
| Number of manhole | 1 |
| Position of manhole (s) | Side (bottom) |
| Dimensions of manholes | 445x350mm |
| Tank with total drain? | Yes |
| Type of outlet (s) | overschuifflens |
| Diameter of outlet (mm) | DN80 |
| locality | B-7711 Belgium |
| Last application | Food |

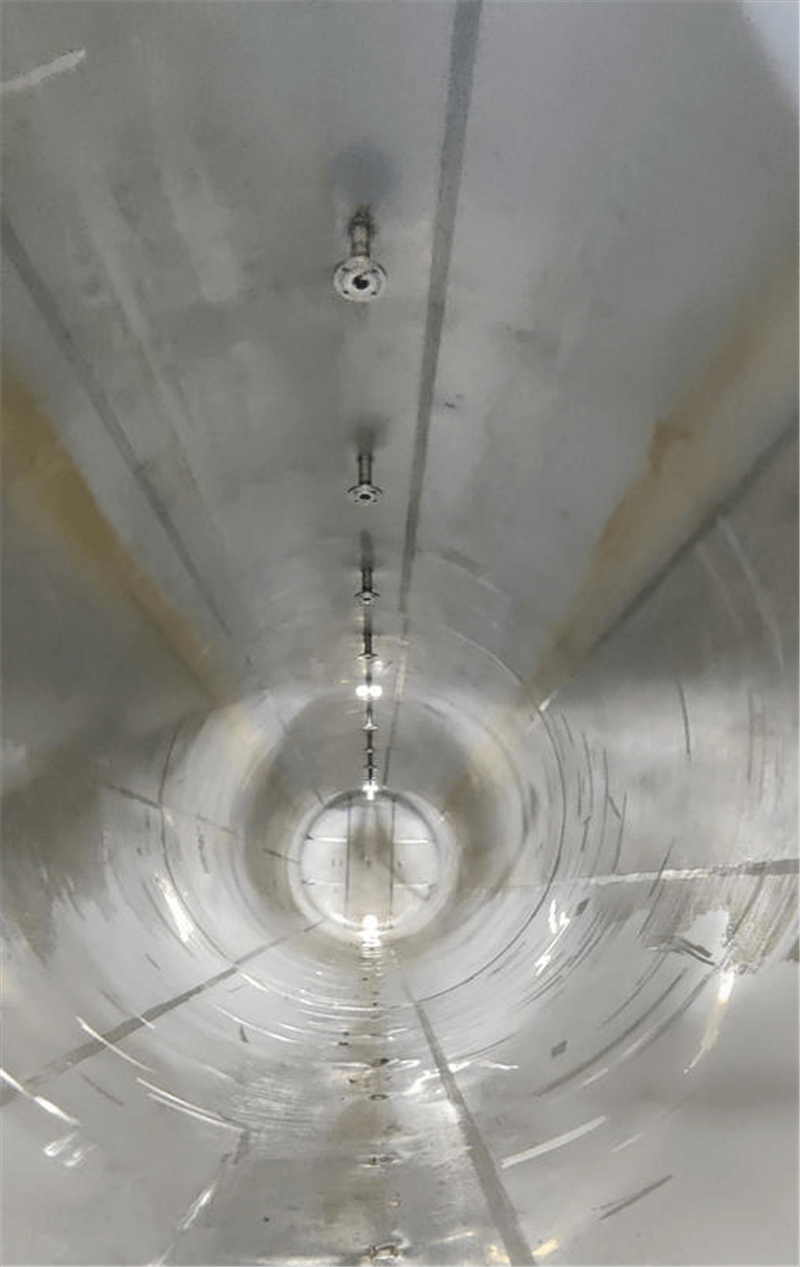

| Provision tank cleaning | Spray tube (top) |
| Weight (kg) | 4500 |
| Condition | Used |

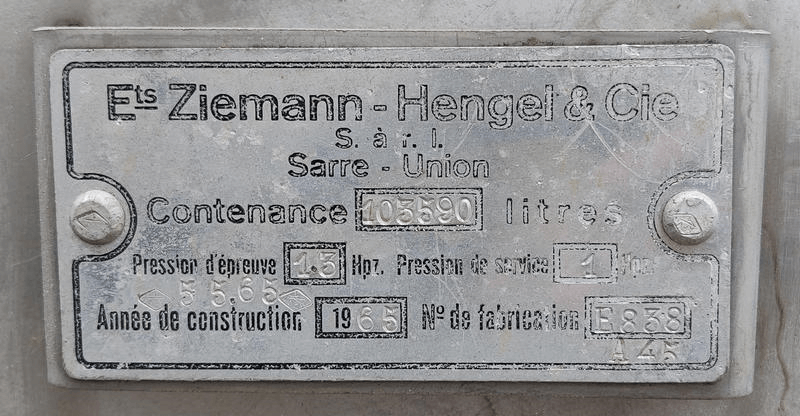

| Type plate manufacturer | Yes |
| Manufacturer | Ziemann-Hengel |
| Year Built | 1965 |
| Drawing 1 | t0328AZ01.pdf |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 2,3 |
| Periphery (mm) | 9000 |
| Cylindrical length (mm) | 15515 |
| Height bottom (mm) | 570 |
| Total height (mm) | 3345 |
| Length (mm) | 16700 |
| Diameter tank (mm) | 2860 |
| Width (mm) | 3065 |
| Insulation | |
|---|---|
| Insulation | No |
| Remarks | |
|---|---|
| Description (EN) | Test pressure 1.3 bar --- Working pressure 1 bar |
