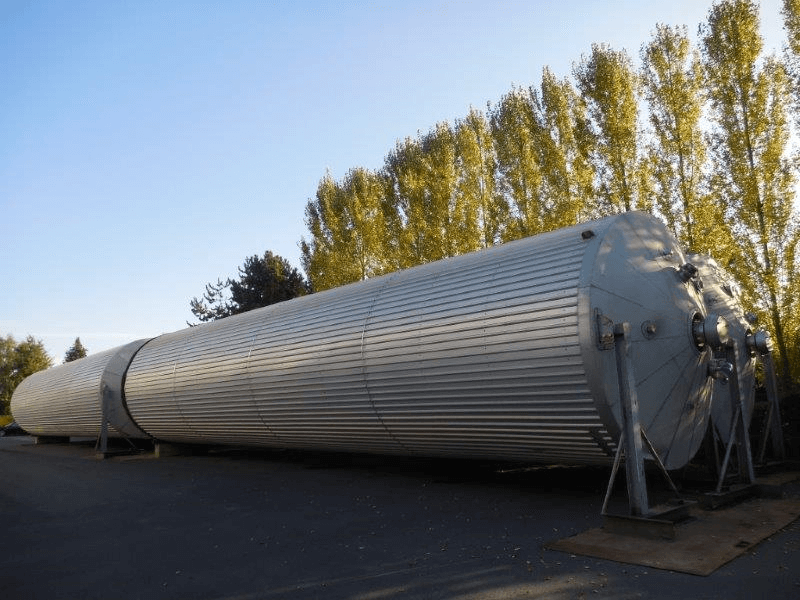

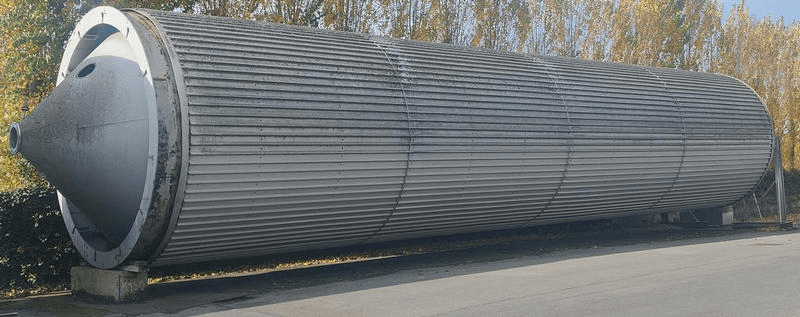

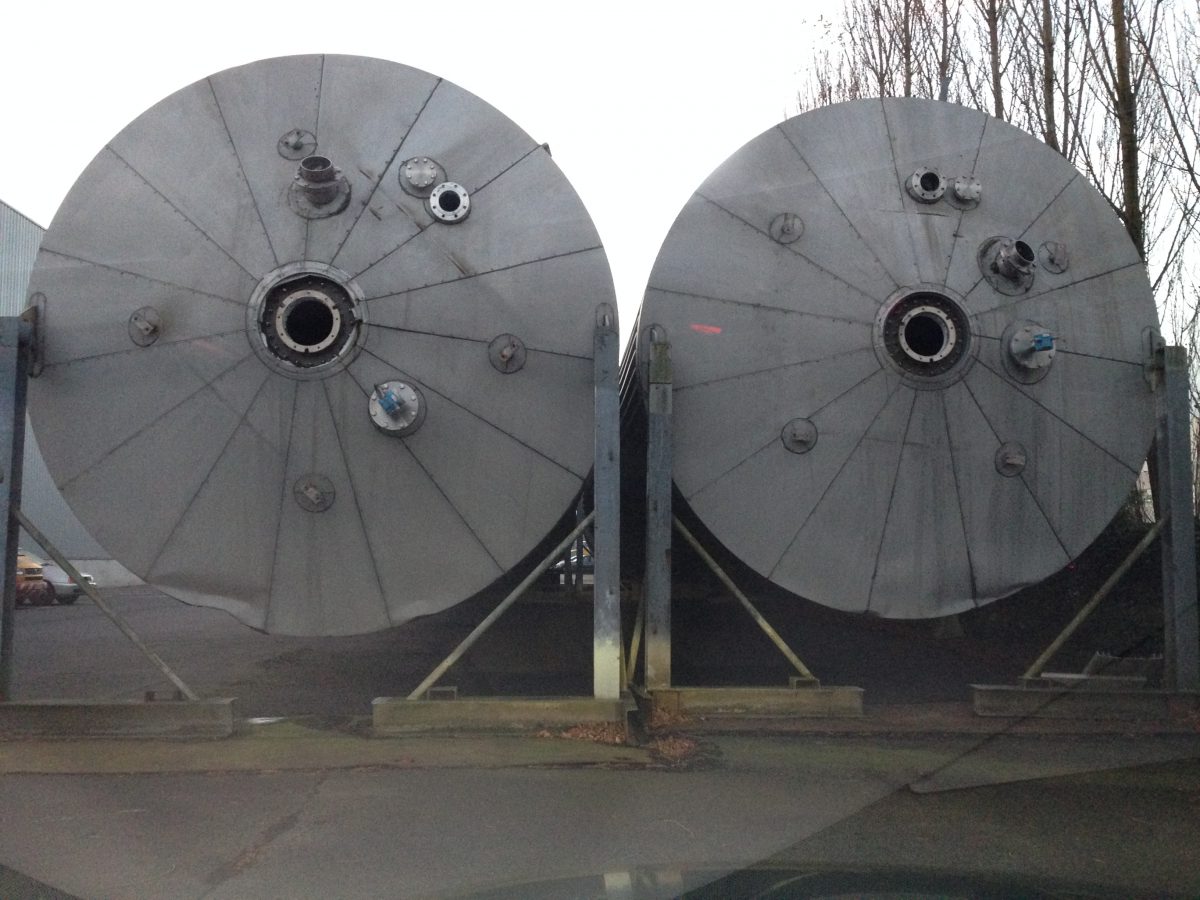

Used storage tank
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 280000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.45.AR.04 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 280000 |
| Type tank | Storage tank |
| Fixation | Skirt |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

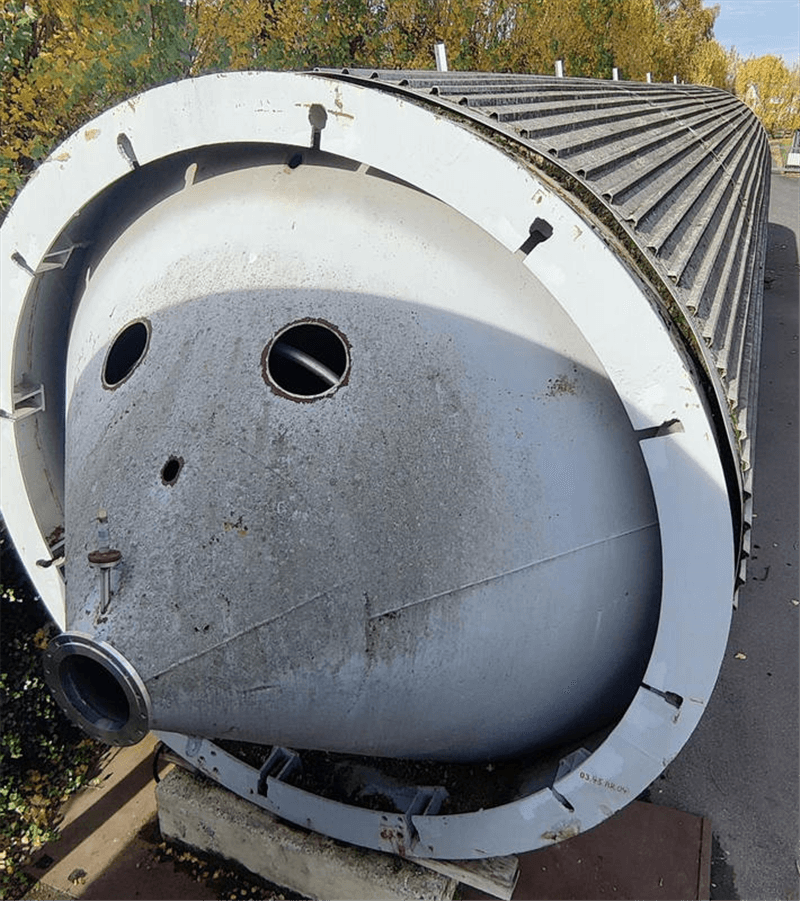

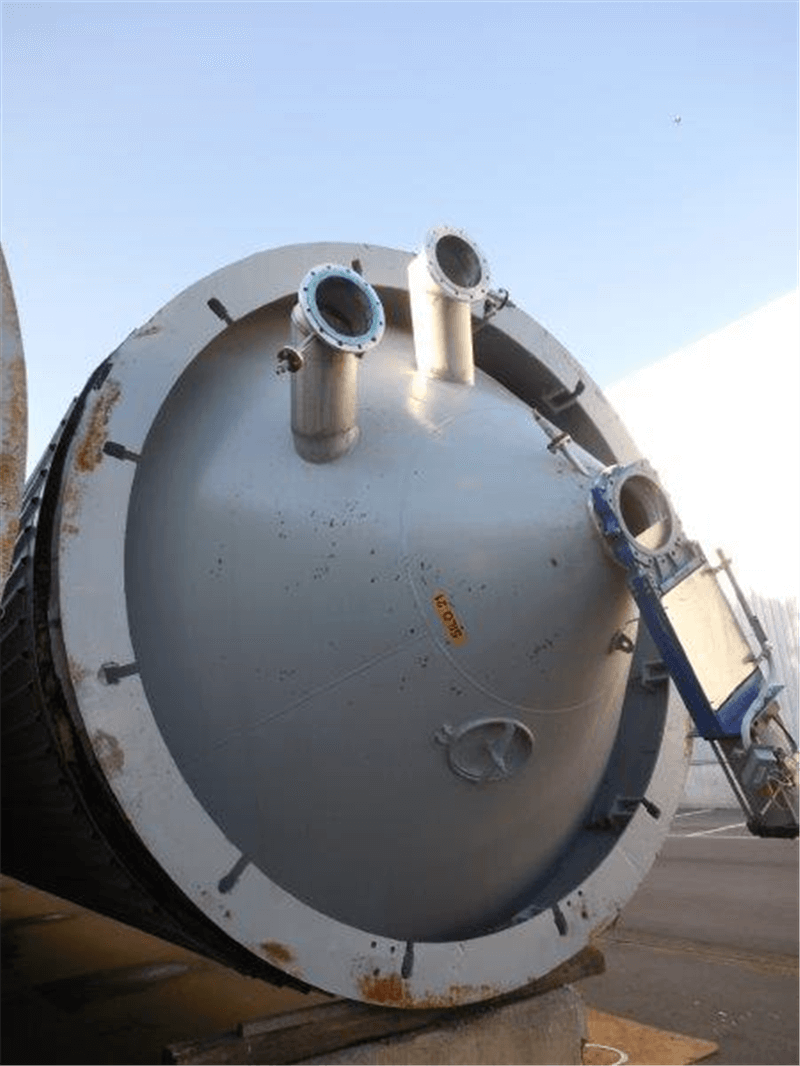

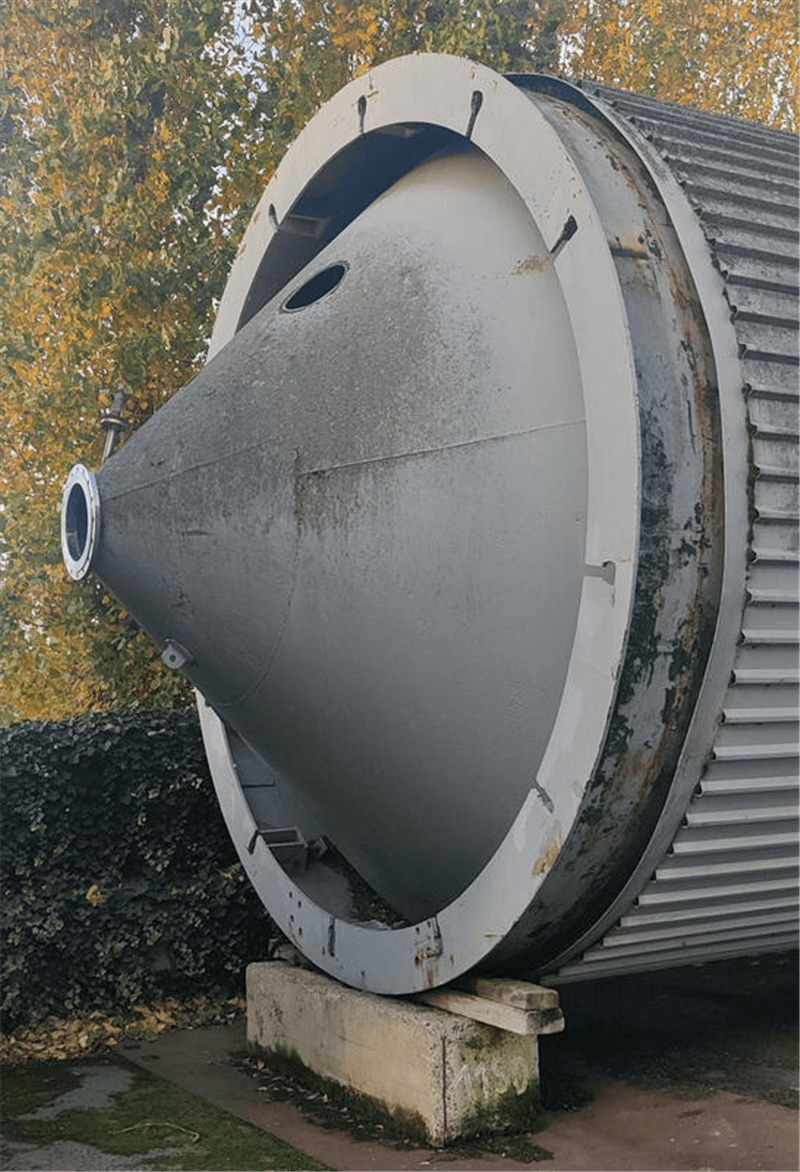

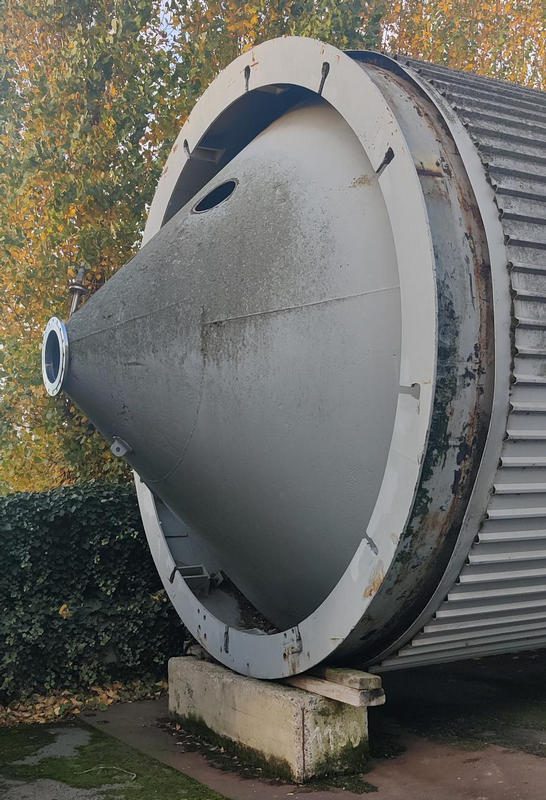

| Bottom | Conical bottom |
| Tank model | Single wall |
| Number lifting lugs | 5 |
| Number of manhole | 1 |
| Position of manhole (s) | Bottom |
| Dimensions of manholes | 350x450mm |
| Tank with total drain? | Yes |
| Type of outlet (s) | flens |
| Diameter of outlet (mm) | DN350 |
| locality | B-7711 Belgium |
| Provision tank cleaning | None |
| Weight (kg) | 20000 |
| Condition | Used |
| Type plate manufacturer | No |
| Drawing 1 | t0334TH02_BTS.pdf |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Thickness closed dome (mm) | 9,6 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 5 |
| Bottom thickness (mm) | 10,8 |
| Periphery (mm) | 13980 |
| Cylindrical length (mm) | 19550 |
| Slope bottom (°) | 46 |
| Height bottom (mm) | 2000 |
| Outside diameter tank (mm) | 4450 |
| Total height (mm) | 22750 |
| Length (mm) | 4700 |
| Diameter tank (mm) | 4180 |
| Width (mm) | 4450 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | Only cylindrical portion isolated |
| Type of insulation | Insulating wool |
| Thickness (mm) | 100 |

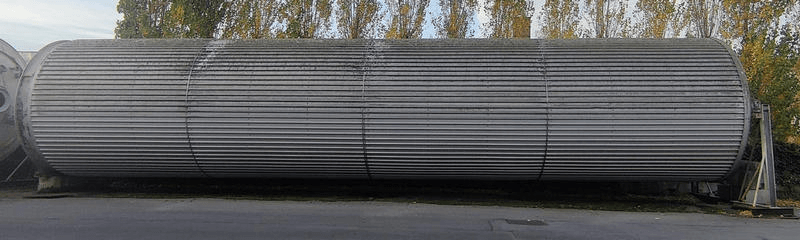

| Finishing insulation | Profile Cladding |
| Heating | |
|---|---|
| Number of heating type | 1 |

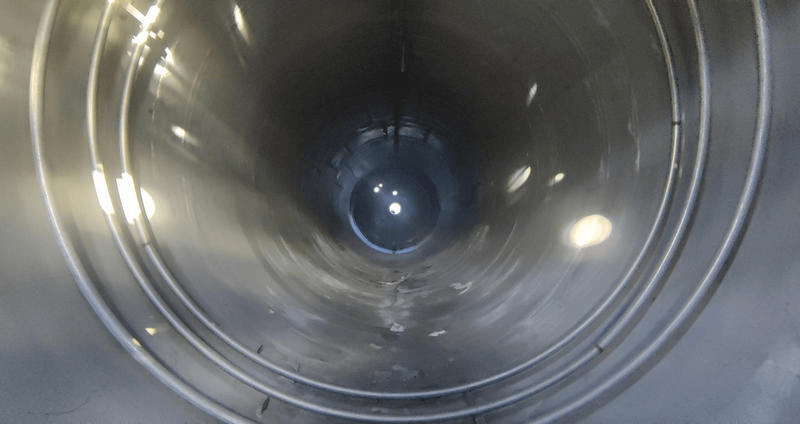

| Heating 1: Type | Heating coil on bottom and cylinder |
| Remarks | |
|---|---|

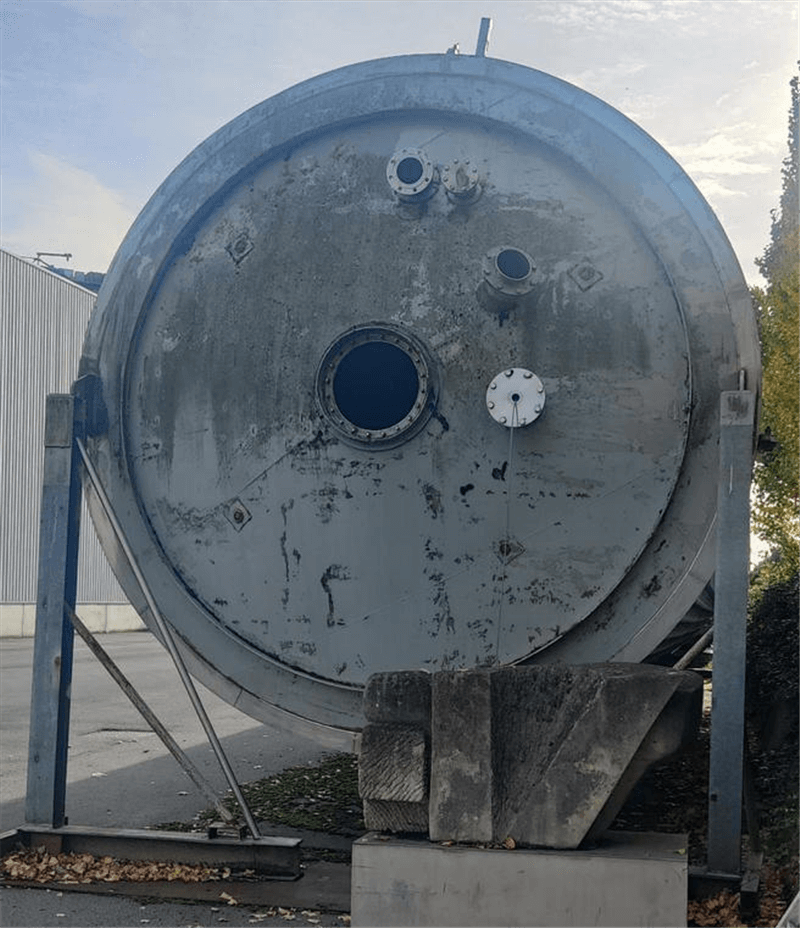

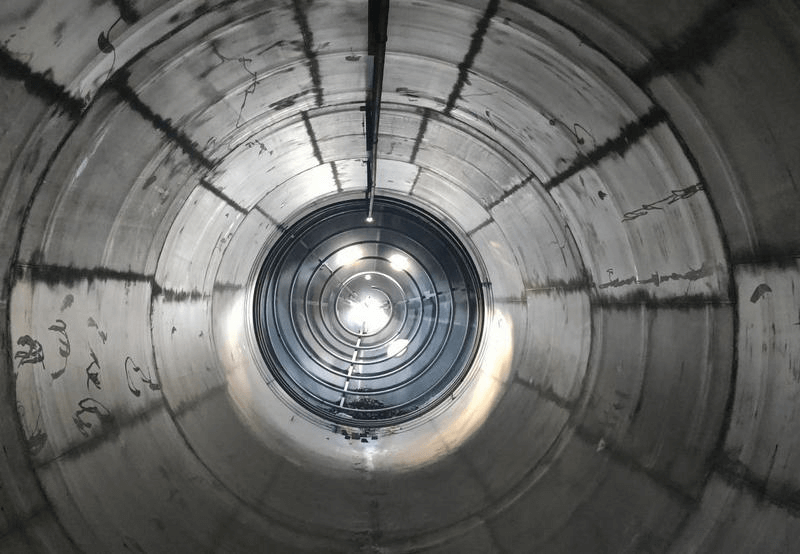

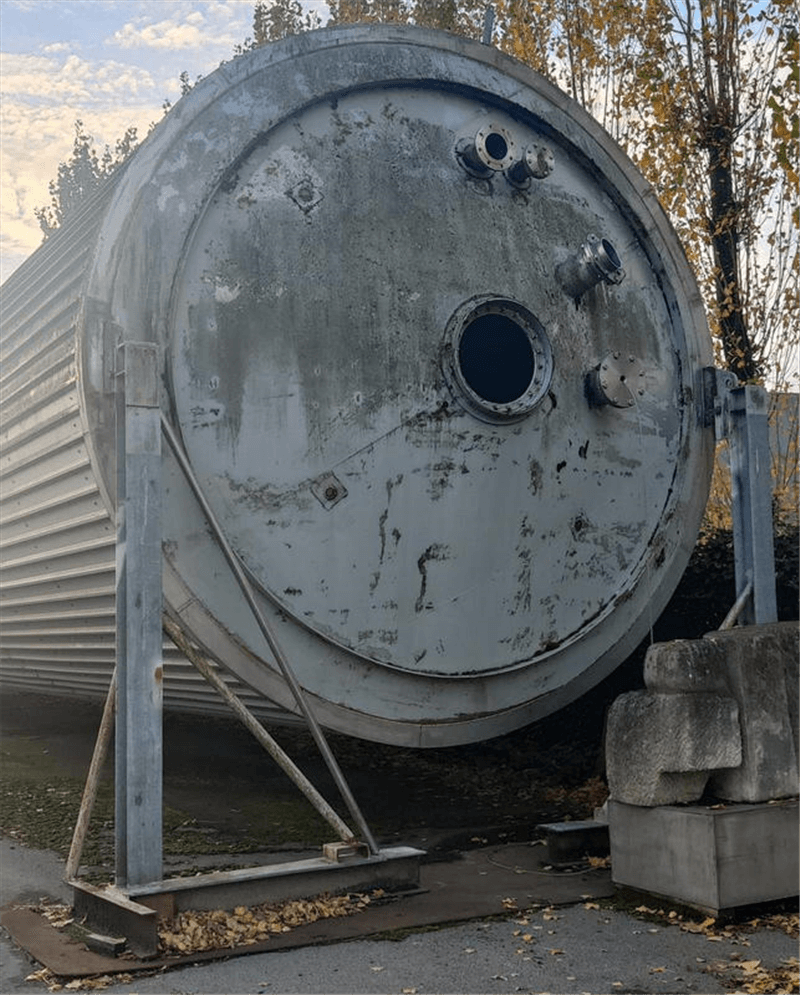

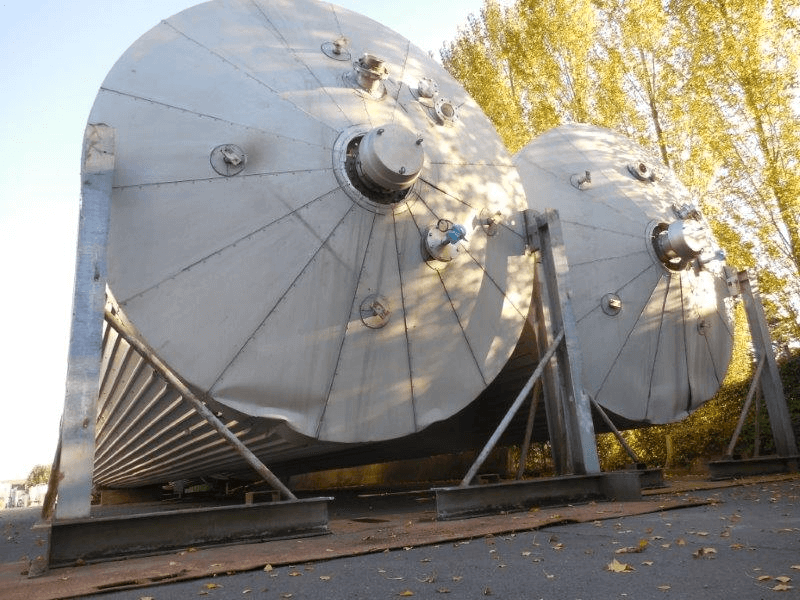

| Description (EN) | previous product = salt, food grade --- thicknesses 1° ring 5.7 / 2° ring 5.3 / 3° ring 4.2 / 4° ring 4.1 / 5°, 6° and 7° ring 4.2 --- no connections to the internal heating pipe --- central opening on roof Ø530mm without cover plate |
