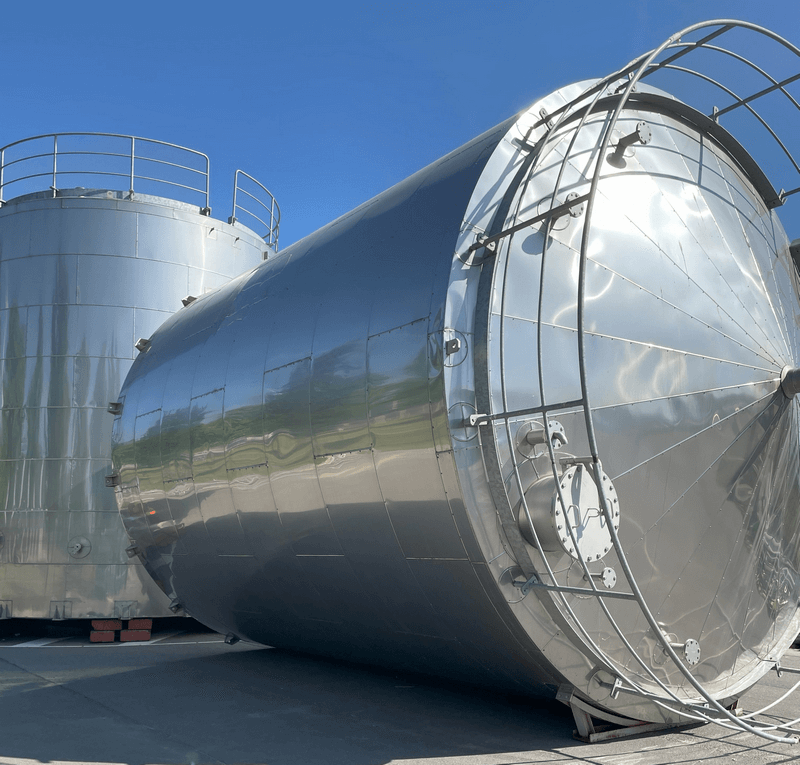

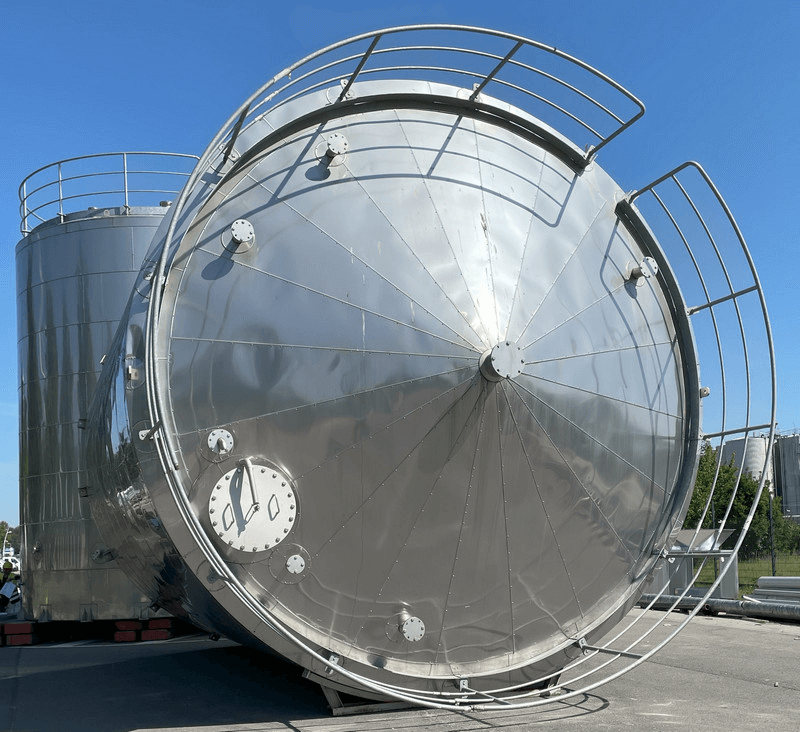

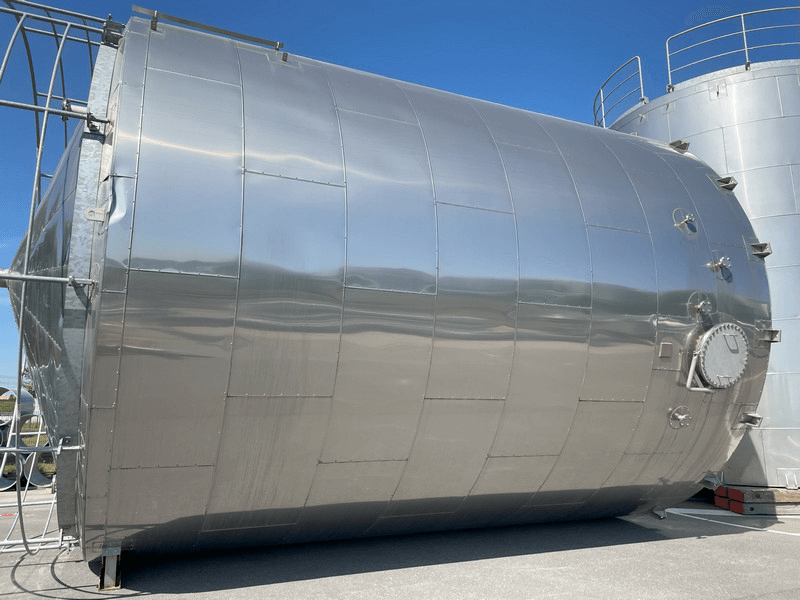

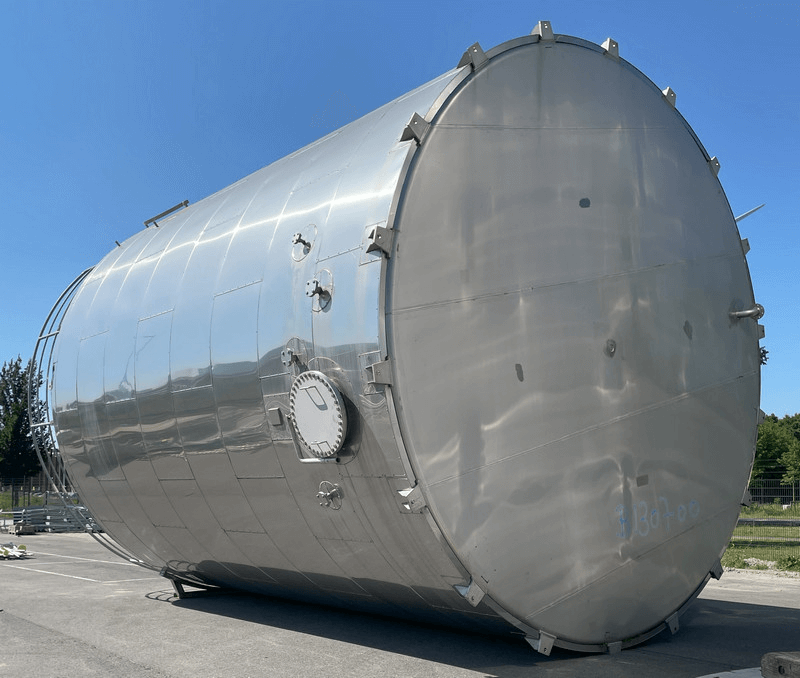

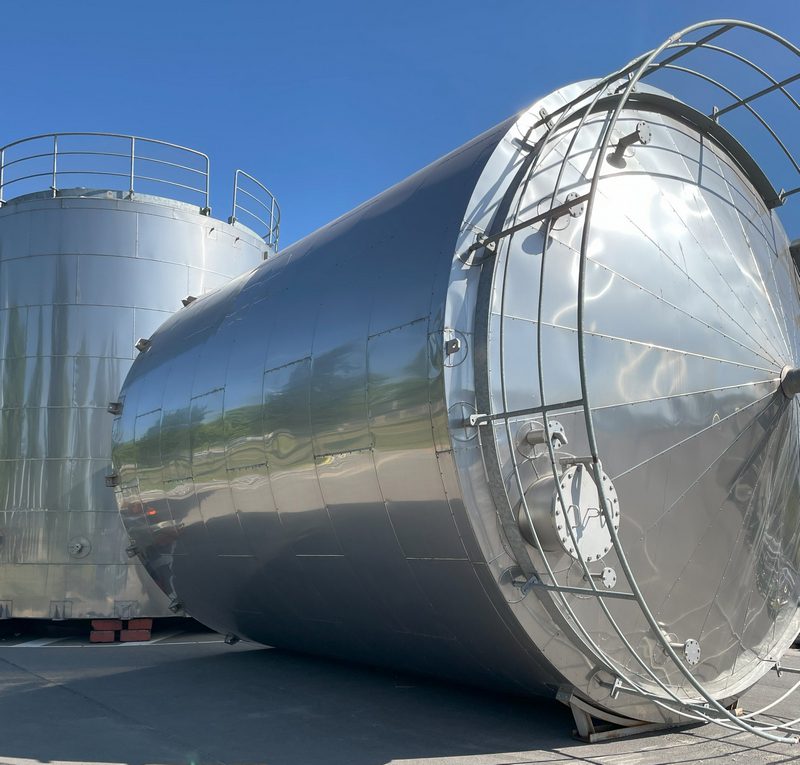

New storage tank
- Material: Stainless steel 316
- Condition: New
- Volume (in litres): 212800 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.45.AR.01 |
| Material | Stainless steel 316 |
| Number | 1 |
| Capacity (Liters) | 212800 |
| Type tank | Storage tank |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Flat bottom |
| Tank model | Single wall |
| Number lifting lugs | 2 |
| Density (kg/dm³) | 0,875 |
| Number of manhole | 2 |
| Position of manhole (s) | Top and Cylindrical part |
| Dimensions of manholes | Davit DN600 / DN600 |
| Tank with total drain? | Yes |
| Type of outlet (s) | flens |
| Diameter of outlet (mm) | DN80 |
| locality | On location |
| Provision tank cleaning | None |
| Weight (kg) | 10500 |
| Condition | New |
| Type plate manufacturer | Yes |
| Manufacturer | Ziemann Holvrieka |
| Year Built | 2021 |
| Appendix 1 | 0345AR01_draw.pdf |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Thickness closed dome (mm) | 6 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 5 |
| Bottom thickness (mm) | 5 |
| Cylindrical length (mm) | 7500 |
| Outside diameter tank (mm) | 6300 |
| Total height (mm) | 8900 |
| Diameter tank (mm) | 6200 |
| Width (mm) | 6550 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | cylinder and top isolated |
| Type of insulation | Insulating wool |
| Thickness (mm) | 50 |
| Finishing insulation | Rivited sheet cladding |
| Insulation material | Stainless steel 304 |
| Remarks | |
|---|---|
| Description (EN) | Working pressure ATM --- max design pressure 0.200 bar --- working temp 40°C --- design temp 80°C |
