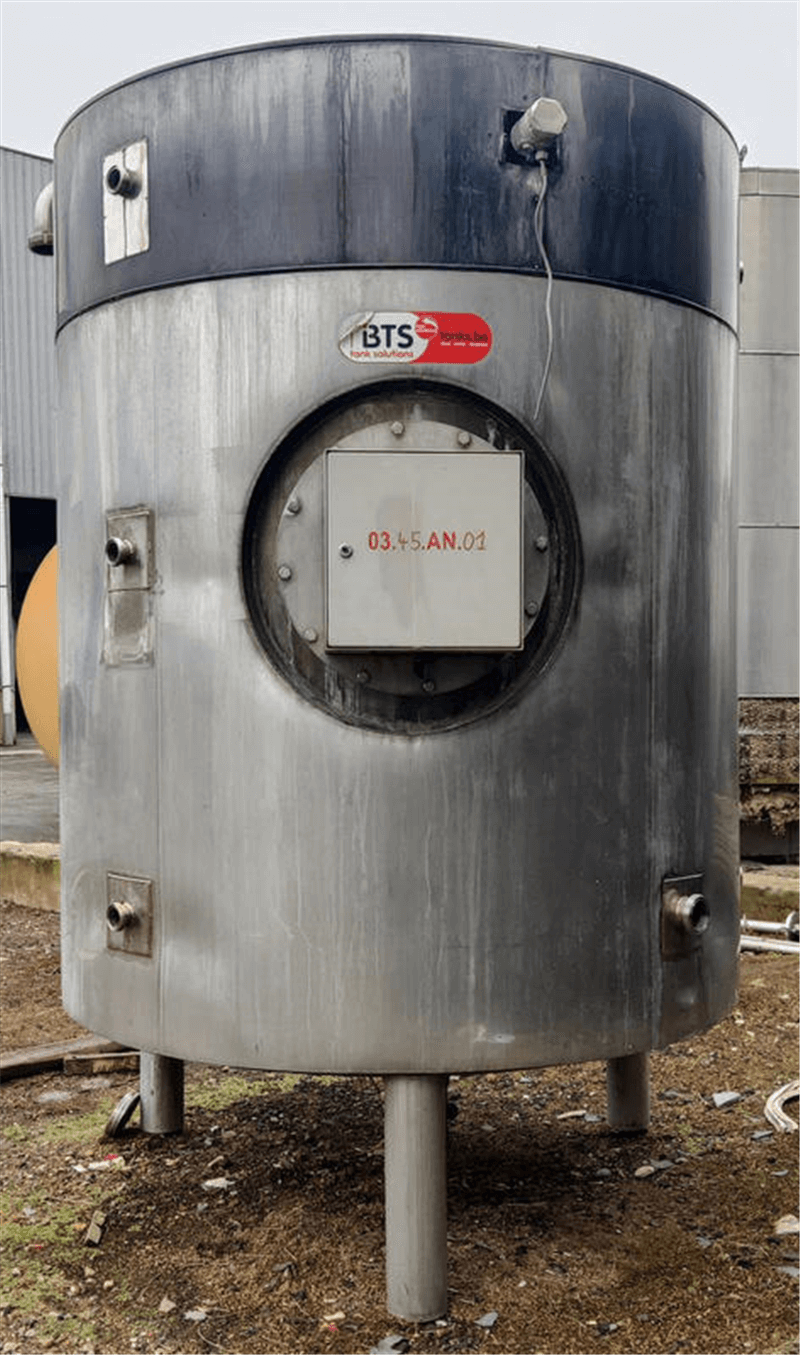

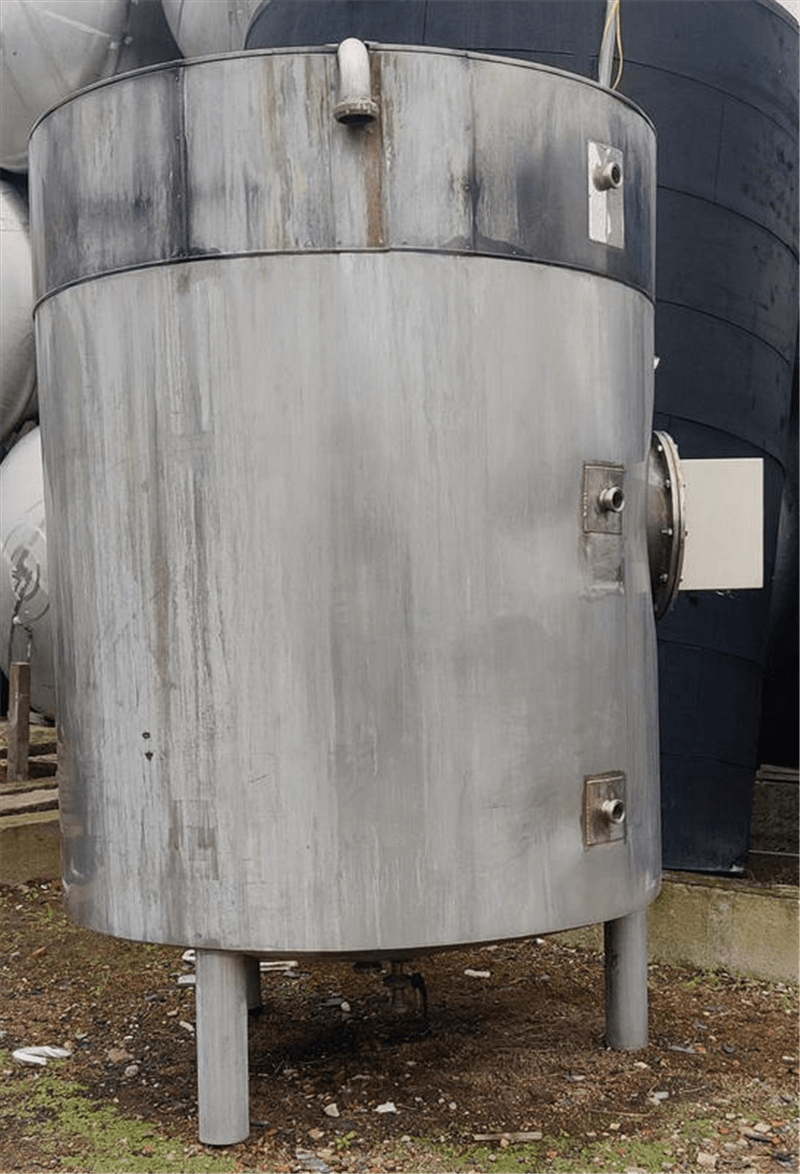

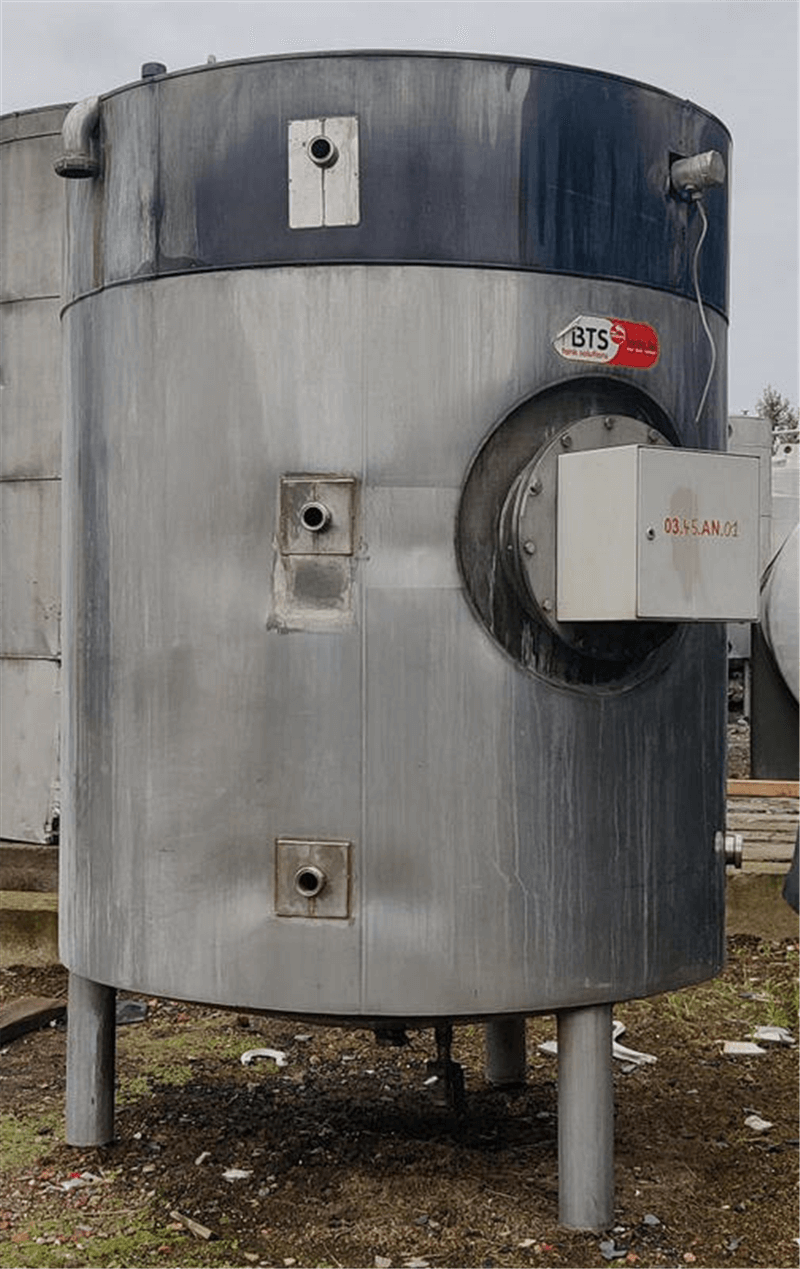

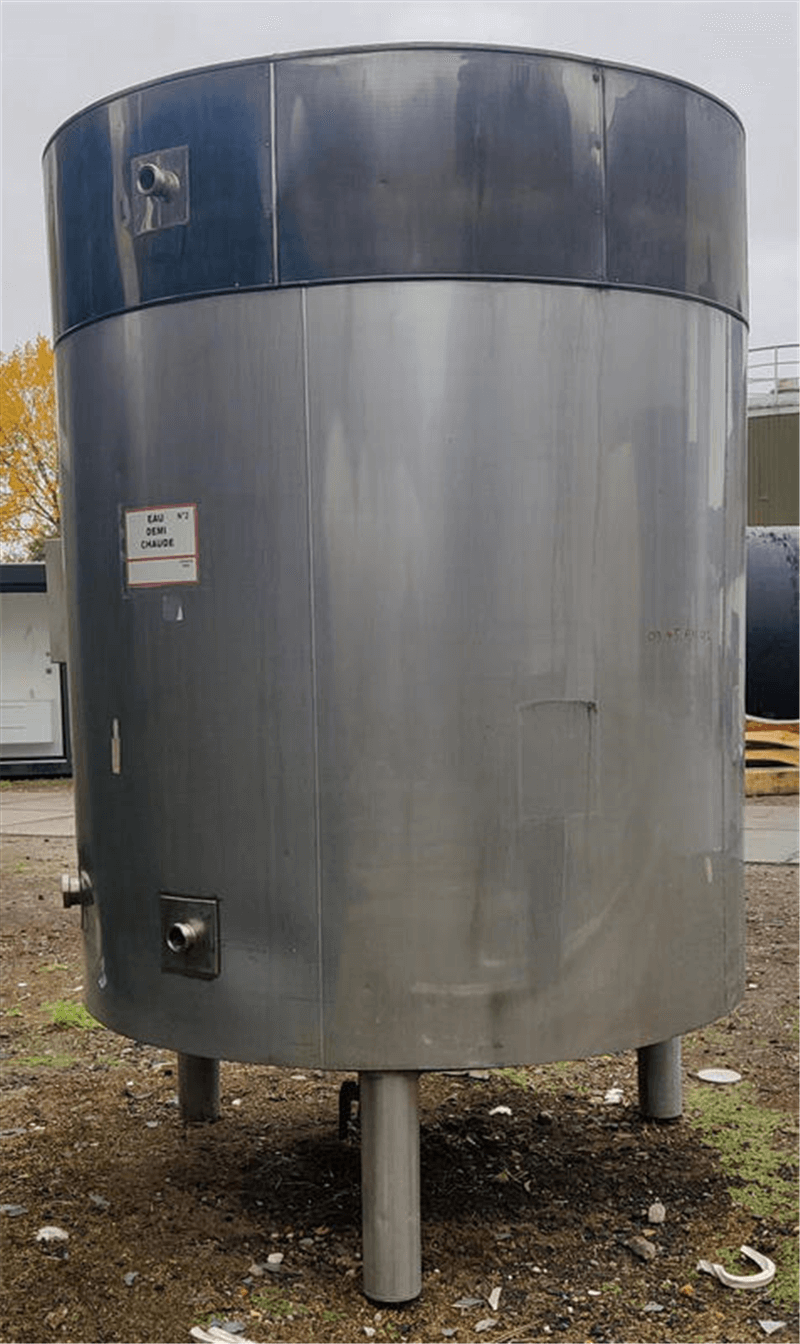

Used storage tank
- Material: Stainless steel 316
- Condition: Used
- Volume (in litres): 5000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.45.AN.01 |
| Material | Stainless steel 316 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 5000 |
| Type tank | Storage tank |
| Fixation | 3 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

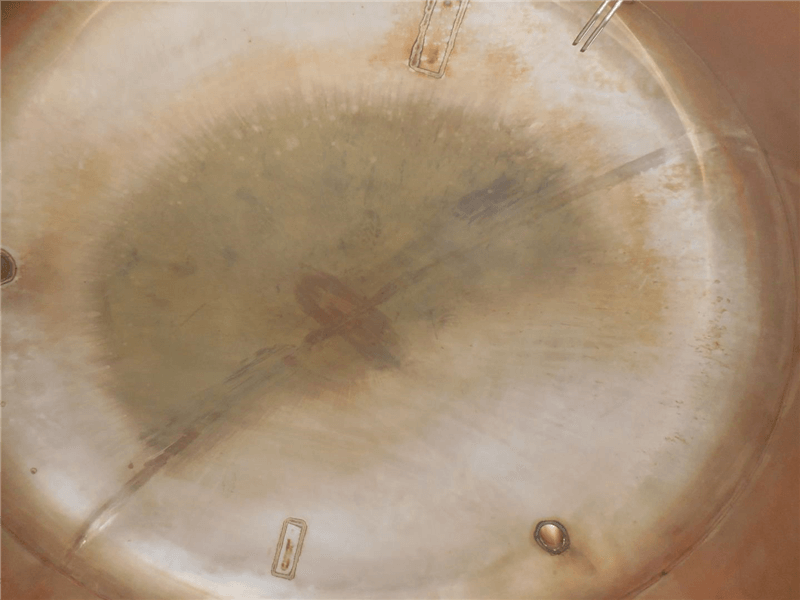

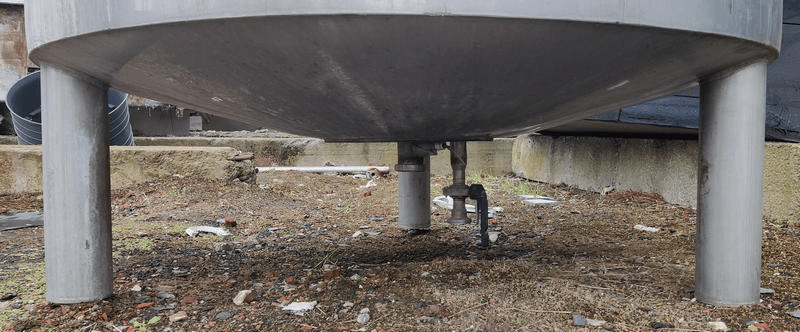

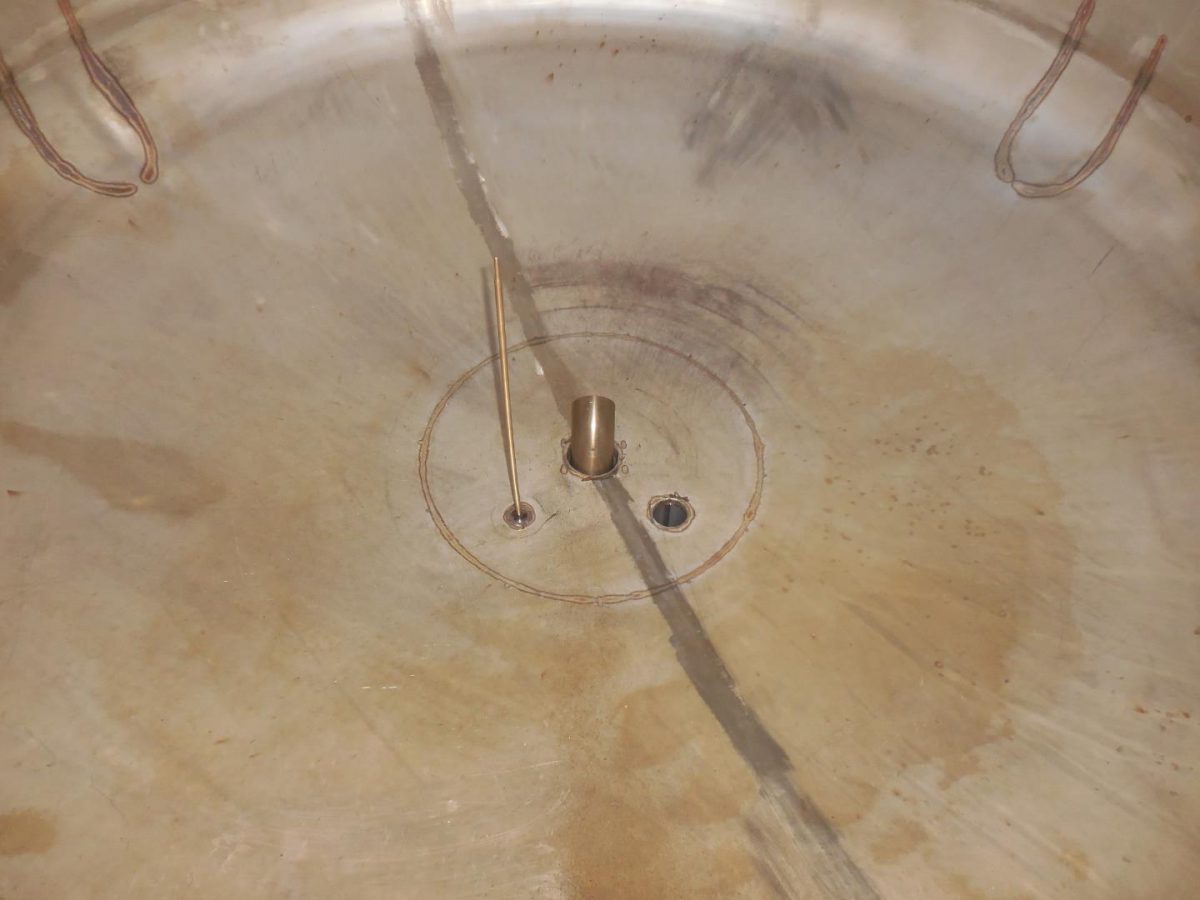

| Bottom | Conical bottom |
| Tank model | Single wall |
| Tank with total drain? | Yes |
| Diameter of outlet (mm) | 75 |
| locality | B-7711 Belgium |
| Provision tank cleaning | None |
| Weight (kg) | 850 |
| Condition | Used |
| Type plate manufacturer | No |
| Construction data available | No |
| Appendix 1 | 0345AN01_draw.jpg |

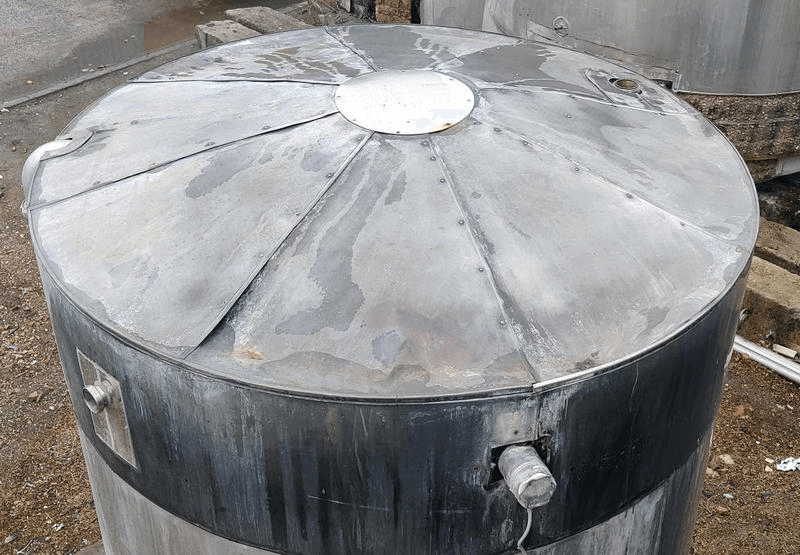

| Top side | |
|---|---|

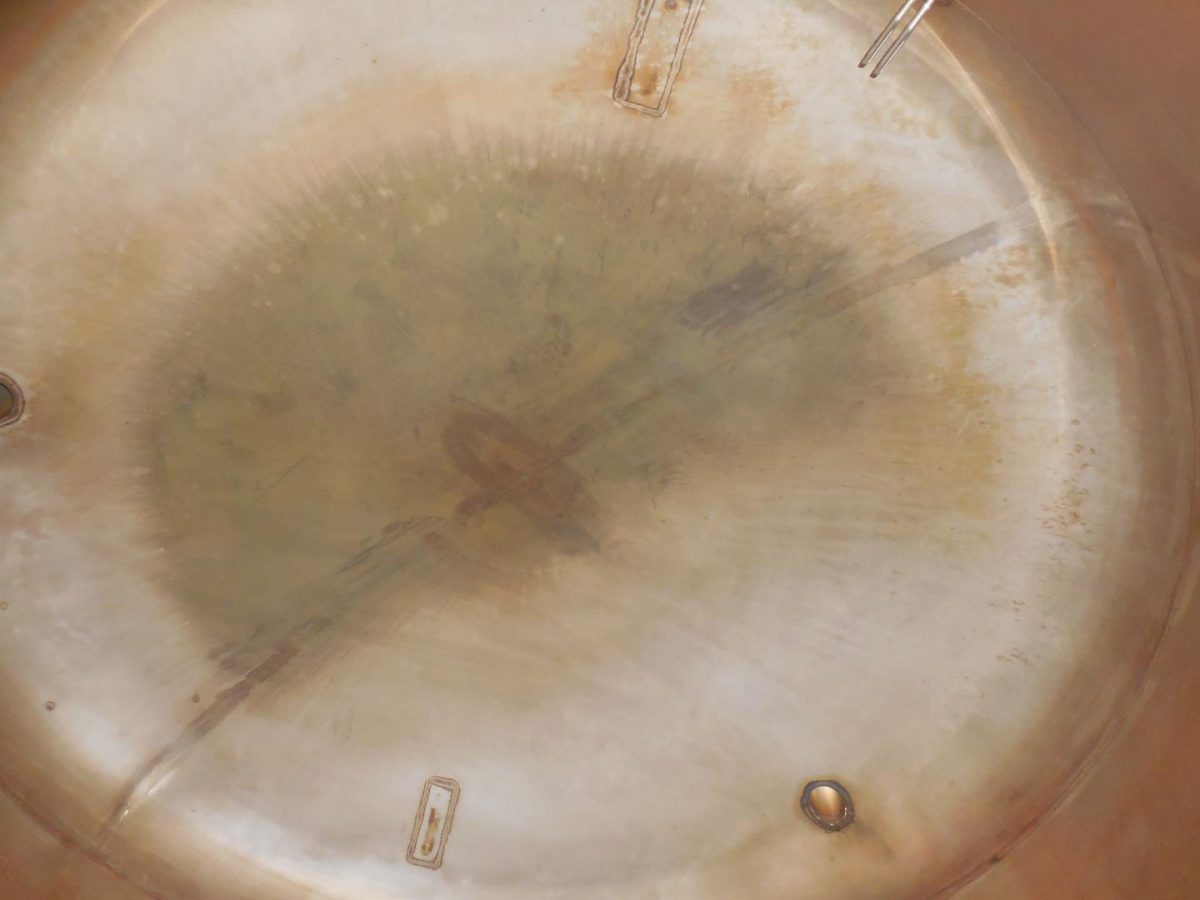

| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 3 |
| Periphery (mm) | 6060 |
| Cylindrical length (mm) | 2000 |
| Height bottom (mm) | 150 |
| Outside diameter tank (mm) | 1930 |
| Total height (mm) | 3200 |
| Length (mm) | 2280 |
| Diameter tank (mm) | 1820 |
| Width (mm) | 1930 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | Fully insulated |
| Type of insulation | Insulating wool |
| Thickness (mm) | 50 |
| Finishing insulation | fully welded cladding |
| Insulation material | Stainless steel 304 |
| Heating | |
|---|---|
| Number of heating type | 1 |

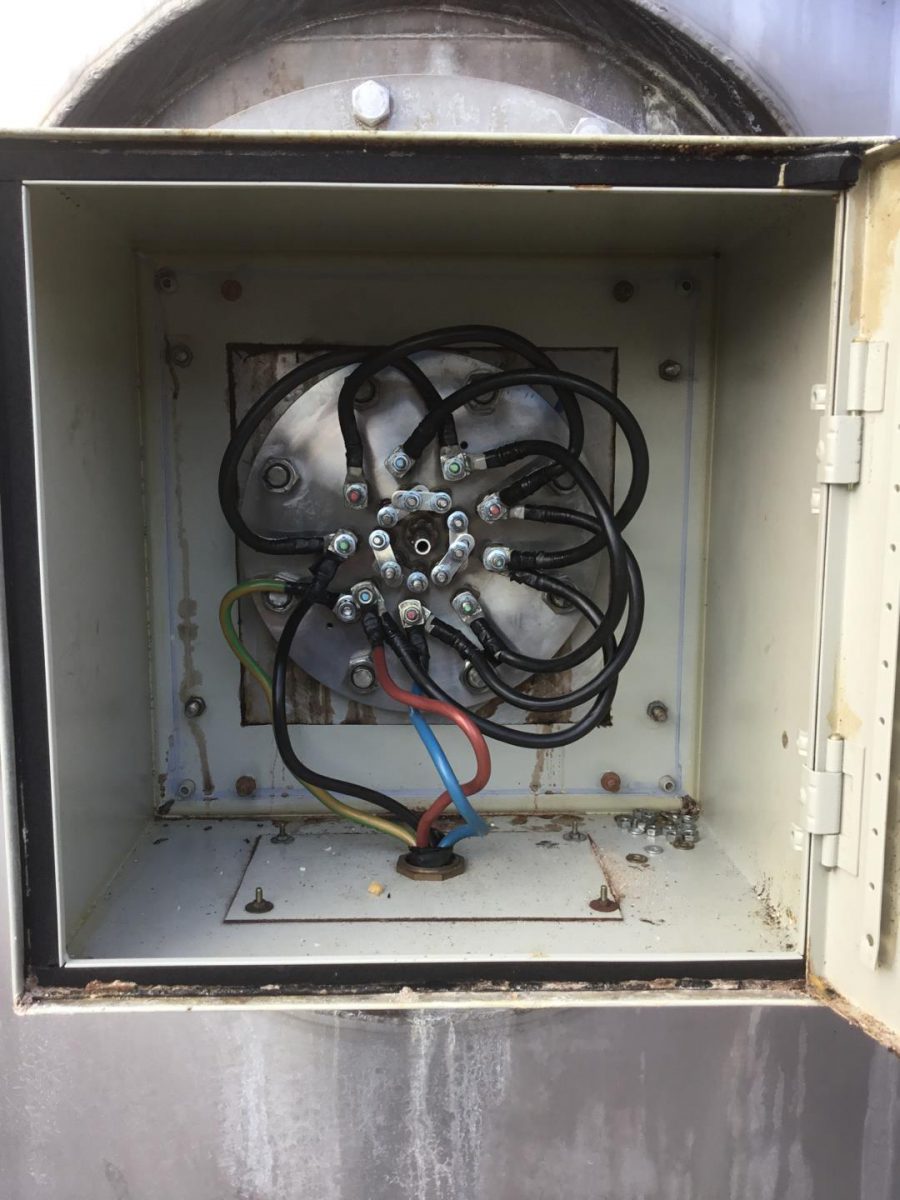

| Heating 1: Type | Electric heating resistors |
| Remarks | |
|---|---|
| Description (EN) | Dimensions flange electric heating : Ø605mm x Ø500 mm, 12 x Ø18mm rayon Ø570mm |
