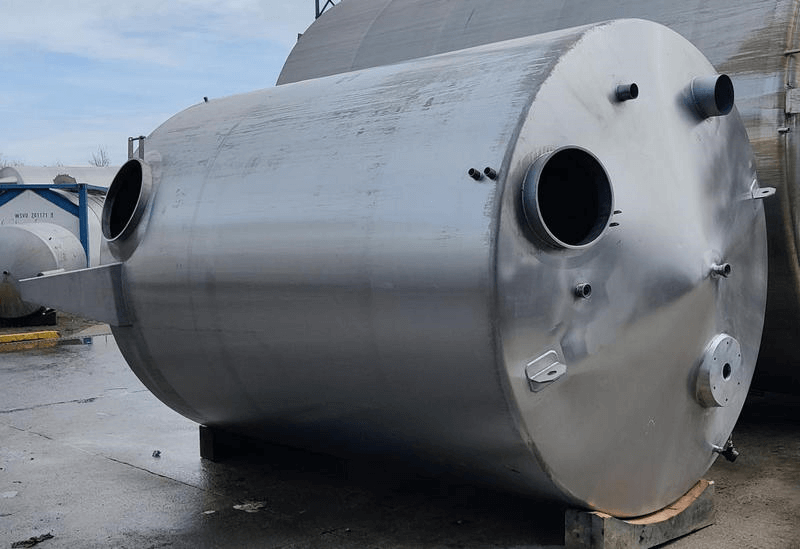

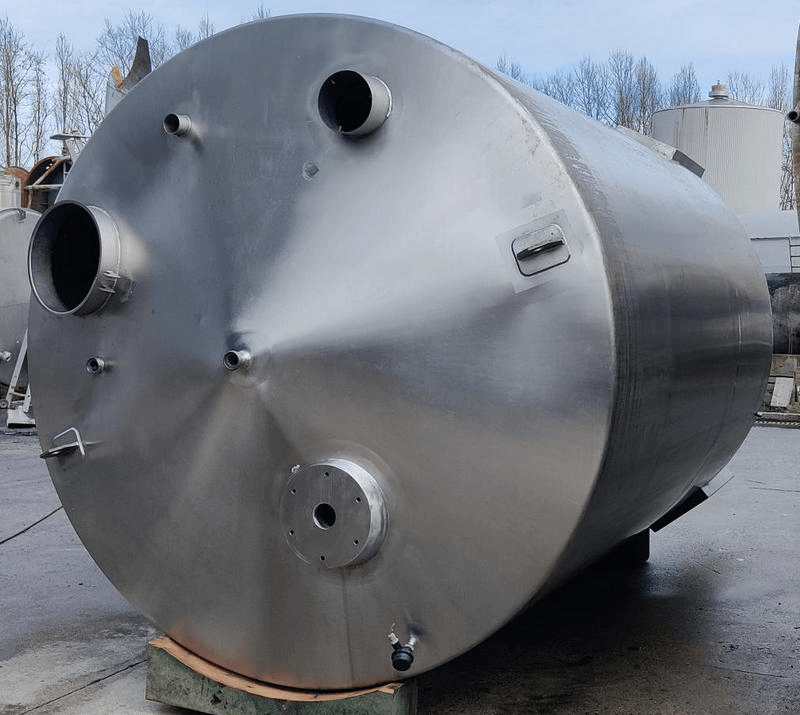

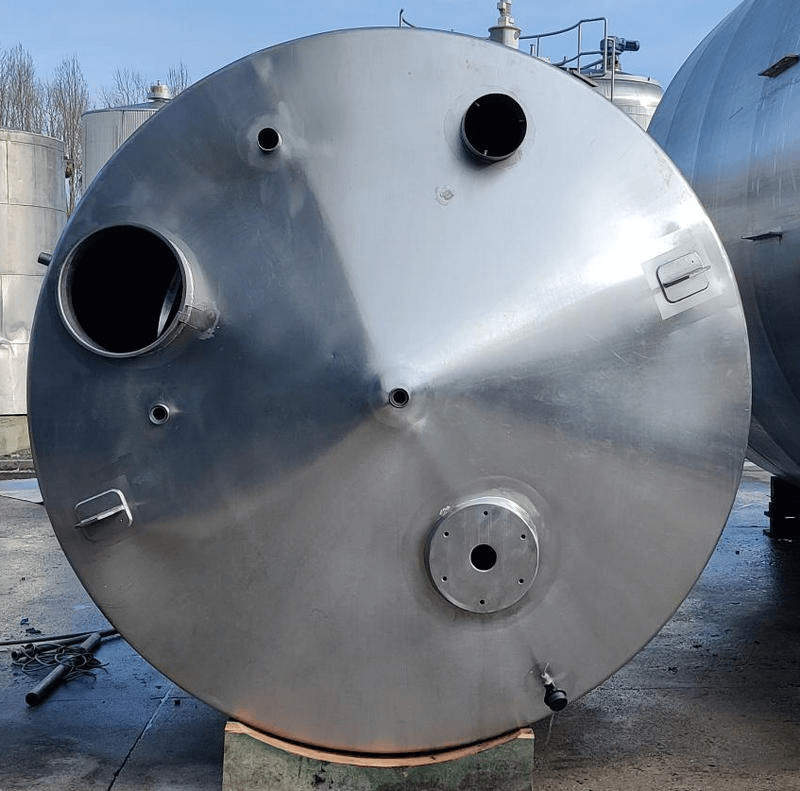

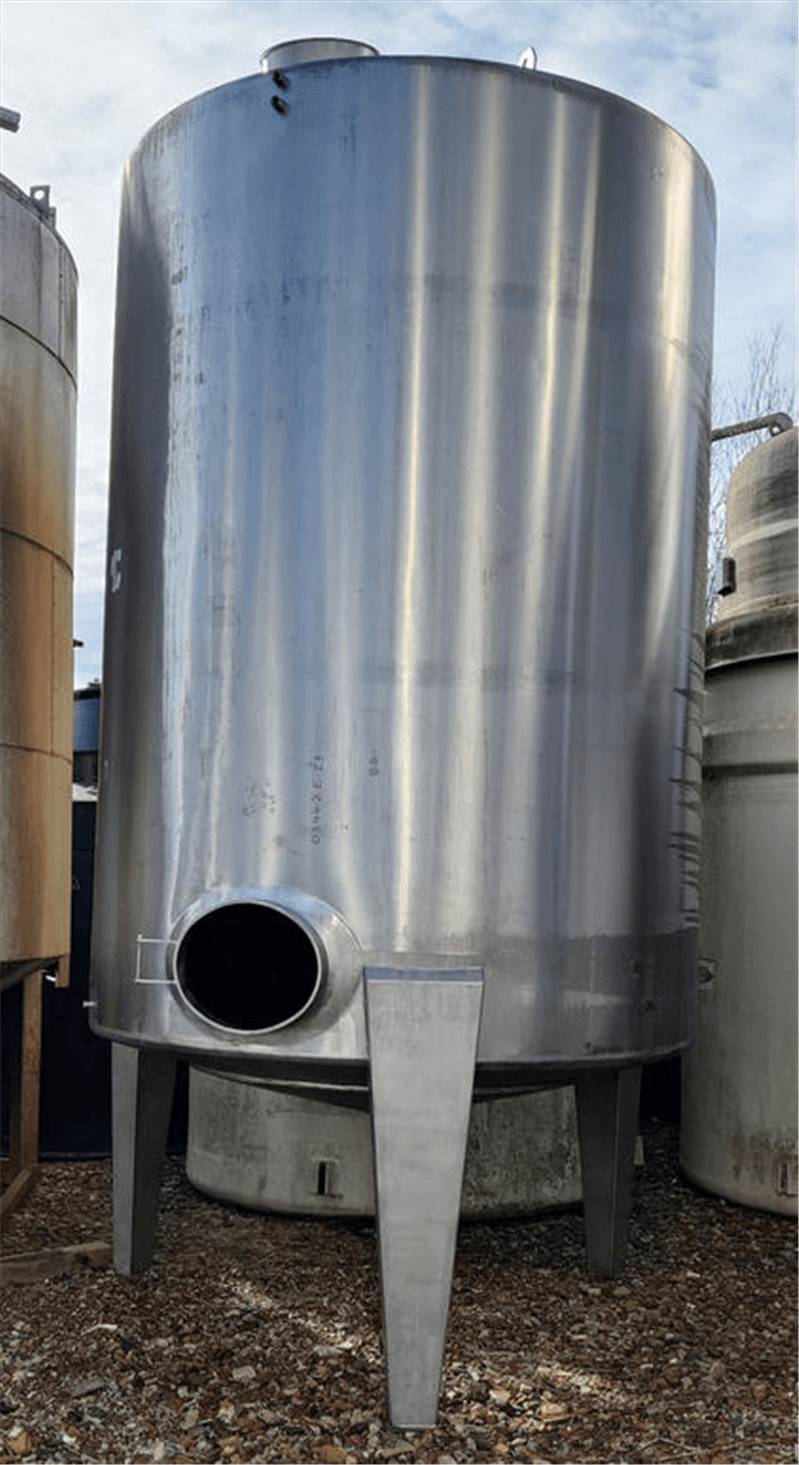

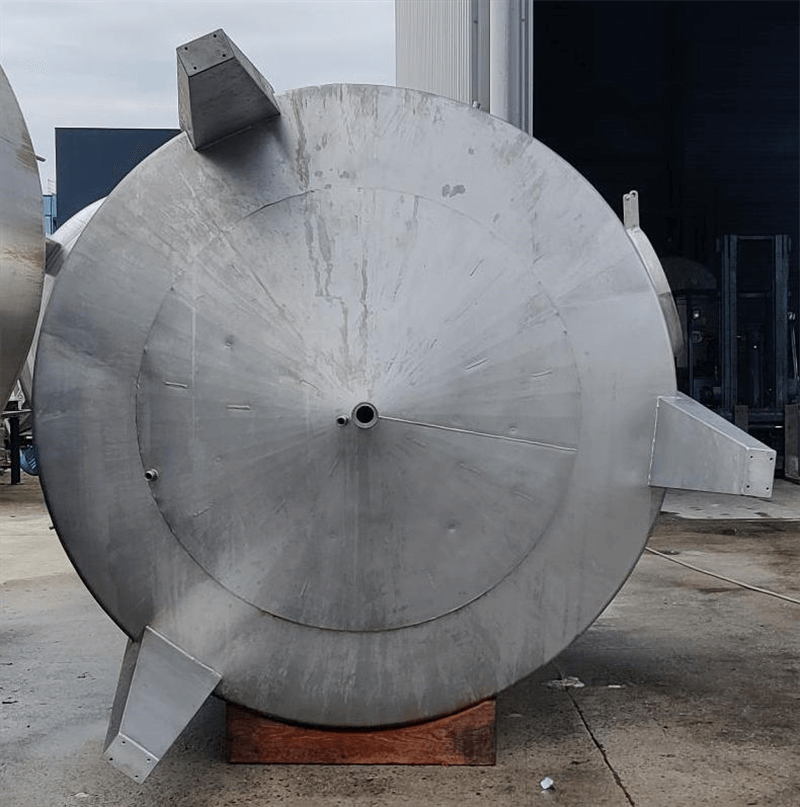

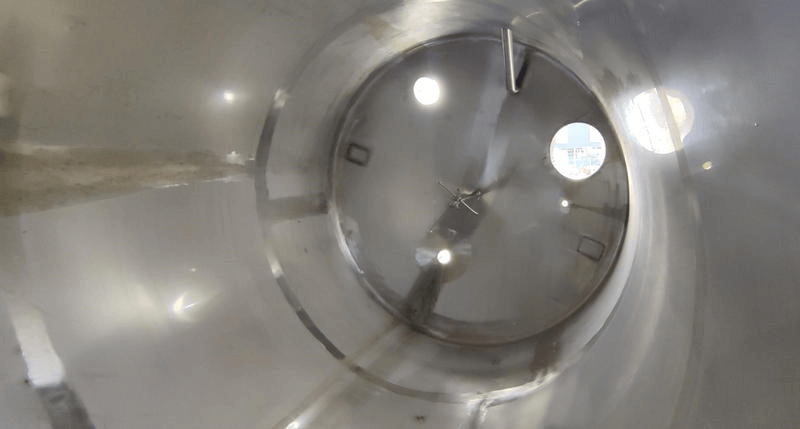

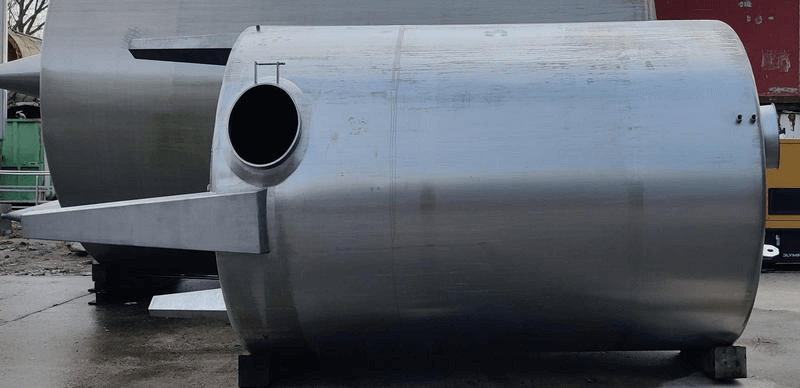

Used storage tank
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 15000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.44.ZE.24 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 15000 |
| Type tank | Storage tank |
| Fixation | 3 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Conical bottom |
| Tank model | Jacketed (Heating/Cooling) |
| Number lifting lugs | 2 |
| Number of manhole | 2 |
| Position of manhole (s) | Top and Cylindrical part |
| Dimensions of manholes | 400x510mm / dia 390mm |
| Tank with total drain? | Yes |
| Type of outlet (s) | voedingskoppeling |
| Diameter of outlet (mm) | 60 |
| locality | B-7711 Belgium |
| Last application | Food |
| Provision tank cleaning | Rotating spray head |
| Weight (kg) | 1000 |
| Condition | Used |
| Type plate manufacturer | No |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Thickness closed dome (mm) | 2,5 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 2,6 |
| Bottom thickness (mm) | 3 |
| Periphery (mm) | 7500 |
| Cylindrical length (mm) | 3200 |
| Height bottom (mm) | 400 |
| Outside diameter tank (mm) | 2390 |
| Total height (mm) | 4800 |
| Length (mm) | 2470 |
| Diameter tank (mm) | 2385 |
| Width (mm) | 2390 |
| Insulation | |
|---|---|
| Insulation | No |
| Heating | |
|---|---|
| Number of heating type | 1 |
| Heating 1: Type | jacket au bain-marie |
