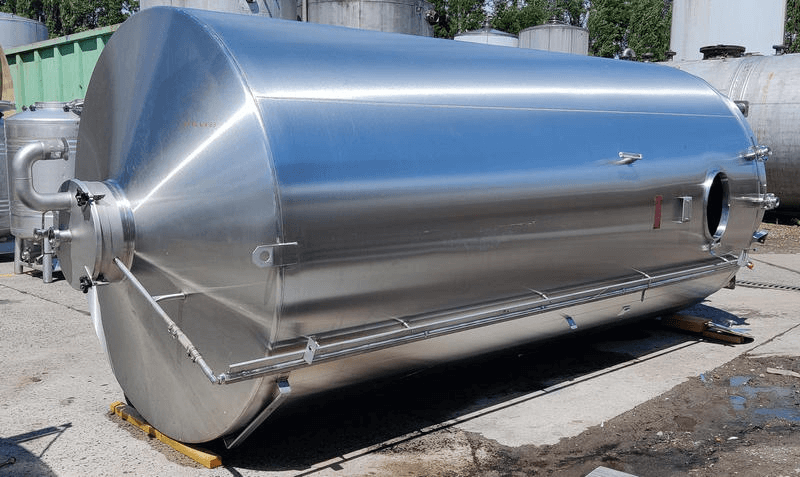

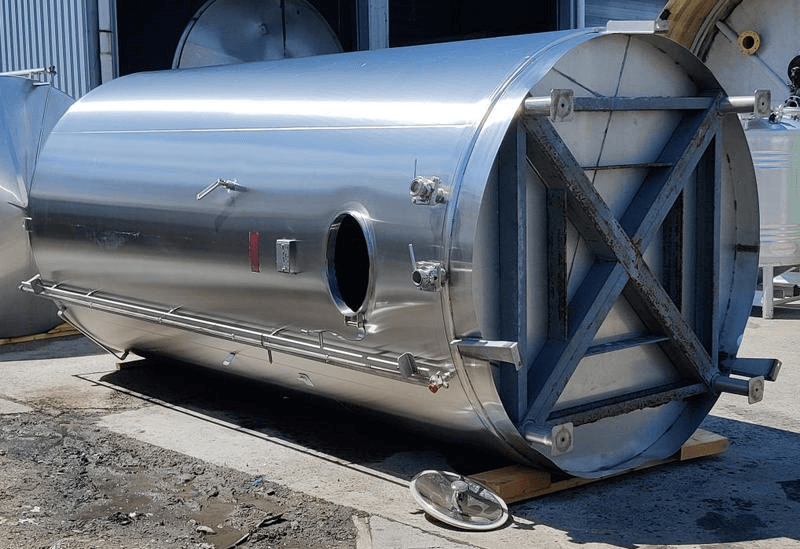

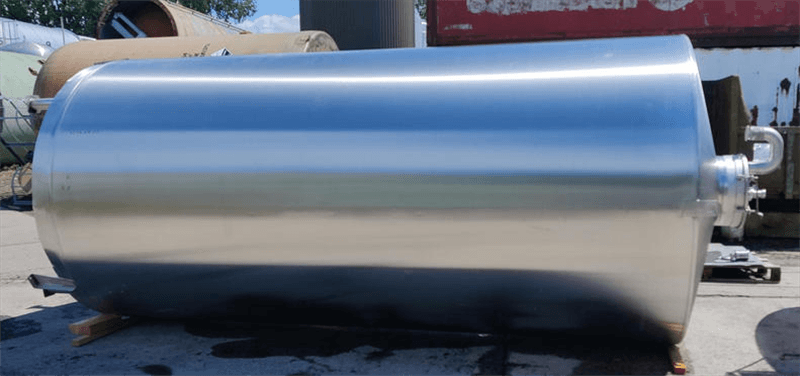

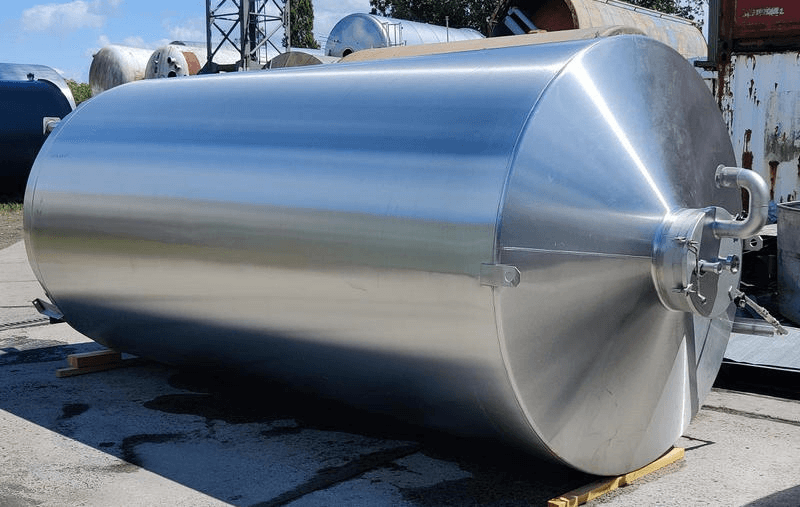

Used storage tank
- Material: Stainless steel 316
- Condition: Used
- Volume (in litres): 12800 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.44.WA.03 |
| Material | Stainless steel 316 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 12800 |
| Type tank | Storage tank |

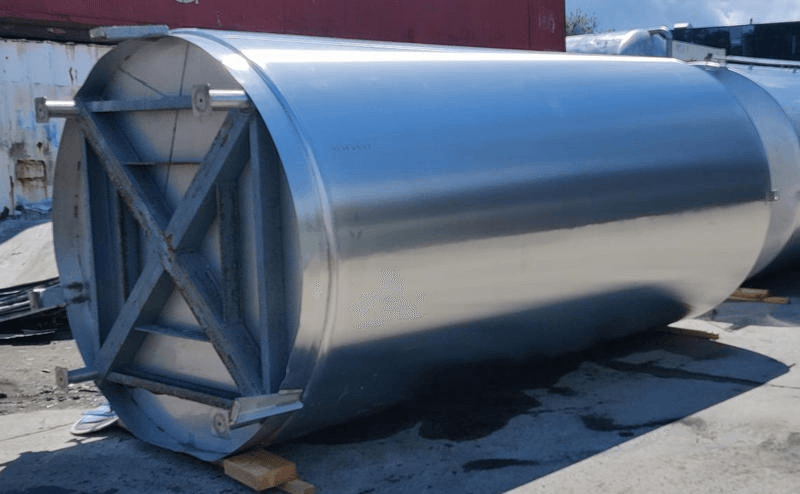

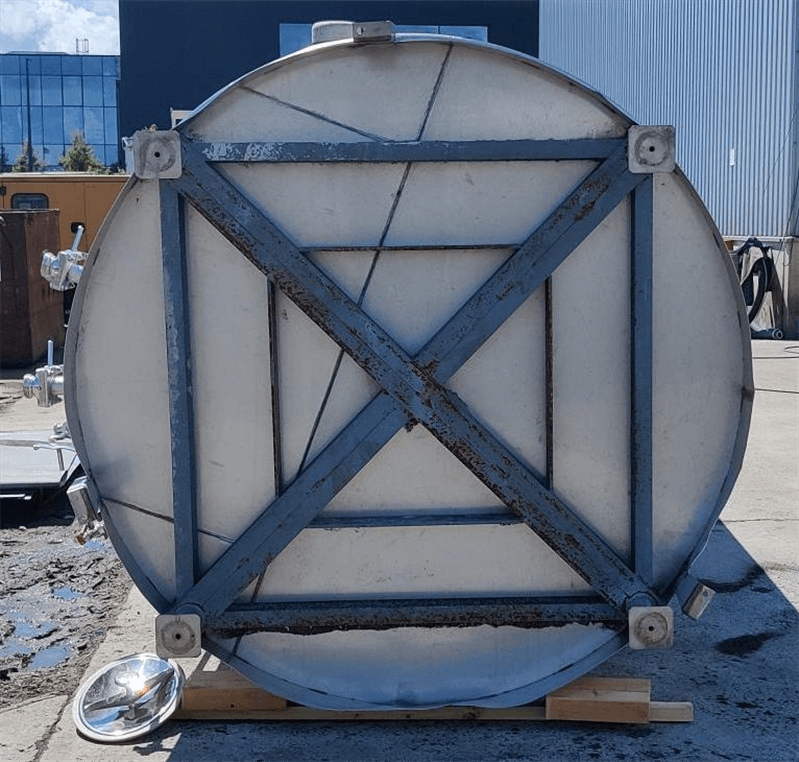

| Fixation | 4 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

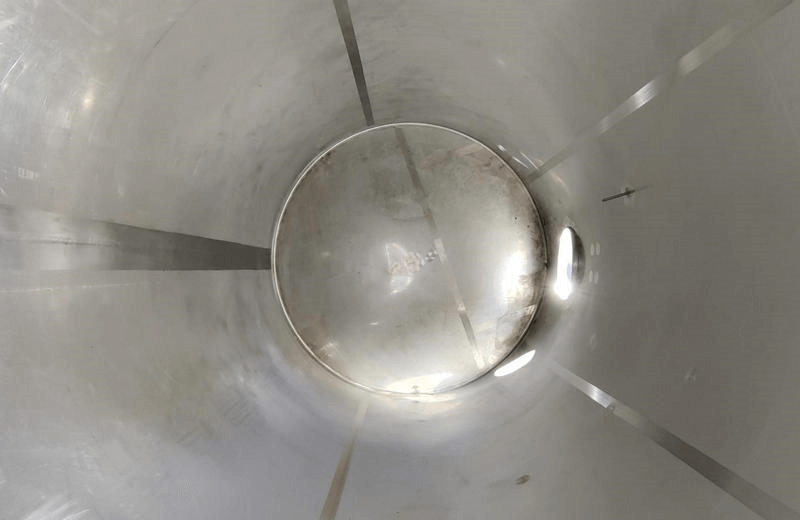

| Bottom | Inclined bottom |
| Tank model | Single wall |
| Number lifting lugs | 2 |

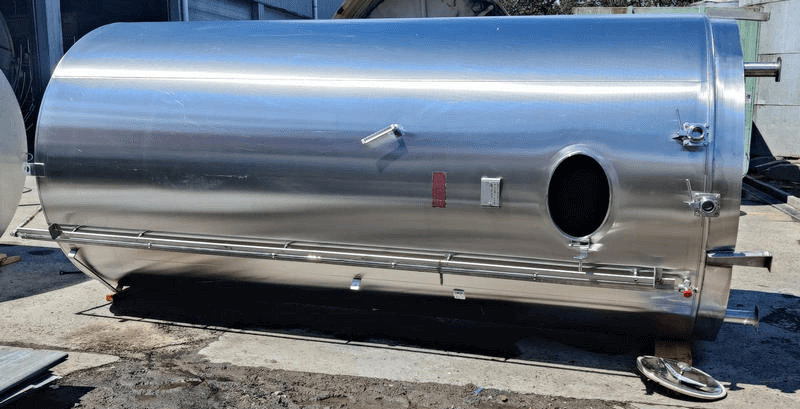

| Number of manhole | 2 |
| Position of manhole (s) | Top and Cylindrical part |
| Dimensions of manholes | dia 445mm / 440x305mm |
| Tank with total drain? | Yes |
| Diameter of outlet (mm) | 45 |
| locality | B-7711 Belgium |
| Last application | Food |
| Provision tank cleaning | CIP ball |
| Weight (kg) | 750 |
| Condition | Used |

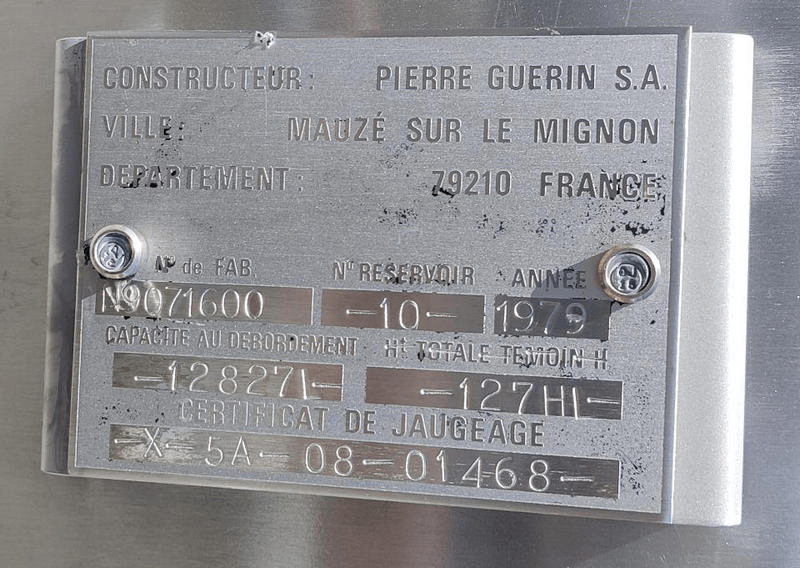

| Type plate manufacturer | Yes |
| Manufacturer | Pierre Guerin |
| Year Built | 1979 |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Thickness closed dome (mm) | 2 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 2 |
| Bottom thickness (mm) | 3,2 |
| Periphery (mm) | 6270 |
| Cylindrical length (mm) | 4000 |
| Slope bottom (°) | 1 |
| Total height (mm) | 5050 |
| Length (mm) | 2130 |
| Diameter tank (mm) | 1996 |
| Width (mm) | 2000 |
| Insulation | |
|---|---|
| Insulation | No |
