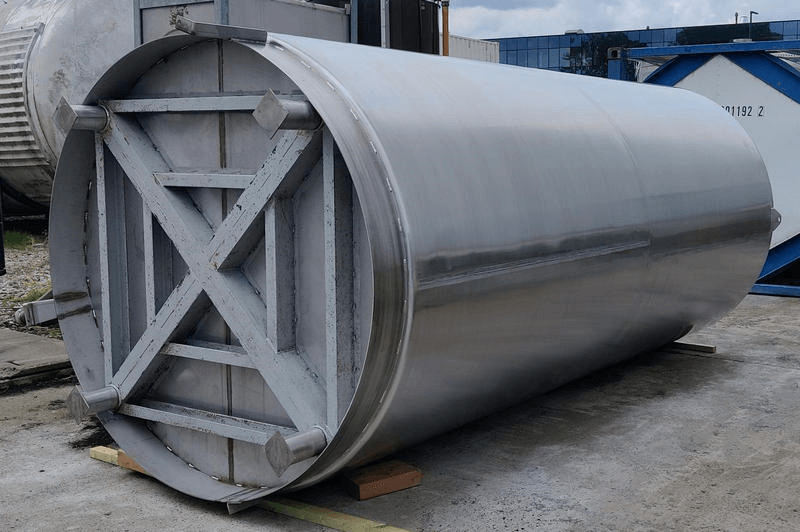

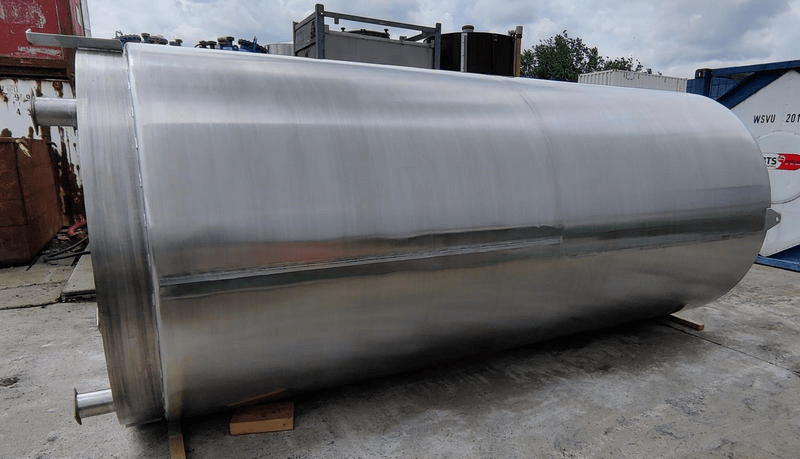

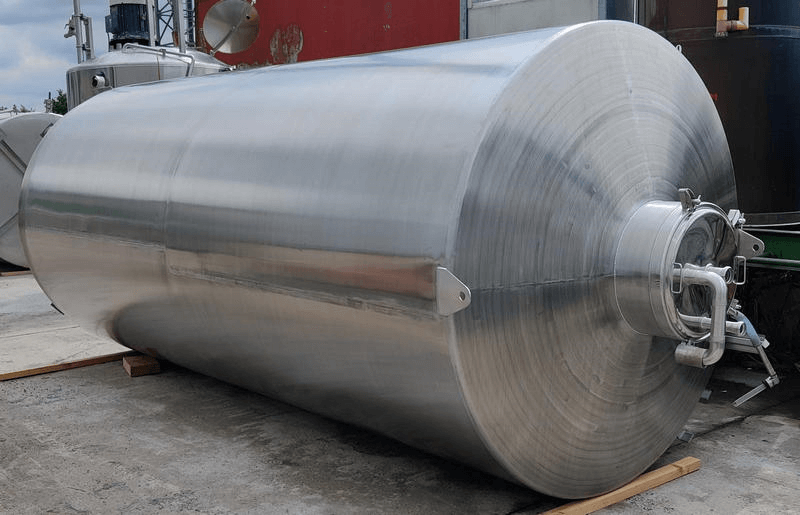

Used storage tank
- Material: Stainless steel 316
- Condition: Used
- Volume (in litres): 11700 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.44.WA.01 |
| Material | Stainless steel 316 |
| Finishing weldings inside | Raw brushed |
| Number | 1 |
| Capacity (Liters) | 11700 |
| Type tank | Storage tank |
| Fixation | 4 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

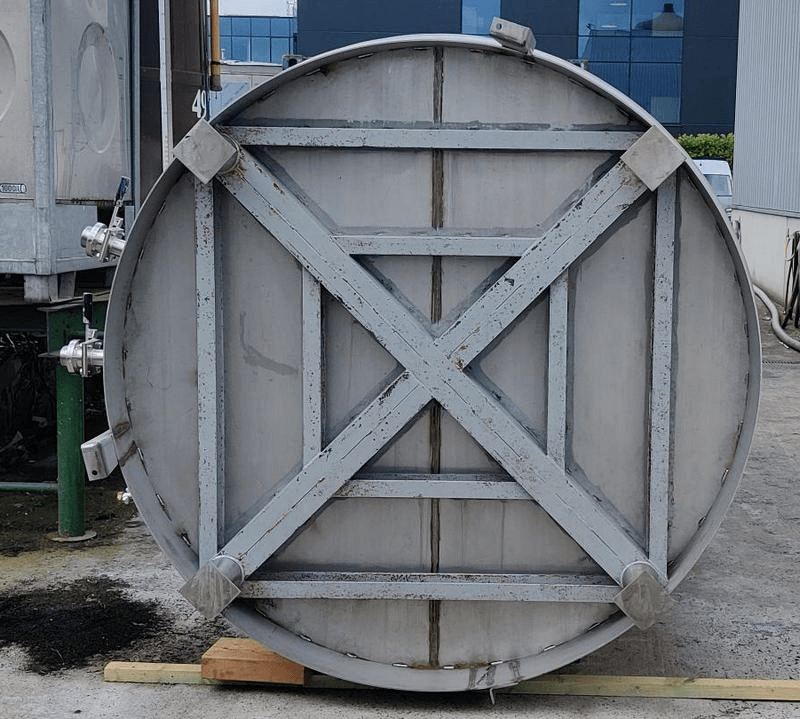

| Bottom | Inclined bottom |
| Tank model | Single wall |
| Number lifting lugs | 2 |

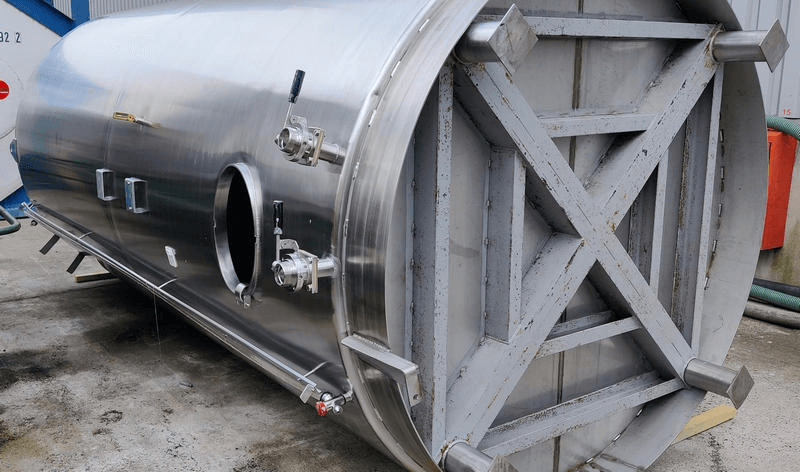

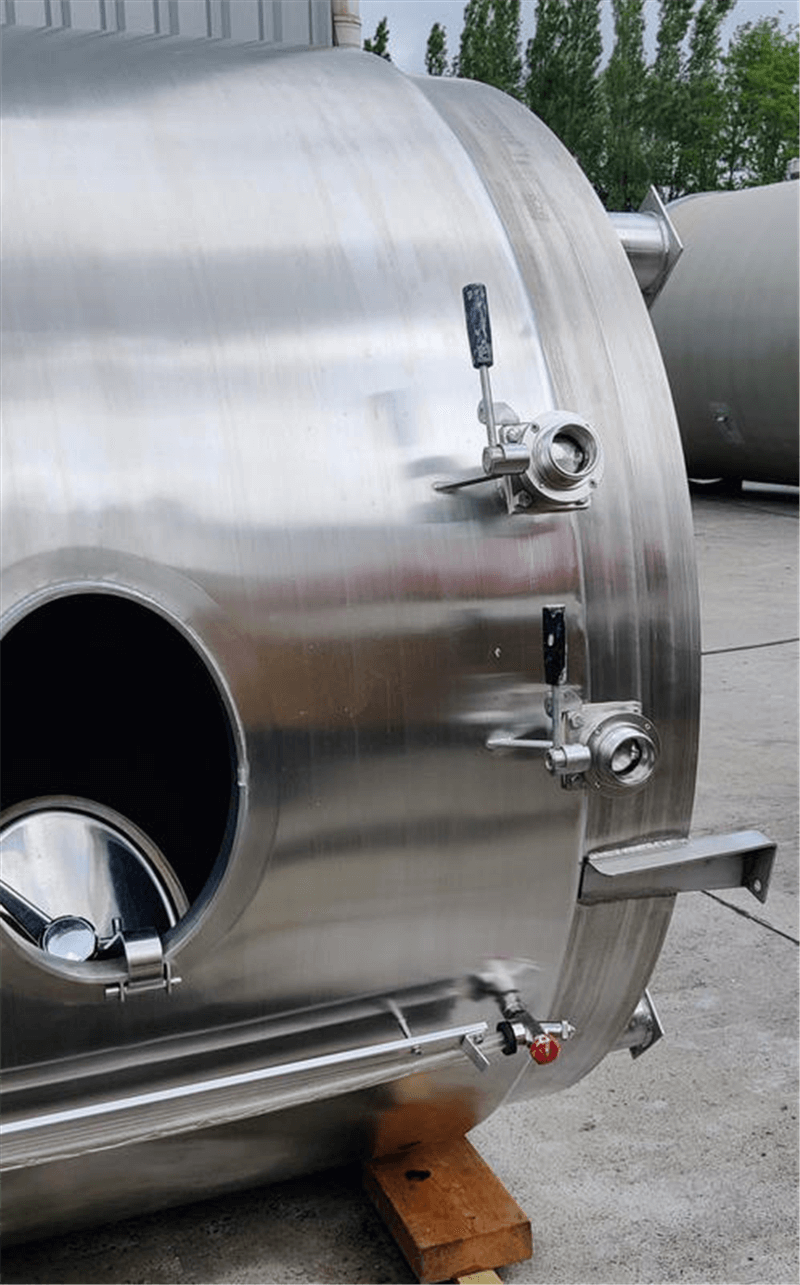

| Number of manhole | 2 |
| Position of manhole (s) | Top and Cylindrical part |
| Dimensions of manholes | dia 500mm / 440x305mm |
| Tank with total drain? | Yes |
| Type of outlet (s) | BSP (M) / manuele vlinderklep |
| Diameter of outlet (mm) | 50 |
| locality | B-7711 Belgium |
| Last application | Food |
| Provision tank cleaning | CIP ball |
| Weight (kg) | 750 |
| Condition | Used |

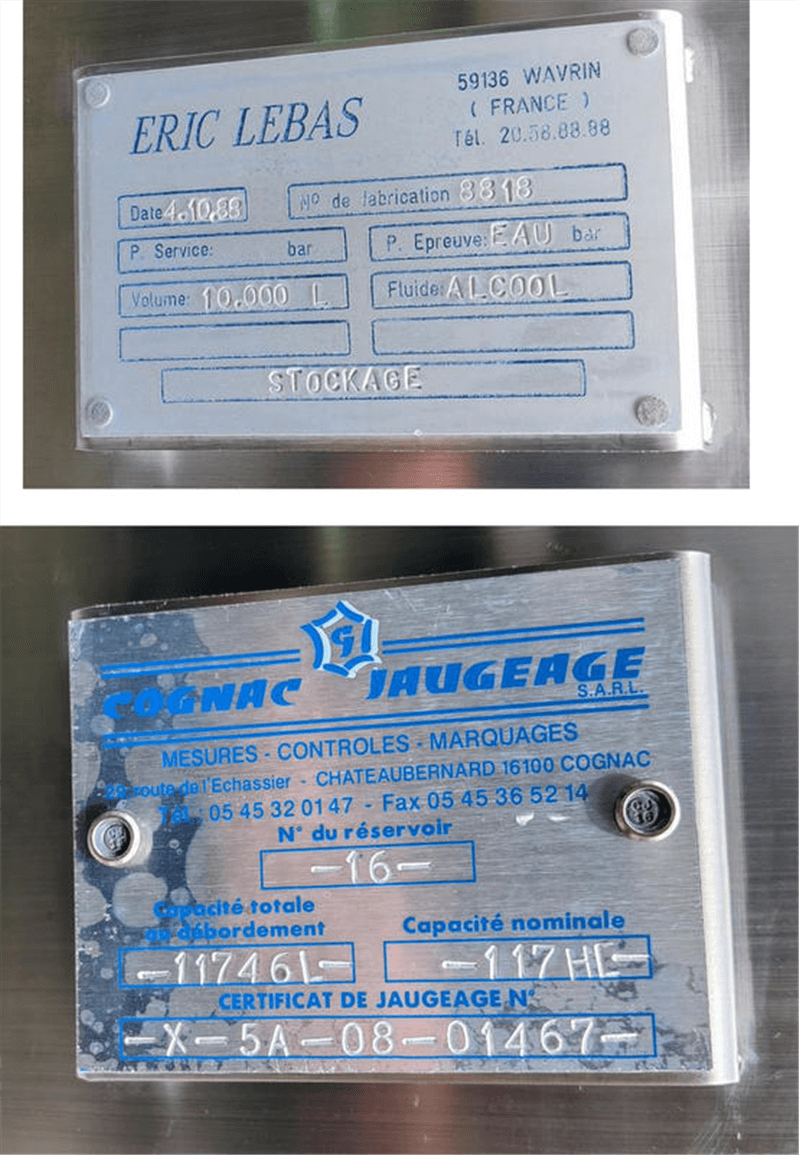

| Type plate manufacturer | Yes |
| Manufacturer | Eric Lebas |
| Year Built | 1988 |
| Top side | |
|---|---|

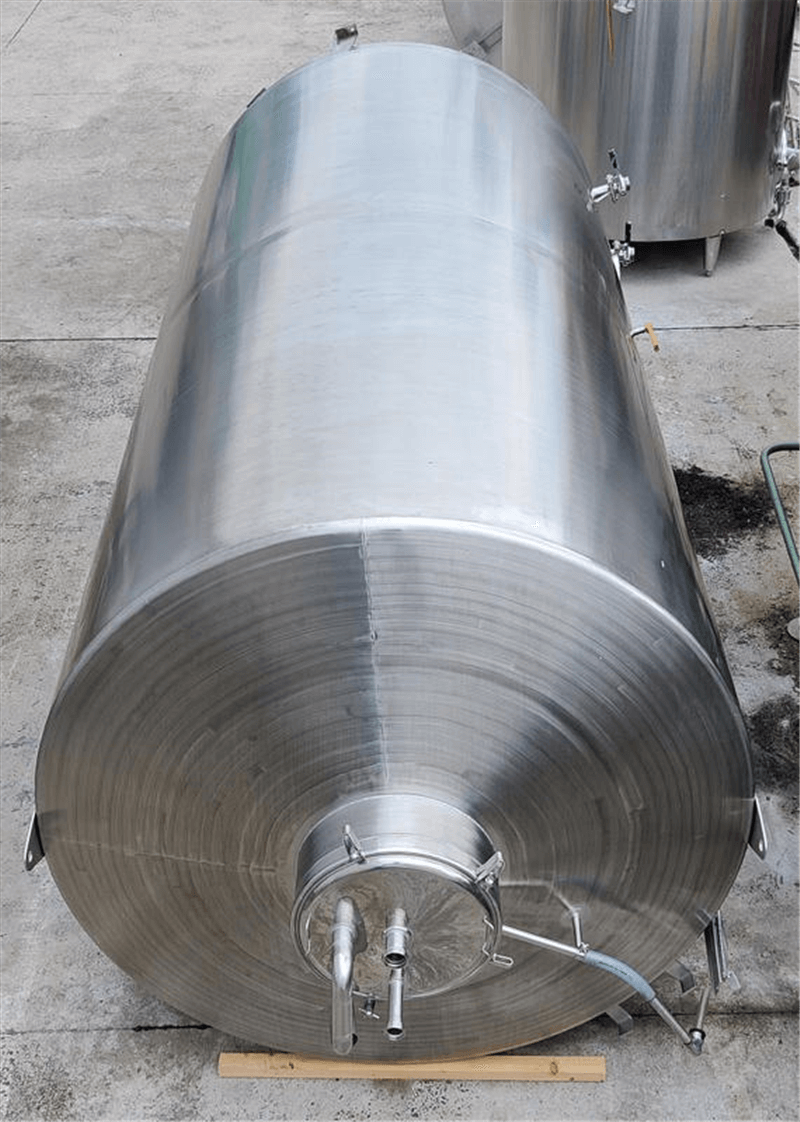

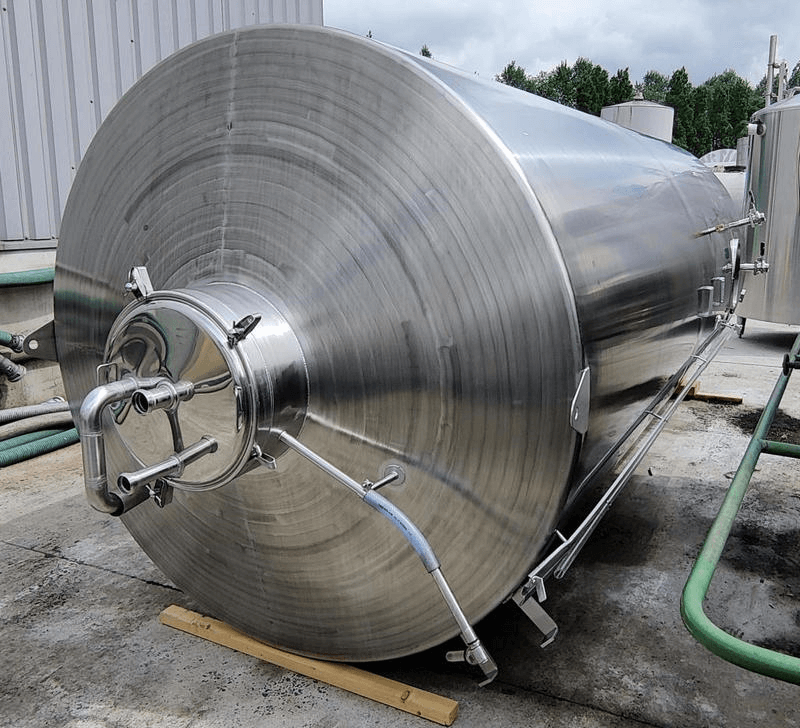

| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Thickness closed dome (mm) | 2,3 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 2 |
| Bottom thickness (mm) | 2,6 |
| Periphery (mm) | 6020 |
| Cylindrical length (mm) | 4020 |
| Slope bottom (°) | 1 |
| Total height (mm) | 4900 |
| Length (mm) | 2075 |
| Diameter tank (mm) | 1915 |
| Width (mm) | 1920 |
| Insulation | |
|---|---|
| Insulation | No |
