Used storage tank
- Material: Stainless steel 316
- Condition: Used
- Volume (in litres): 20500 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.44.UN.05 |
| Material | Stainless steel 316 |
| Finishing weldings inside | Raw brushed |
| Number | 1 |
| Capacity (Liters) | 20500 |
| Type tank | Storage tank |
| Fixation | 8 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Inclined bottom |
| Tank model | Single wall |
| Number lifting lugs | 2 |

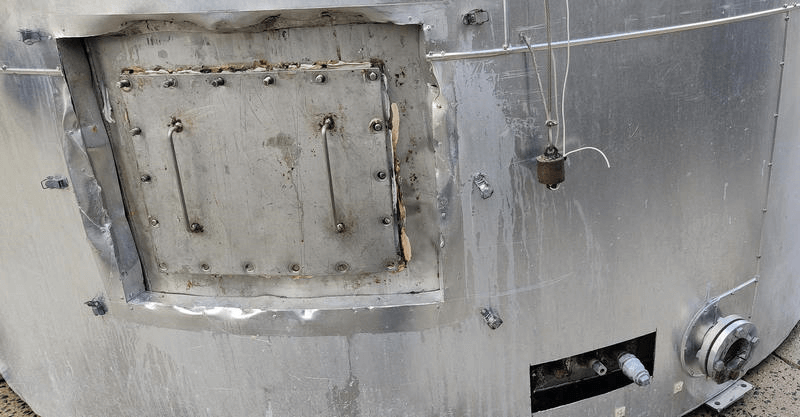

| Number of manhole | 2 |
| Position of manhole (s) | Top and Cylindrical part |
| Dimensions of manholes | rechthoek 435x340 / rechthoek 540x340 |
| Tank with total drain? | Yes |
| Diameter of outlet (mm) | 80 |
| locality | B-7711 Belgium |
| Last application | Oil / grease |
| Provision tank cleaning | None |
| Weight (kg) | 1200 |
| Condition | Used |
| Type plate manufacturer | No |

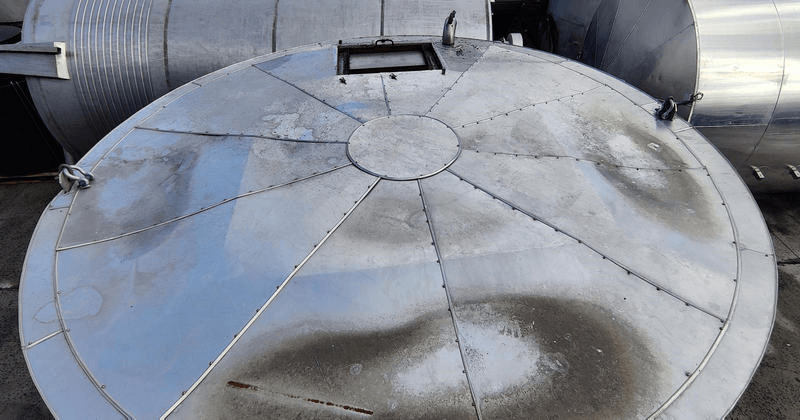

| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Flat bottom |
| Thickness closed dome (mm) | 2 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 2 |
| Bottom thickness (mm) | 2,1 |
| Periphery (mm) | 9690 |
| Cylindrical length (mm) | 3015 |
| Slope bottom (°) | 1 |
| Outside diameter tank (mm) | 3085 |
| Total height (mm) | 3450 |
| Length (mm) | 3450 |
| Diameter tank (mm) | 2970 |
| Width (mm) | 3120 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | Fully insulated |
| Type of insulation | Insulating wool |
| Thickness (mm) | 55 |
| Finishing insulation | Rivited sheet cladding |
| Heating | |
|---|---|
| Number of heating type | 1 |

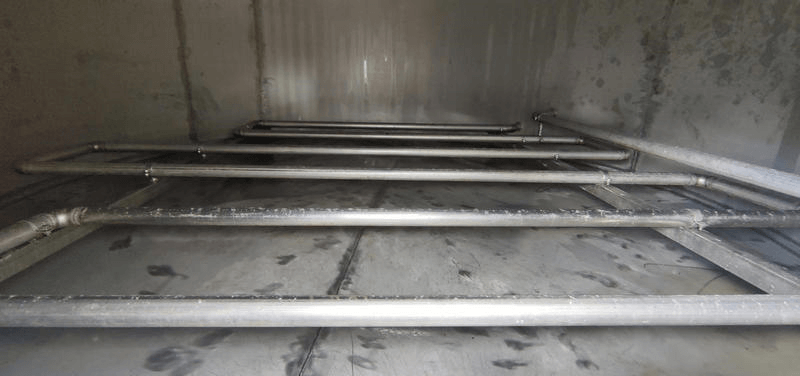

| Heating 1: Type | Heating coil only on the bottom |
