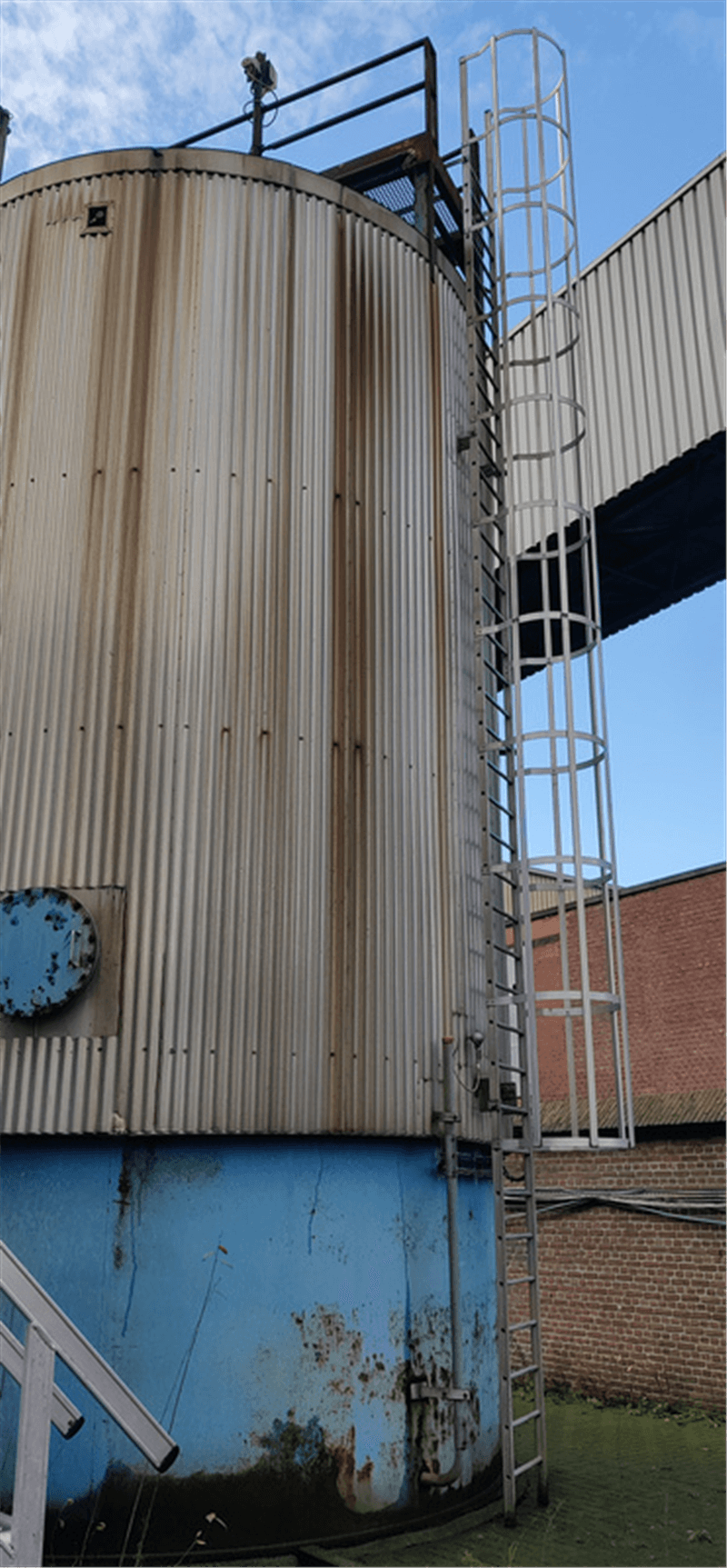

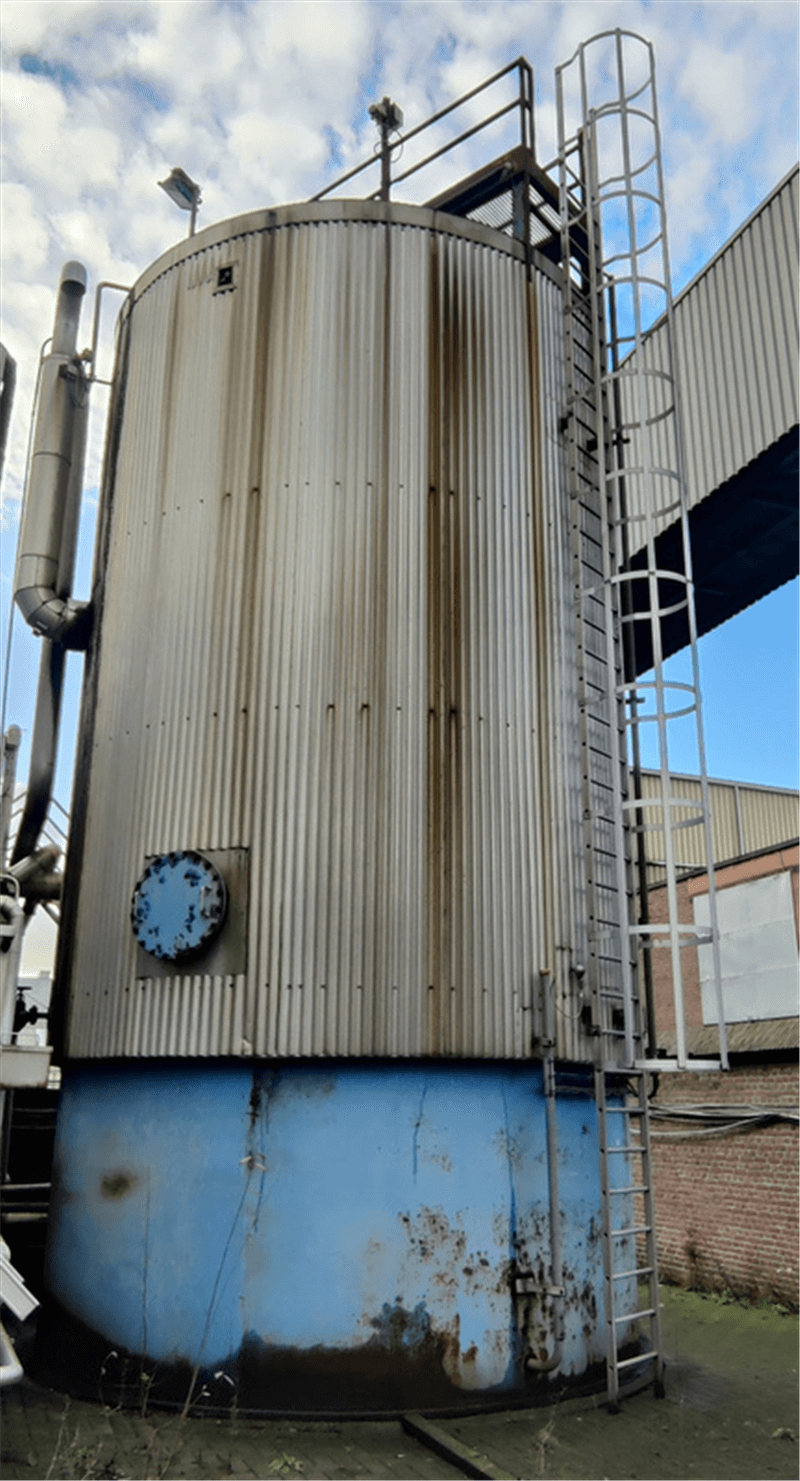

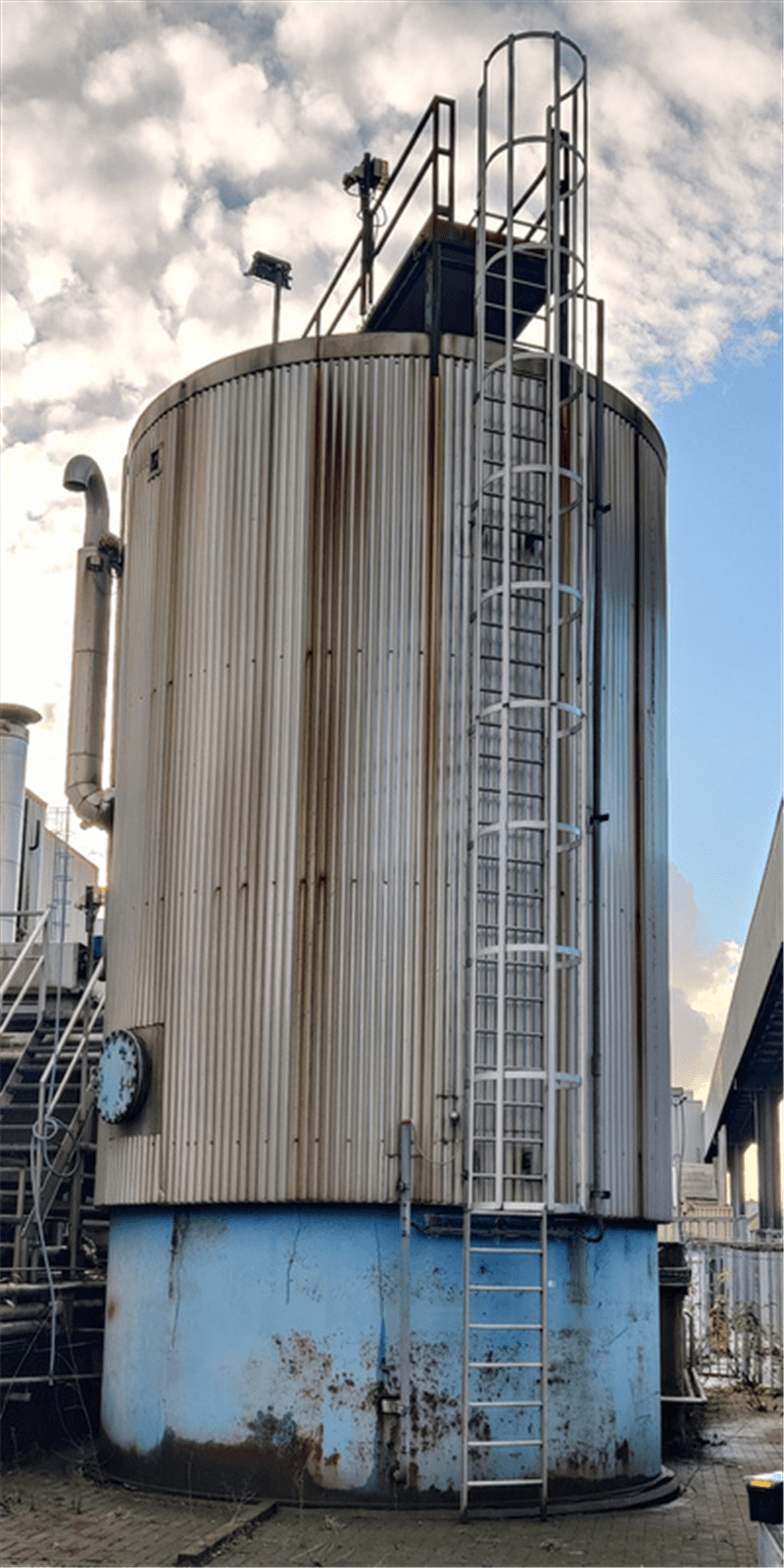

Used mixing vessel
- Material: Stainless steel 316
- Condition: Used
- Volume (in litres): 110000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.44.SO.46 |
| Material | Stainless steel 316 |
| Number | 1 |
| Capacity (Liters) | 110000 |
| Type tank | Mixing vessel |

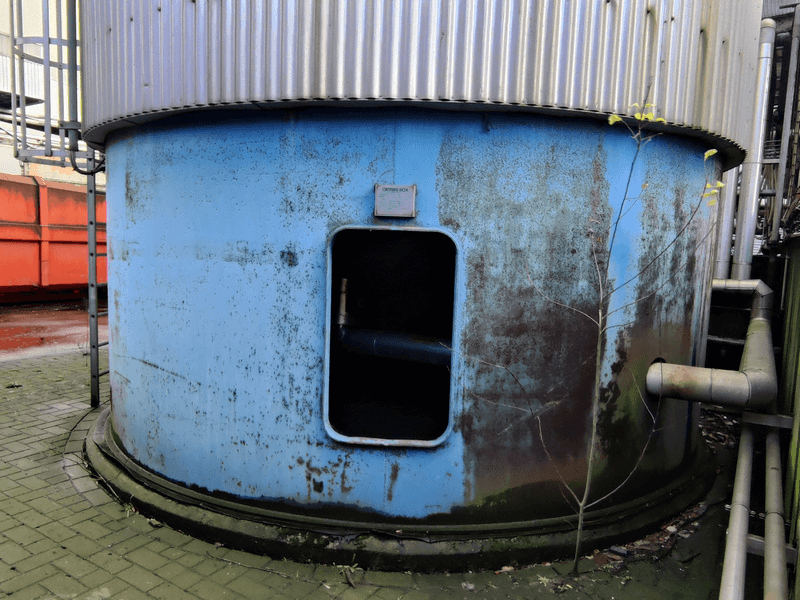

| Fixation | Skirt |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Conical bottom |
| Tank model | Jacketed (Heating/Cooling) |
| Number lifting lugs | 2 |

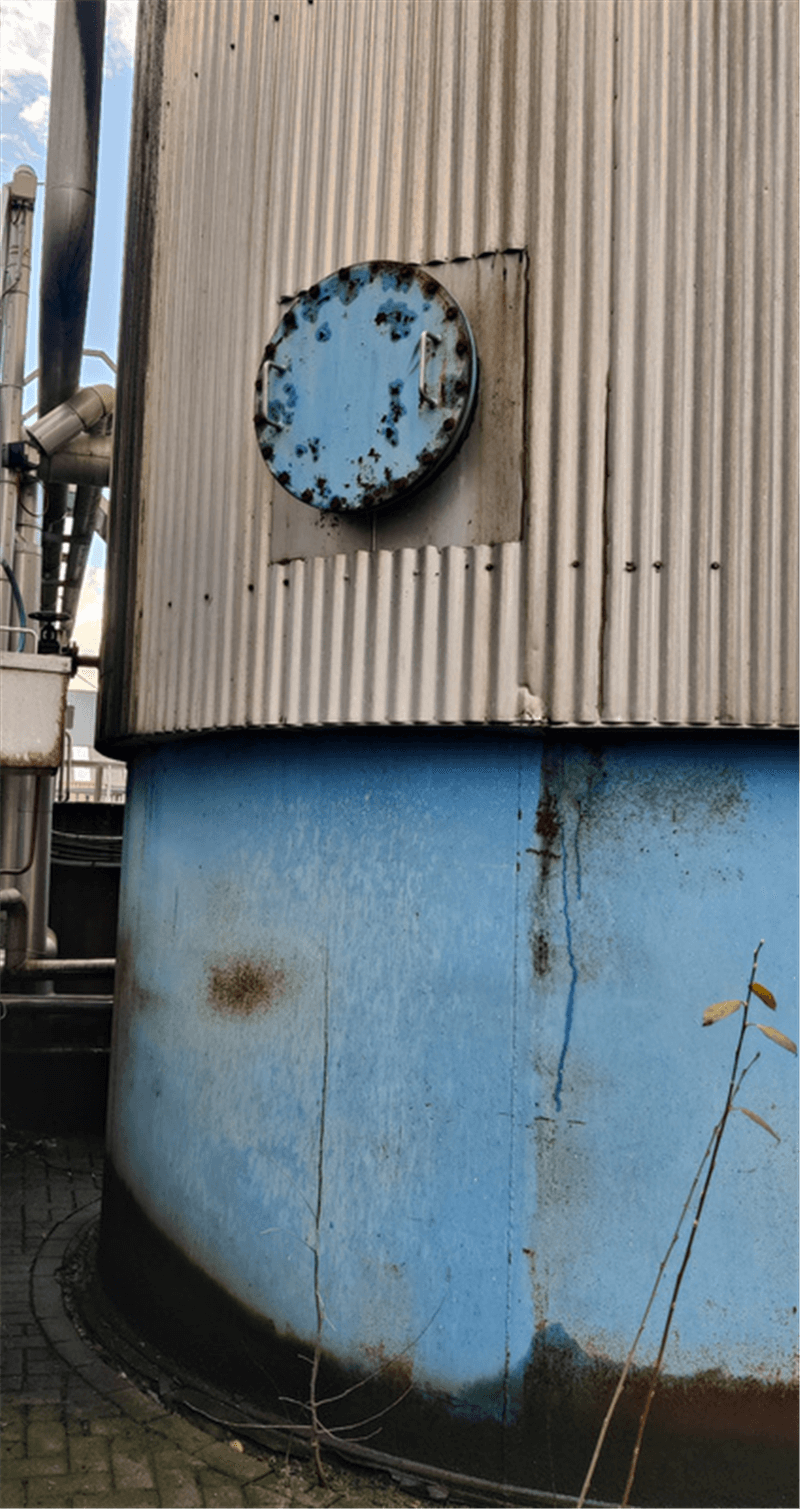

| Number of manhole | 1 |
| Position of manhole (s) | cylindrical part |
| Dimensions of manholes | dia 500mm |

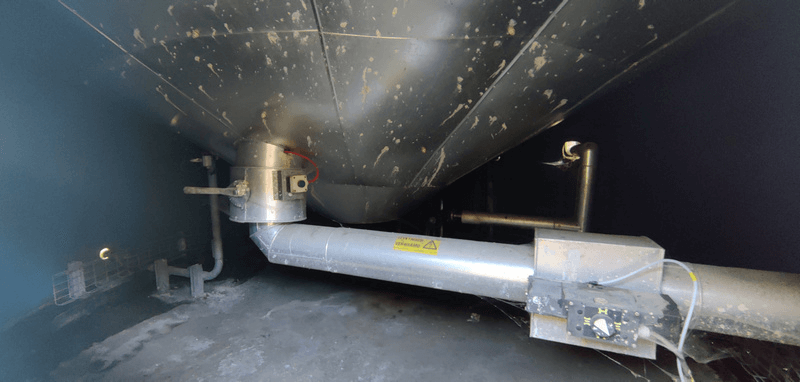

| Tank with total drain? | Yes |

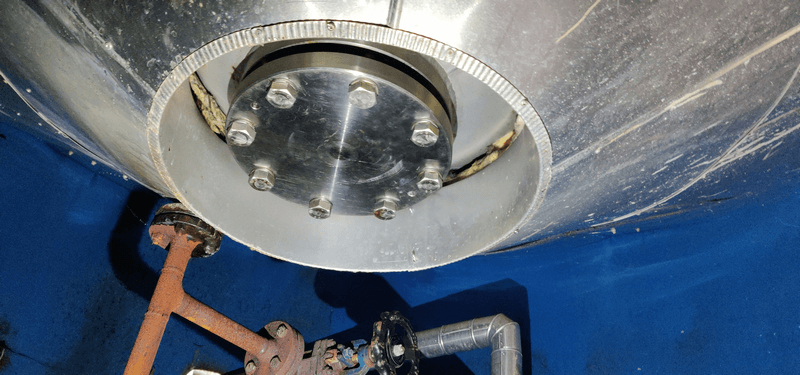

| Type of outlet (s) | blindflens |
| Diameter of outlet (mm) | DN150 |
| locality | On location |
| Last application | Food |
| Condition | Used |

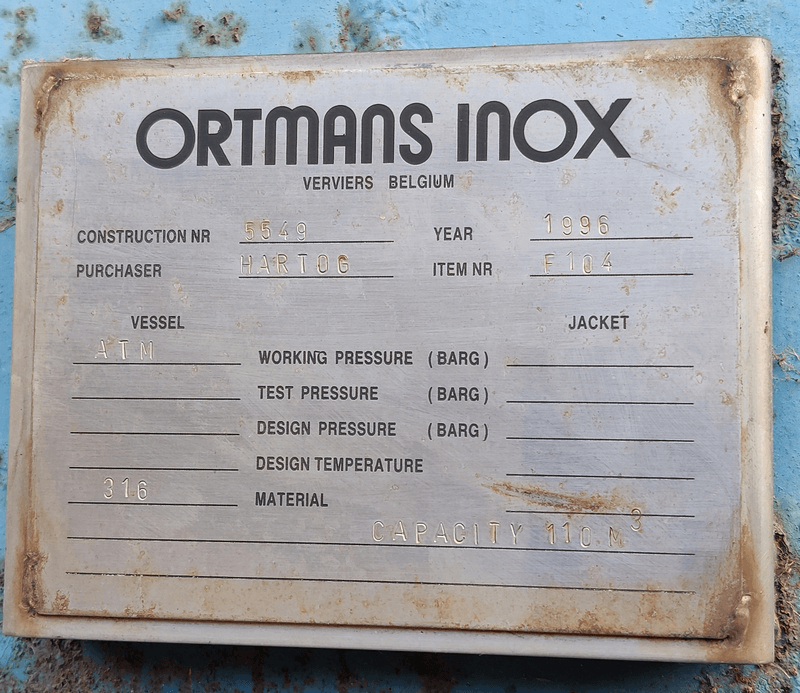

| Type plate manufacturer | Yes |
| Manufacturer | Ortmans |
| Year Built | 1996 |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Dimensions | |
|---|---|
| Periphery (mm) | 14950 |
| Cylindrical length (mm) | 6700 |
| Height bottom (mm) | 1200 |
| Outside diameter tank (mm) | 4760 |
| Total height (mm) | 10600 |
| Length (mm) | 4960 |
| Diameter tank (mm) | 4470 |
| Width (mm) | 4760 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | cylinder and bottom isolated |
| Thickness (mm) | 140 |
| Finishing insulation | Profile Cladding |
| Heating | |
|---|---|
| Number of heating type | 1 |
| Heating 1: Type | Heating coil on bottom and cylinder |

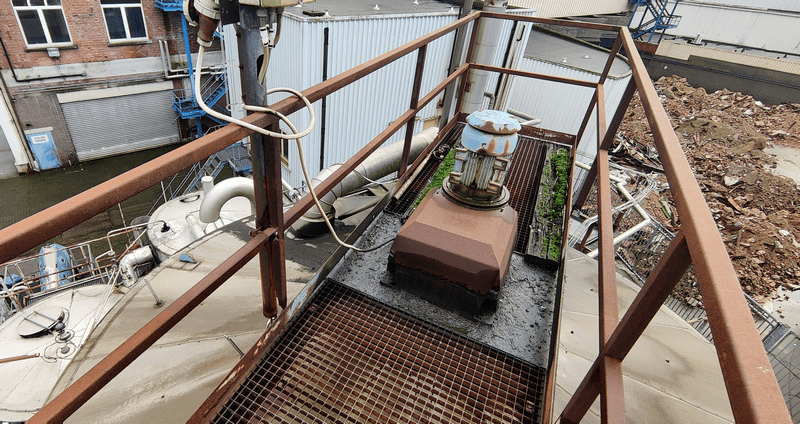

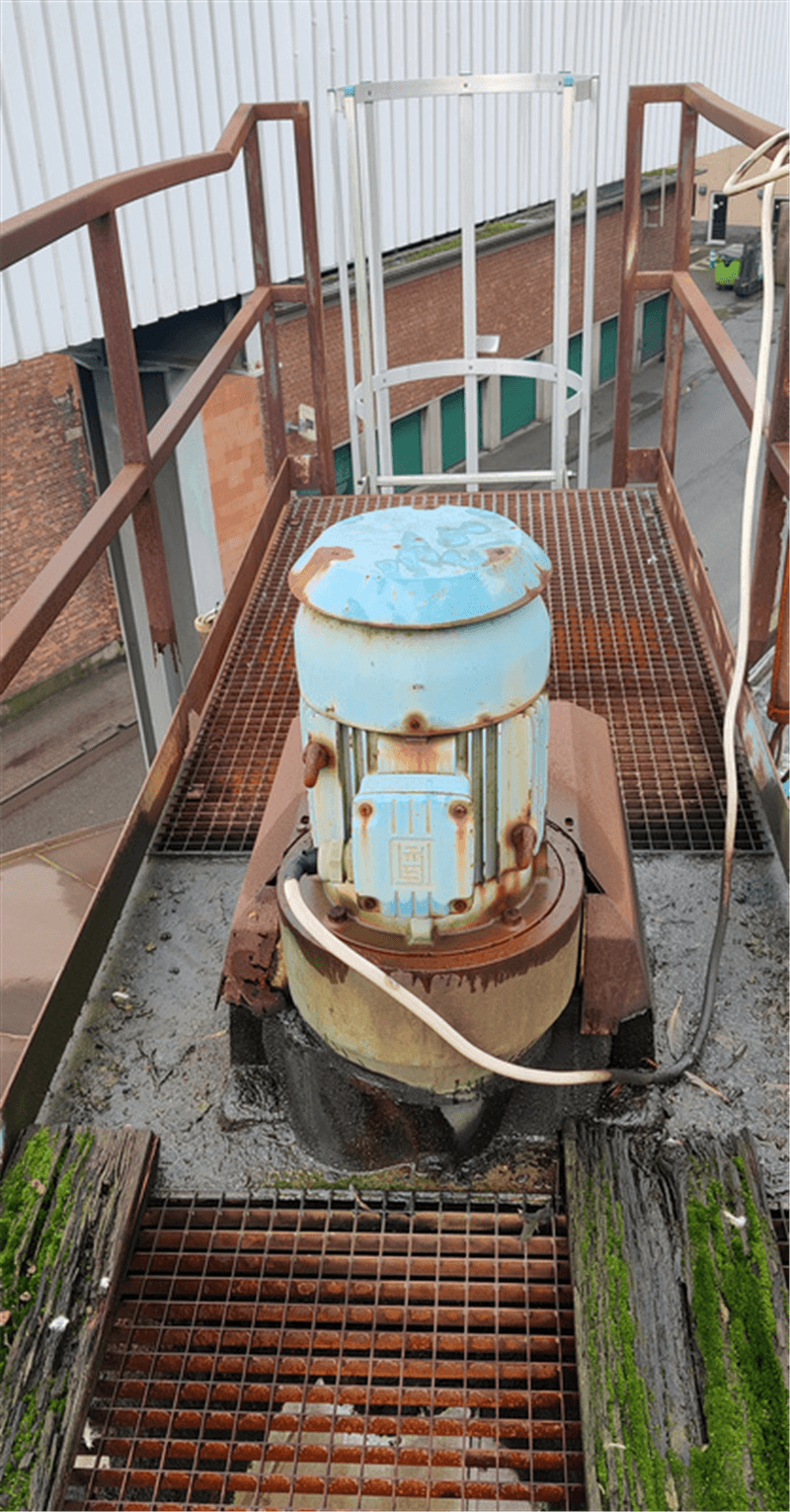

| Agitators | |
|---|---|
| Number of agitators | 1 |
| Agitator 1: Position | Centrally on the top |

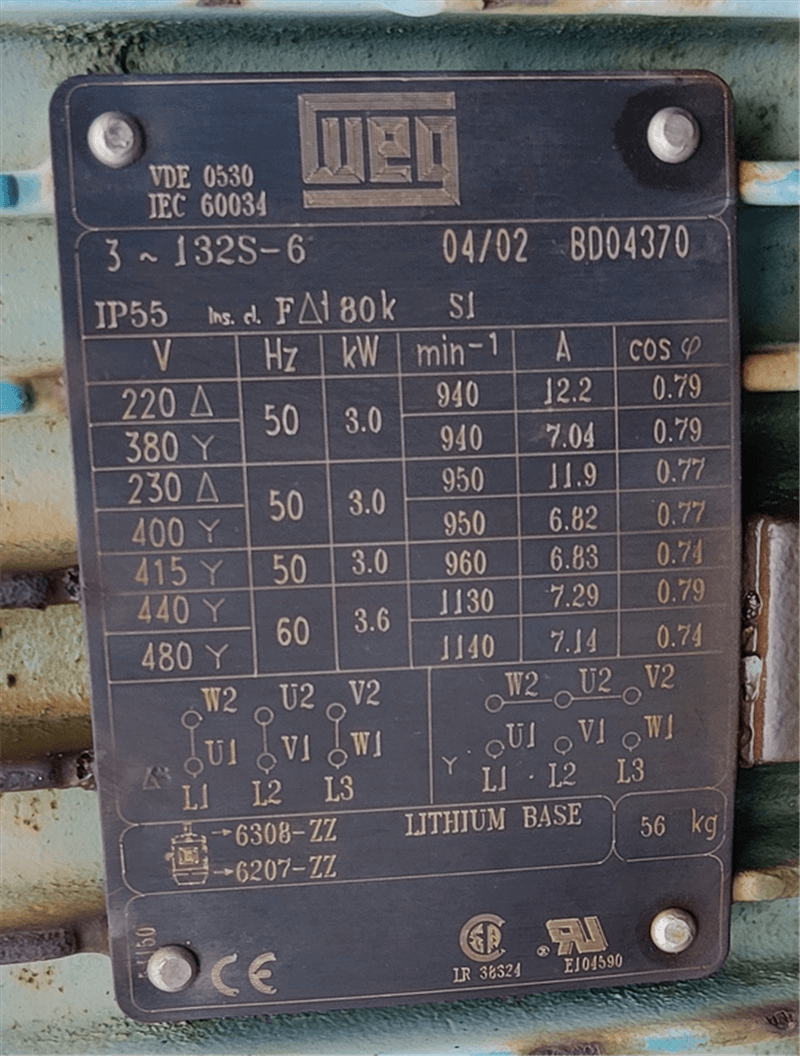

| Agitator 1: Engine Type | electric motor |
| Agitator 1: Power (kw) | 3 |
| Agitator 1: Drive Type | Direct |
| Agitator 1: Speed (r / min) | 940 |
