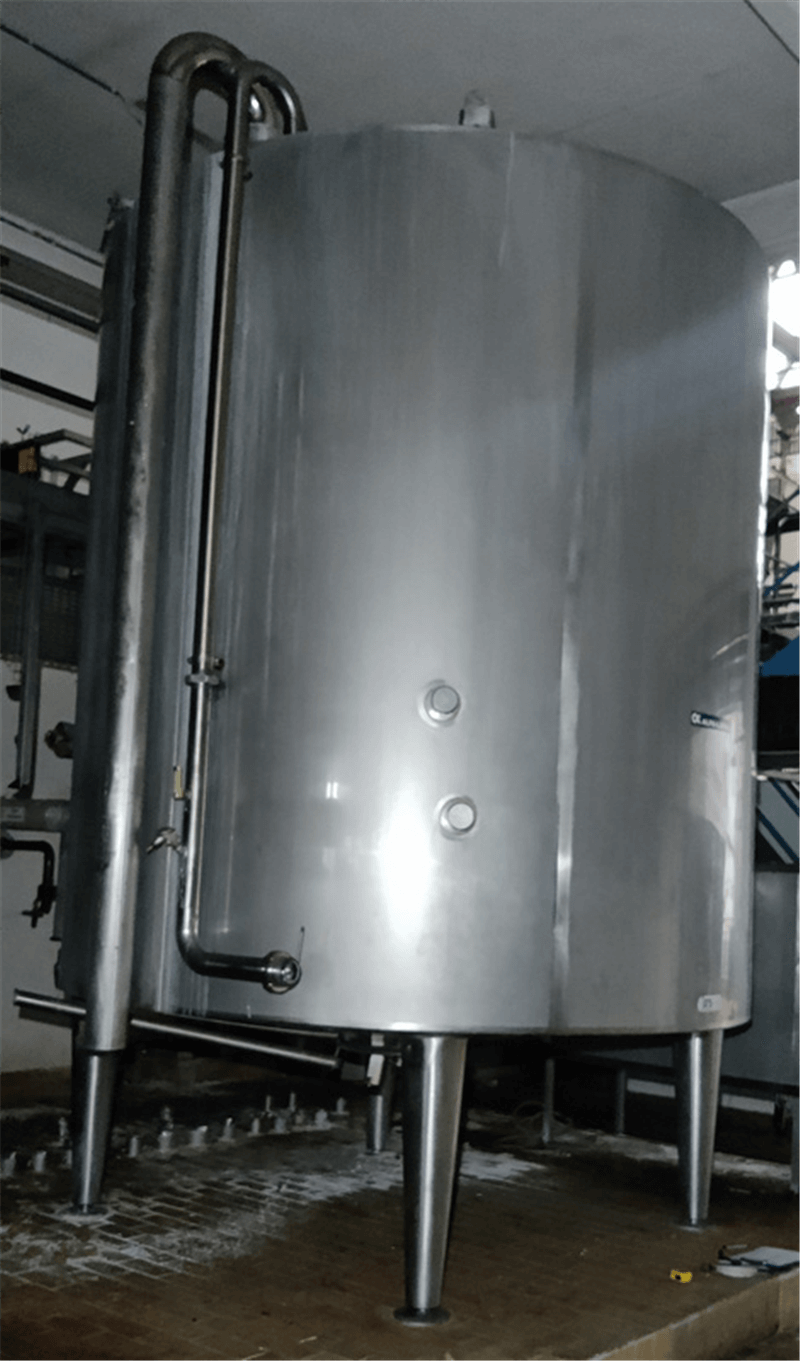

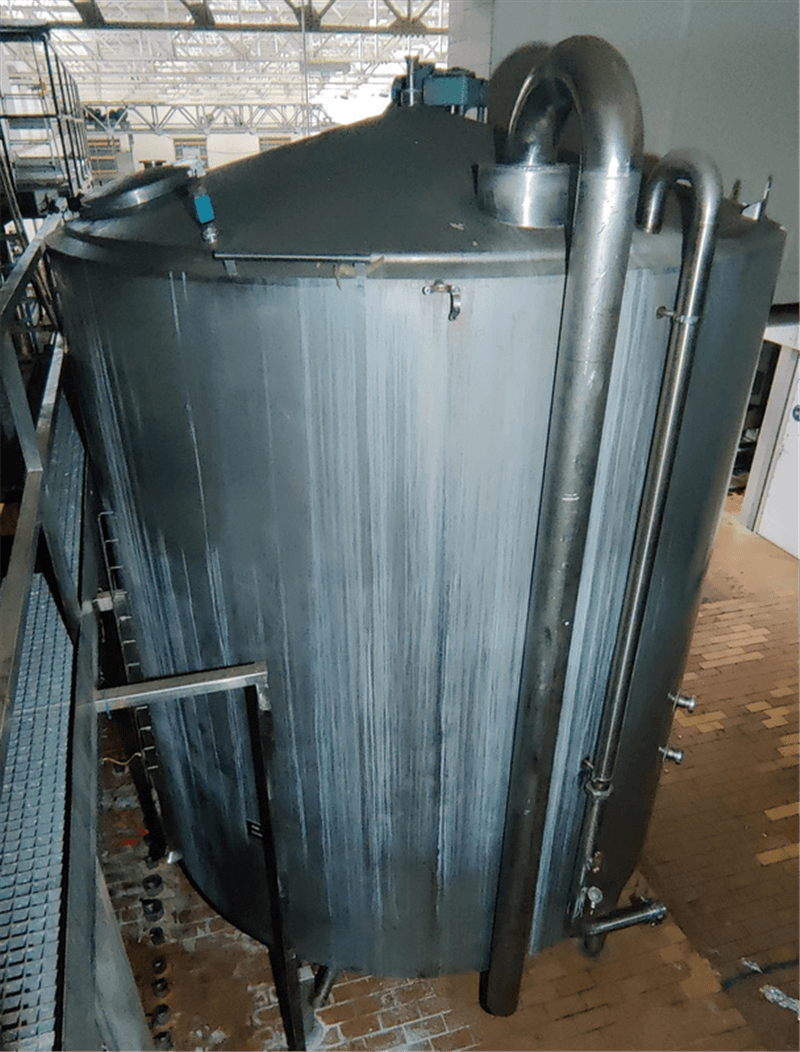

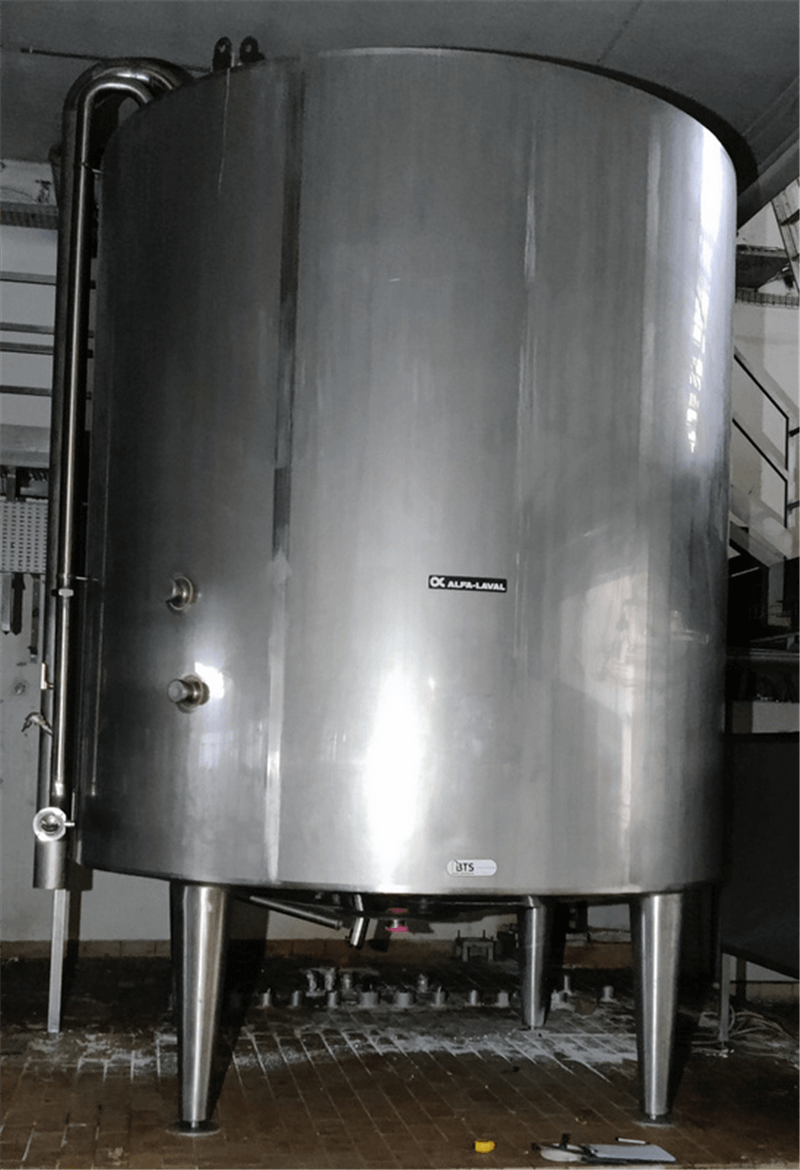

Used mixing vessel
- Material: Stainless steel 316
- Condition: Used
- Volume (in litres): 20000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.44.SO.42 |
| Material | Stainless steel 316 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 20000 |
| Type tank | Mixing vessel |

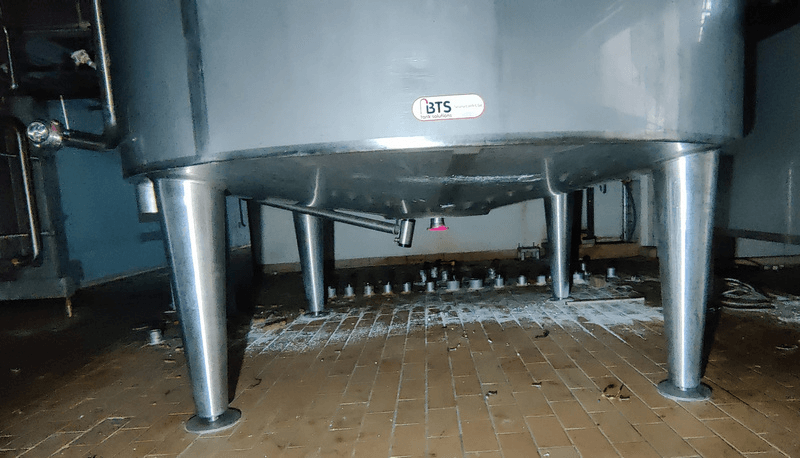

| Fixation | 4 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

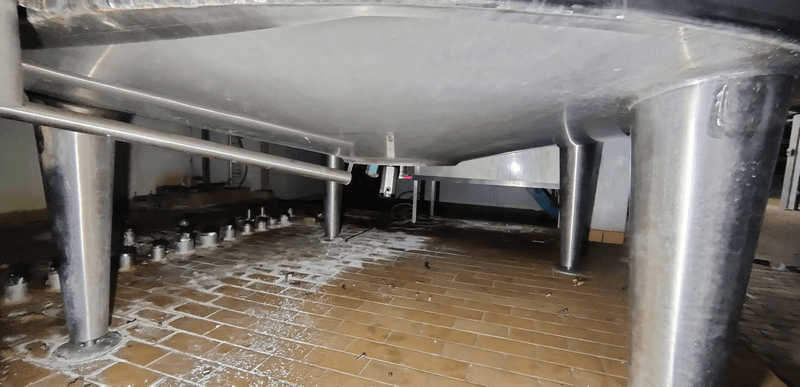

| Bottom | Conical bottom |
| Tank model | Jacketed (Heating/Cooling) |
| Number lifting lugs | 2 |

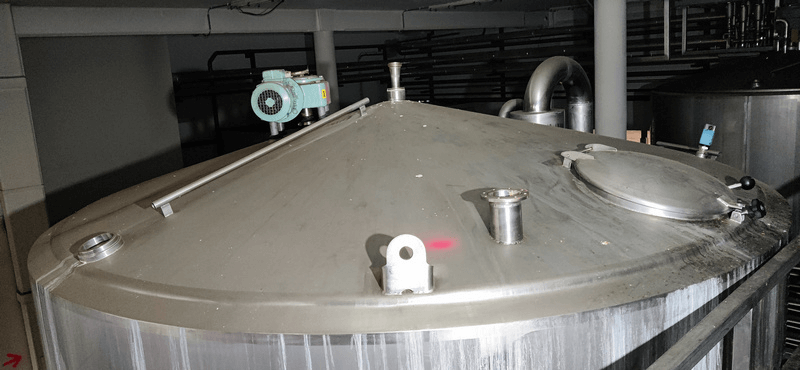

| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | dia 440mm |
| Tank with total drain? | Yes |
| Diameter of outlet (mm) | 80 |
| locality | B-7711 Belgium |
| Last application | Food |
| Provision tank cleaning | Spray tube (top) |
| Weight (kg) | 2700 |
| Condition | Used |

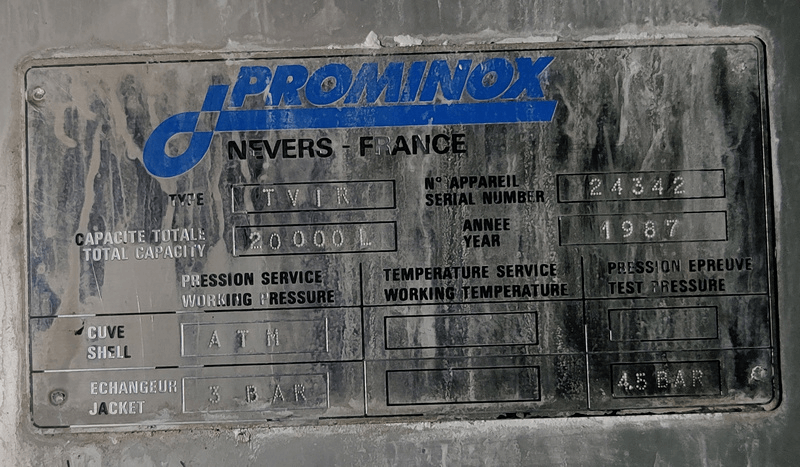

| Type plate manufacturer | Yes |
| Manufacturer | Prominox |
| Year Built | 1987 |

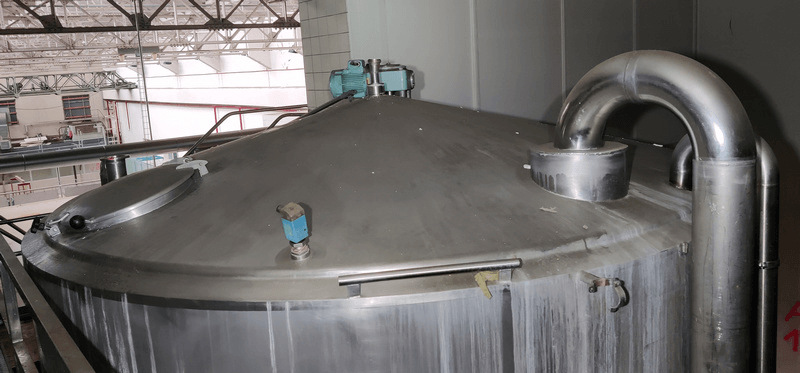

| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Thickness closed dome (mm) | 4,1 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 3,1 |
| Periphery (mm) | 9430 |
| Cylindrical length (mm) | 3000 |
| Height bottom (mm) | 300 |
| Outside diameter tank (mm) | 3005 |
| Total height (mm) | 4750 |
| Length (mm) | 3205 |
| Diameter tank (mm) | 2840 |
| Width (mm) | 3005 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | cylinder and bottom isolated |
| Thickness (mm) | 80 |
| Finishing insulation | fully welded cladding |
| Heating | |
|---|---|
| Number of heating type | 1 |
| Heating 1: Type | Halfpipe |
| Heating 1: Max. service pressure | 3 |
| Heating 1: Max. test pressure | 4,5 |
| Agitators | |
|---|---|
| Number of agitators | 1 |

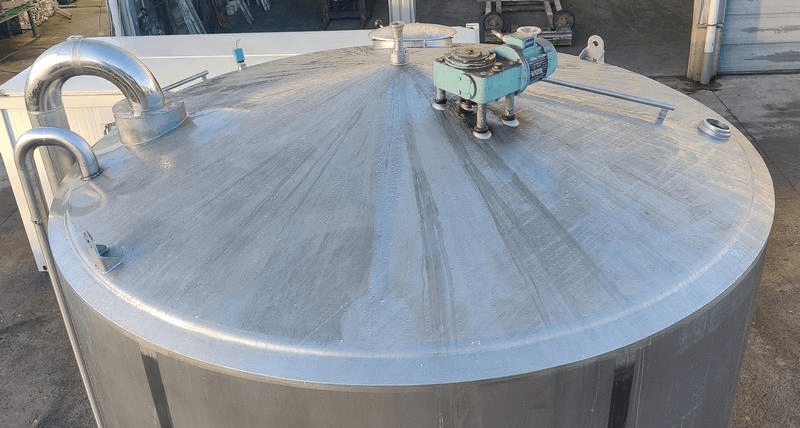

| Agitator 1: Position | decentrally on the top |
| Agitator 1: stirring element type | Propeller |
| Agitator 1: Length (mm) | 3300 |

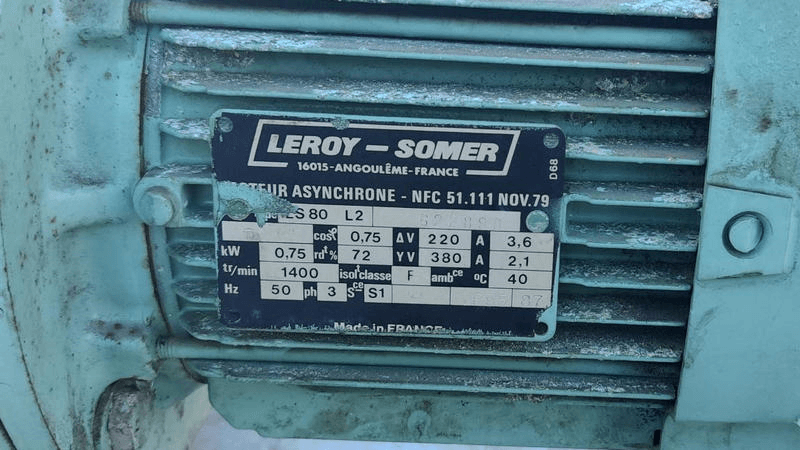

| Agitator 1: Engine Type | electric motor |
| Agitator 1: Voltage (V) | 220-380 |
| Agitator 1: Power (kw) | 0,75 |
| Agitator 1: Drive Type | Reductor |
| Remarks | |
|---|---|

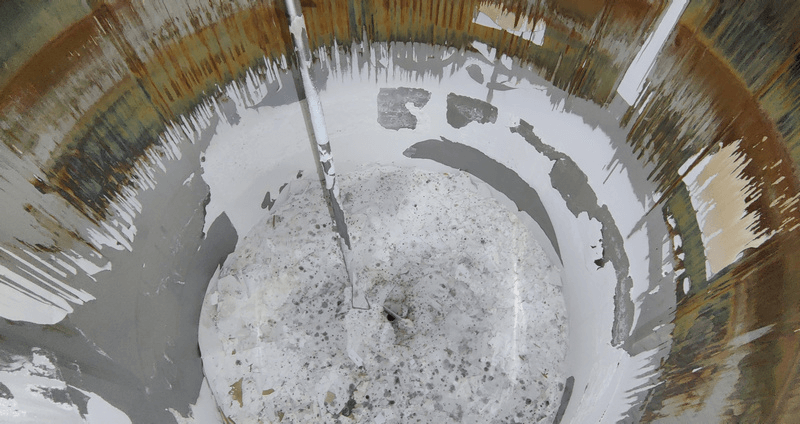

| Description (EN) | ATM tank operating pressure: 3 bar --- jacket operating pressure: 4.5 bar --- jacket test pressure: 4.5 bar --- white, non-removable signs of wear |
