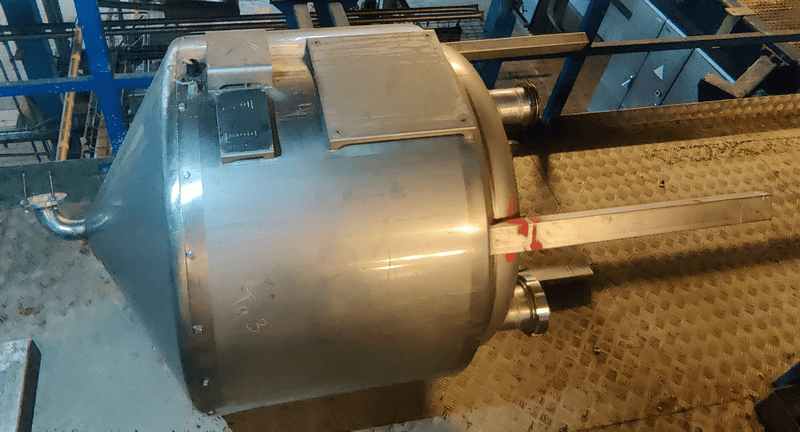

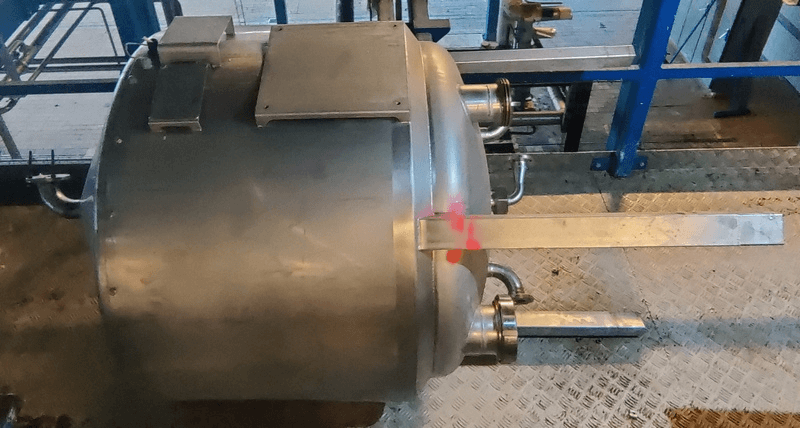

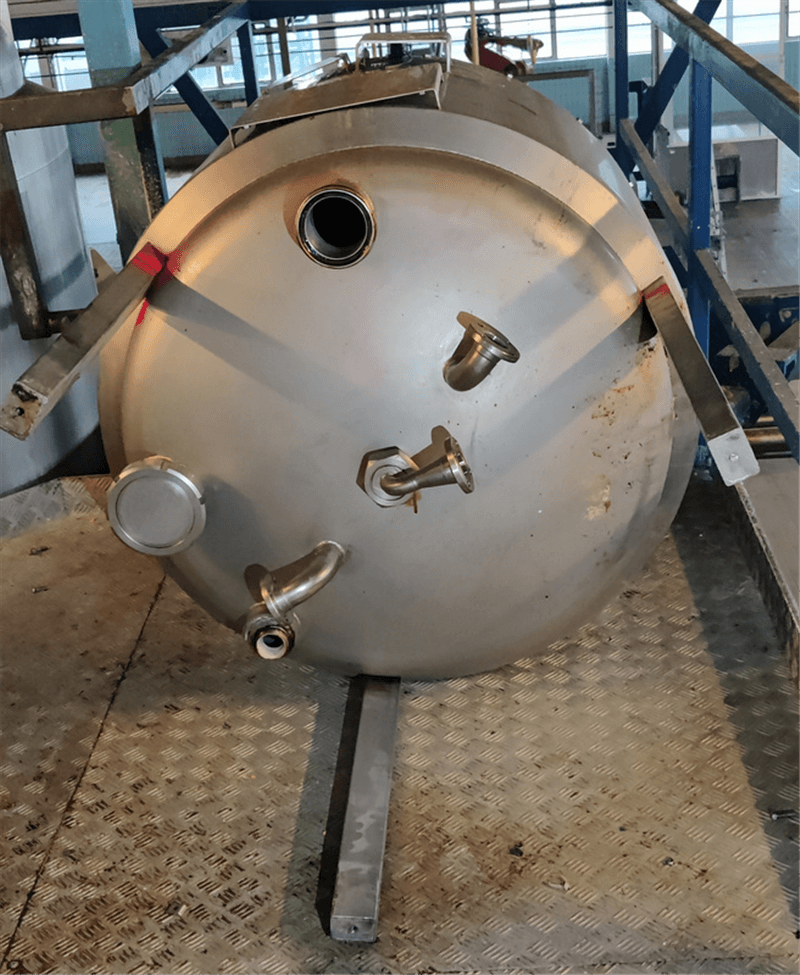

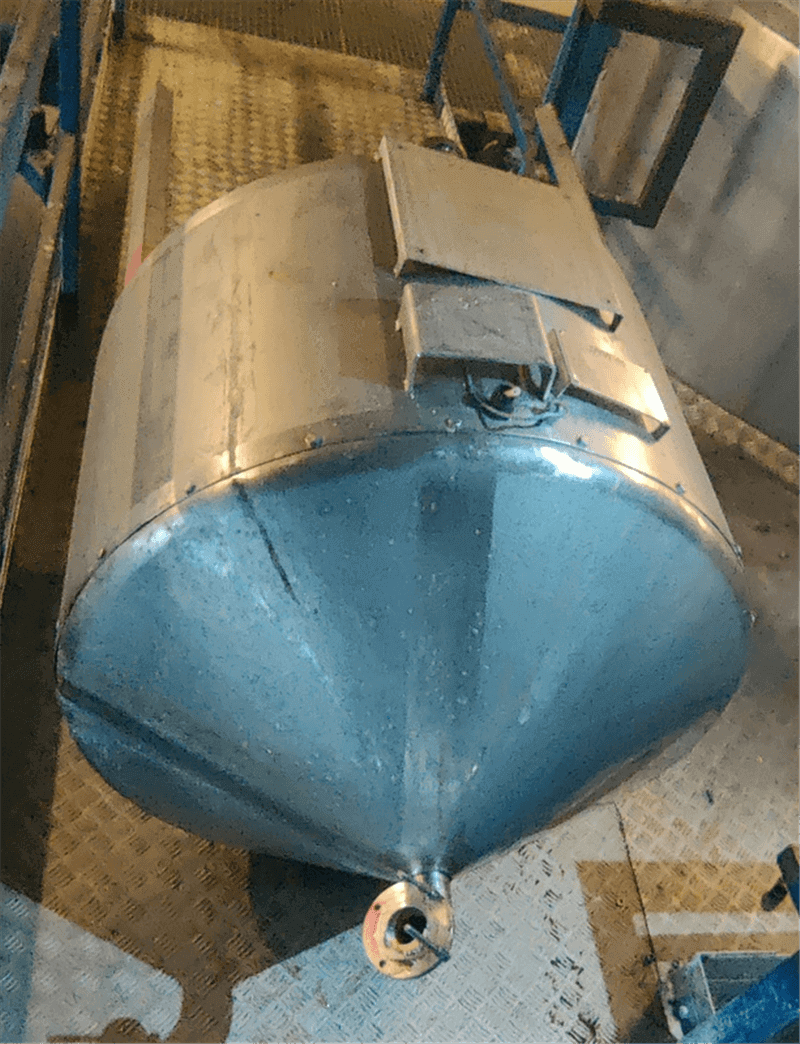

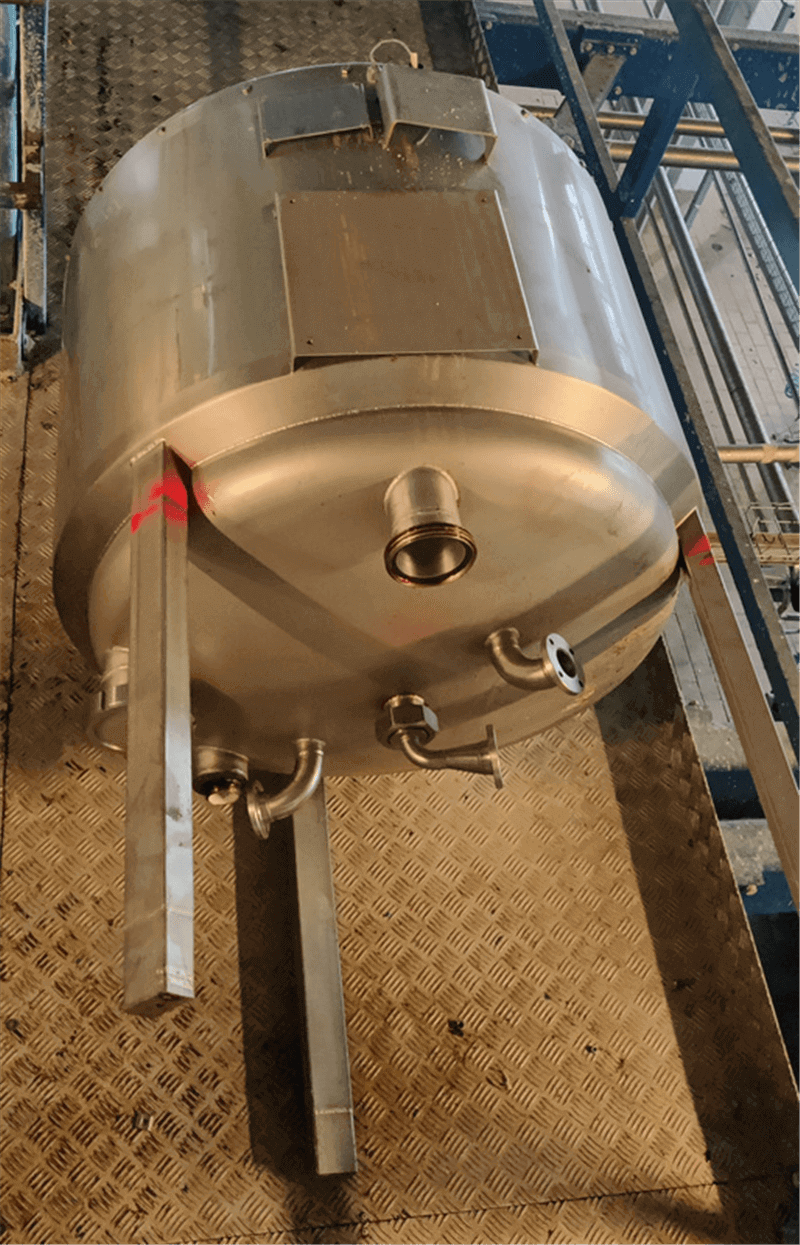

Used storage tank
- Material: Stainless steel 316
- Condition: Used
- Volume (in litres): 300 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.44.SO.37 |
| Material | Stainless steel 316 |
| Number | 1 |
| Capacity (Liters) | 300 |
| Type tank | Storage tank |
| Fixation | 3 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Dished bottom |
| Tank model | Jacketed (Heating/Cooling) |
| Tank with total drain? | Yes |
| Diameter of outlet (mm) | 50 |
| locality | On location |
| Last application | Food |
| Provision tank cleaning | None |
| Weight (kg) | 370 |
| Condition | Used |
| Type plate manufacturer | Yes |
| Manufacturer | JPM |
| Year Built | 2016 |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Dimensions | |
|---|---|
| Bottom thickness (mm) | 3 |
| Periphery (mm) | 3000 |
| Cylindrical length (mm) | 600 |
| Height bottom (mm) | 200 |
| Outside diameter tank (mm) | 955 |
| Total height (mm) | 1730 |
| Length (mm) | 1005 |
| Diameter tank (mm) | 845 |
| Width (mm) | 955 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | Only cylindrical portion isolated |
| Thickness (mm) | 50 |
| Finishing insulation | fully welded cladding |
| Heating | |
|---|---|
| Number of heating type | 1 |
| Heating 1: Type | electrical tracing |
| Heating 1: Power (KW) | 9 |
| Heating 1: Max. design pressure °C | 100 |
