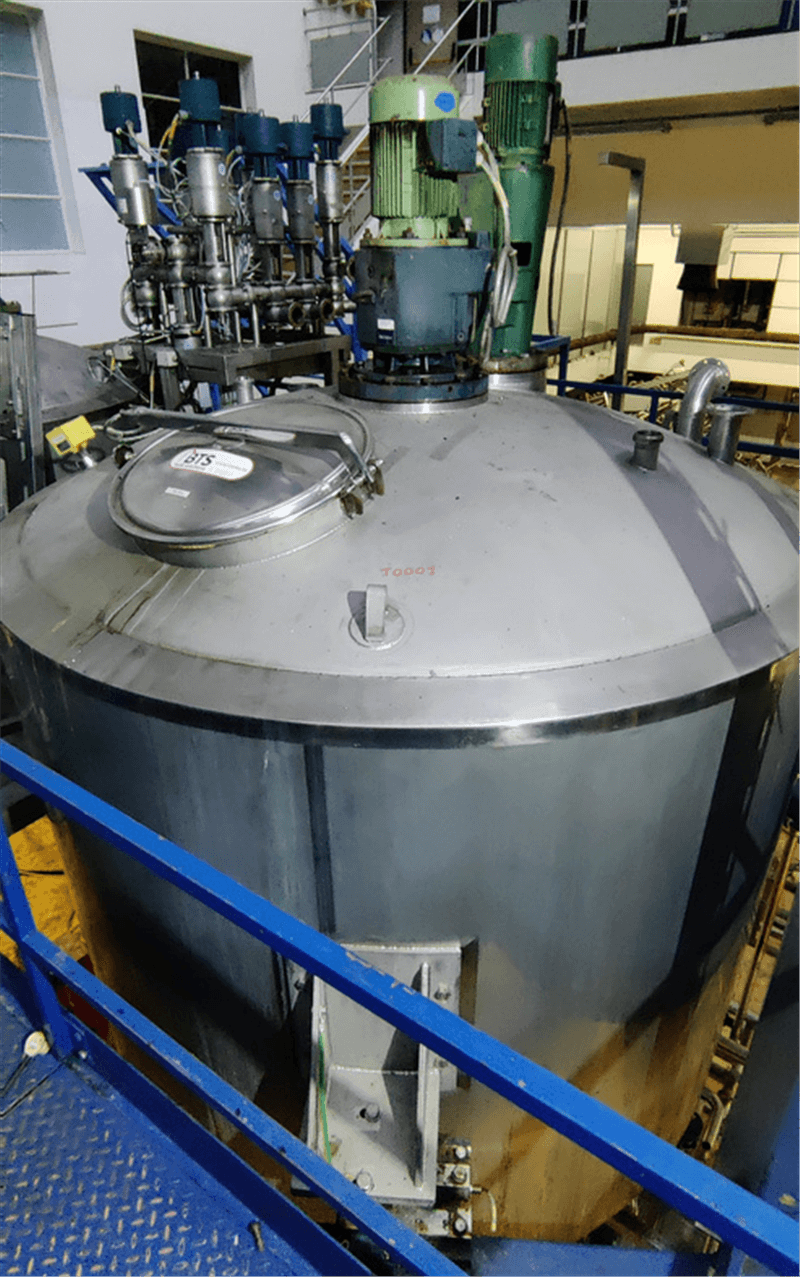

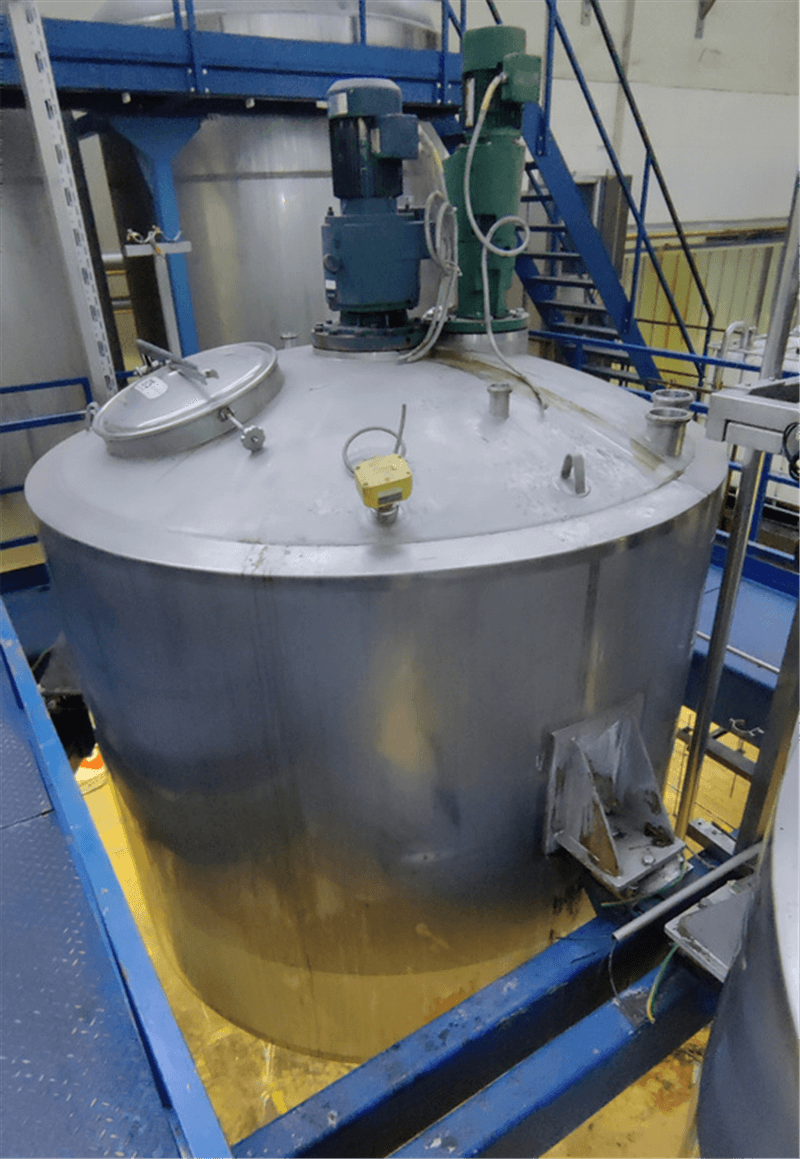

Used mixing vessel
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 6000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.44.SO.22 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 6000 |
| Type tank | Mixing vessel |

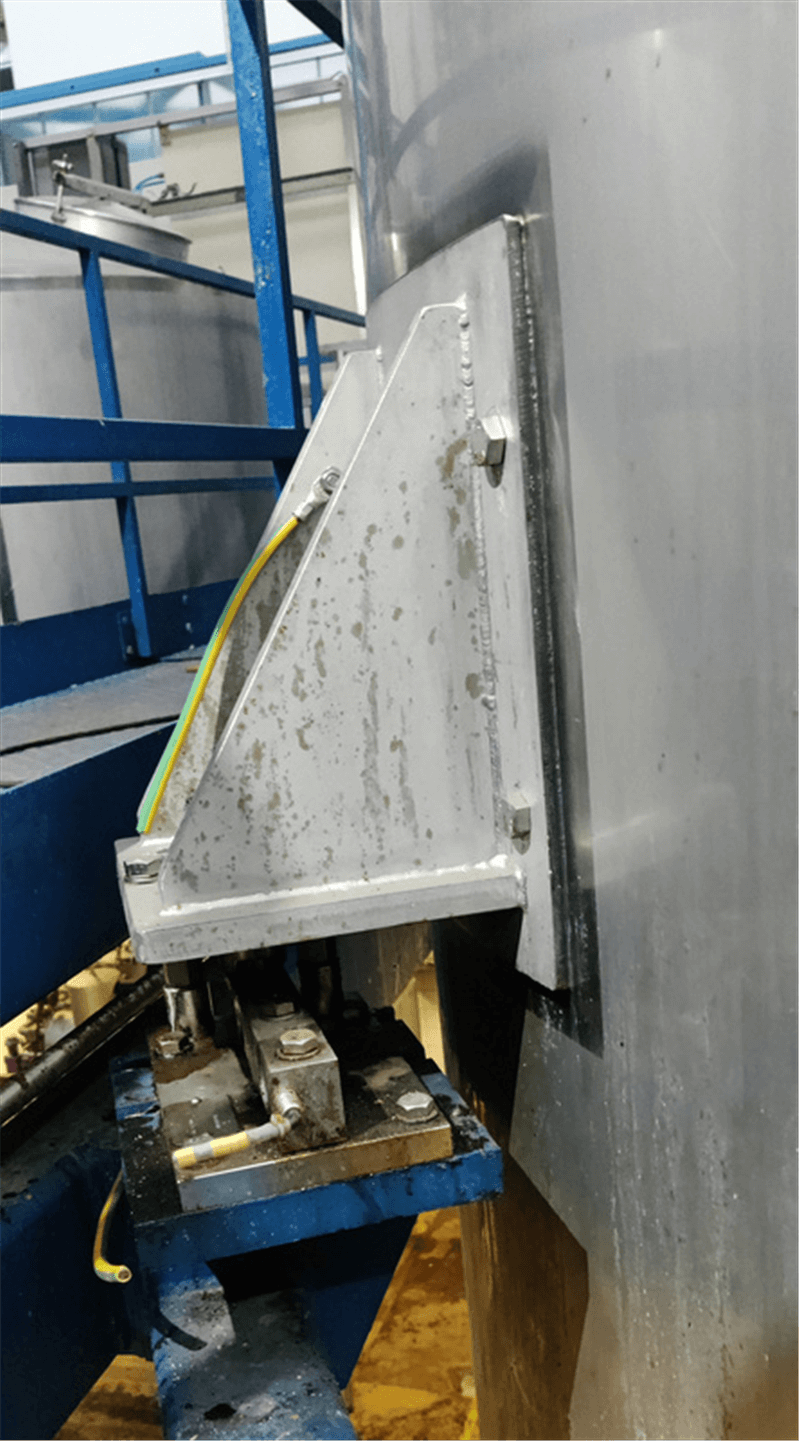

| Fixation | supports |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

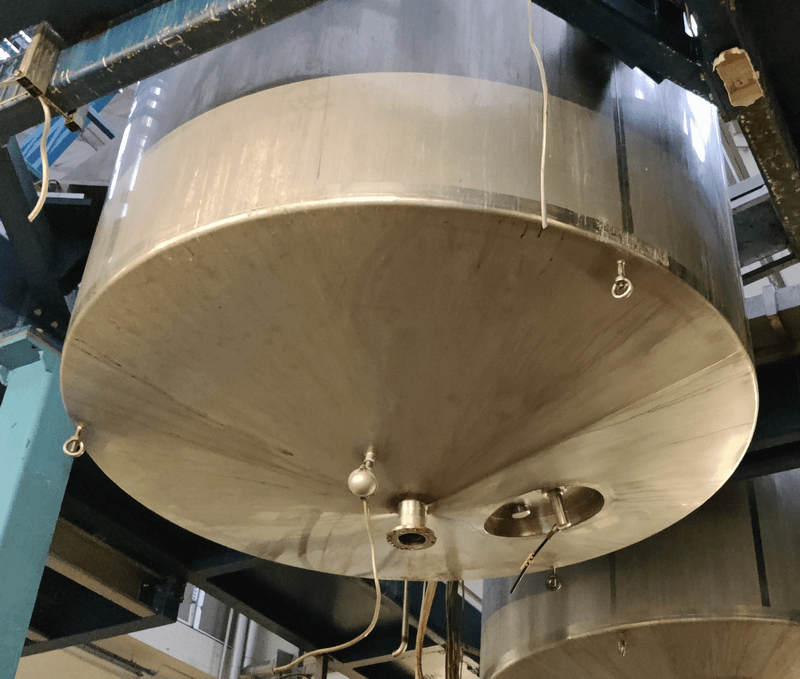

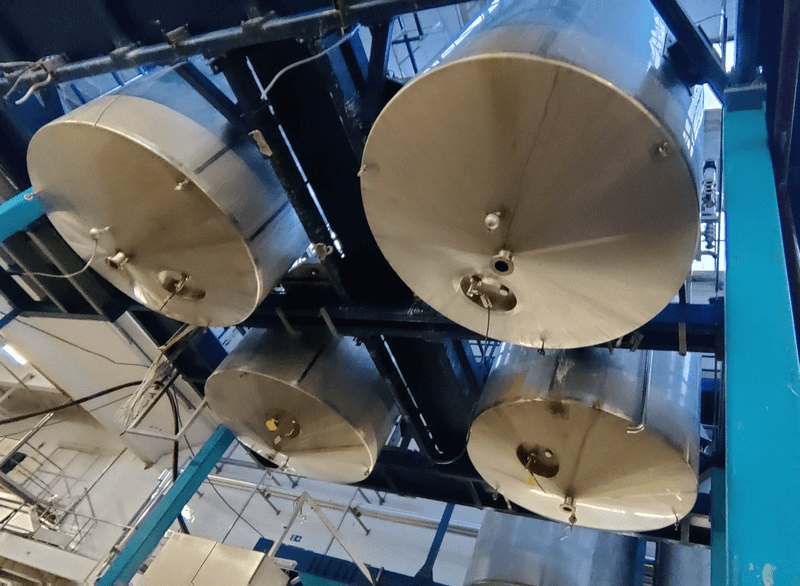

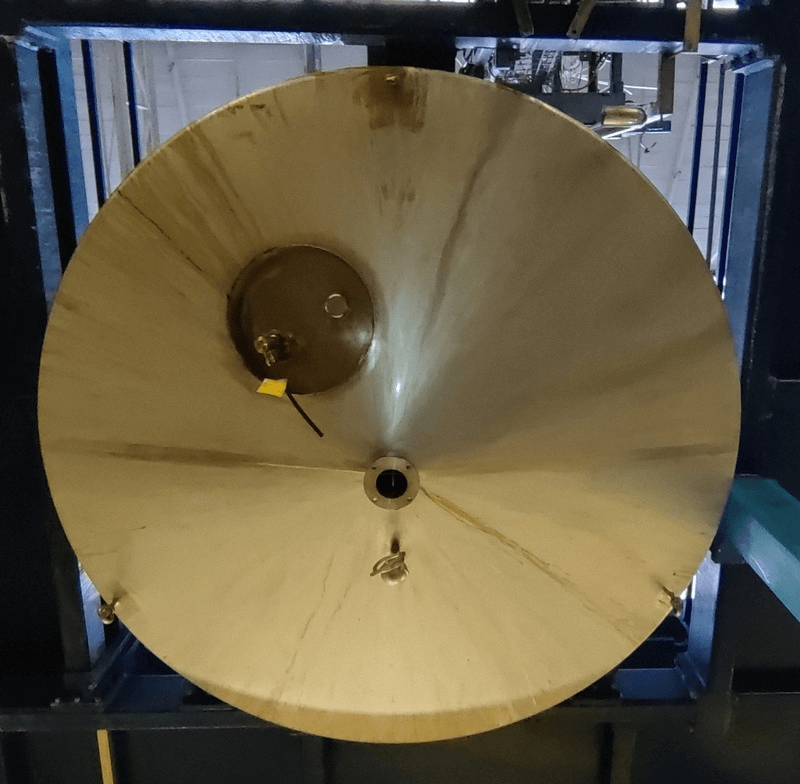

| Bottom | Conical bottom |
| Tank model | Single wall |
| Number lifting lugs | 3 |

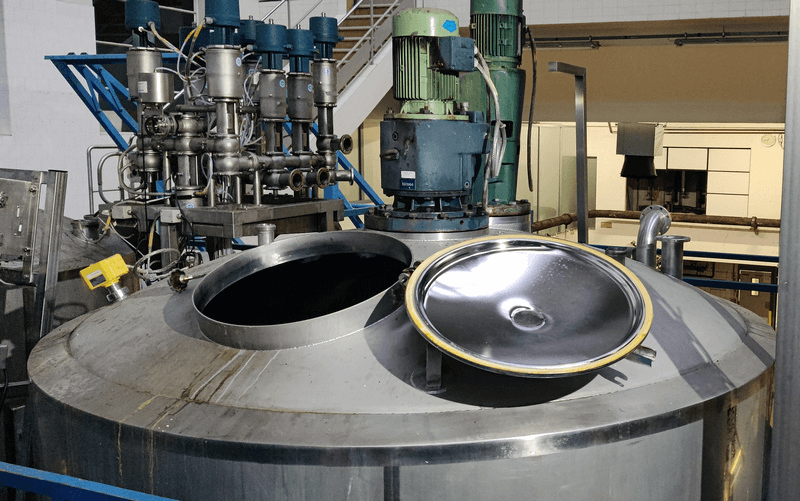

| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | dia 505mm |
| Tank with total drain? | Yes |
| Diameter of outlet (mm) | 80 |
| locality | On location |
| Last application | Food |
| Provision tank cleaning | CIP ball |
| Weight (kg) | 1000 |
| Condition | Used |
| Type plate manufacturer | No |

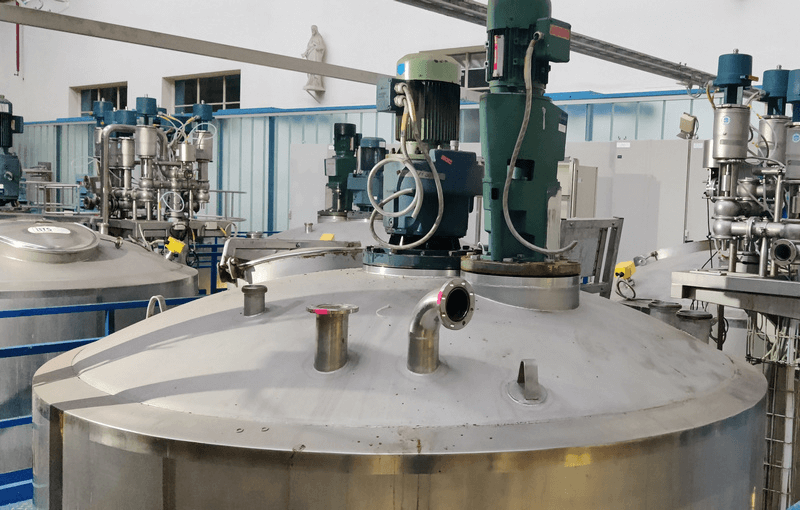

| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Dished bottom |
| Thickness closed dome (mm) | 4,3 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 3,8 |
| Periphery (mm) | 6630 |
| Cylindrical length (mm) | 1650 |
| Height bottom (mm) | 400 |
| Outside diameter tank (mm) | 2110 |
| Total height (mm) | 3250 |
| Diameter tank (mm) | 1985 |
| Width (mm) | 2340 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | cylinder and bottom isolated |
| Thickness (mm) | 60 |
| Finishing insulation | fully welded cladding |
| Insulation material | Stainless steel 304 |

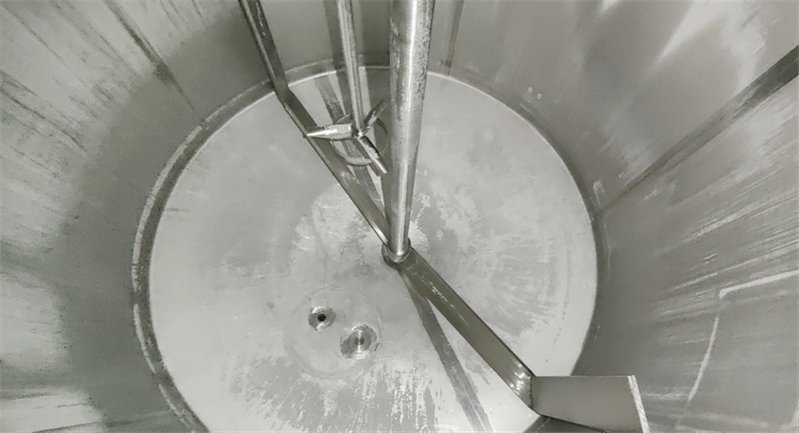

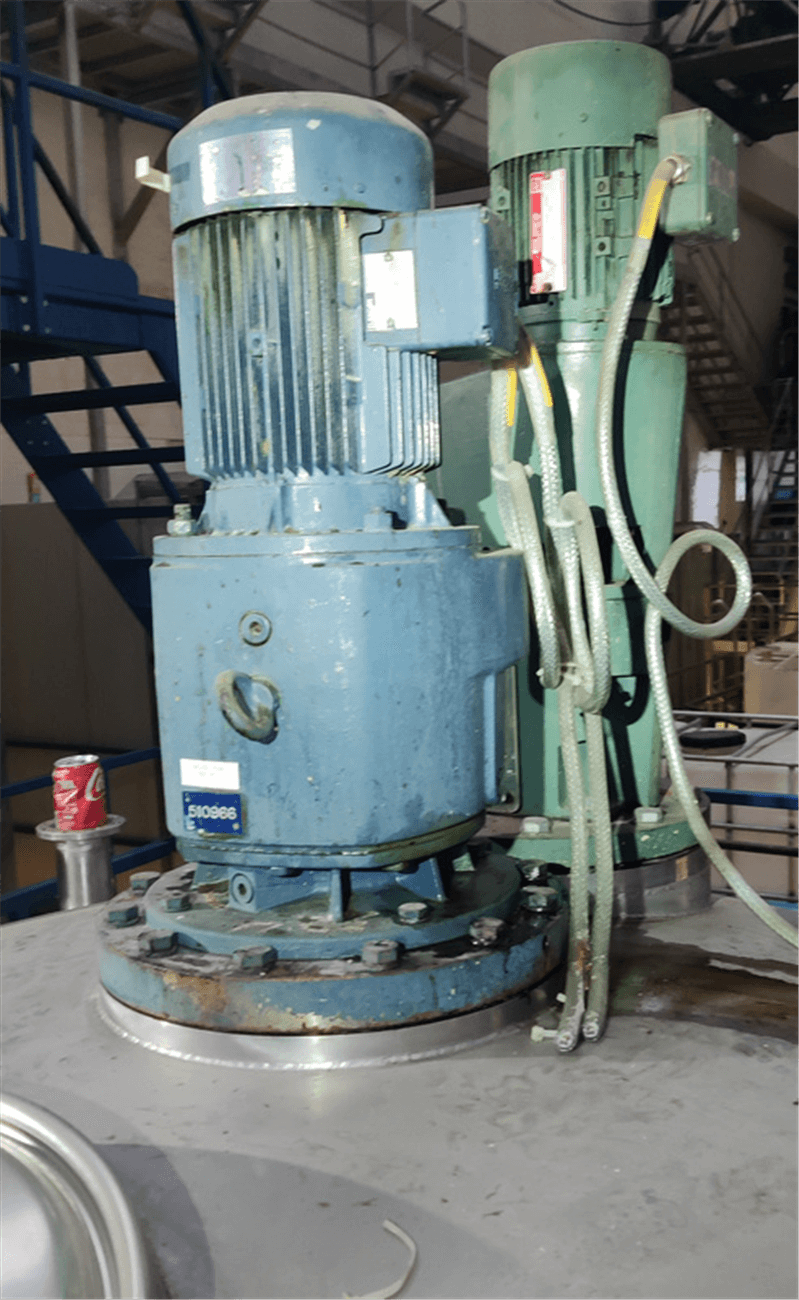

| Agitators | |
|---|---|
| Number of agitators | 2 |
| Agitator 1: Type | Slowly rotating mixer |
| Agitator 1: Position | Centrally on the top |
| Agitator 1: stirring element type | Anchor |
| Agitator 1: Length (mm) | 2100 |

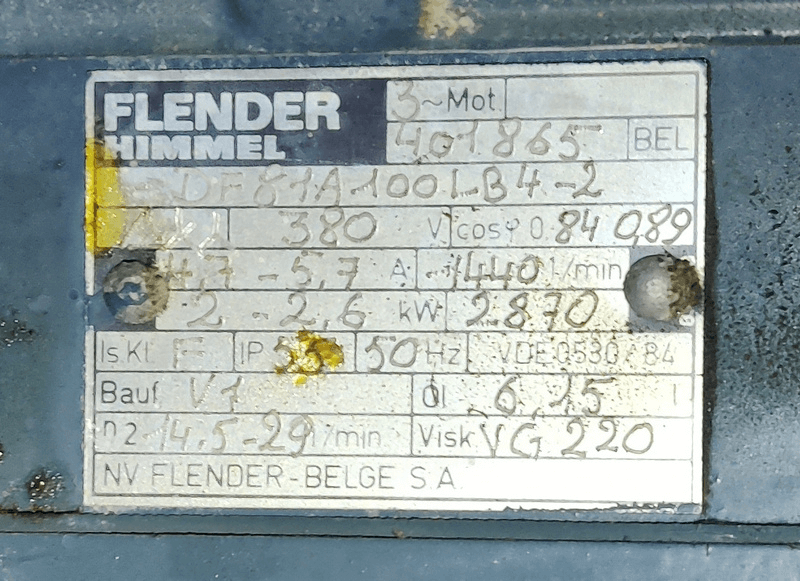

| Agitator 1: Engine Type | electric motor |
| Agitator 1: Voltage (V) | 380 |
| Agitator 1: Power (kw) | 2,6 |
| Agitator 1: Drive Type | Reductor |
| Agitator 1: Speed (r / min) | 29 |
| Agitator 2: Type | Fast rotating mixer |
| Agitator 2: Position | decentrally on the top |

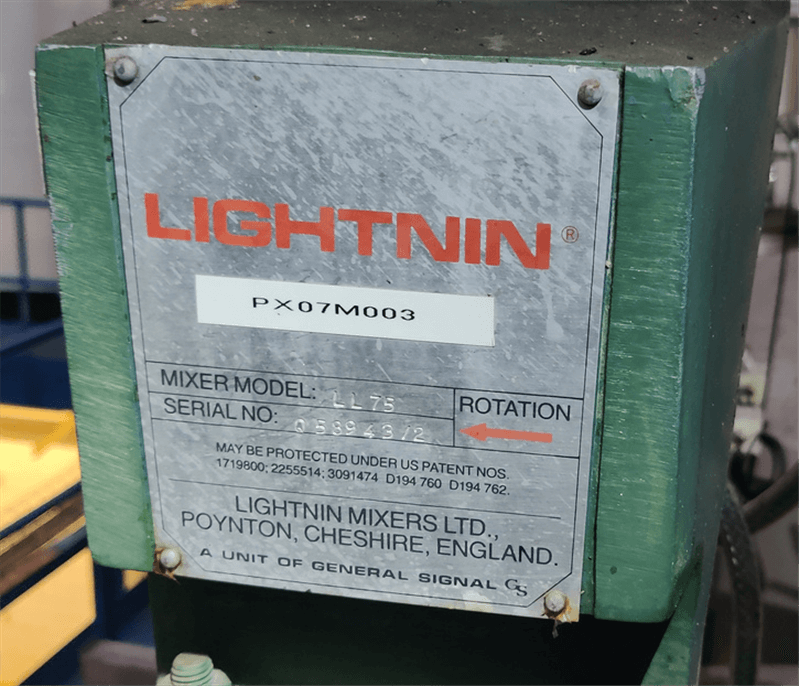

| Agitator 2: Constructor | Lightnin |
| Agitator 2: stirring element type | Propeller |
| Agitator 2: Length (mm) | 1700 |

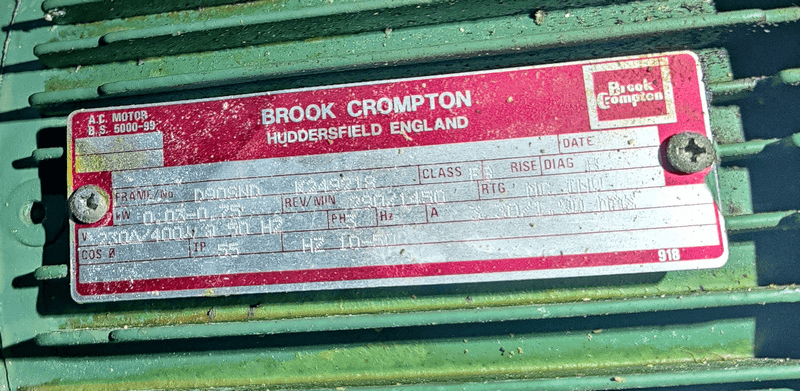

| Agitator 2: Engine Type | electric motor |
| Agitator 2: Voltage (V) | 230/400 |
| Agitator 2: Power (kw) | 0,75 |
| Agitator 2: Drive Type | Direct |
| Agitator 2: Speed (r / min) | 1450 |
