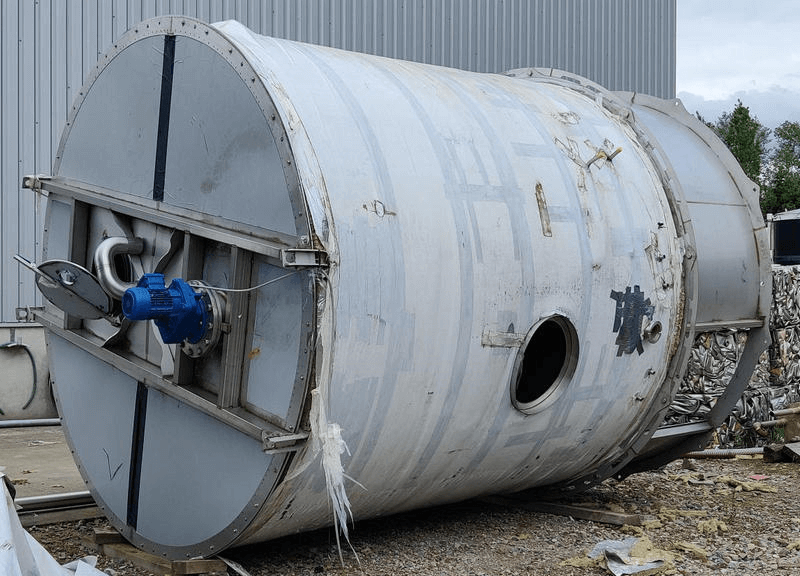

Never used mixing vessel
- Material: Stainless steel 304
- Condition: Never used
- Volume (in litres): 16800 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.44.PA.02 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 16800 |
| Type tank | Mixing vessel |

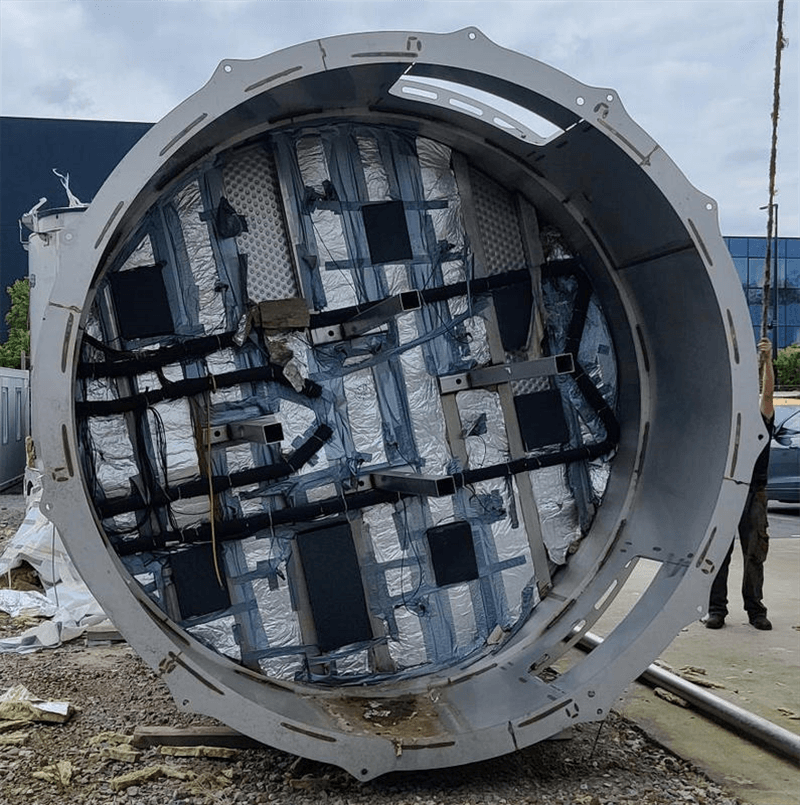

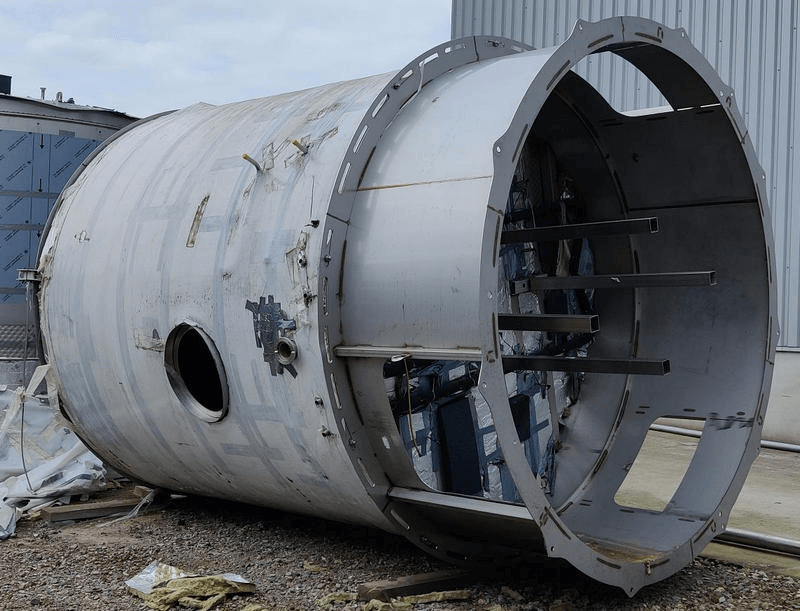

| Fixation | Skirt |

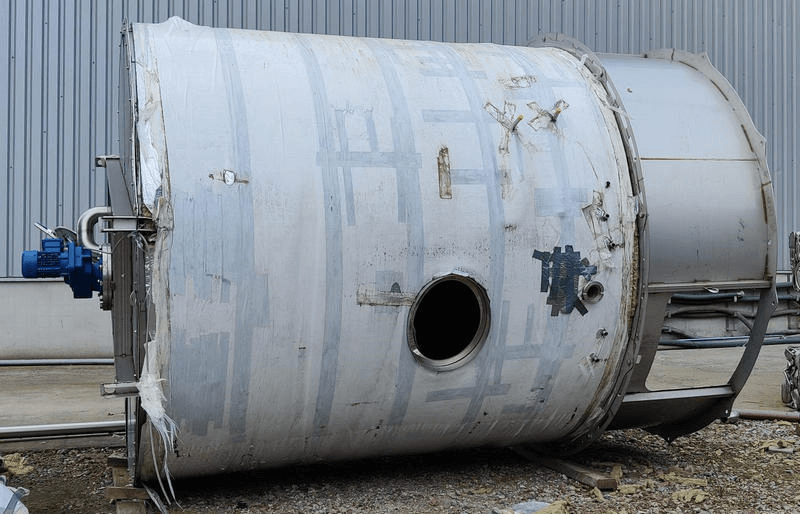

| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Inclined bottom |
| Tank model | Jacketed (Heating/Cooling) |
| Number lifting lugs | 4 |
| Number of manhole | 2 |
| Position of manhole (s) | Top and Cylindrical part |
| Dimensions of manholes | 420x510mm / dia 440mm |
| Tank with total drain? | Yes |
| Diameter of outlet (mm) | 80 |
| locality | B-7711 Belgium |

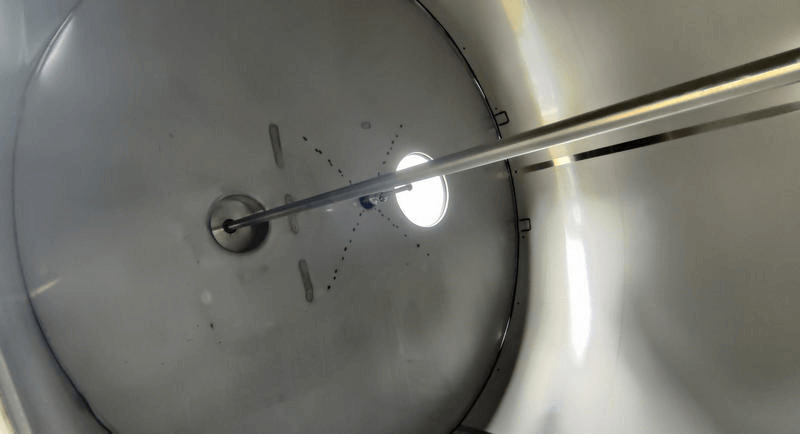

| Provision tank cleaning | CIP ball |
| Weight (kg) | 1500 |
| Condition | Never used |
| Type plate manufacturer | No |

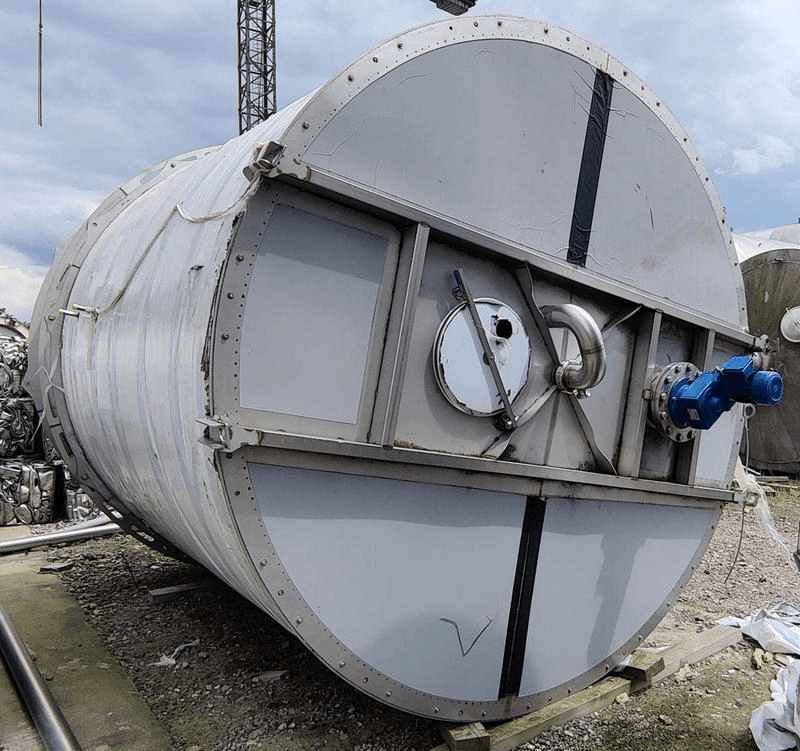

| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Flat bottom |
| Thickness closed dome (mm) | 1,6 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 2,1 |
| Bottom thickness (mm) | 3,1 |
| Periphery (mm) | 9420 |
| Cylindrical length (mm) | 2630 |
| Slope bottom (°) | 2 |
| Total height (mm) | 4600 |
| Diameter tank (mm) | 2895 |
| Width (mm) | 3200 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | cylinder and bottom isolated |
| Type of insulation | Insulating wool |
| Thickness (mm) | 40 |
| Finishing insulation | None |
| Heating | |
|---|---|
| Number of heating type | 1 |
| Heating 1: Type | Dimple plate |
| Agitators | |
|---|---|
| Number of agitators | 1 |

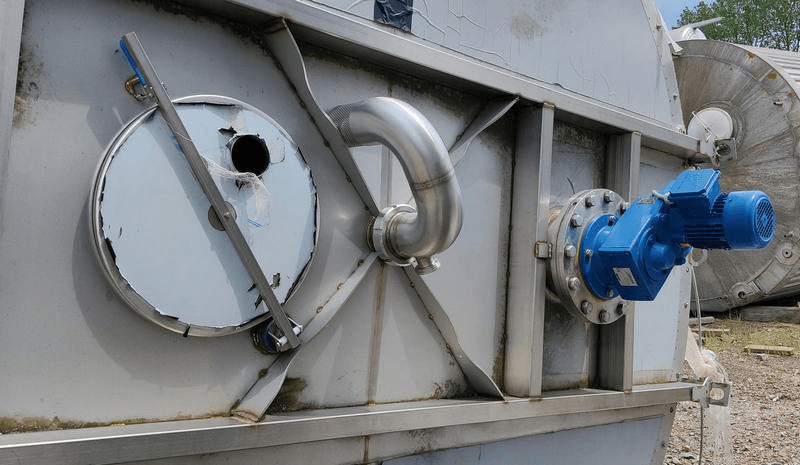

| Agitator 1: Type | Slowly rotating mixer |
| Agitator 1: Position | decentrally on the top |

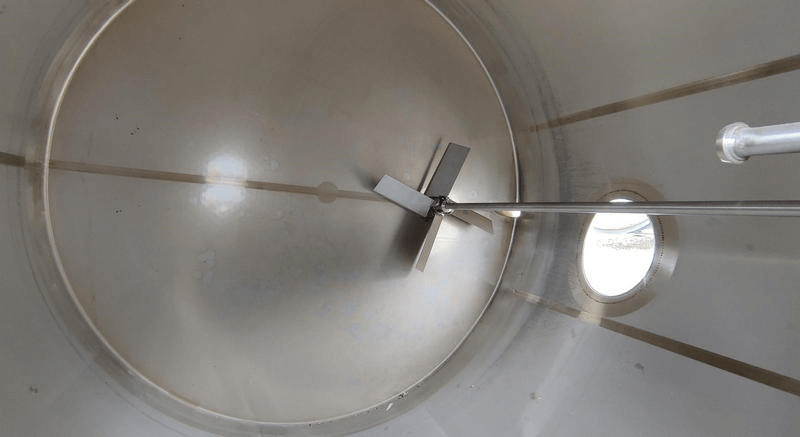

| Agitator 1: stirring element type | Propeller |
| Agitator 1: Length (mm) | 2500 |

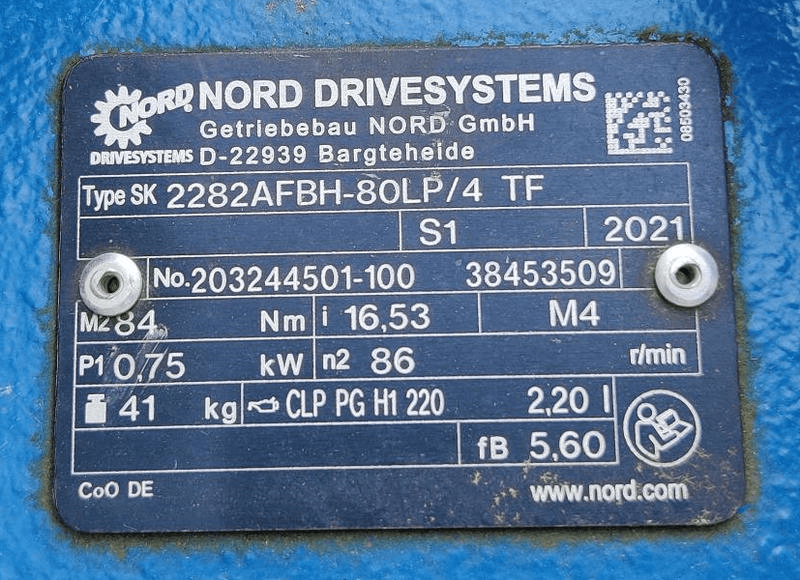

| Agitator 1: Engine Type | electric motor |
| Agitator 1: Voltage (V) | 220/380 |
| Agitator 1: Power (kw) | 0,75 |
| Agitator 1: Drive Type | Reductor |
| Agitator 1: Speed (r / min) | 86 |
