Used mixing vessel
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 4500 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.44.NA.01 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Raw brushed |
| Number | 1 |
| Capacity (Liters) | 4500 |
| Type tank | Mixing vessel |
| Fixation | supports |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

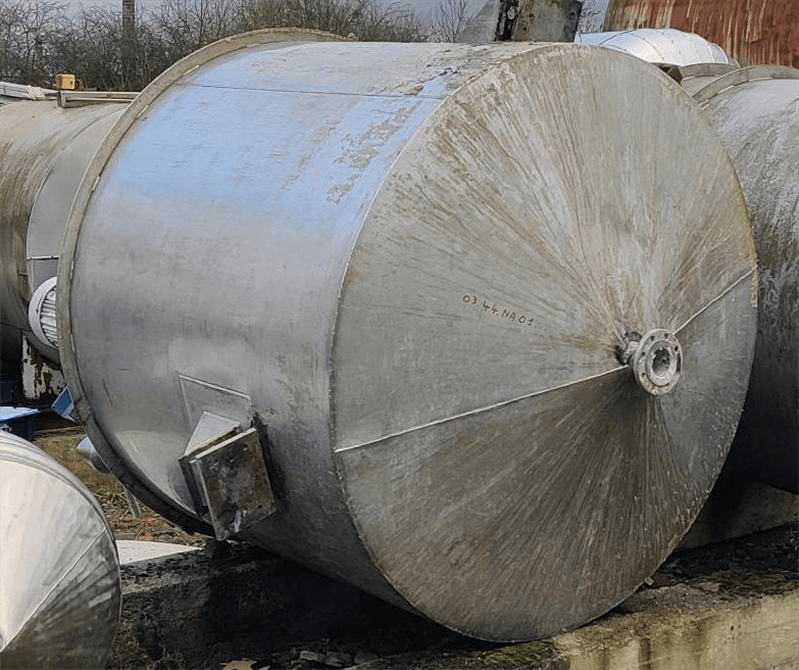

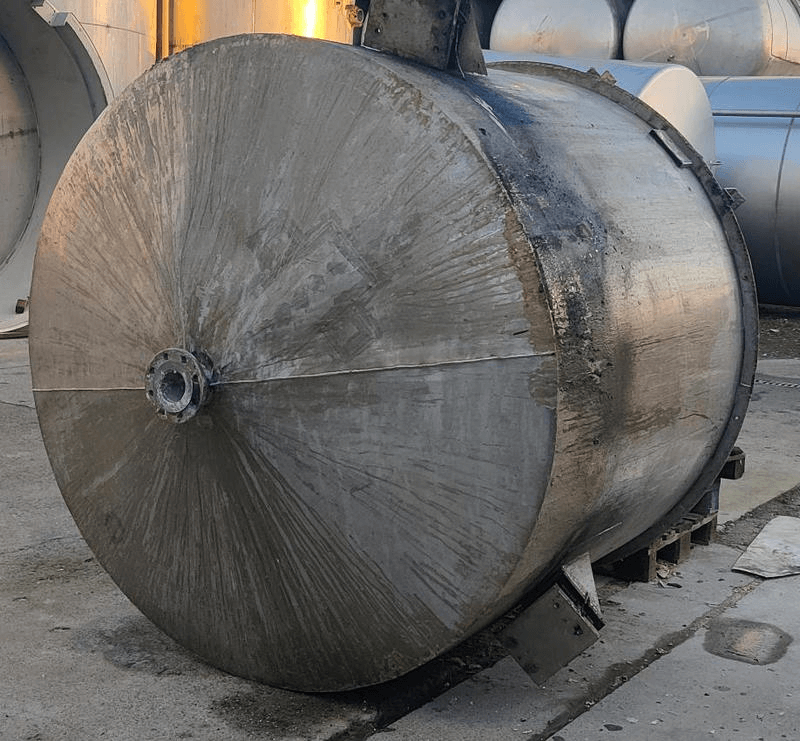

| Bottom | Conical bottom |
| Tank model | Single wall |
| Tank with total drain? | Yes |
| Type of outlet (s) | DN80 flens |
| locality | B-7711 Belgium |
| Last application | Paint industry |
| Provision tank cleaning | None |
| Weight (kg) | 1100 |
| Condition | Used |
| Type plate manufacturer | No |
| Top side | |
|---|---|

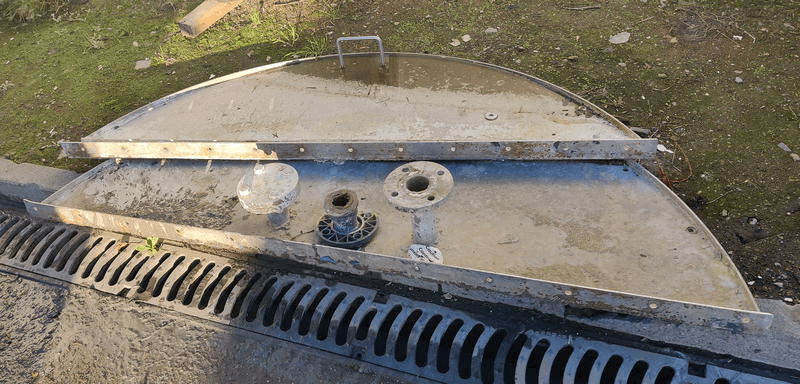

| Configuration top-side | Open |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 2 |
| Bottom thickness (mm) | 1,9 |
| Periphery (mm) | 6010 |
| Cylindrical length (mm) | 1500 |
| Height bottom (mm) | 250 |
| Total height (mm) | 3100 |
| Diameter tank (mm) | 1910 |
| Width (mm) | 2205 |
| Insulation | |
|---|---|
| Insulation | No |

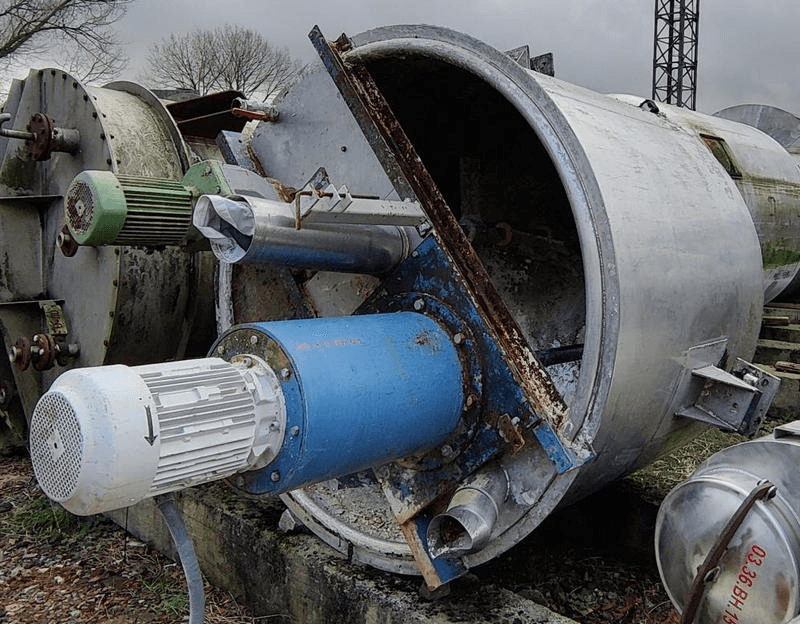

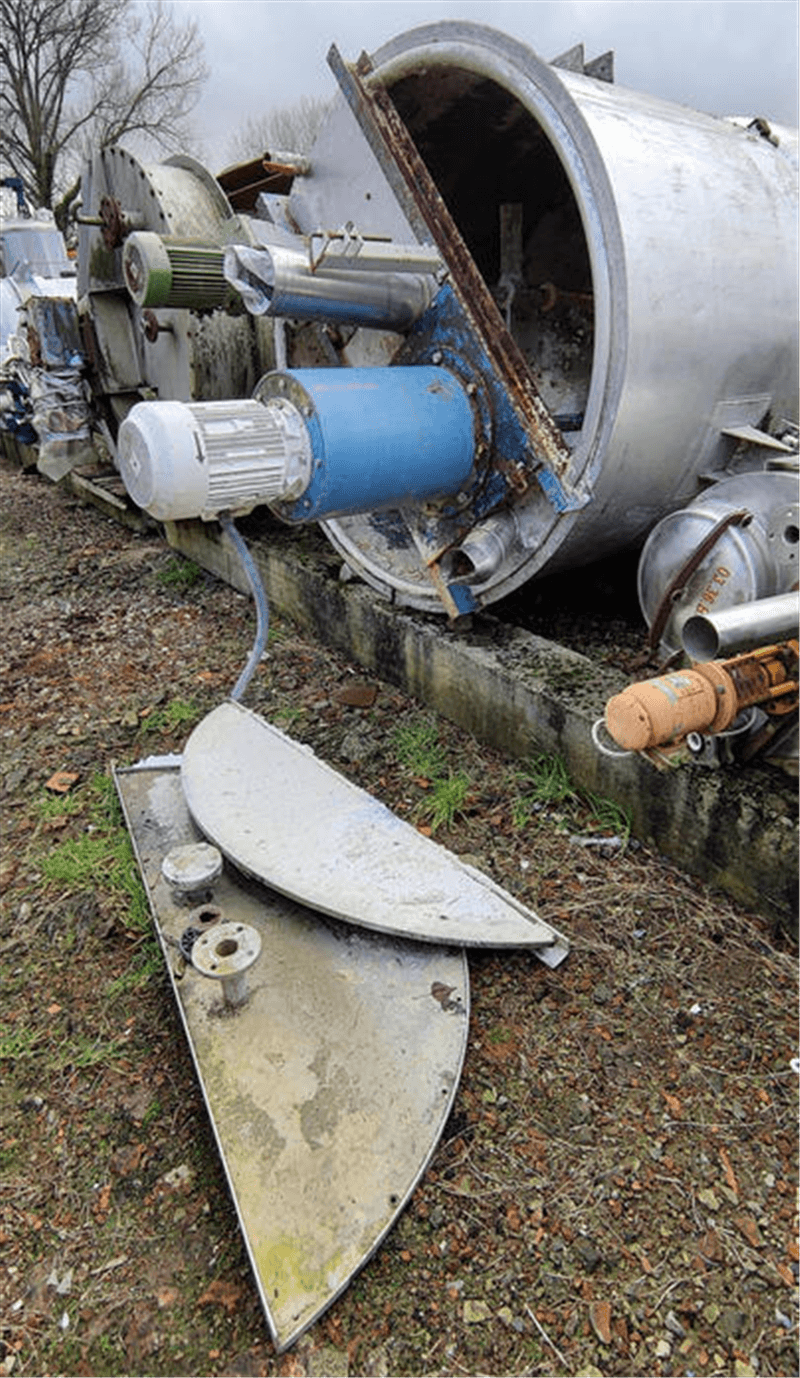

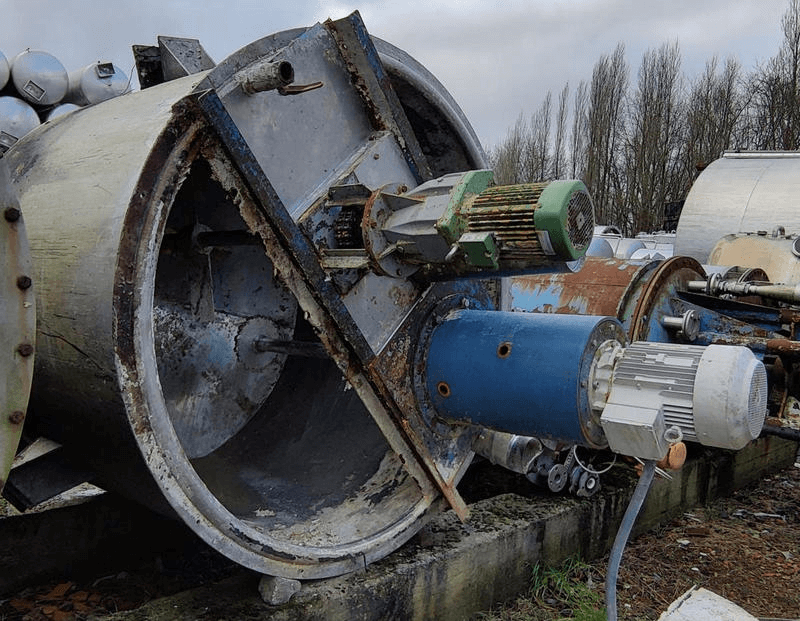

| Agitators | |
|---|---|
| Number of agitators | 2 |

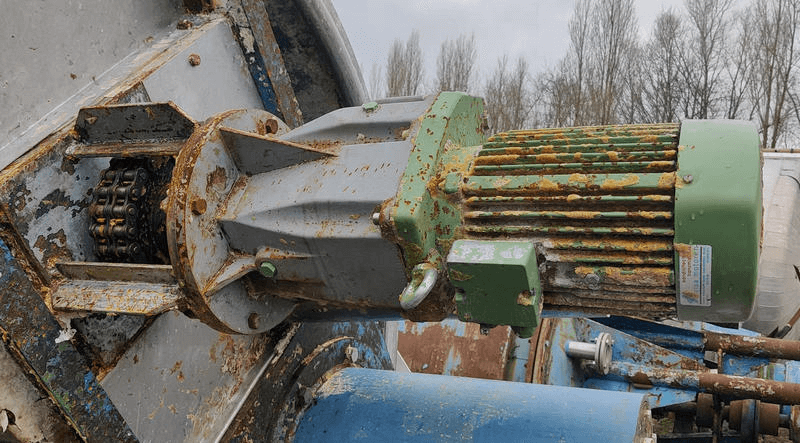

| Agitator 1: Type | Slowly rotating mixer |
| Agitator 1: Position | decentrally on the top |

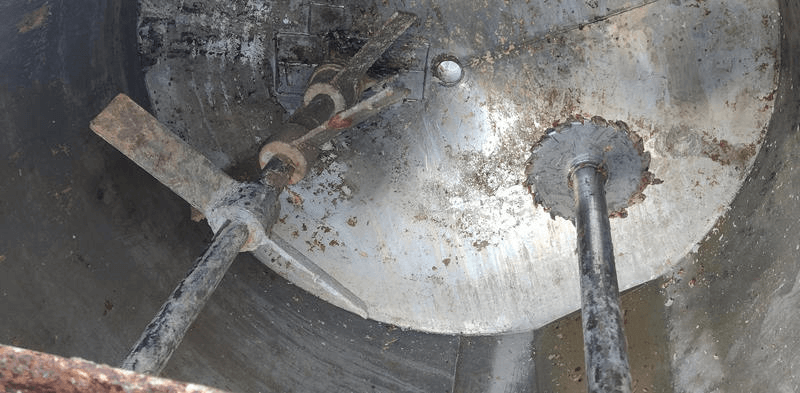

| Agitator 1: stirring element type | Propeller |
| Agitator 1: Length (mm) | 1800 |

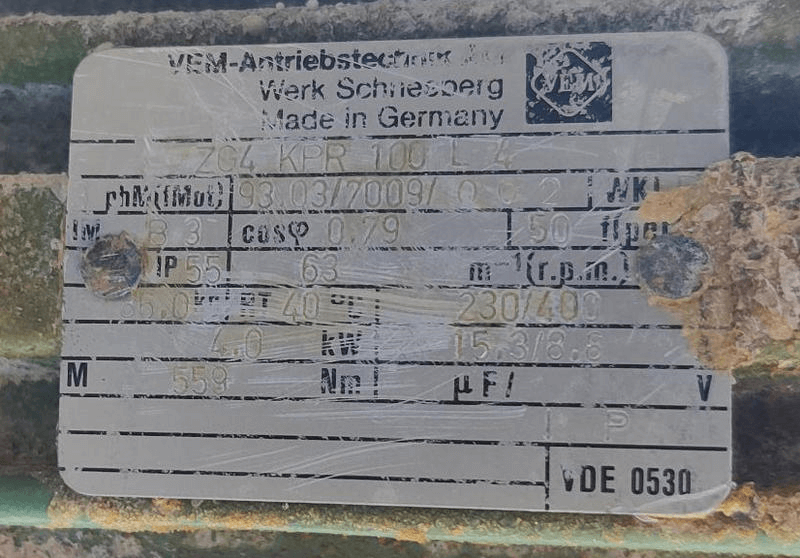

| Agitator 1: Engine Type | electric motor |
| Agitator 1: Voltage (V) | 230/400 |
| Agitator 1: Power (kw) | 4 |
| Agitator 1: Drive Type | Reductor |
| Agitator 1: Speed (r / min) | 63 |

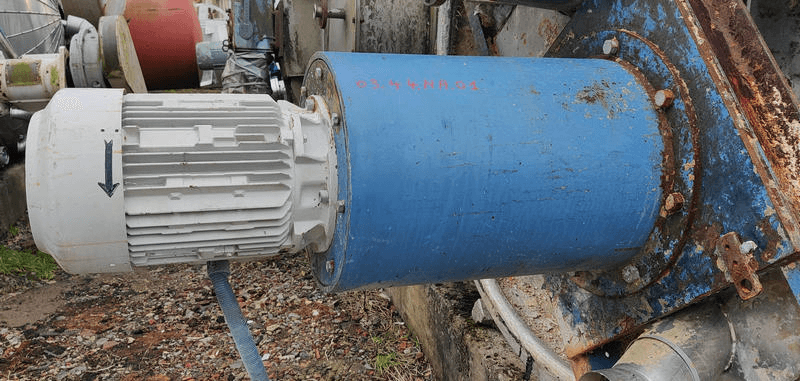

| Agitator 2: Type | Fast rotating mixer |
| Agitator 2: Position | decentrally on the top |
| Agitator 2: stirring element type | Dissolver/Disc stirrer |
| Agitator 2: Length (mm) | 1200 |

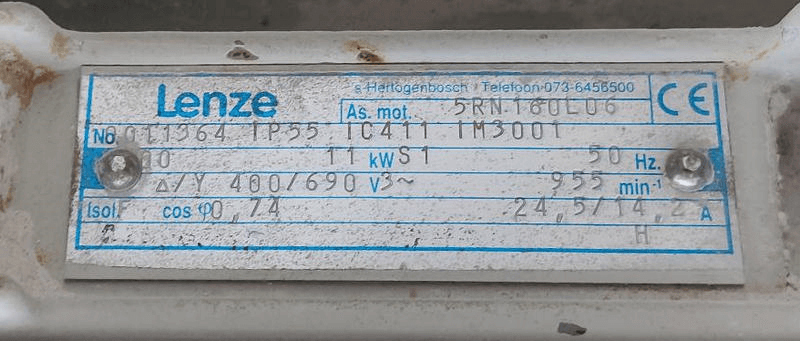

| Agitator 2: Engine Type | electric motor |
| Agitator 2: Voltage (V) | 400/690 |
| Agitator 2: Power (kw) | 11 |
| Agitator 2: Drive Type | Direct |
| Agitator 2: Speed (r / min) | 955 |
