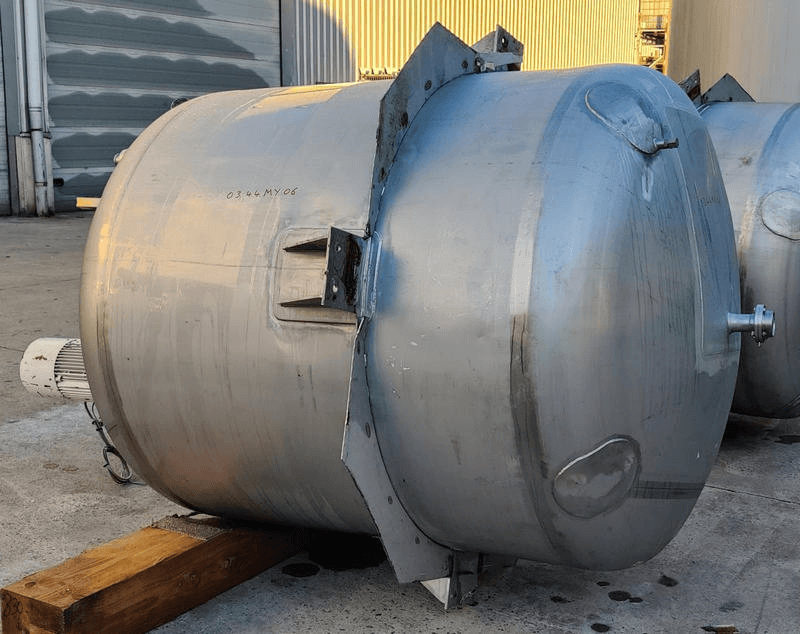

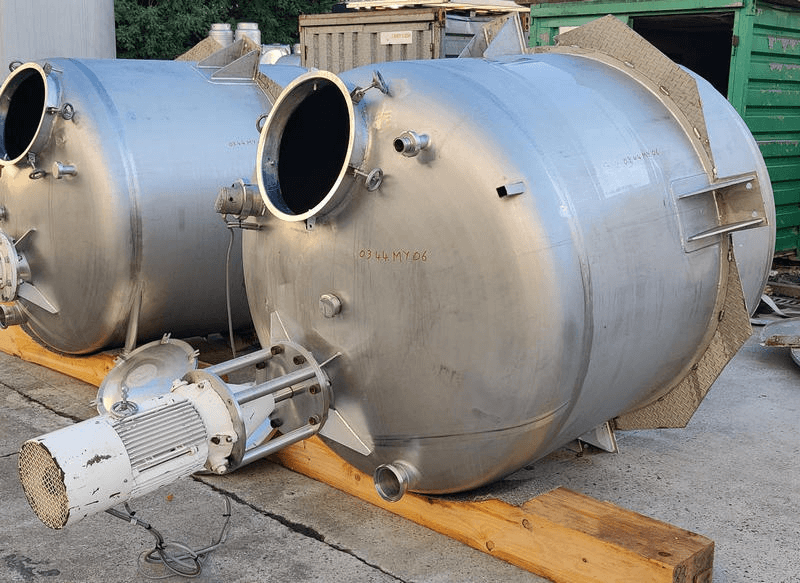

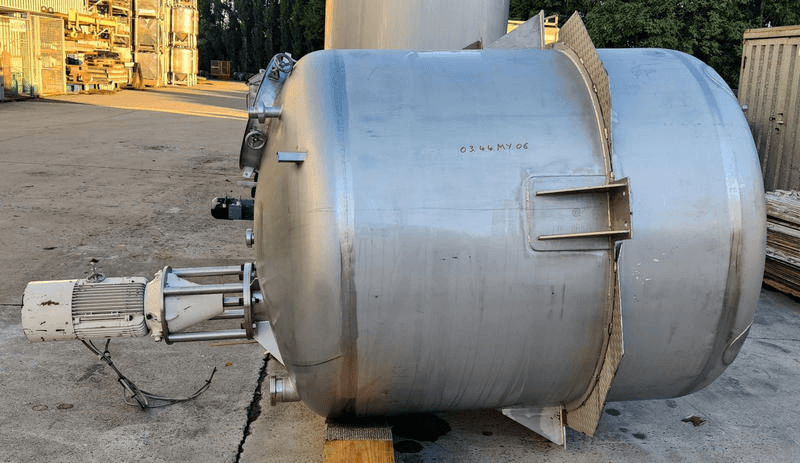

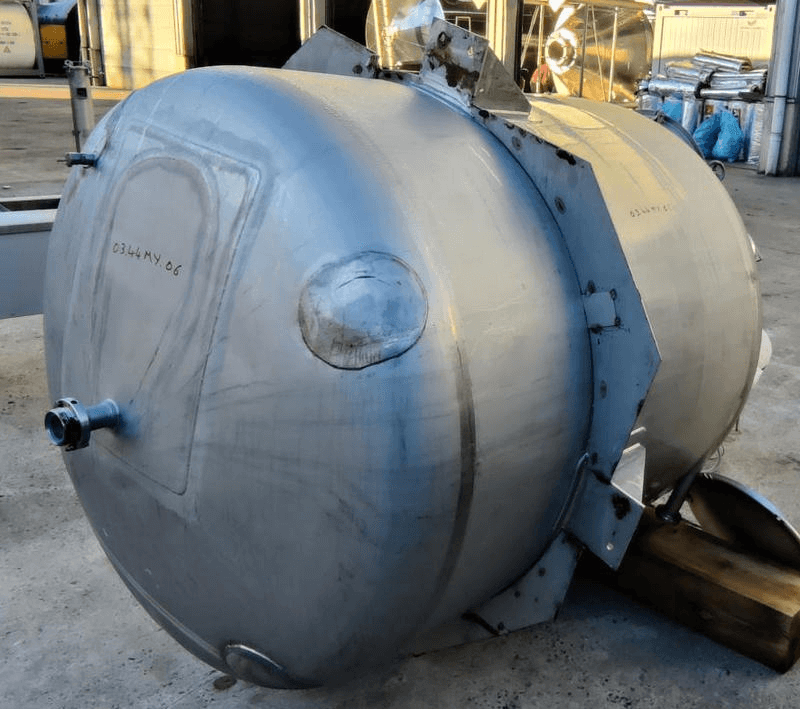

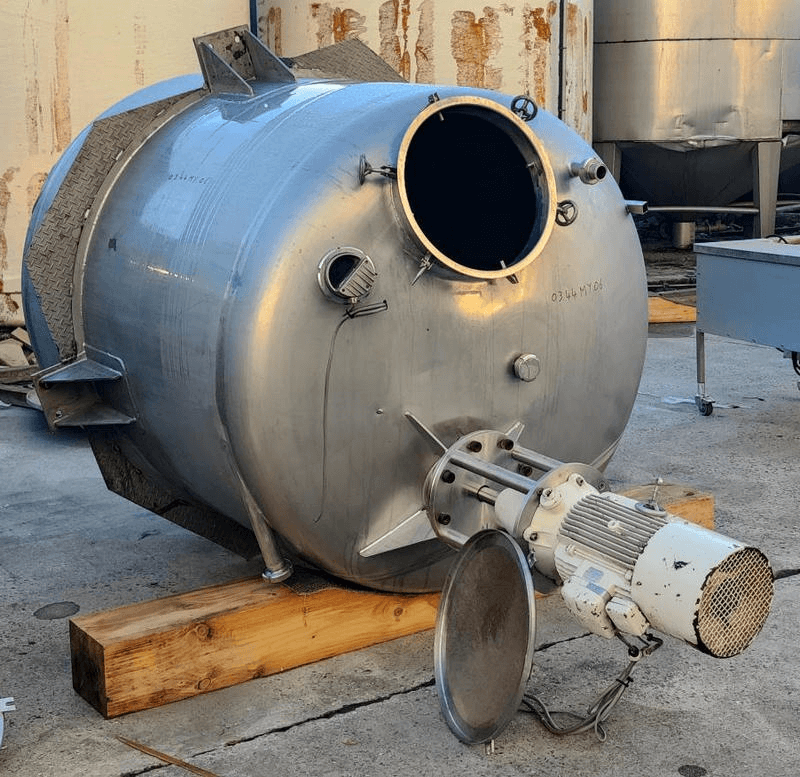

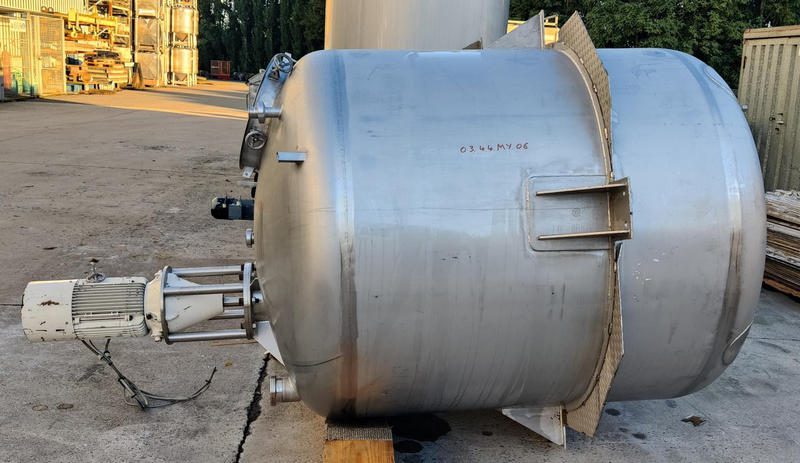

Used mixing vessel
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 2800 L
- In stock: 1
| General | |
|---|---|
| Material | Stainless steel 304 |
| Number | 1 |
| Group | Tank |
| Co-owner | Belgian Tanks Solutions |
| Condition | Used |
| Show Online? | Yes |
| Tank | |
|---|---|
| Finishing weldings inside | Grinded |
| Finishing weldings inside | Grinded |
| Finishing weldings inside | Grinded |
| Finishing weldings inside | Grinded |
| Capacity (Liters) | 2800 |
| Type tank | Mixing vessel |
| Fixation | supports |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

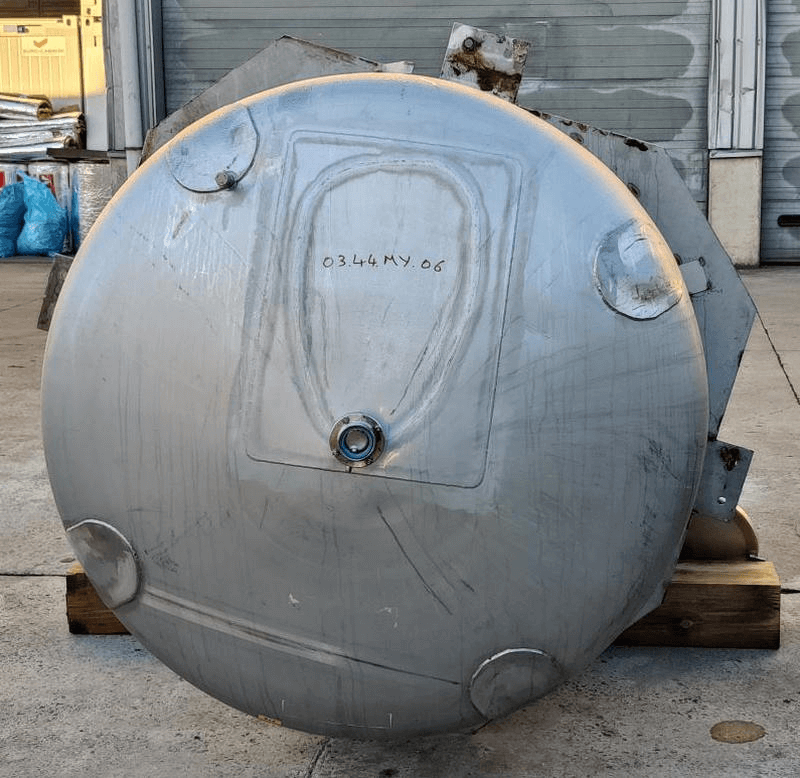

| Bottom | Dished bottom |
| Tank model | Single wall |

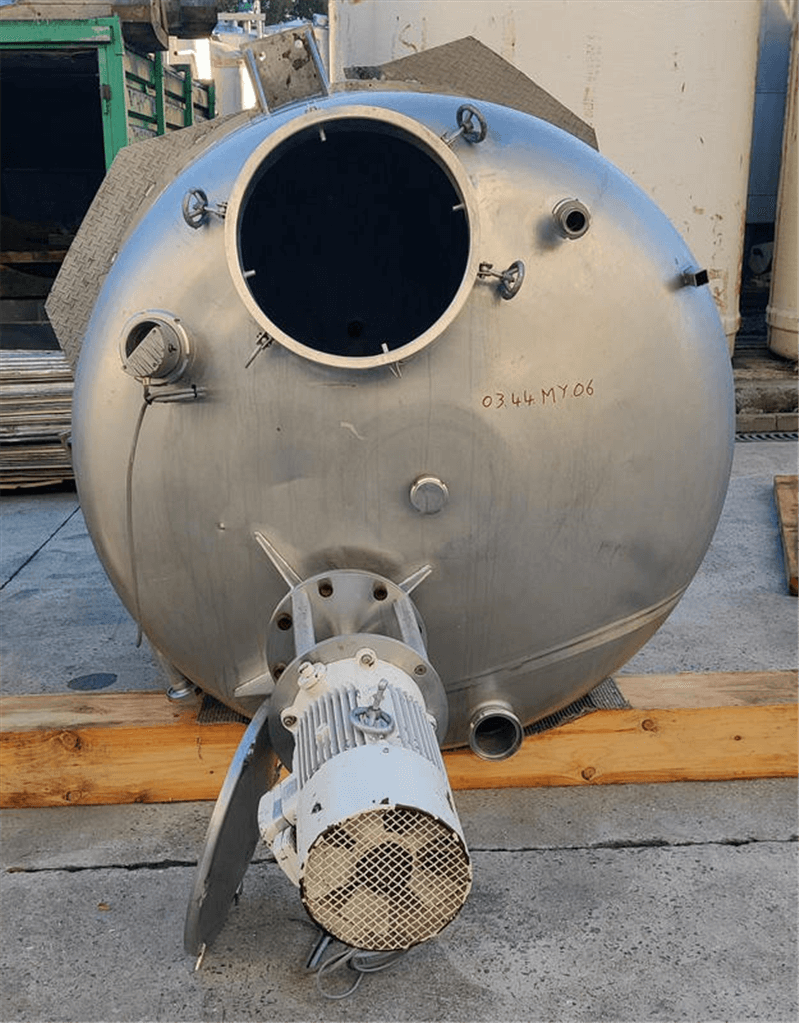

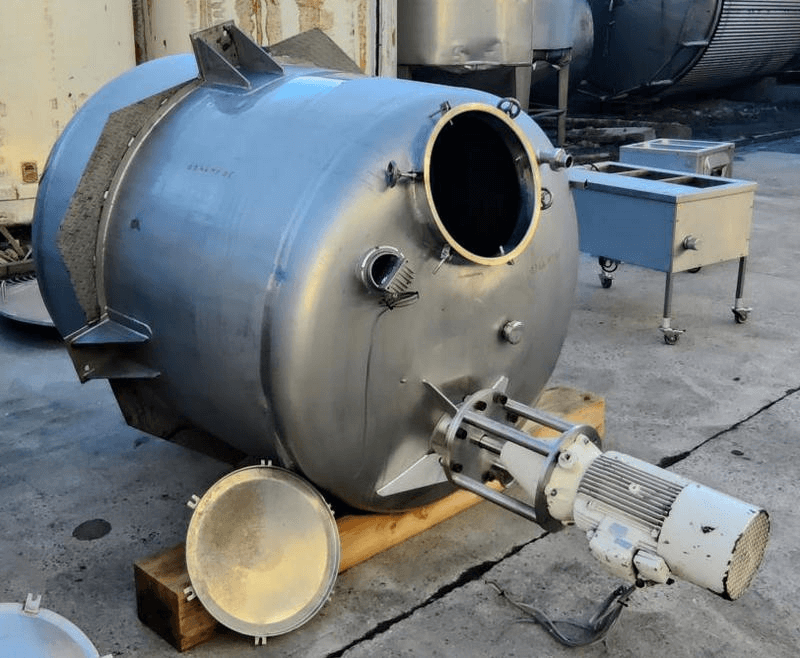

| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | dia 445mm |
| Tank with total drain? | Yes |
| Type of outlet (s) | man. vlinderklep |
| Diameter of outlet (mm) | 50 |
| locality | B-7711 Belgium |
| Last application | cosmetics |
| Provision tank cleaning | None |
| Dimensions | |
|---|---|
| Thickness closed dome (mm) | 2.1 |
| Cylinder Thickness (mm) | 2.1 |
| Bottom thickness (mm) | 2 |
| Periphery (mm) | 4730 |
| Cylindrical length (mm) | 1400 |
| height bottom (mm) | 300 |
| height bottom (mm) | 300 |
| height bottom (mm) | 300 |
| Total height (mm) | 3100 |
| Length (mm) | 1865 |
| Diameter tank (mm) | 1500 |
| Width (mm) | 1805 |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Dished head |

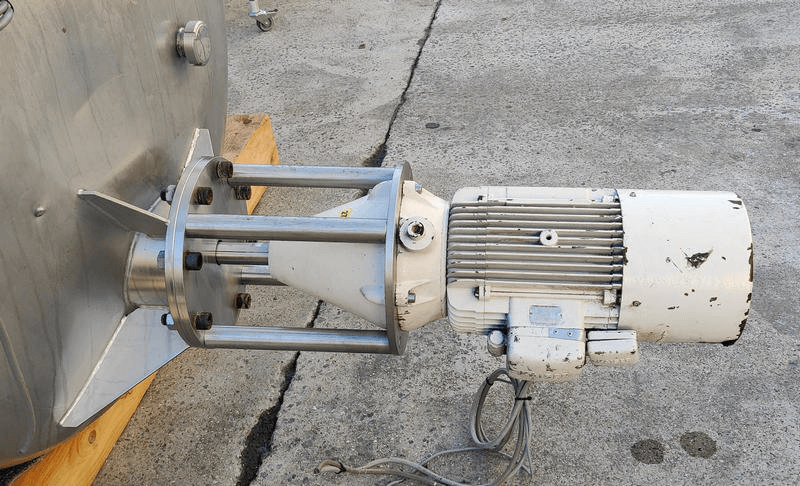

| Agitators | |
|---|---|
| Number of agitators | 1 |

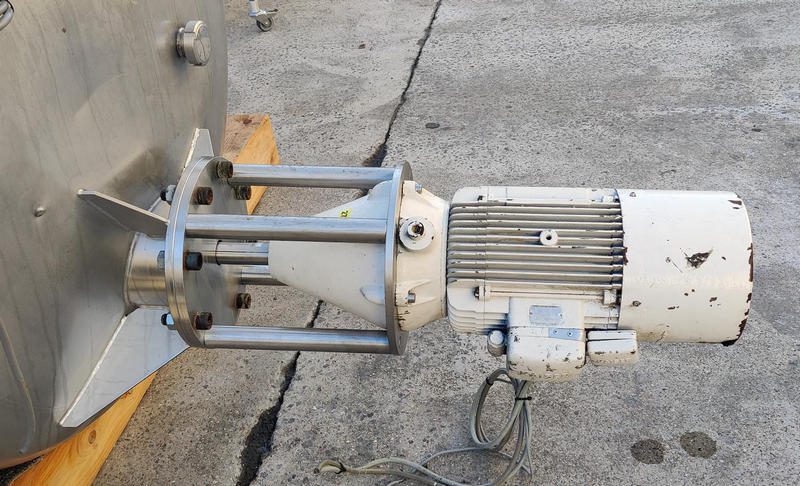

| Agitator 1: Type | High shear mixer |
| Agitator 1: Position | decentrally on the top |

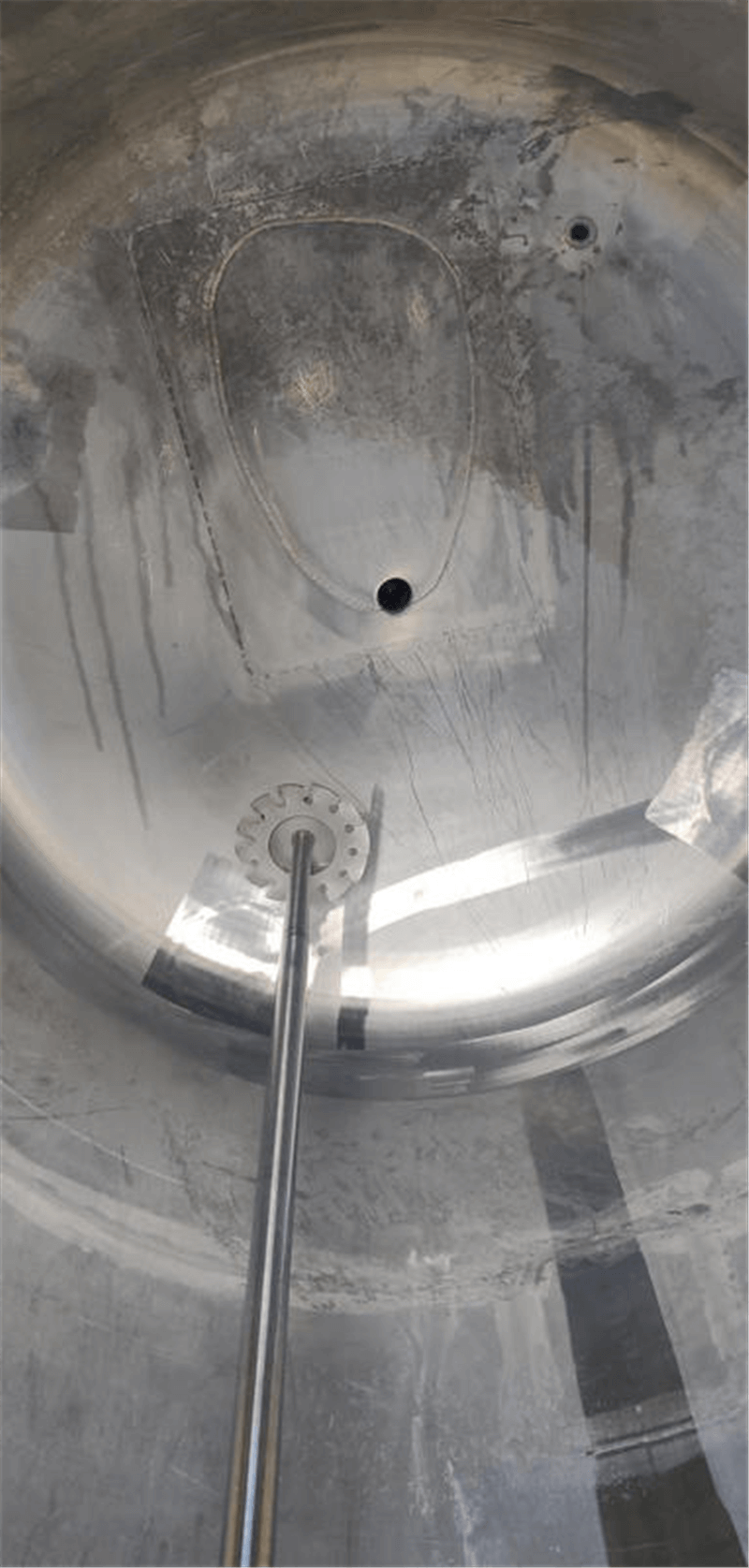

| Agitator 1: stirring element type | Dissolver/Disc stirrer |
| Agitator 1: Length (mm) | 1900 |

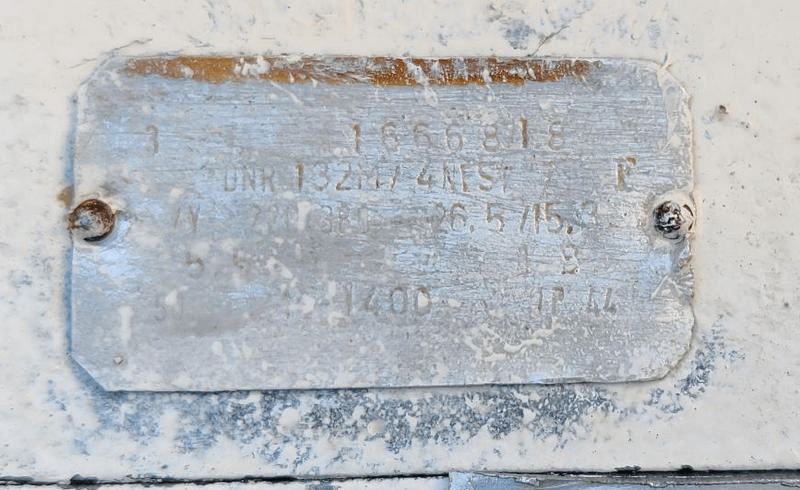

| Agitator 1: Engine Type | electric motor |
| Agitator 1: Voltage (V) | 220/380 |
| Agitator 1: Power (kw) | 5.5 |
| Agitator 1: Drive Type | Direct |
| Agitator 1: Speed (r / min) | 1400 |
