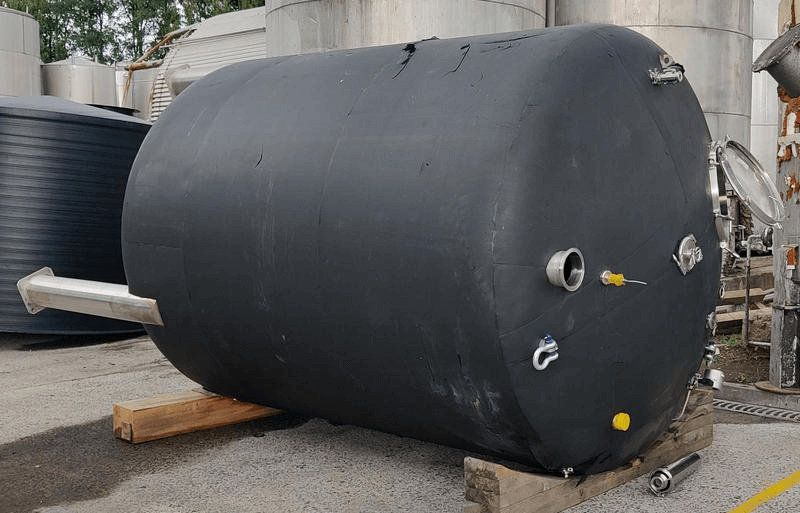

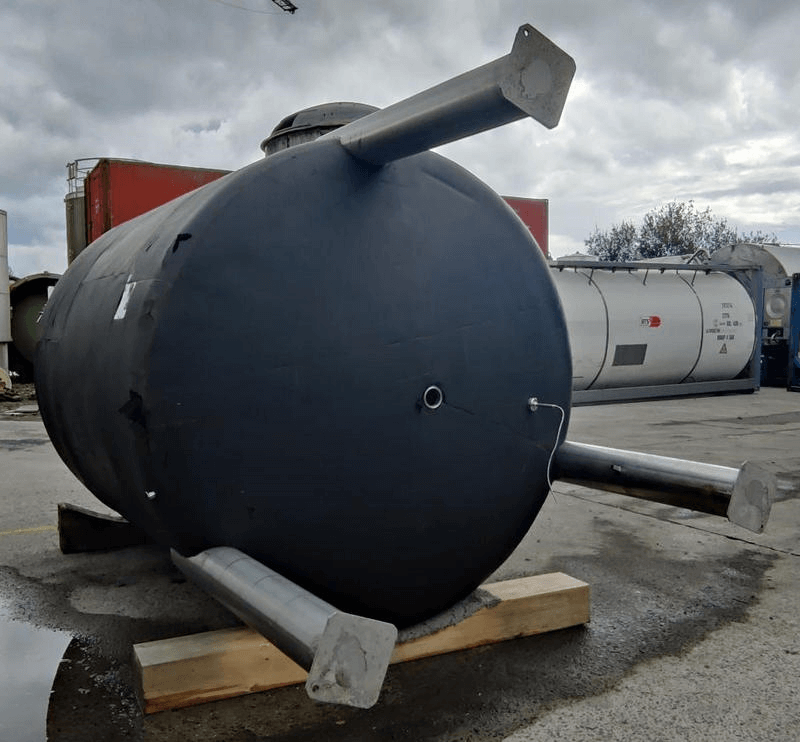

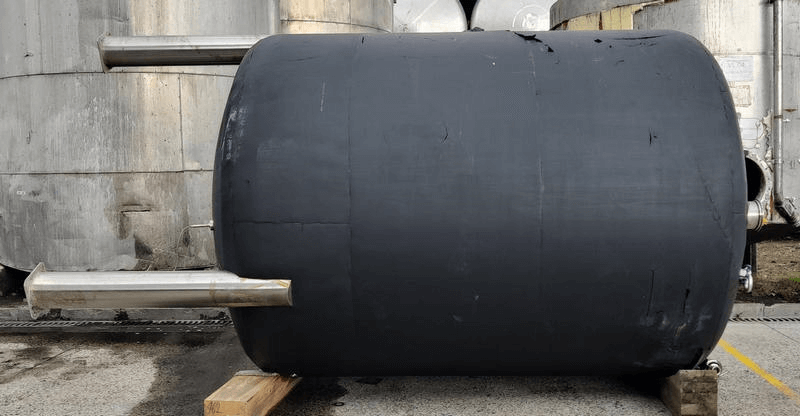

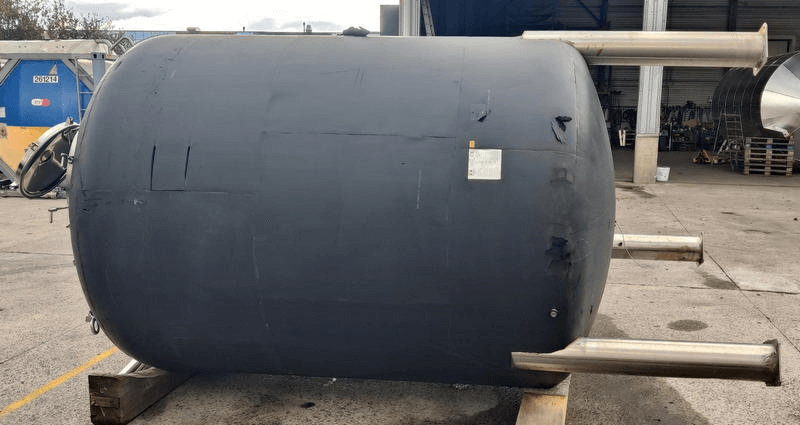

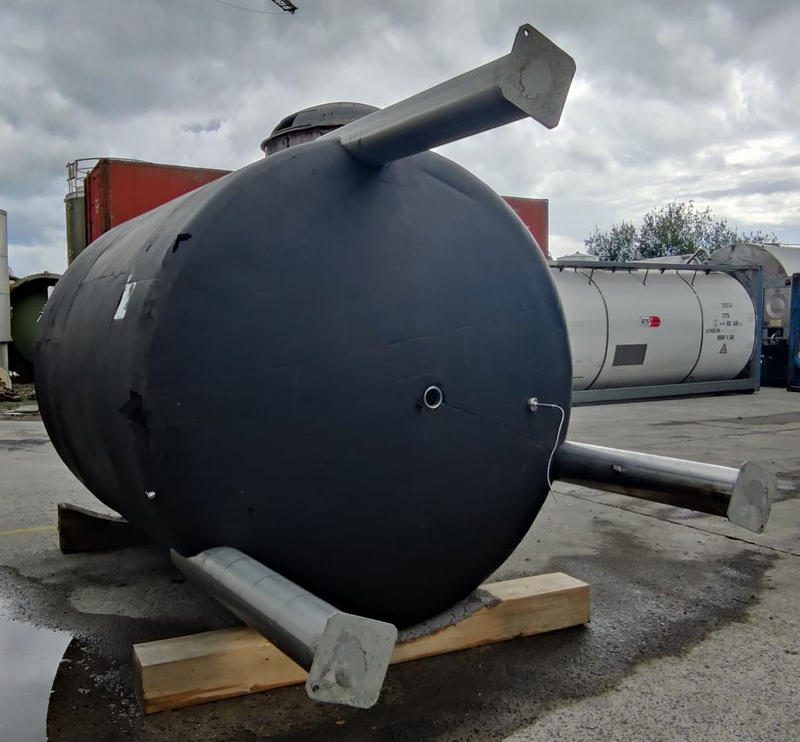

Used storage tank
- Material: Stainless steel 316
- Condition: Used
- Volume (in litres): 11550 L
- In stock: 1
| General | |
|---|---|
| Material | Stainless steel 316 |
| Number | 1 |
| Group | Tank |
| Co-owner | Belgian Tanks Solutions |
| Condition | Used |

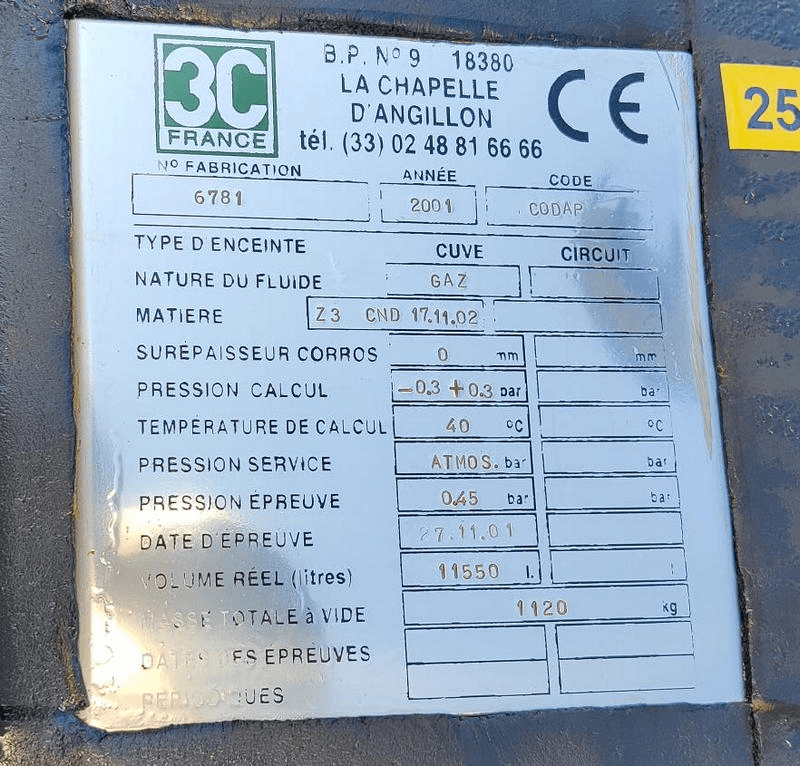

| Type plate manufacturer | Yes |
| Manufacturer | 3C France |
| Year Built | 2001 |
| Show Online? | Yes |
| Tank | |
|---|---|
| Capacity (Liters) | 11550 |
| Type tank | Storage tank |
| Fixation | 3 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Dished bottom |
| Tank model | Single wall |
| Number lifting lugs | 3 |

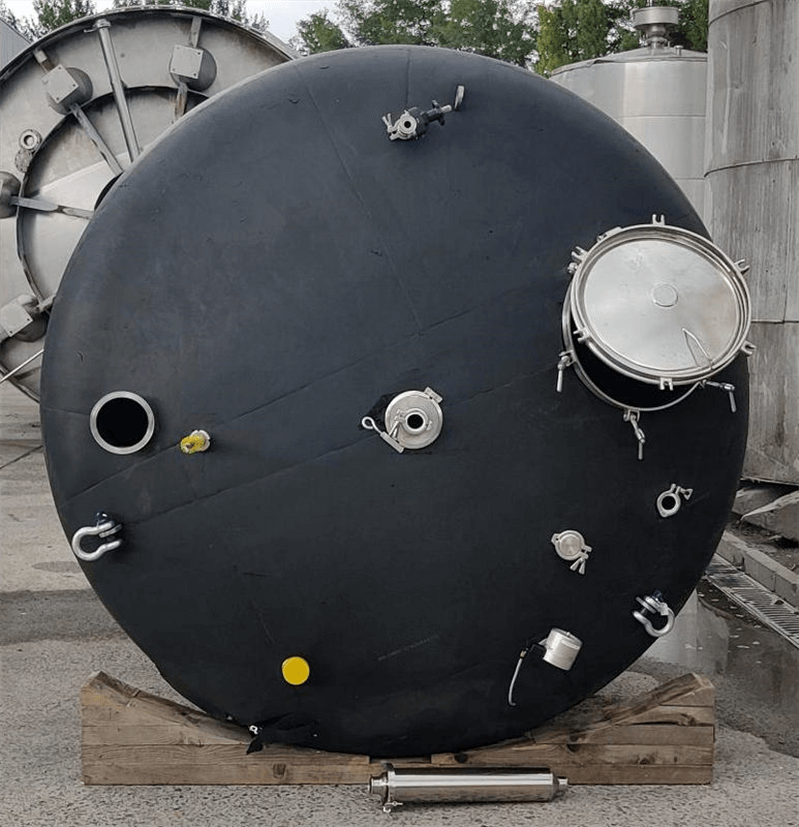

| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | dia 500mm |
| Tank with total drain? | Yes |
| Type of outlet (s) | SMS |
| Diameter of outlet (mm) | 70 |
| locality | B-7711 Belgium |
| Last application | cosmetics |
| Provision tank cleaning | CIP ball |
| Dimensions | |
|---|---|
| Thickness closed dome (mm) | 4.6 |
| Cylinder Thickness (mm) | 4.8 |
| Bottom thickness (mm) | 4.3 |
| Periphery (mm) | 7120 |
| Cylindrical length (mm) | 2400 |
| height bottom (mm) | 400 |
| height bottom (mm) | 400 |
| height bottom (mm) | 400 |
| Thickness (mm) | 20 |
| Outside diameter tank (mm) | 2270 |
| Total height (mm) | 4300 |
| Length (mm) | 2370 |
| Diameter tank (mm) | 2220 |
| Width (mm) | 2270 |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Dished head |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | Fully insulated |
| Type of insulation | Armaflex |
| Finishing insulation | none |
