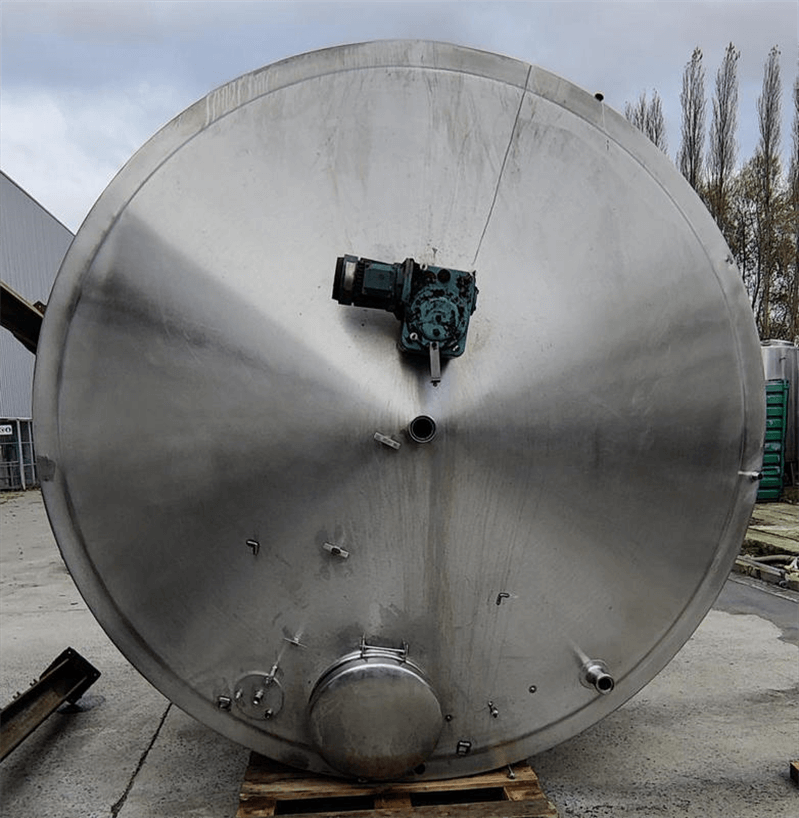

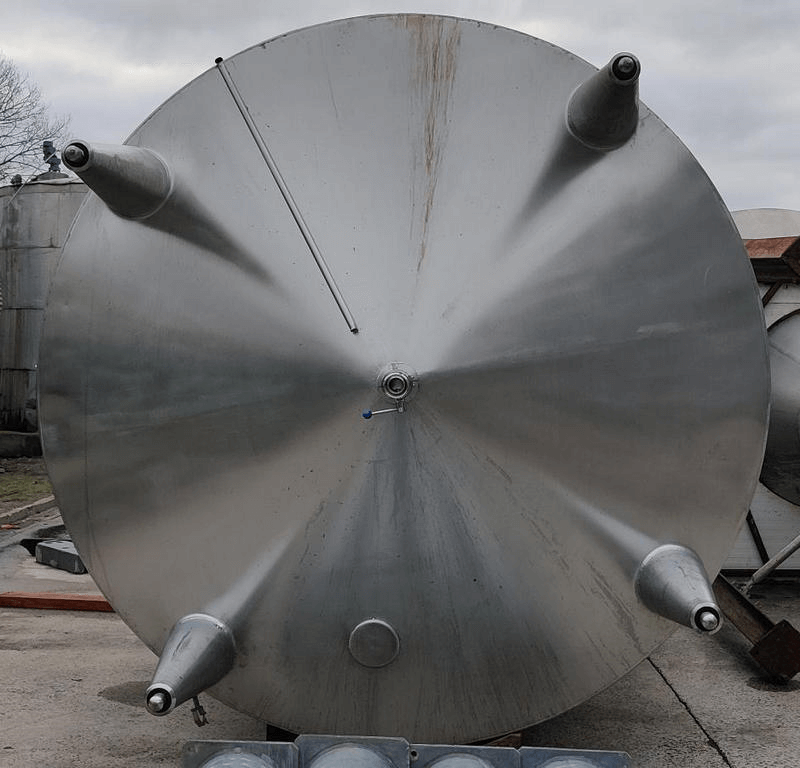

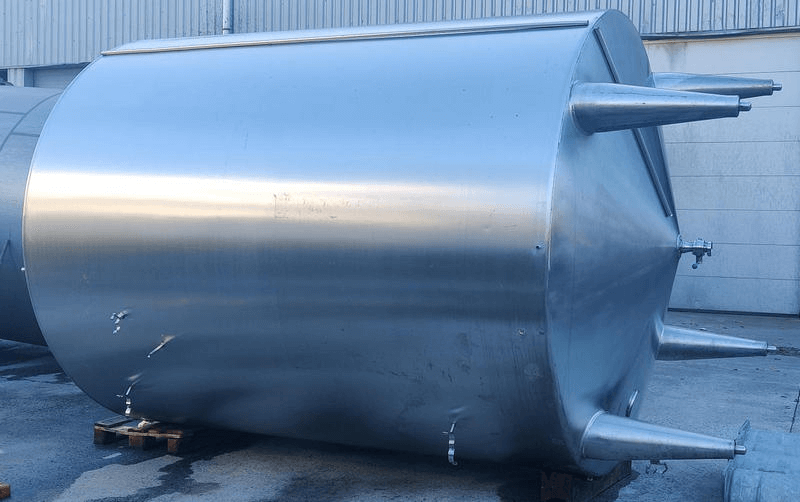

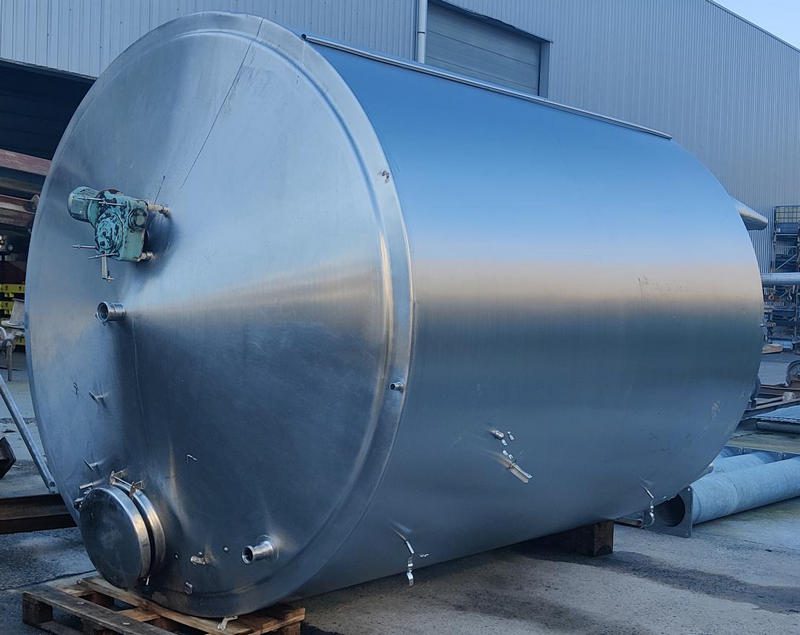

Used mixing vessel
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 20000 L
- In stock: 1
| General | |
|---|---|
| Material | Stainless steel 304 |
| Number | 1 |
| Group | Tank |
| Co-owner | Belgian Tanks Solutions |
| Condition | Used |
| Show Online? | Yes |
| Tank | |
|---|---|
| Finishing weldings inside | Grinded |
| Finishing weldings inside | Grinded |
| Finishing weldings inside | Grinded |
| Finishing weldings inside | Grinded |
| Capacity (Liters) | 20000 |
| Type tank | Mixing vessel |
| Fixation | 4 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Conical bottom |
| Tank model | Single wall |
| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | dia 450mm |
| Tank with total drain? | Yes |
| Type of outlet (s) | man. vlinderklep |
| Diameter of outlet (mm) | DN50 voedingskoppeling |
| locality | B-7711 Belgium |
| Last application | Food |
| Provision tank cleaning | None |
| Dimensions | |
|---|---|
| Thickness closed dome (mm) | 2 |
| Cylinder Thickness (mm) | 2 |
| Bottom thickness (mm) | 3 |
| Periphery (mm) | 8950 |
| Cylindrical length (mm) | 3350 |
| height bottom (mm) | 400 |
| height bottom (mm) | 400 |
| height bottom (mm) | 400 |
| Outer wall thickness (mm) | 2 |
| Outer wall thickness (mm) | 2 |
| Thickness (mm) | 80 |
| Outside diameter tank (mm) | 2850 |
| Total height (mm) | 4900 |
| Diameter tank (mm) | 2685 |
| Width (mm) | 2850 |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Conical head |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | cylinder and bottom isolated |
| Finishing insulation | fully welded cladding |
| Insulation material | Stainless steel 304 |

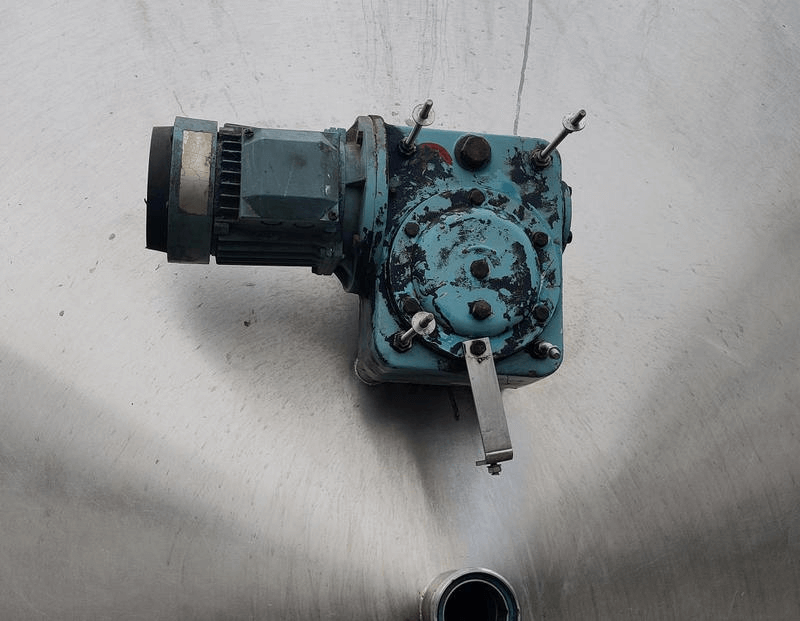

| Agitators | |
|---|---|
| Number of agitators | 1 |
| Agitator 1: Type | Slowly rotating mixer |
| Agitator 1: Position | decentrally on the top |
| Agitator 1: Material | Stainless steel 304 |

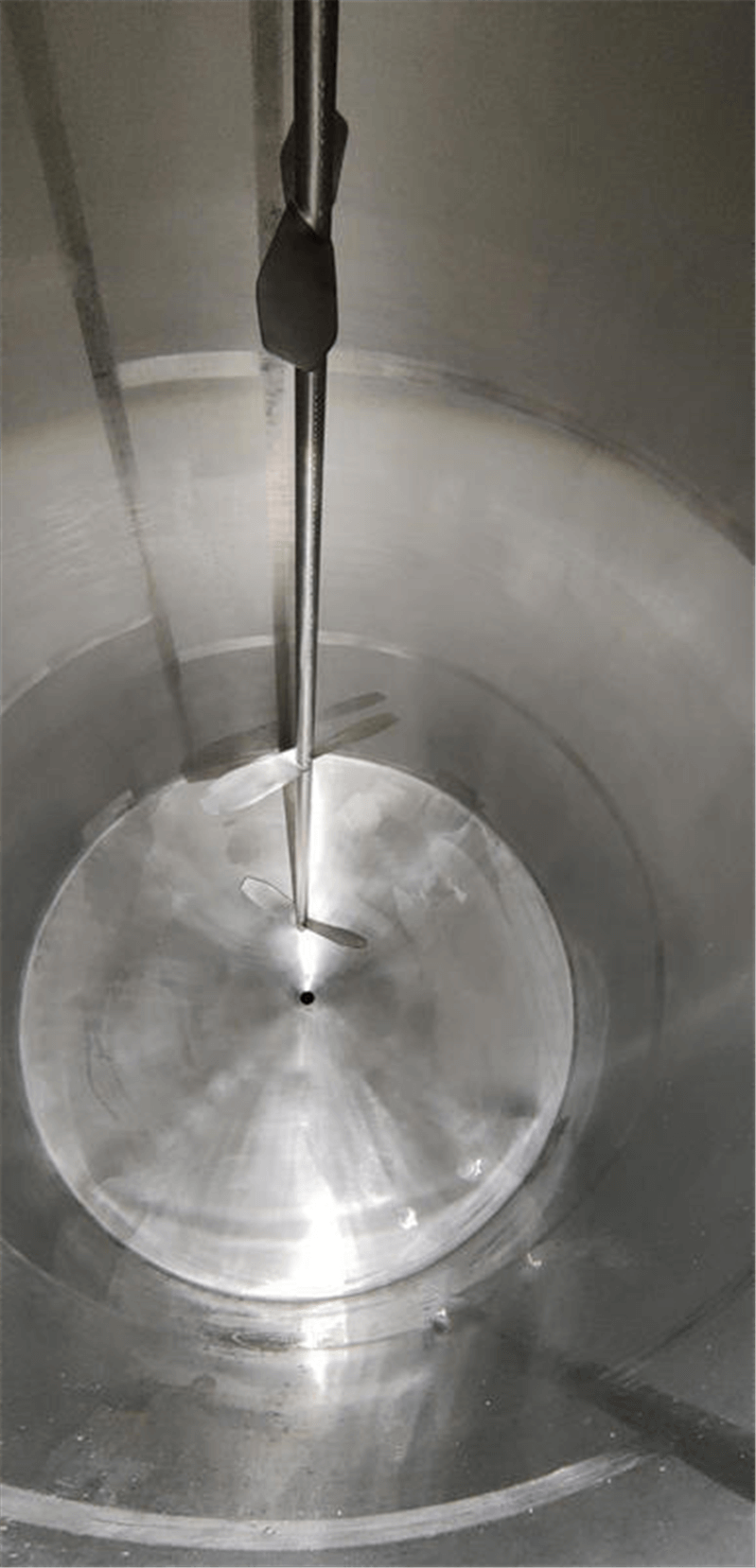

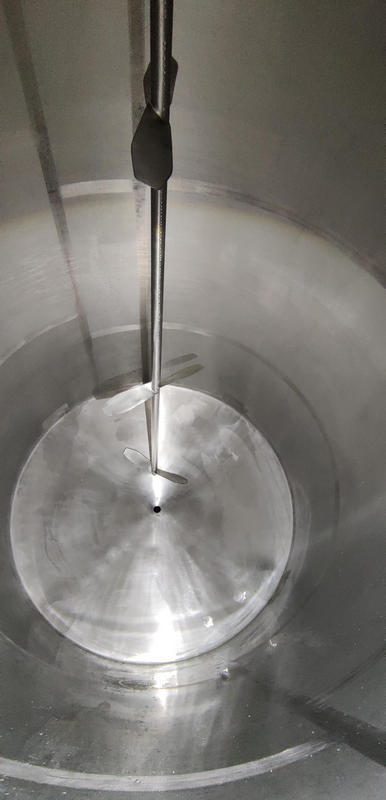

| Agitator 1: stirring element type | Blade stirrer/Cross paddles |
| Agitator 1: Length (mm) | 3800 |
| Agitator 1: Engine Type | electric motor |
| Agitator 1: Voltage (V) | 220/380 |
| Agitator 1: Drive Type | Reductor |
