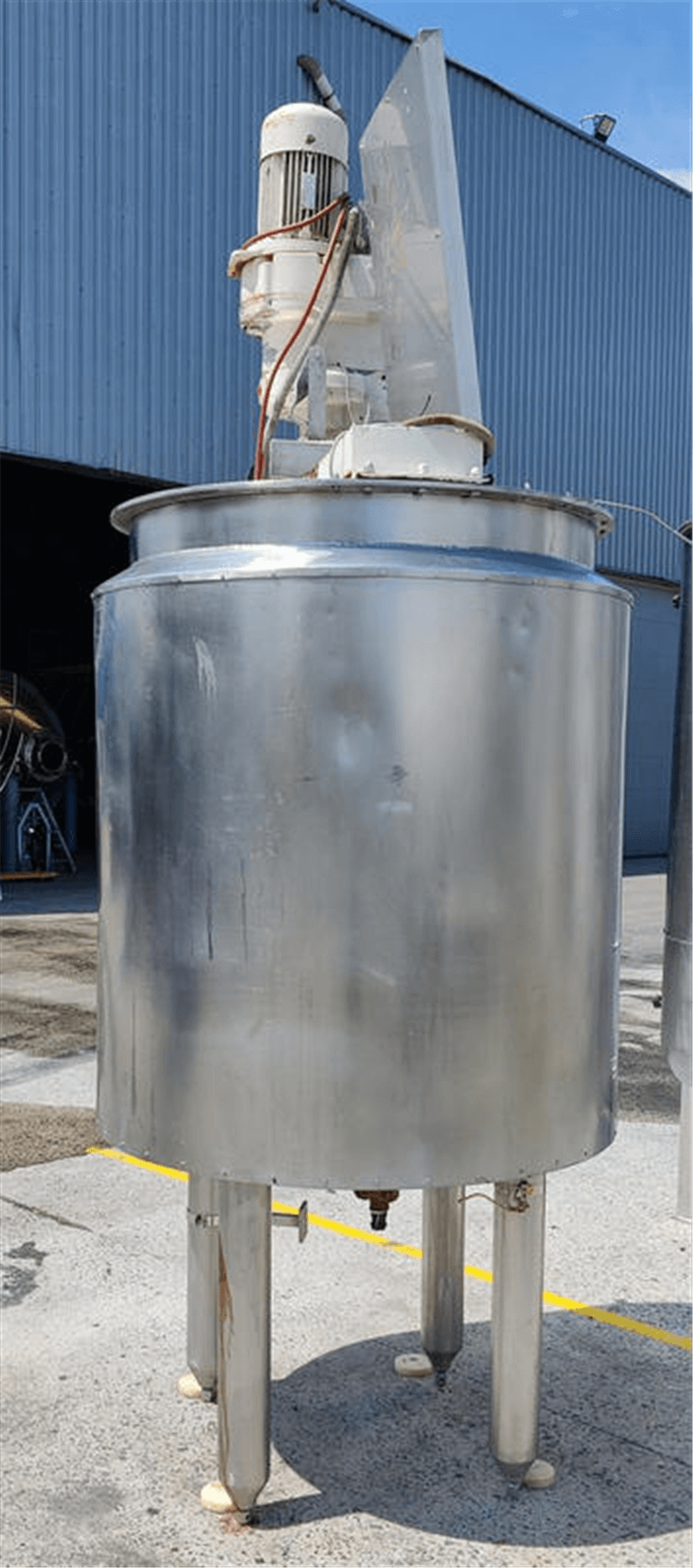

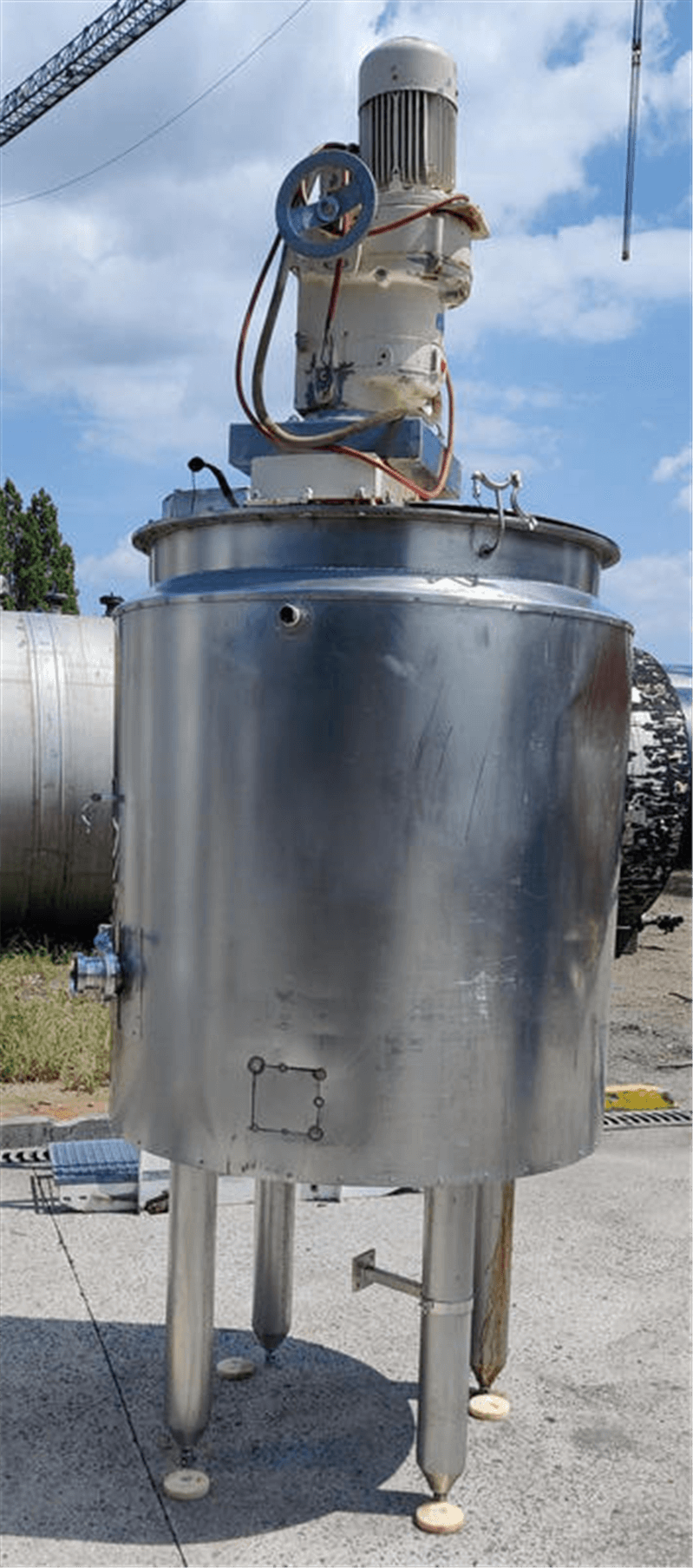

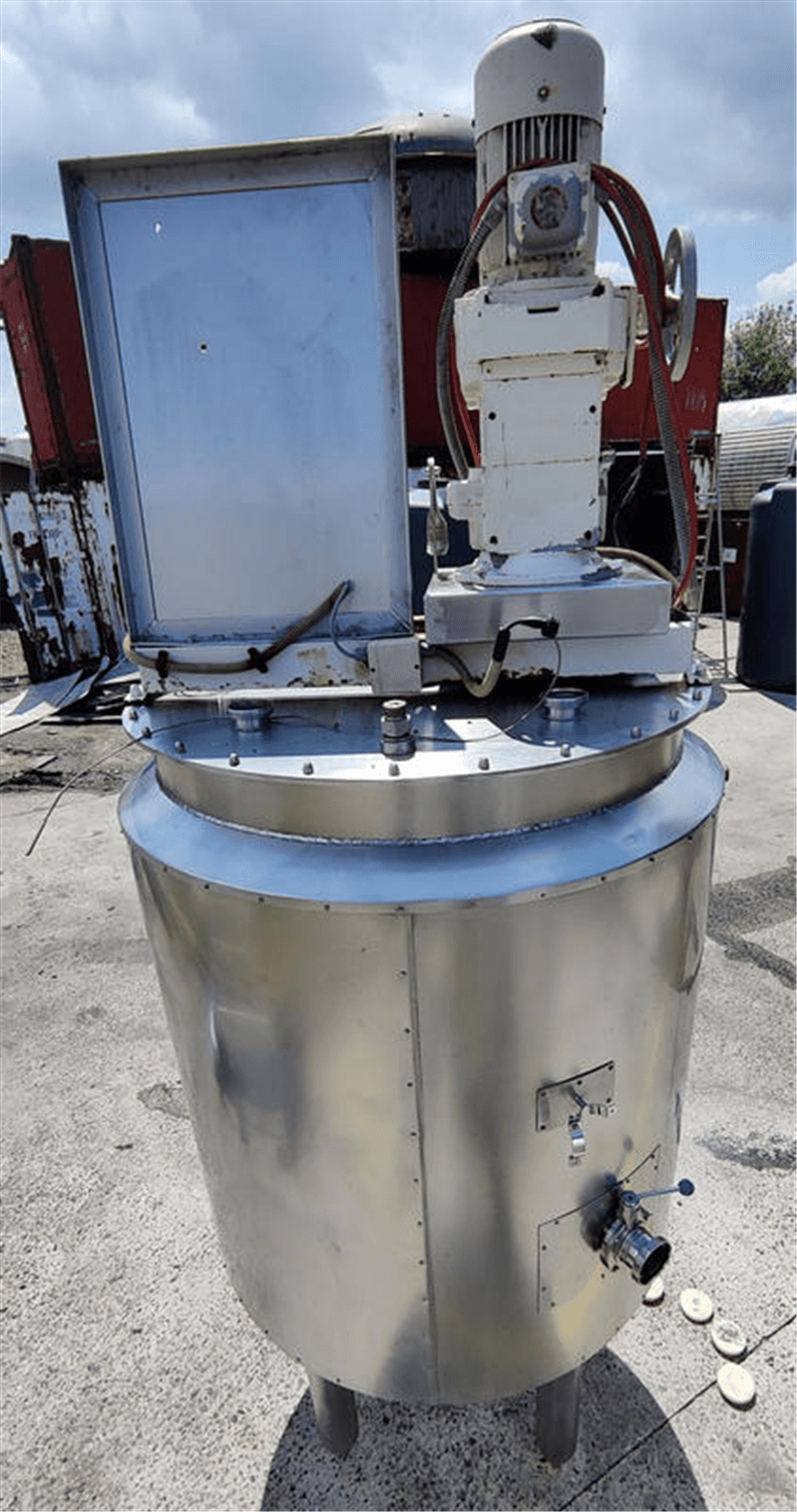

Used mixing vessel
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 800 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.44.MC.05 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Raw brushed |
| Number | 1 |
| Capacity (Liters) | 800 |
| Type tank | Mixing vessel |
| Fixation | 4 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

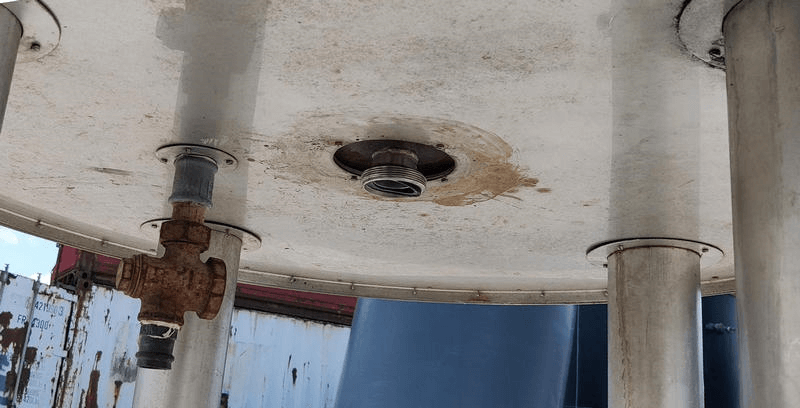

| Bottom | Dished bottom |
| Tank model | Jacketed (Heating/Cooling) |

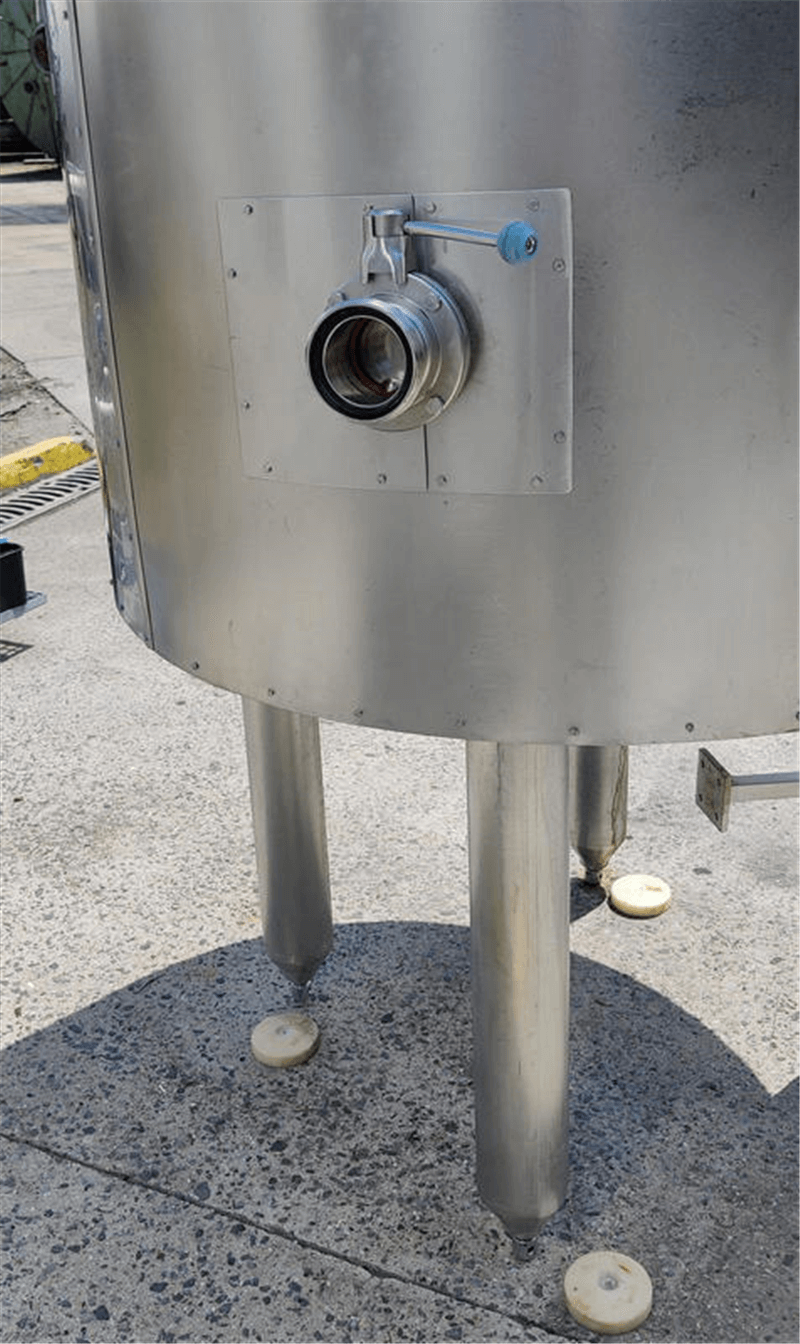

| Tank with total drain? | Yes |
| Type of outlet (s) | voedingskoppeling |
| Diameter of outlet (mm) | 40 |
| locality | B-7711 Belgium |
| Last application | chemical industry |
| Provision tank cleaning | None |
| Weight (kg) | 550 |
| Condition | Used |
| Type plate manufacturer | No |
| Top side | |
|---|---|

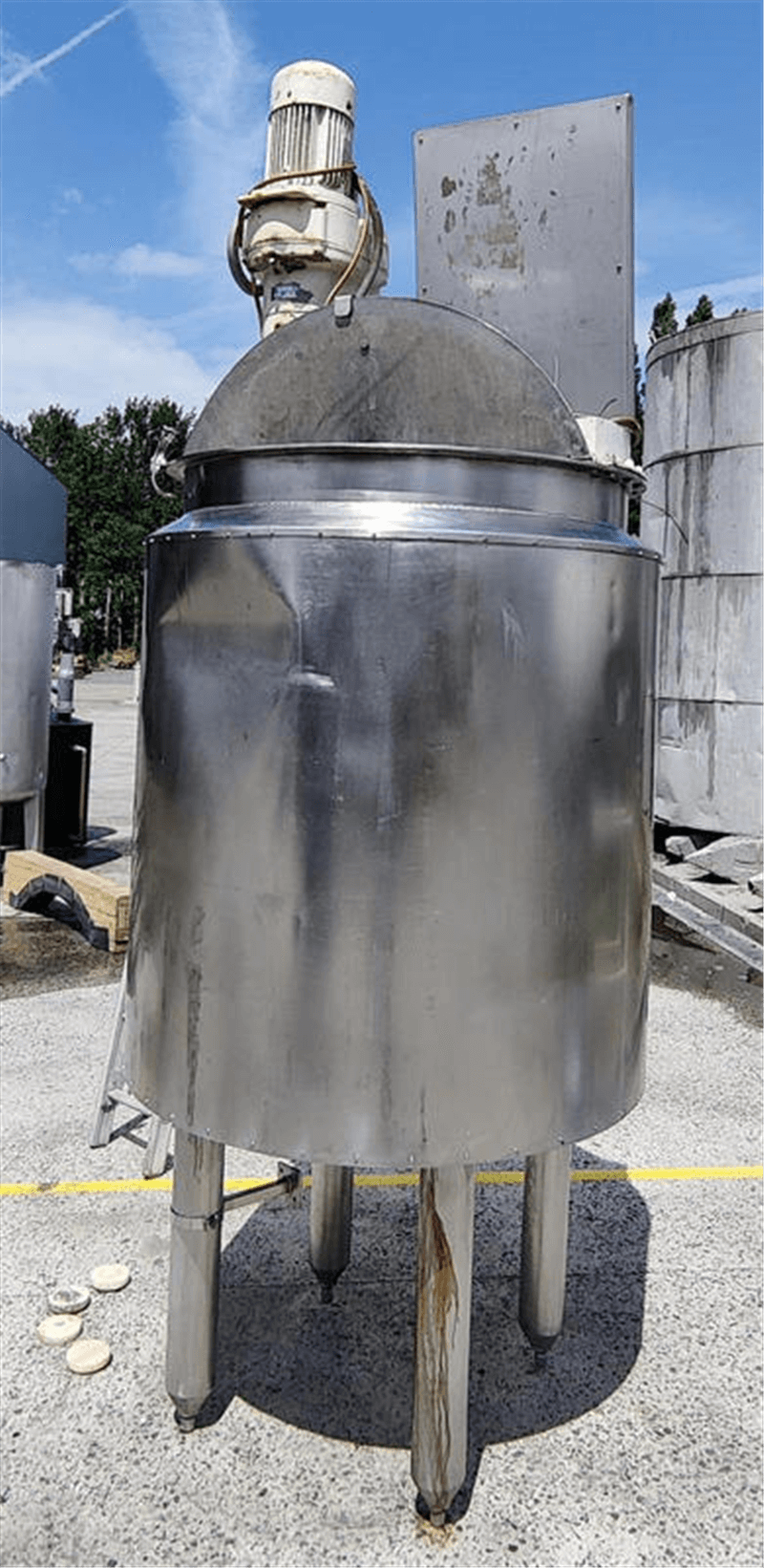

| Configuration top-side | Partly open |
| Detail top side | 1/3 hinged cover |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 4 |
| Periphery (mm) | 3630 |
| Cylindrical length (mm) | 1000 |
| Height bottom (mm) | 200 |
| Outside diameter tank (mm) | 1155 |
| Total height (mm) | 3050 |
| Length (mm) | 1250 |
| Diameter tank (mm) | 965 |
| Width (mm) | 1155 |
| Insulation | |
|---|---|
| Insulation | No |
| Heating | |
|---|---|
| Number of heating type | 1 |
| Heating 1: Type | jacket au bain-marie |
| Agitators | |
|---|---|
| Number of agitators | 1 |
| Agitator 1: Type | Slowly rotating mixer |
| Agitator 1: Position | decentrally on the top |

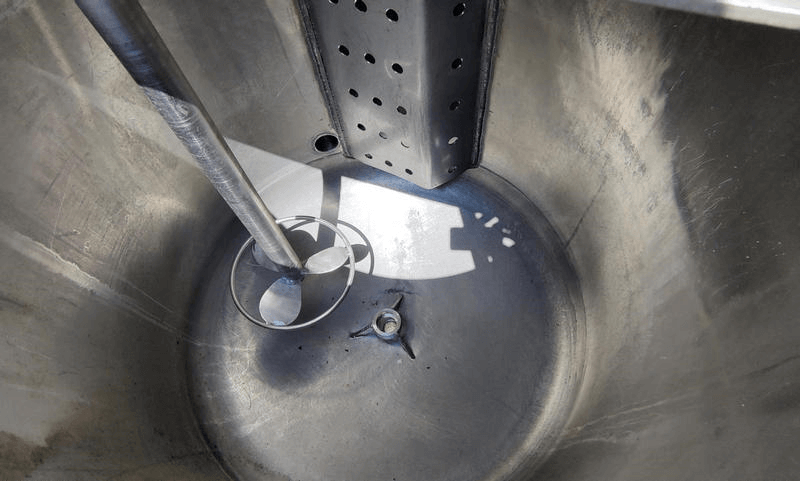

| Agitator 1: stirring element type | Propeller |
| Agitator 1: Length (mm) | 1100 |

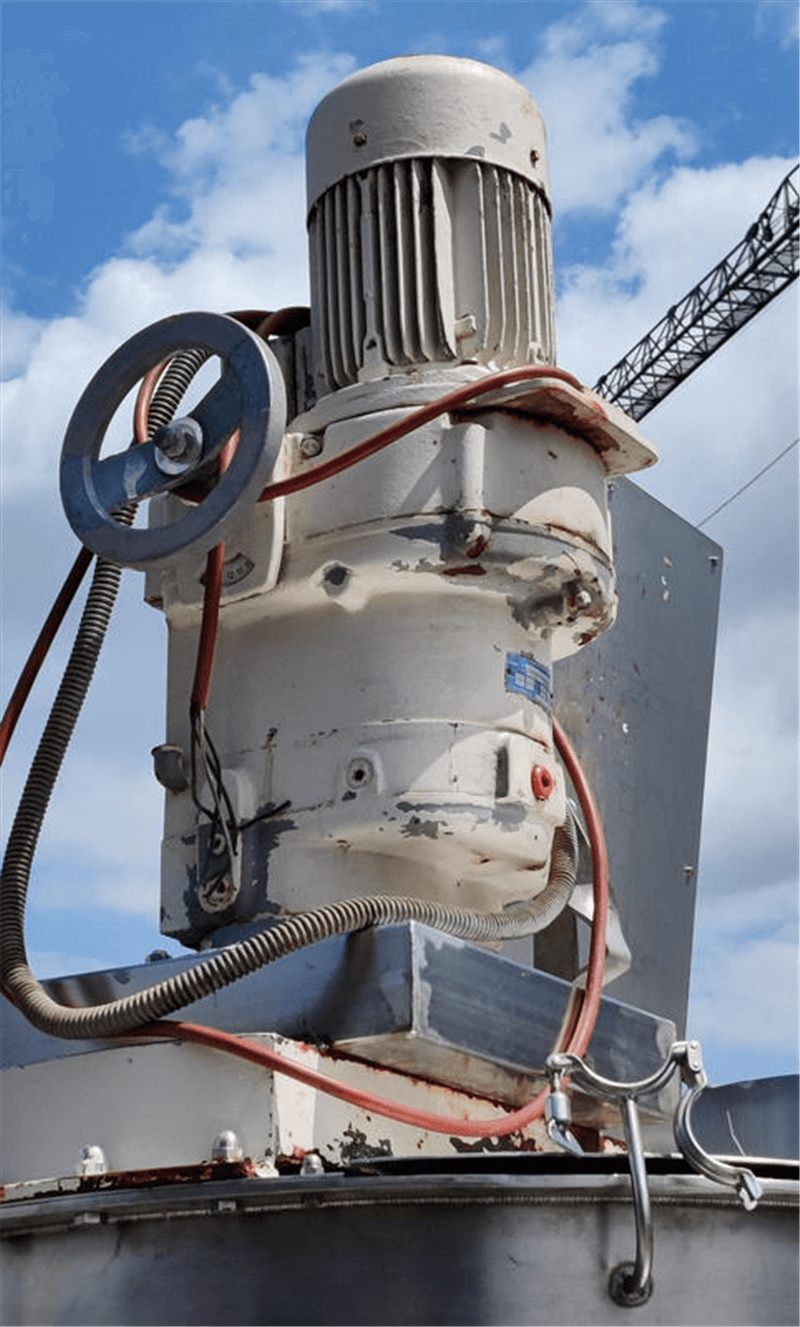

| Agitator 1: Engine Type | electric motor |

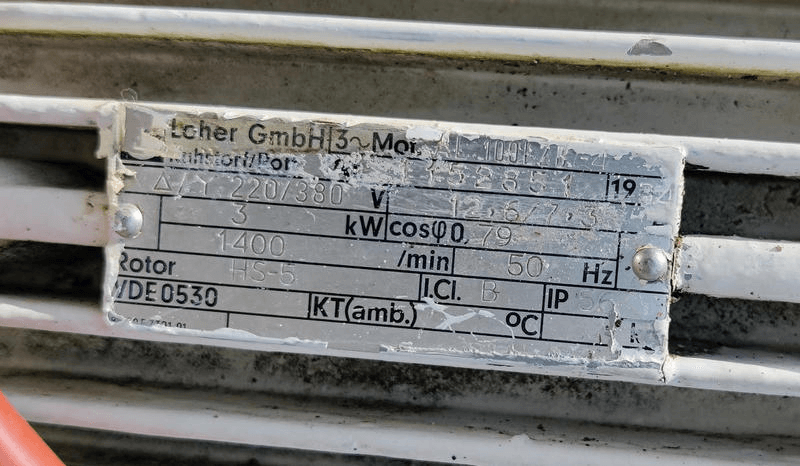

| Agitator 1: Voltage (V) | 220/380 |
| Agitator 1: Power (kw) | 3 |

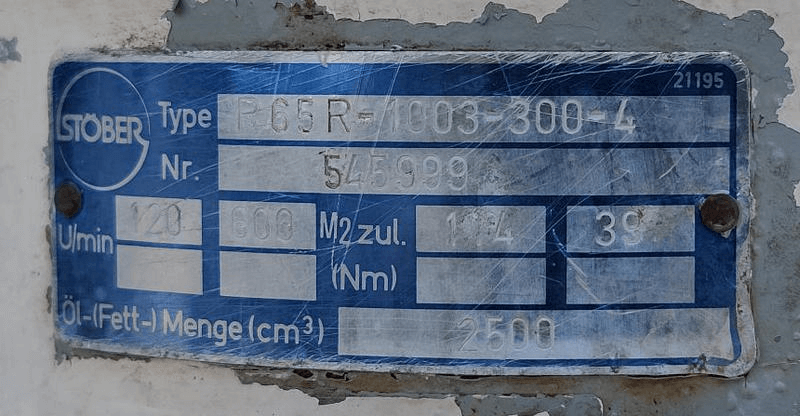

| Agitator 1: Drive Type | Reductor |
| Agitator 1: Speed (r / min) | 120 |
