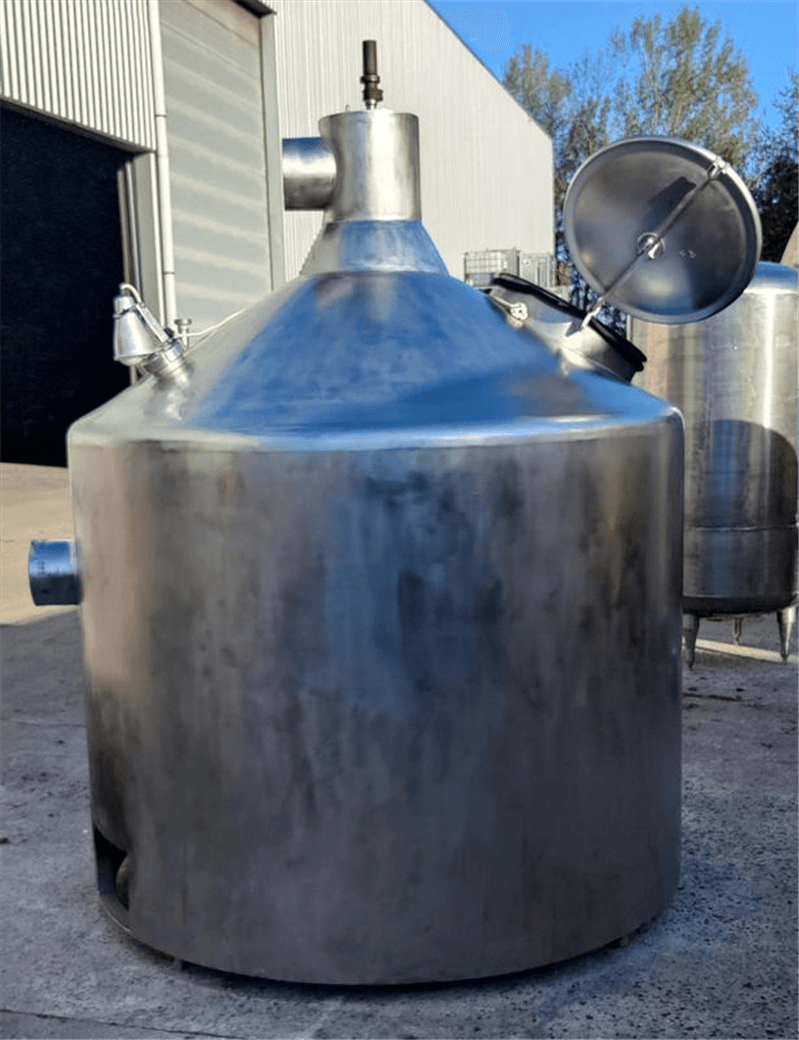

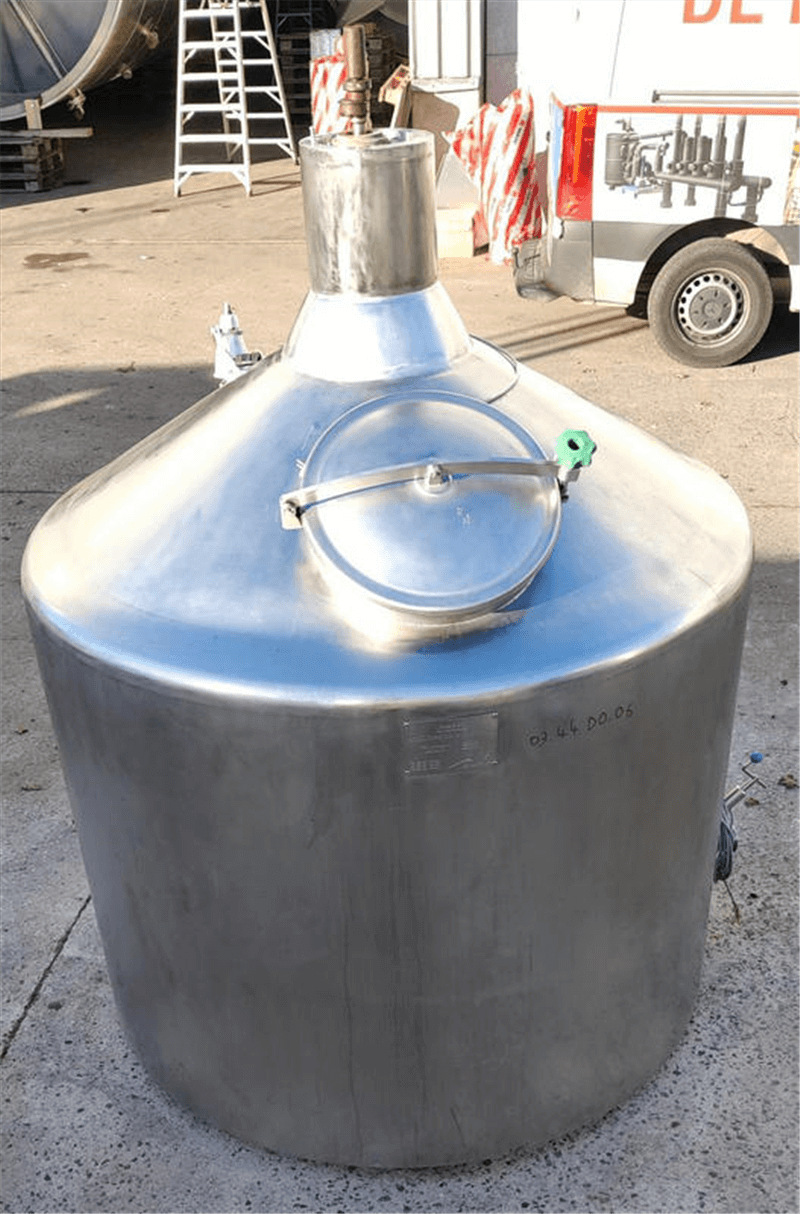

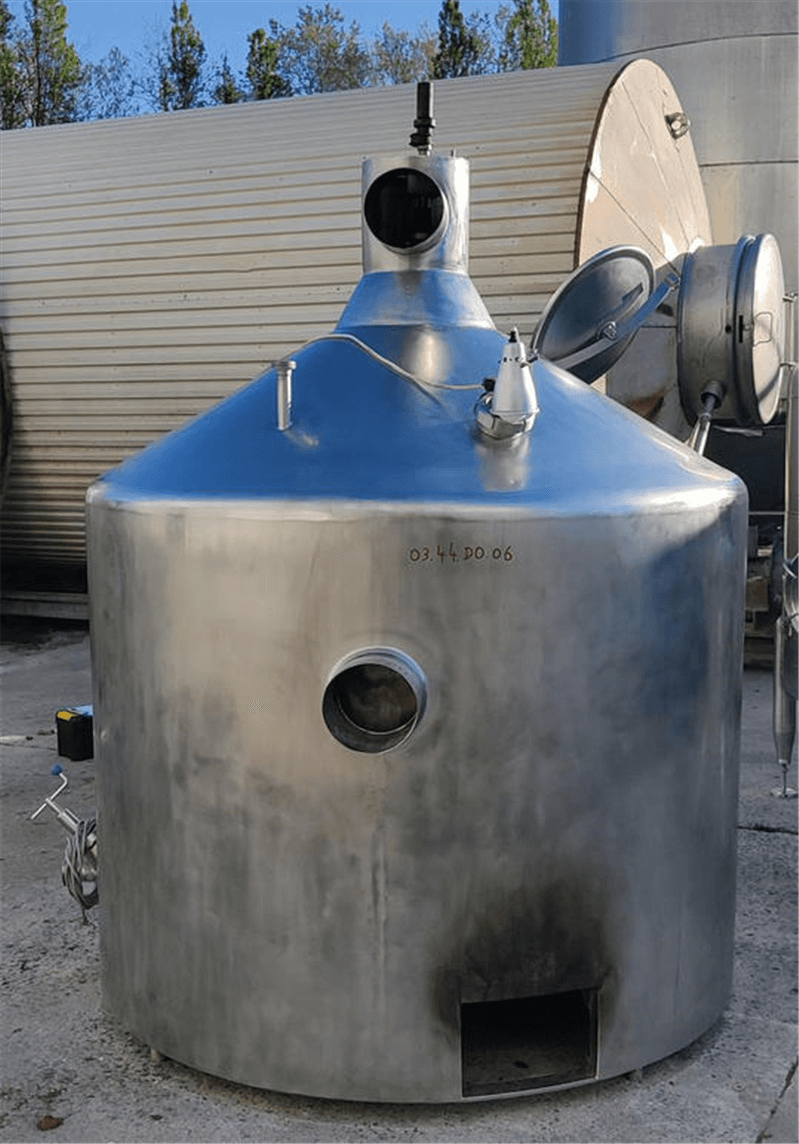

Used mixing vessel
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 2000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.44.DO.06 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Raw brushed |
| Number | 1 |
| Capacity (Liters) | 2000 |
| Type tank | Mixing vessel |
| Fixation | 4 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

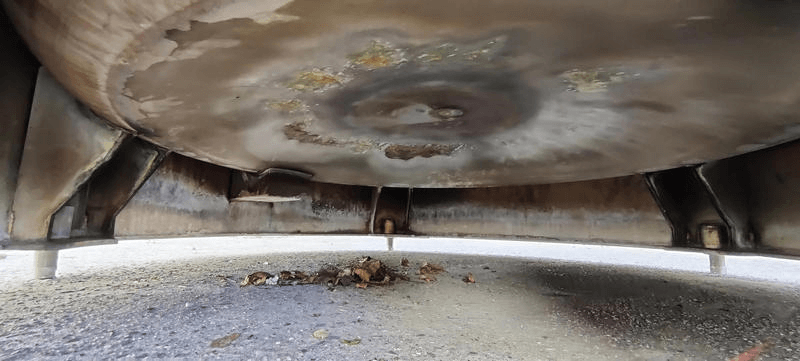

| Bottom | Inverted dished bottom |
| Tank model | Jacketed (Heating/Cooling) |

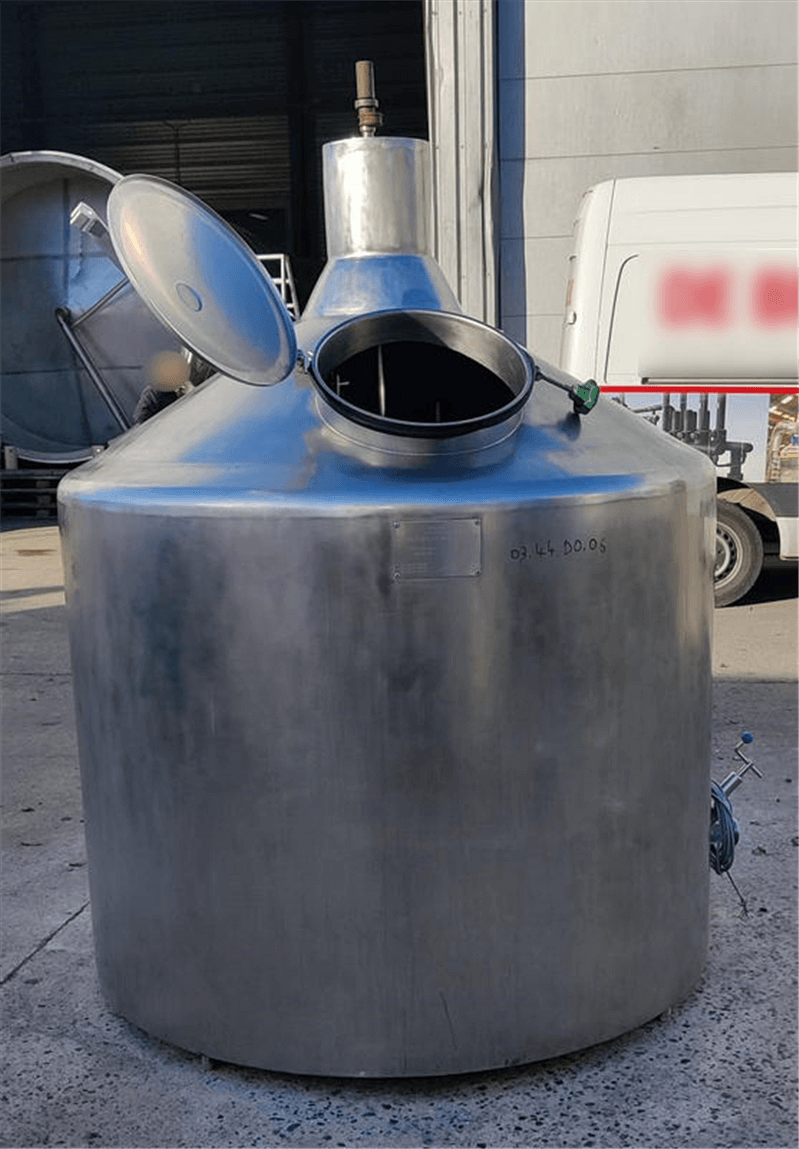

| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | dia 430mm |
| Tank with total drain? | Yes |

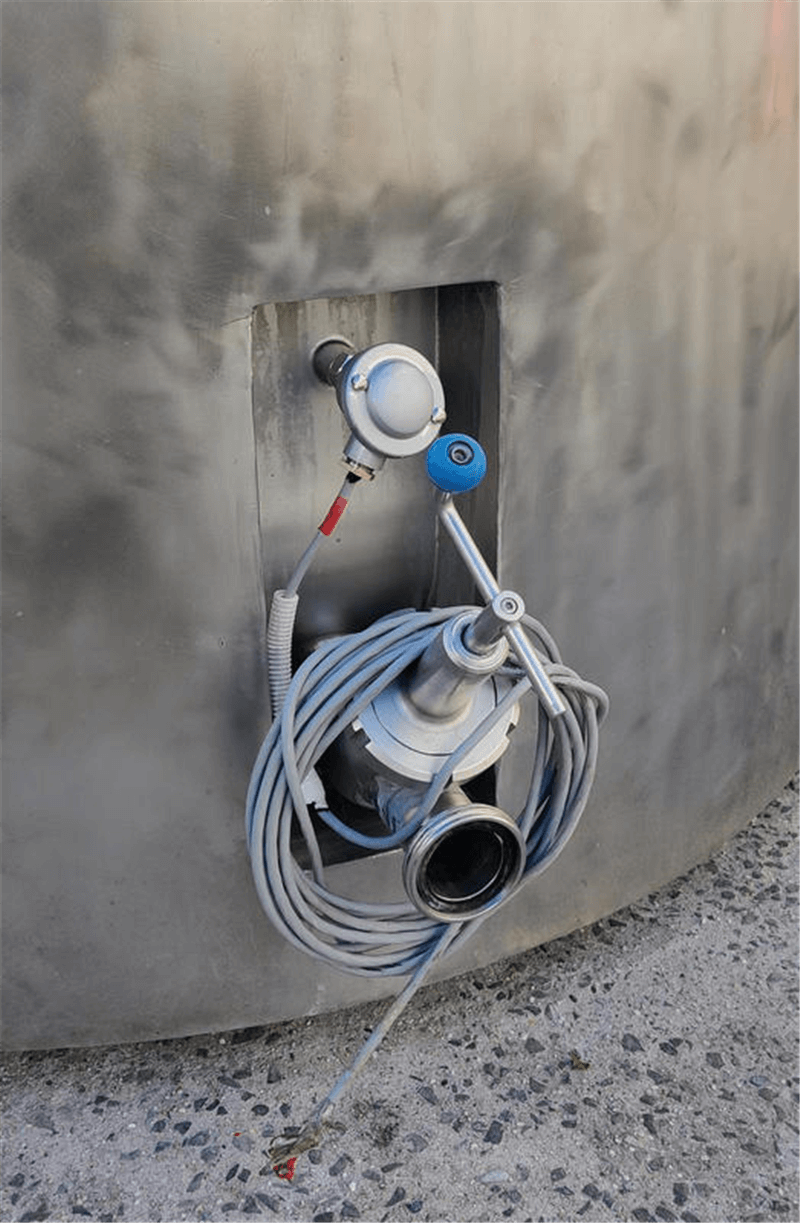

| Type of outlet (s) | voedingskoppeling |
| Diameter of outlet (mm) | 50 (manuele kraan) |
| locality | B-7711 Belgium |
| Last application | Food |
| Provision tank cleaning | None |
| Weight (kg) | 600 |
| Condition | Used |
| Type plate manufacturer | No |

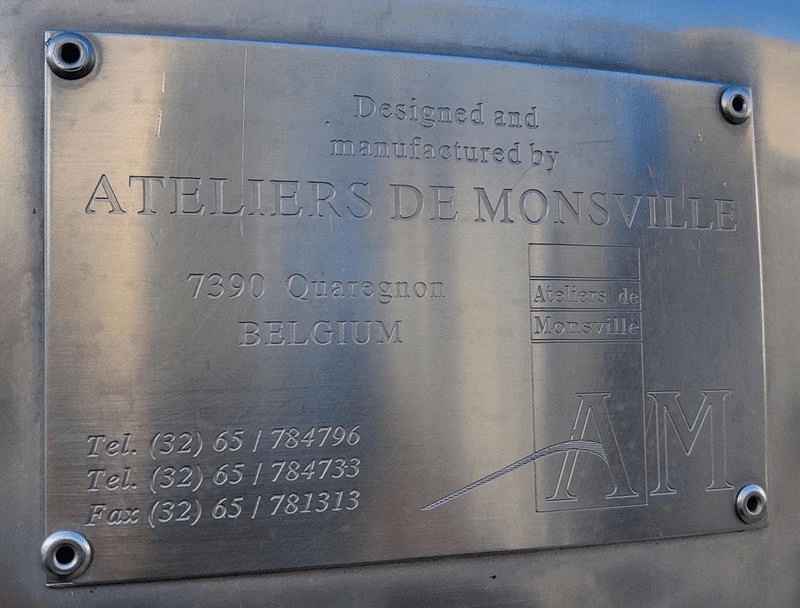

| Manufacturer | Atelier de Monsville |
| Top side | |
|---|---|
| Configuration top-side | Partly open |
| Thickness of top side (mm) | 2,9 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 4 |
| Periphery (mm) | 5000 |
| Cylindrical length (mm) | 1000 |
| Outside diameter tank (mm) | 1590 |
| Total height (mm) | 2250 |
| Length (mm) | 1850 |
| Diameter tank (mm) | 1485 |
| Width (mm) | 1590 |
| Insulation | |
|---|---|
| Insulation | No |
| Heating | |
|---|---|
| Number of heating type | 1 |
| Heating 1: Type | jacket au bain-marie |
| Agitators | |
|---|---|
| Number of agitators | 1 |

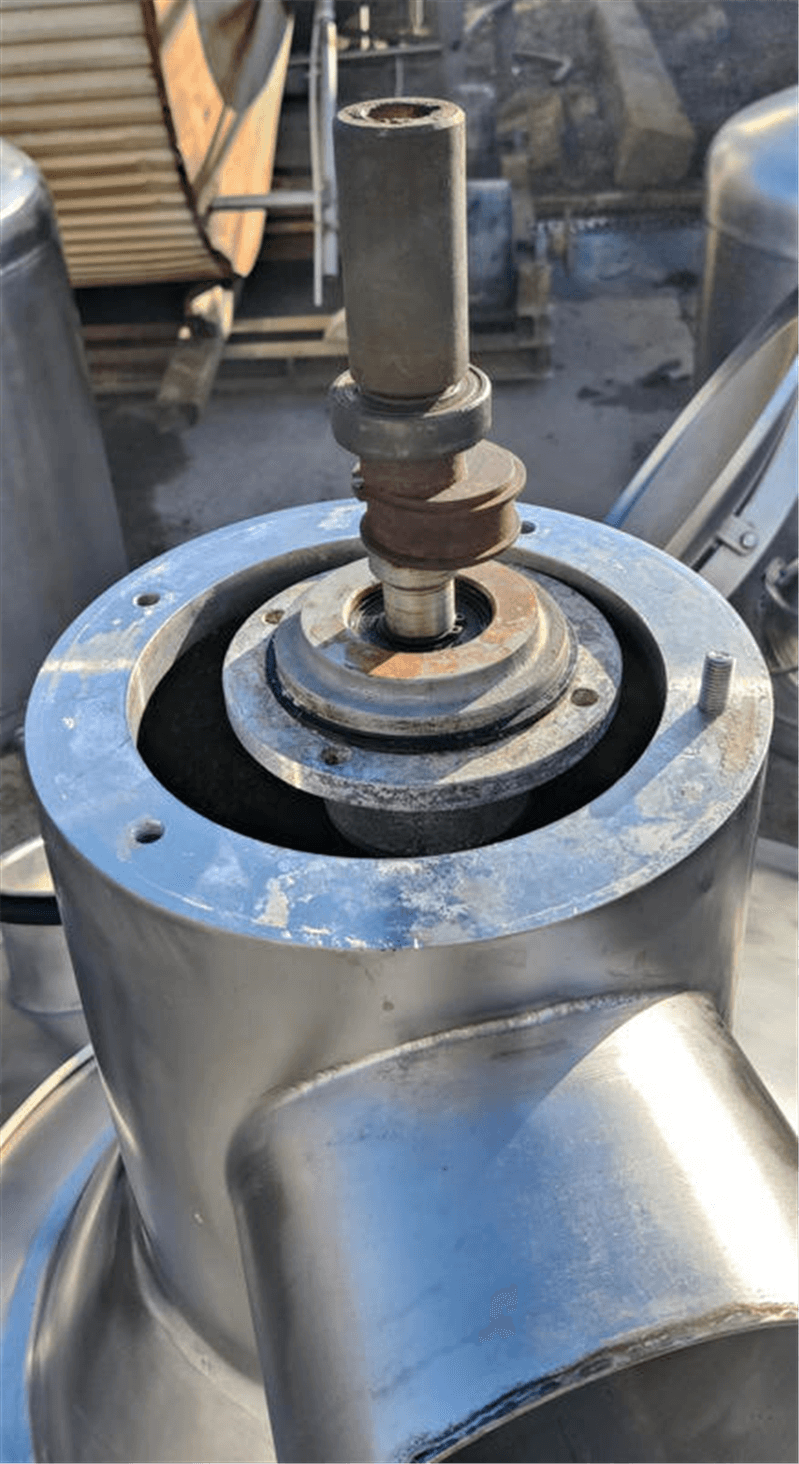

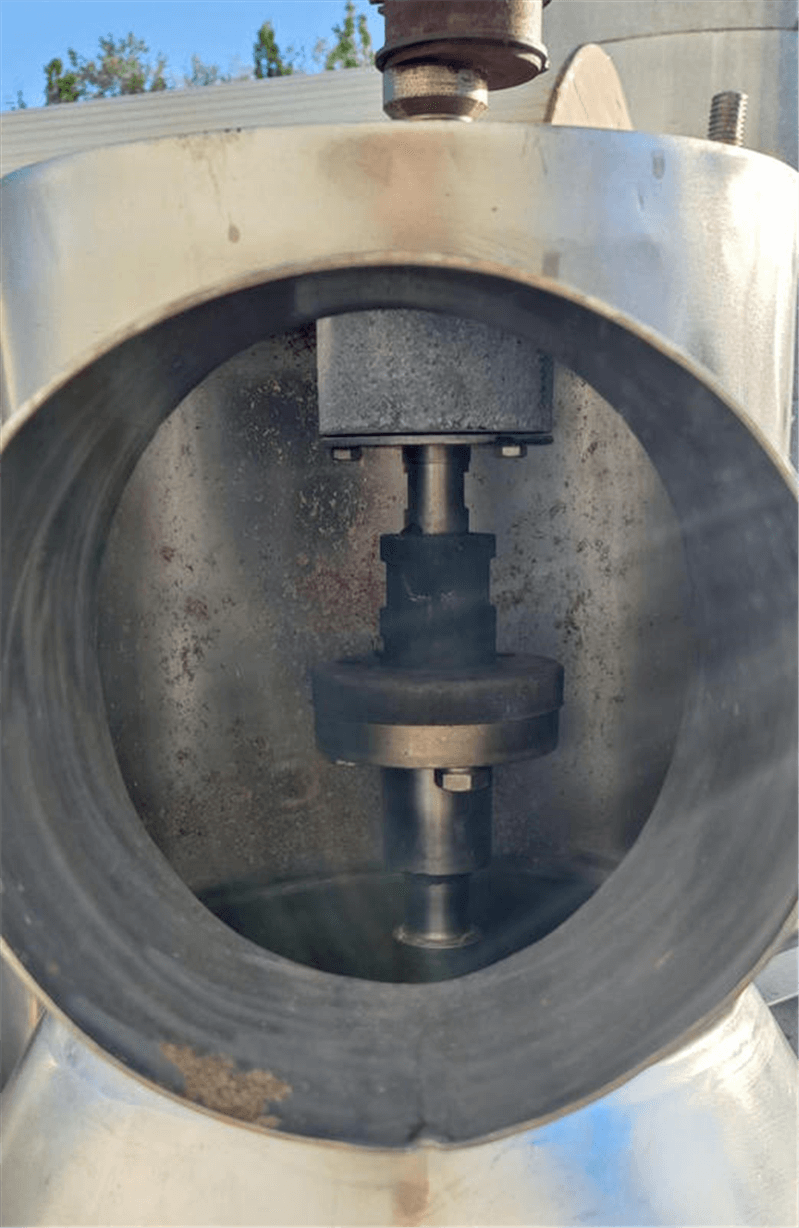

| Agitator 1: Type | Slowly rotating mixer |
| Agitator 1: Position | Centrally on the top |

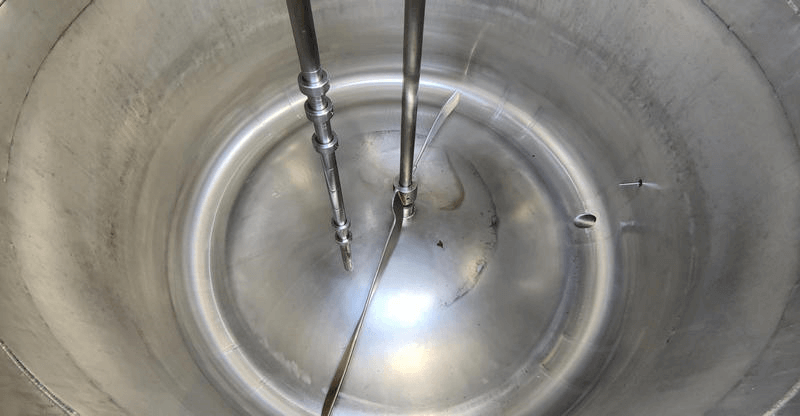

| Agitator 1: stirring element type | Anchor |
| Agitator 1: Length (mm) | 1800 |
