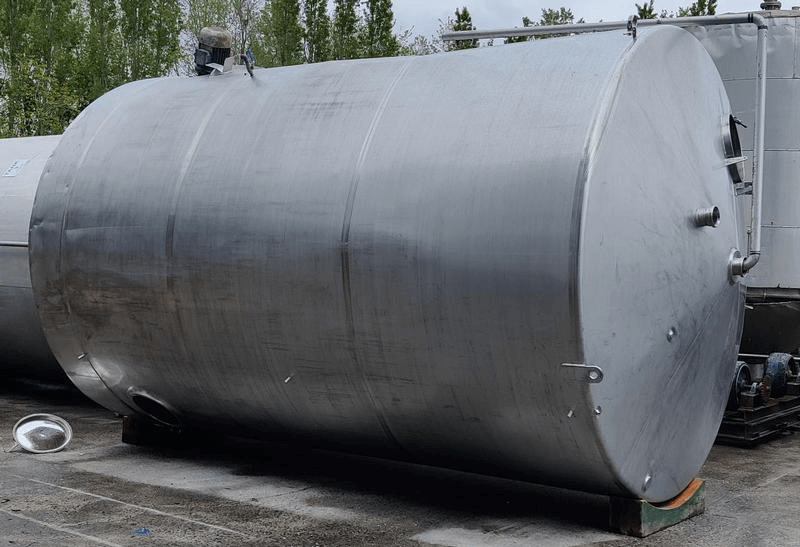

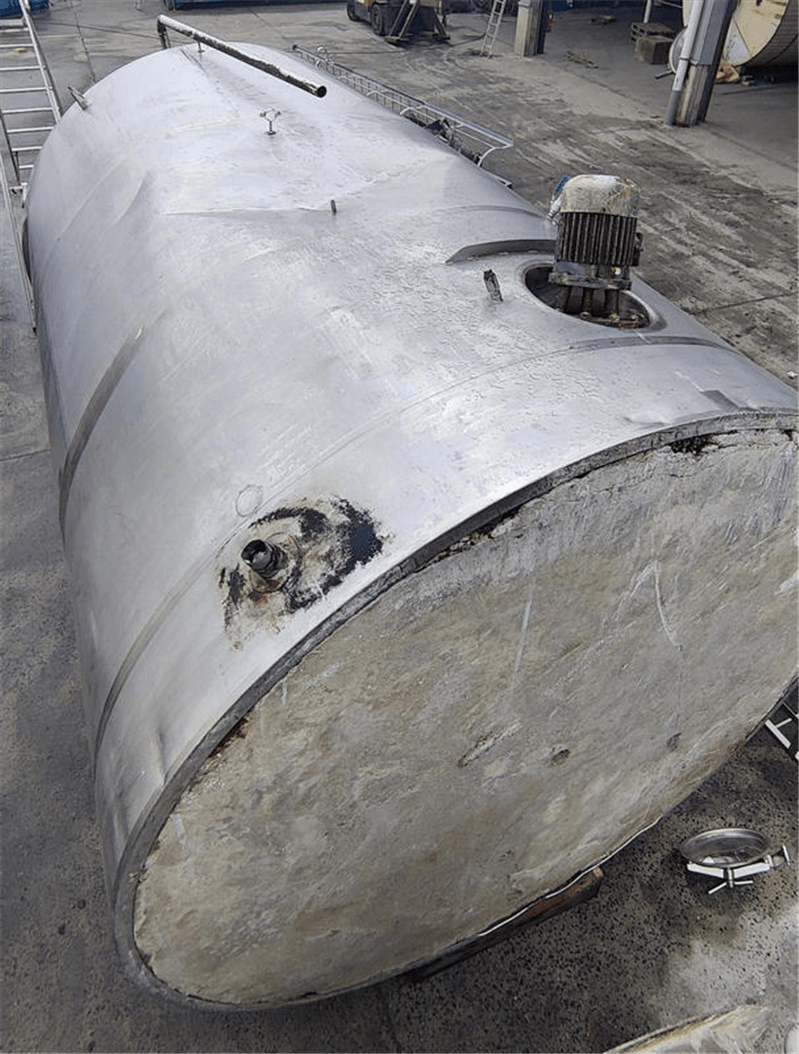

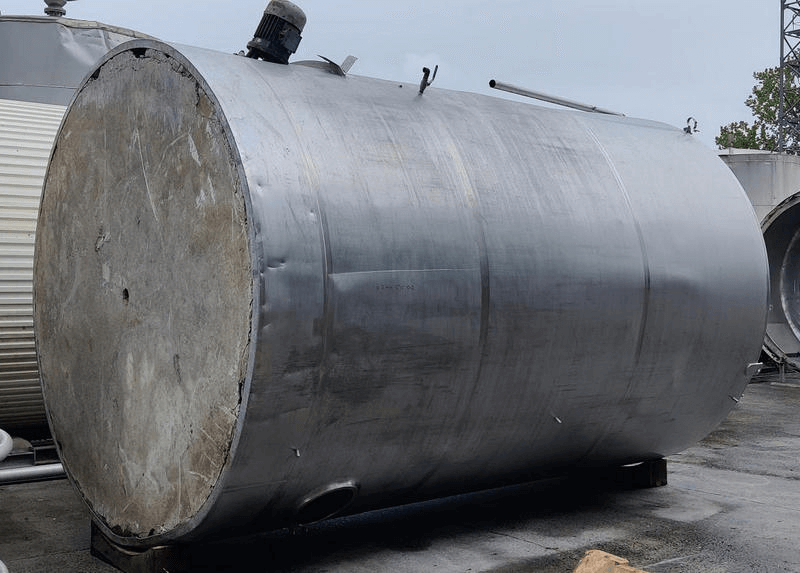

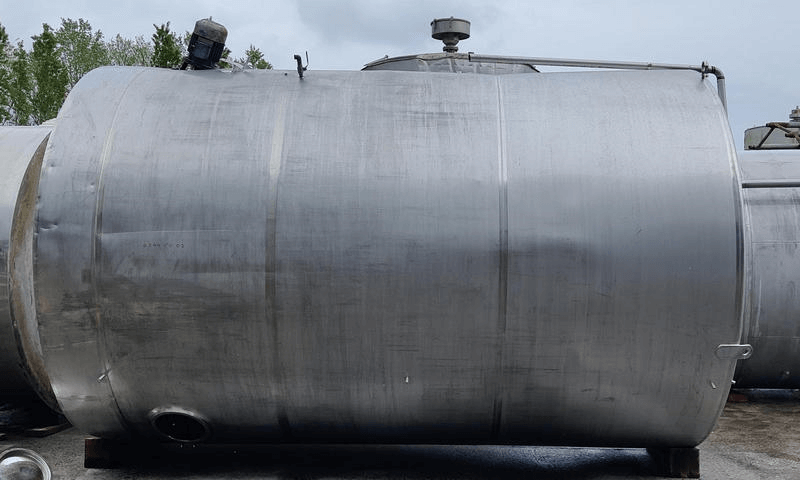

Used mixing vessel
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 30000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.44.CO.02 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 30000 |
| Type tank | Mixing vessel |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

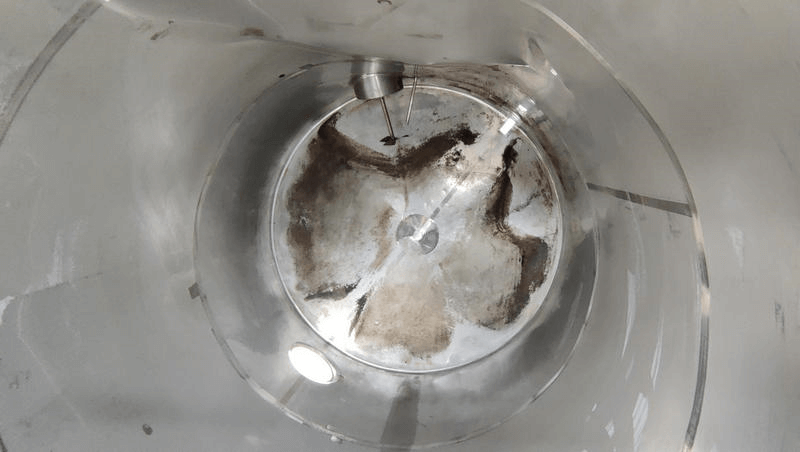

| Bottom | Inclined bottom |
| Tank model | Single wall |
| Number lifting lugs | 2 |

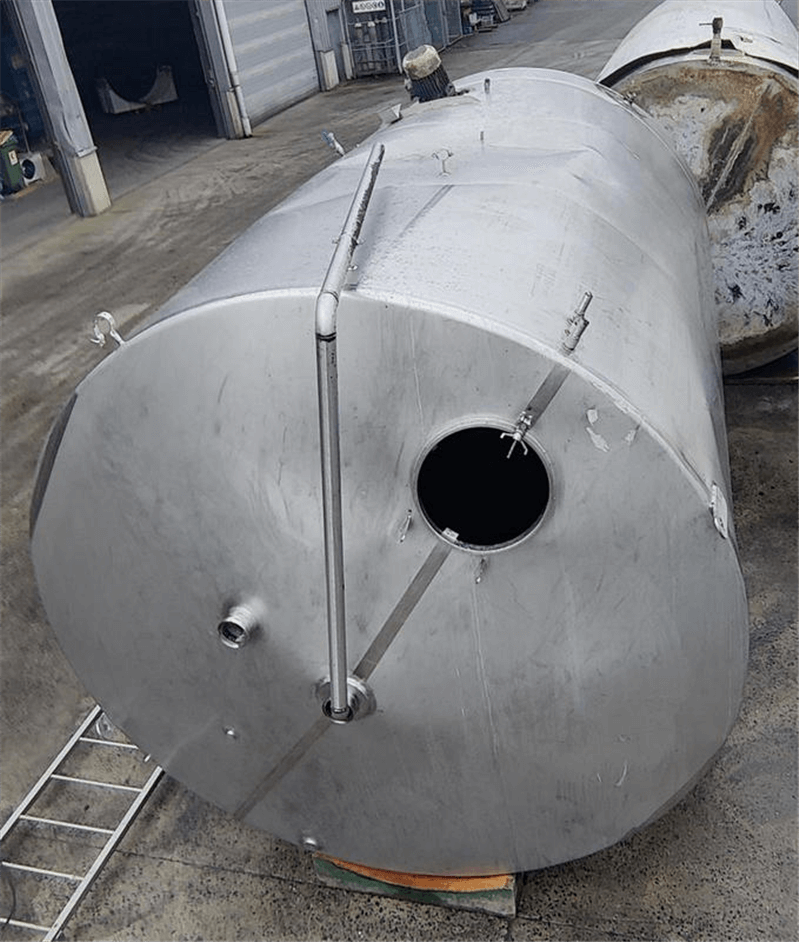

| Number of manhole | 2 |
| Position of manhole (s) | Top and Cylindrical part |
| Dimensions of manholes | dia 450mm / 350x450mm |
| Tank with total drain? | Yes |
| Diameter of outlet (mm) | 70 |
| locality | B-7711 Belgium |
| Provision tank cleaning | None |
| Weight (kg) | 4000 |
| Condition | Used |
| Type plate manufacturer | No |

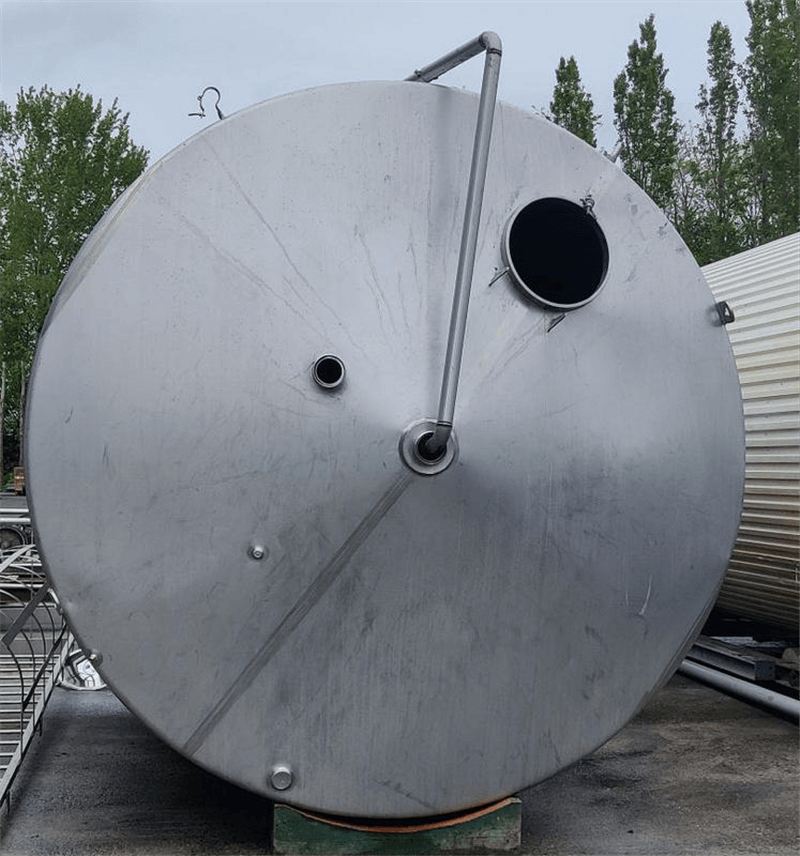

| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Thickness closed dome (mm) | 2,4 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 2,4 |
| Periphery (mm) | 9530 |
| Cylindrical length (mm) | 4280 |
| Slope bottom (°) | 2 |
| Total height (mm) | 5100 |
| Diameter tank (mm) | 3030 |
| Width (mm) | 3035 |
| Insulation | |
|---|---|
| Insulation | No |

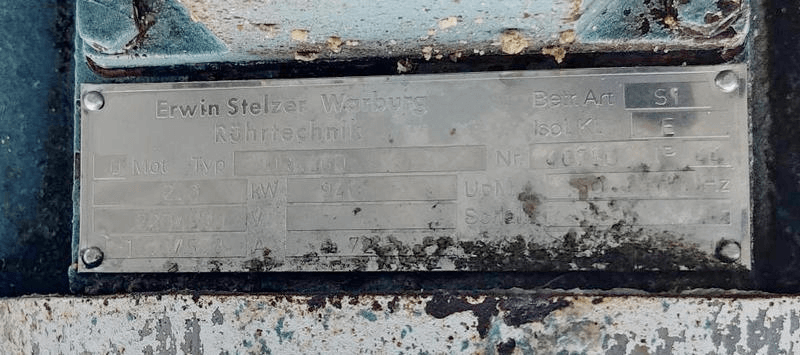

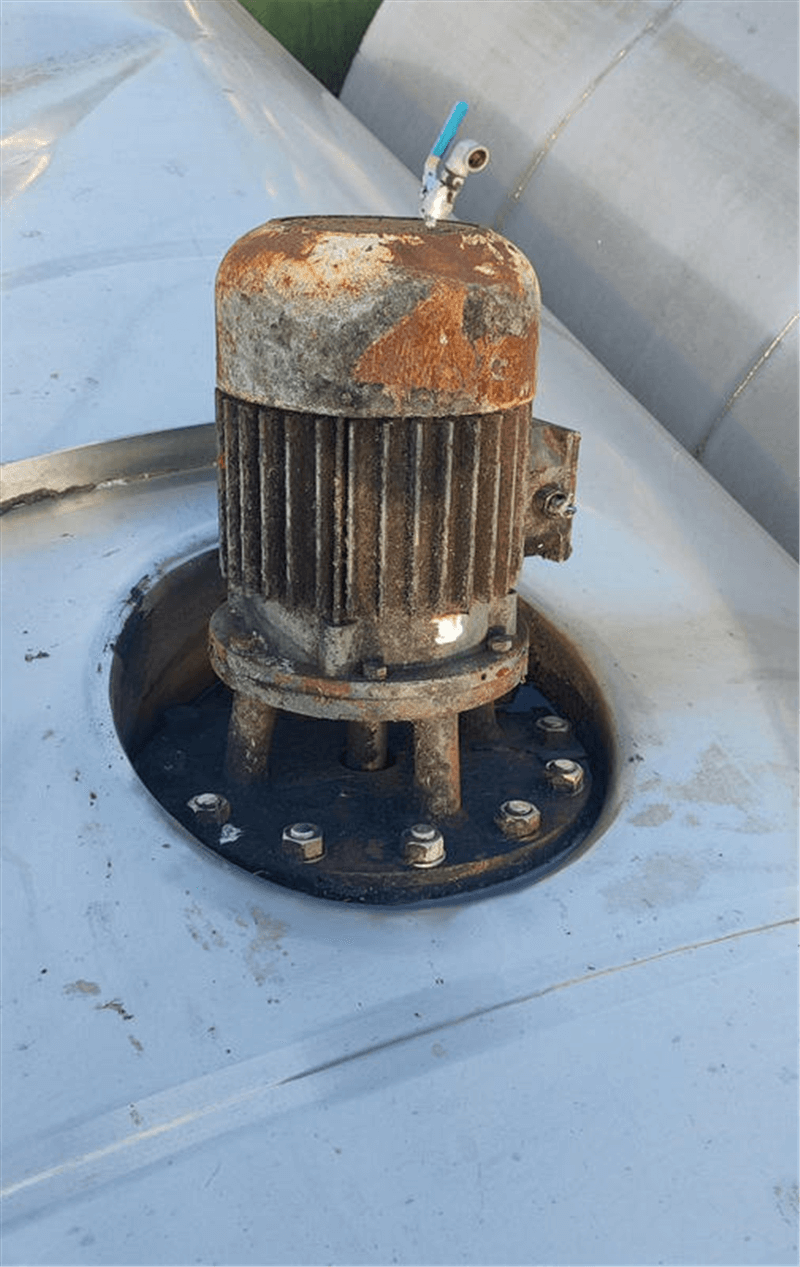

| Agitators | |
|---|---|
| Number of agitators | 1 |
| Agitator 1: Type | Fast rotating mixer |
| Agitator 1: Position | Side -entry |
| Agitator 1: stirring element type | Propeller |
| Agitator 1: Length (mm) | 800 |
| Agitator 1: Engine Type | electric motor |
| Agitator 1: Voltage (V) | 230/380 |
| Agitator 1: Power (kw) | 2 |
| Agitator 1: Drive Type | Direct |
| Agitator 1: Speed (r / min) | 940 |
