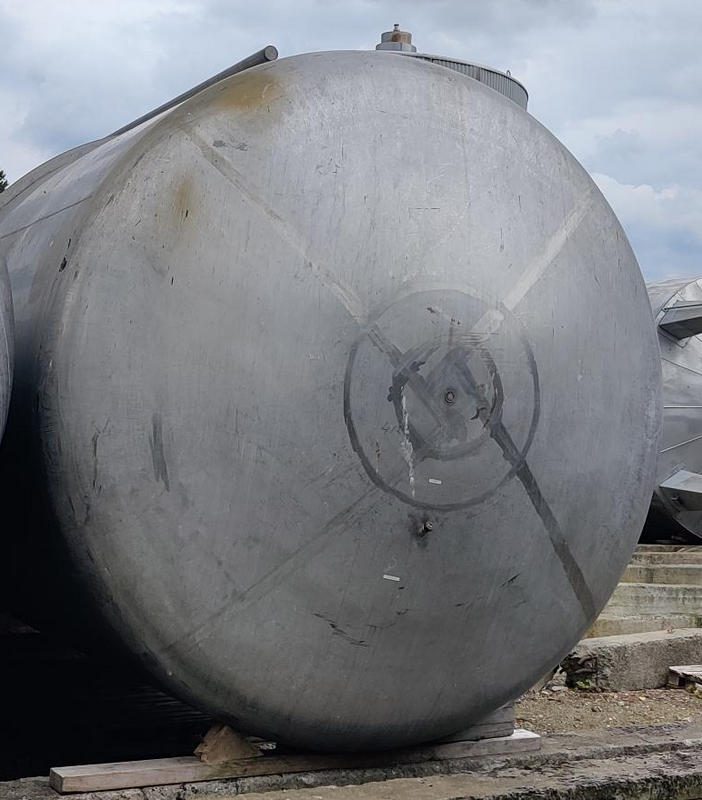

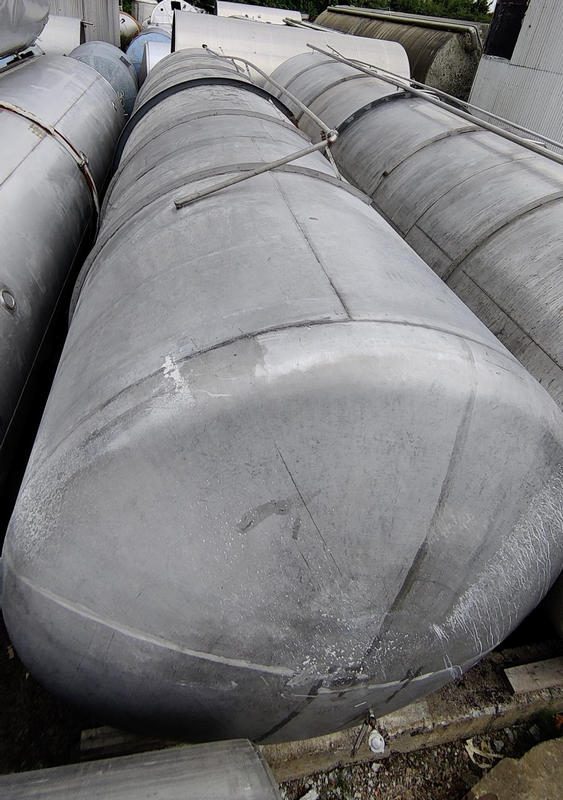

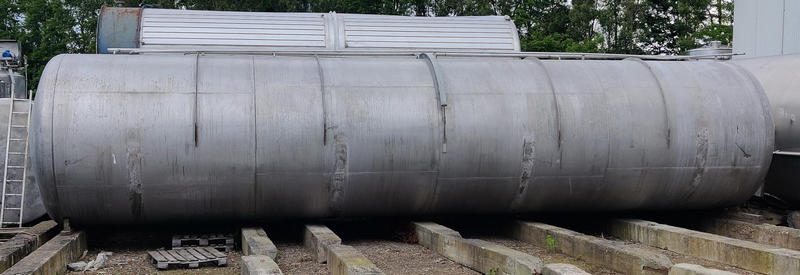

Used storage tank
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 50000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.44.BR.xx50 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 50000 |
| Type tank | Storage tank |
| Fixation | 4 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Dished bottom |
| Tank model | Single wall |

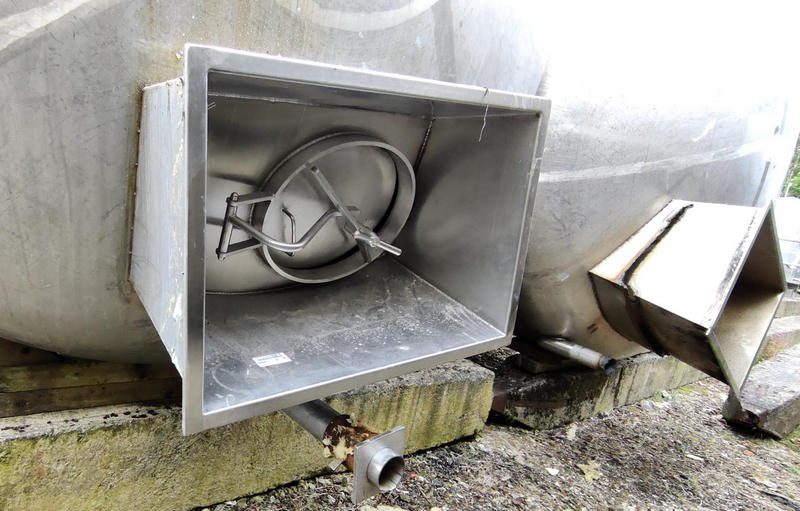

| Number of manhole | 1 |
| Position of manhole (s) | Side (bottom) |
| Dimensions of manholes | 510x405mm |
| Tank with total drain? | Yes |
| Type of outlet (s) | flens |
| Diameter of outlet (mm) | 80 |
| locality | B-7711 Belgium |
| Last application | Food |
| Provision tank cleaning | None |
| Weight (kg) | 2300 |
| Condition | Used |
| Type plate manufacturer | No |
| Year Built | 1978 |
| Appendix 1 | 0344BRxx50_01.pdf |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Flat bottom |
| Thickness closed dome (mm) | 3 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 3 |
| Bottom thickness (mm) | 4,7 |
| Periphery (mm) | 9030 |
| Cylindrical length (mm) | 7500 |
| Height bottom (mm) | 500 |
| Total height (mm) | 3125 |
| Length (mm) | 8500 |
| Diameter tank (mm) | 2870 |
| Width (mm) | 3075 |
| Insulation | |
|---|---|
| Insulation | No |
