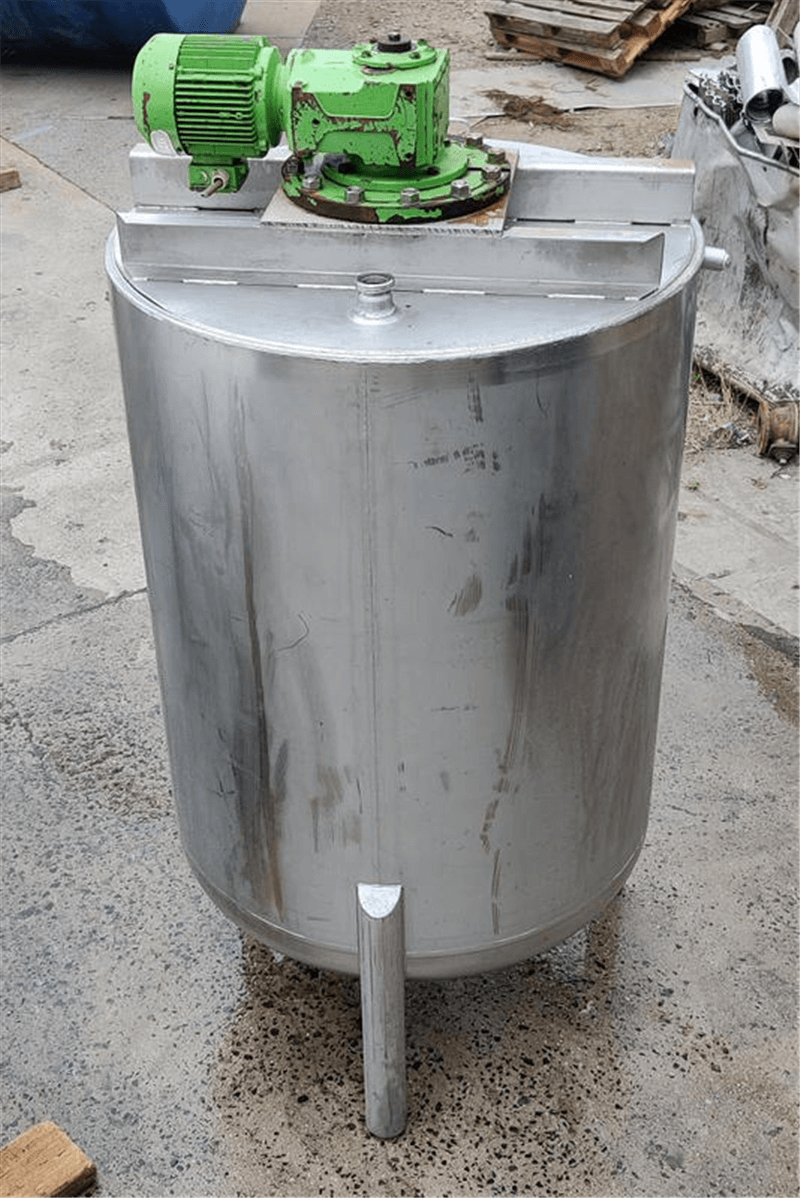

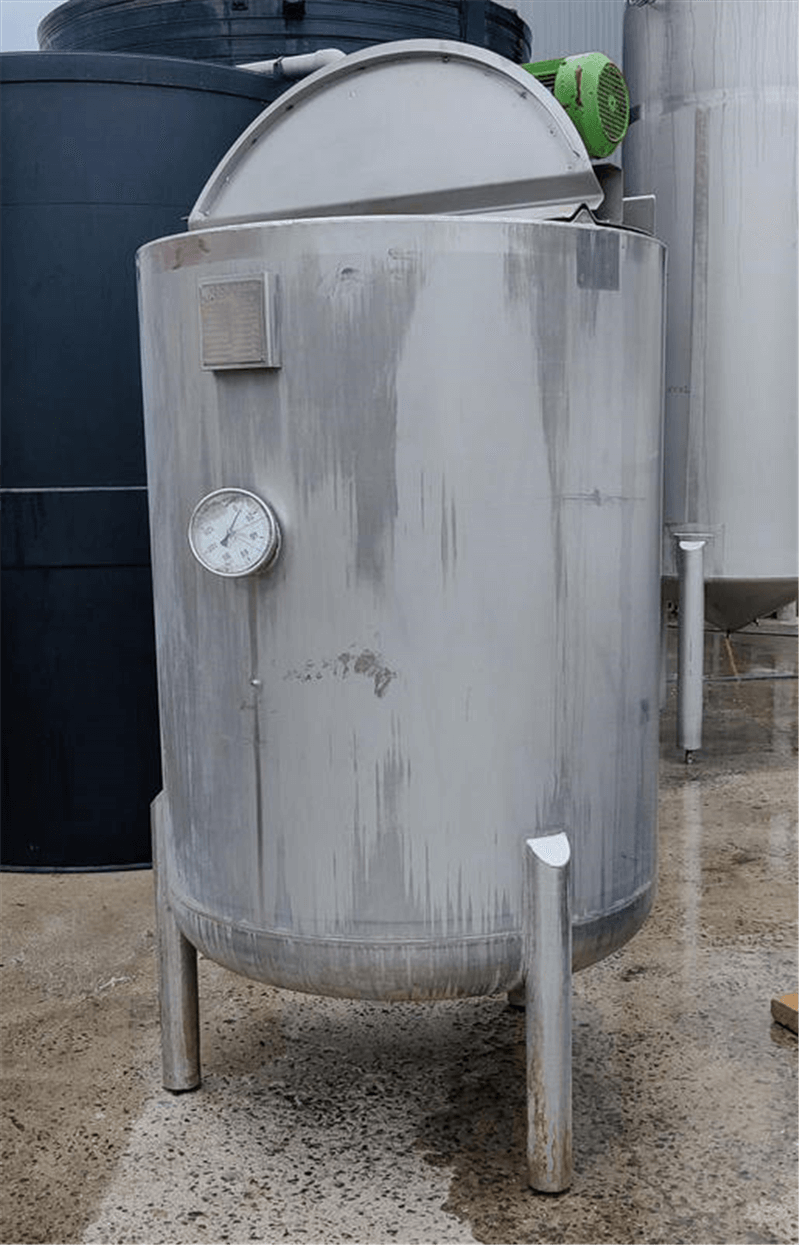

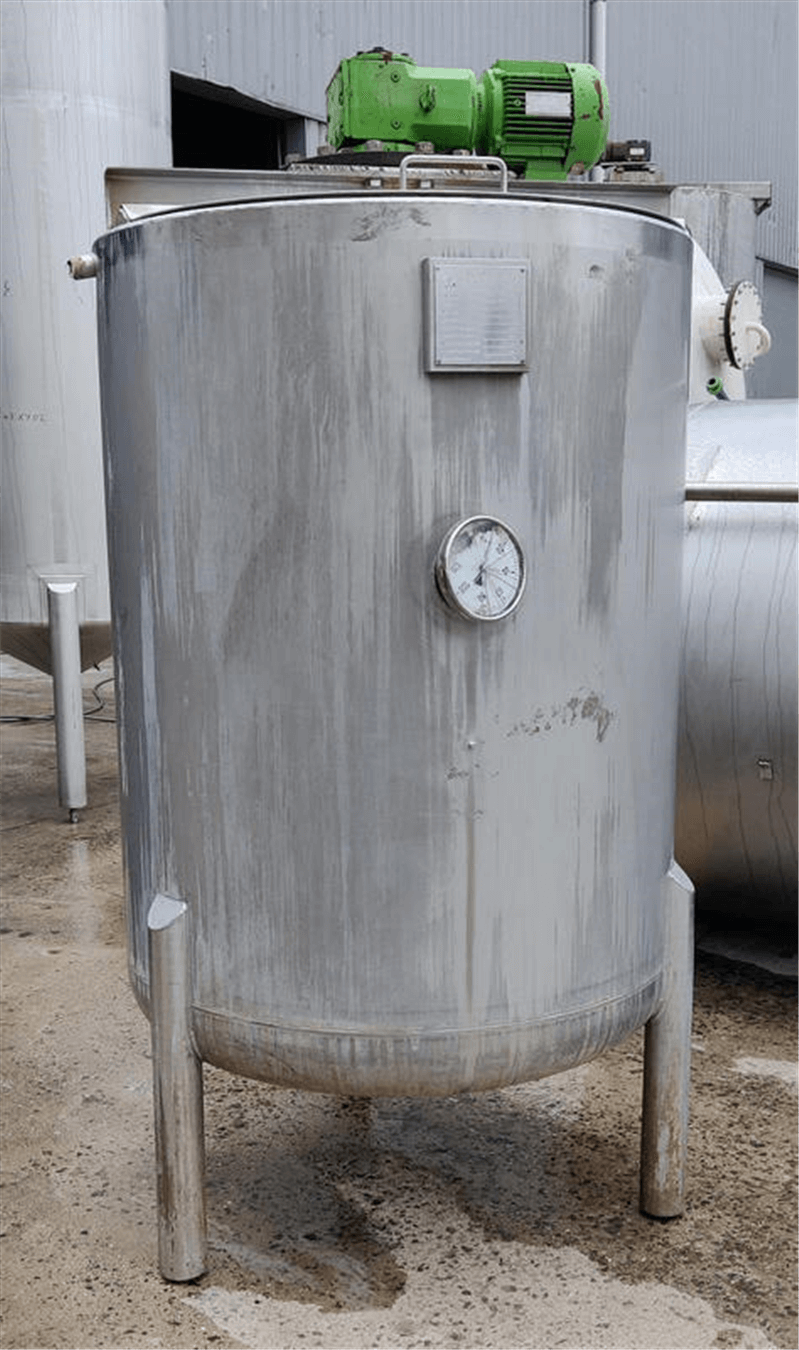

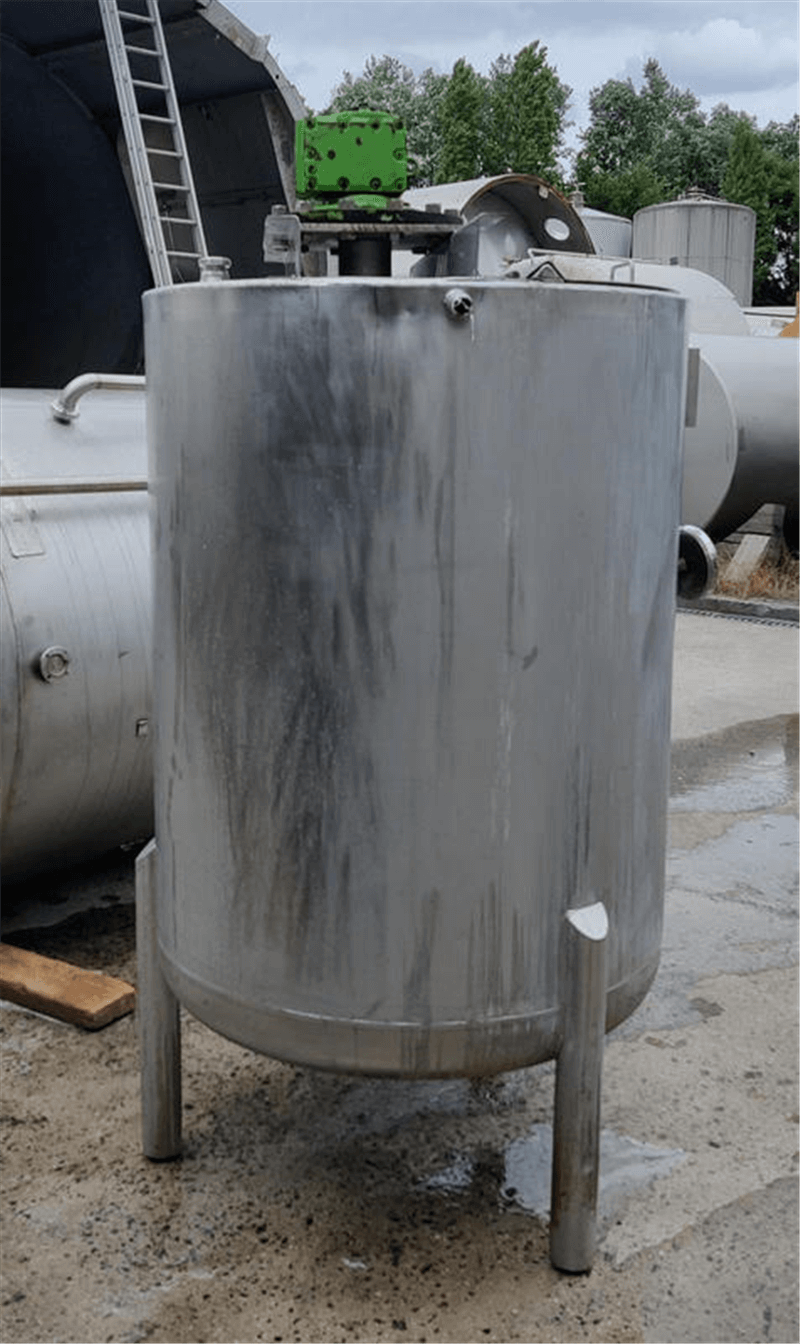

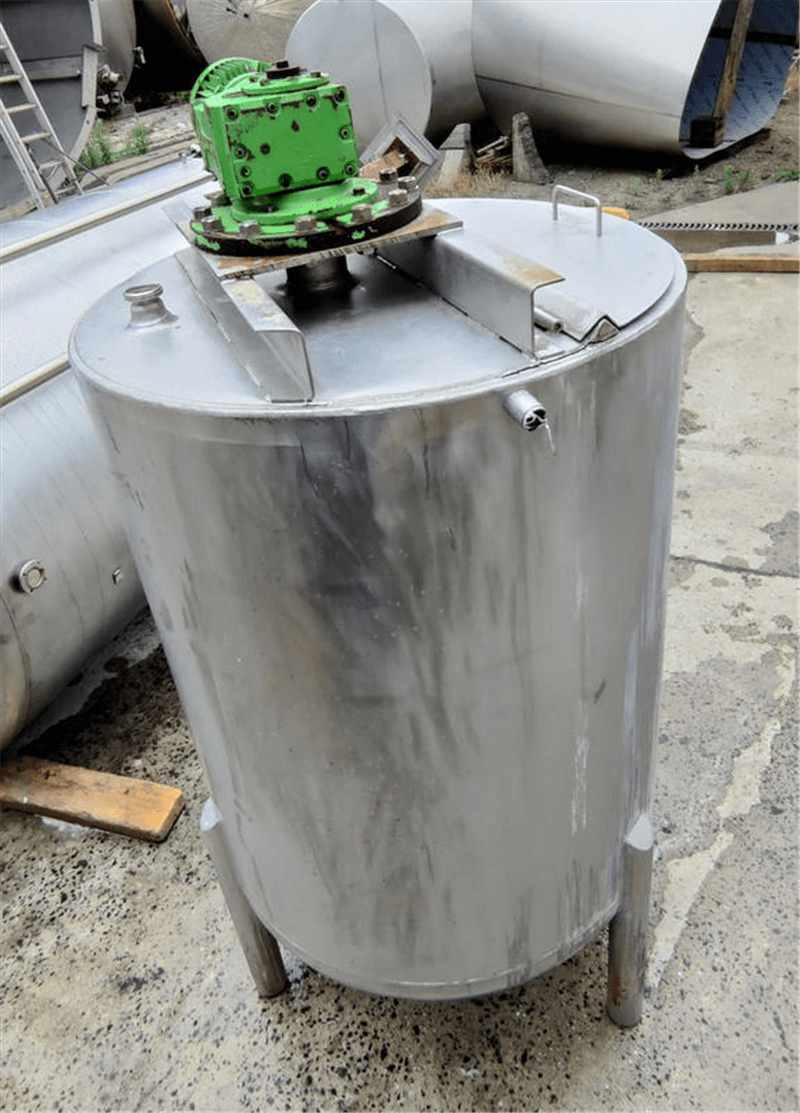

Used mixing vessel
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 1000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.43.XY.03 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 1000 |
| Type tank | Mixing vessel |
| Fixation | 3 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Dished bottom |
| Tank model | Jacketed (Heating/Cooling) |

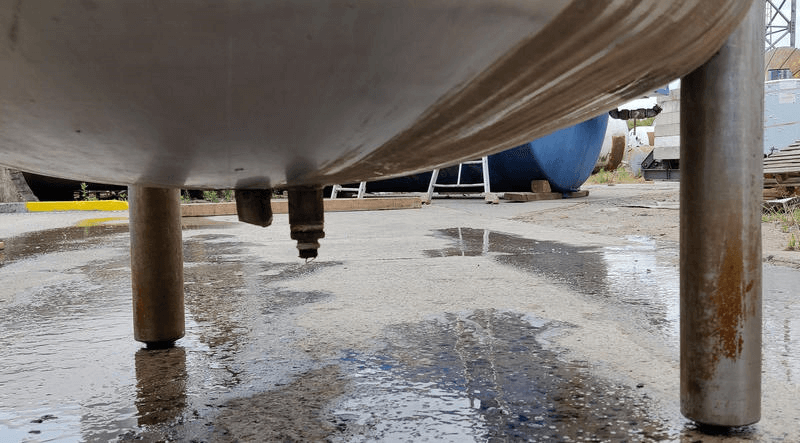

| Tank with total drain? | Yes |
| Diameter of outlet (mm) | 40 |
| locality | B-7711 Belgium |
| Provision tank cleaning | None |
| Weight (kg) | 550 |
| Condition | Used |

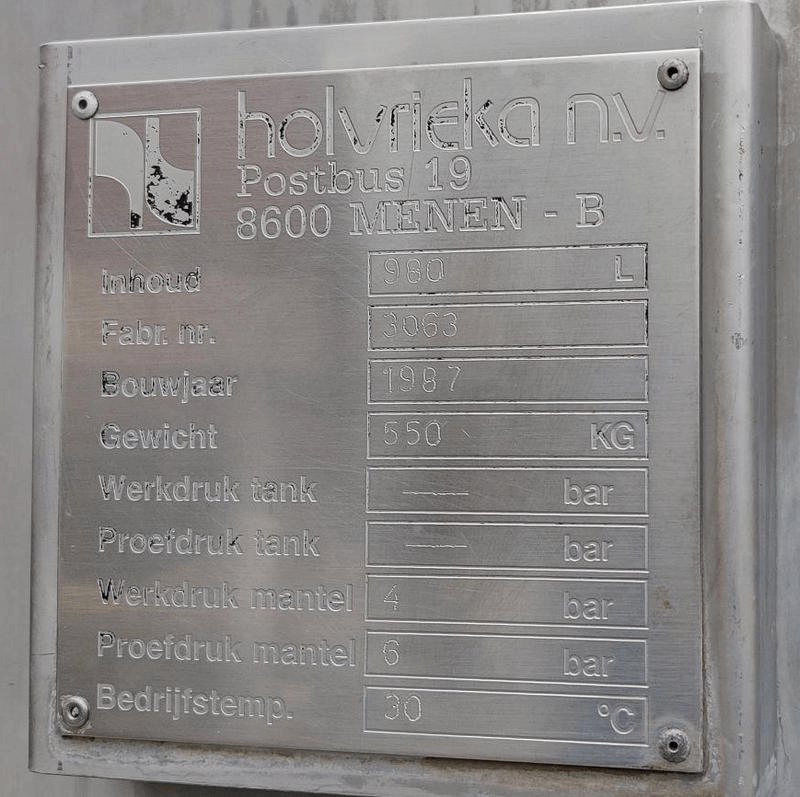

| Type plate manufacturer | Yes |
| Manufacturer | Holvrieka |
| Year Built | 1987 |
| Top side | |
|---|---|
| Configuration top-side | Partly open |
| Detail top side | Flat hinged cover |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 4,2 |
| Bottom thickness (mm) | 4,1 |
| Periphery (mm) | 3420 |
| Cylindrical length (mm) | 1300 |
| Height bottom (mm) | 200 |
| Outside diameter tank (mm) | 1090 |
| Total height (mm) | 2200 |
| Diameter tank (mm) | 980 |
| Width (mm) | 1150 |
| Insulation | |
|---|---|
| Insulation | No |
| Heating | |
|---|---|
| Number of heating type | 1 |
| Heating 1: Type | jacket au bain-marie |

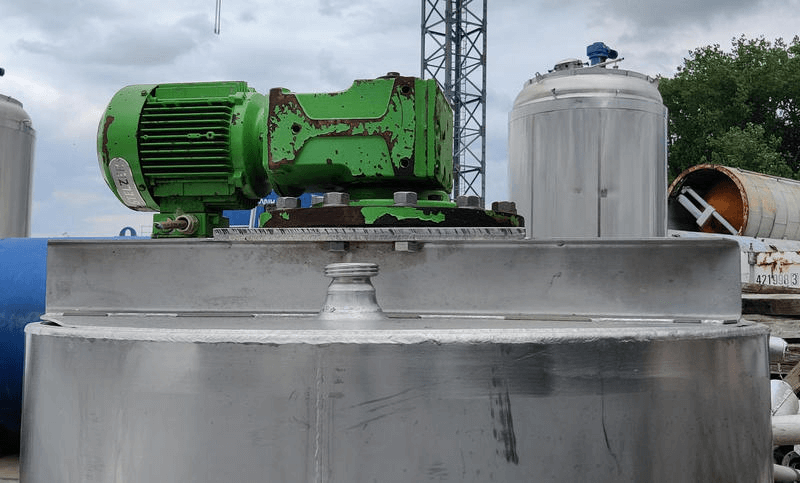

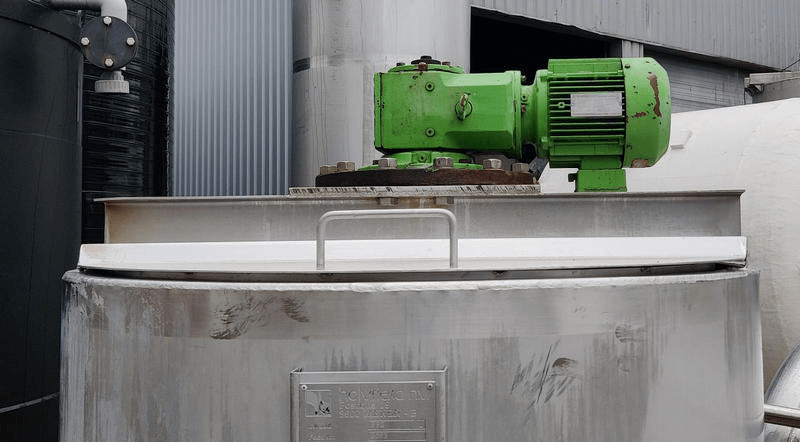

| Agitators | |
|---|---|
| Number of agitators | 1 |
| Agitator 1: Type | Slowly rotating mixer |
| Agitator 1: Position | decentrally on the top |

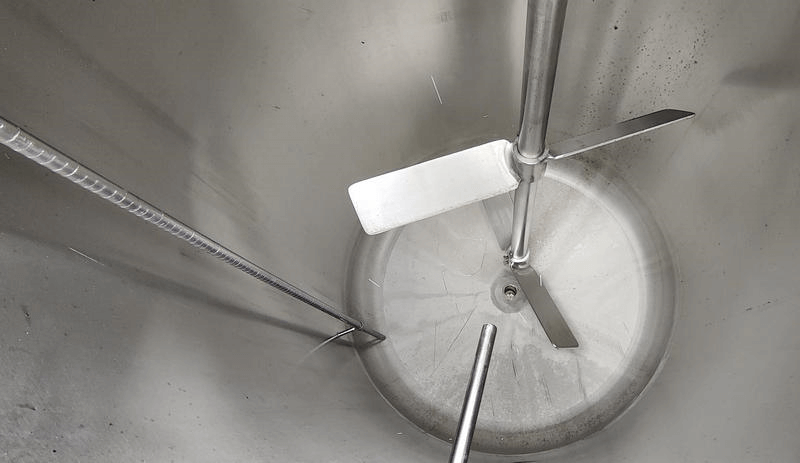

| Agitator 1: stirring element type | Propeller |
| Agitator 1: Length (mm) | 1500 |

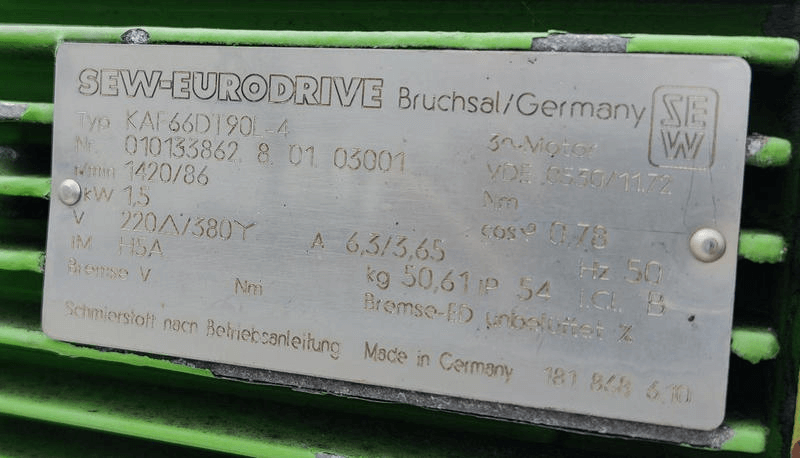

| Agitator 1: Engine Type | electric motor |
| Agitator 1: Voltage (V) | 220/380 |
| Agitator 1: Power (kw) | 1,5 |
| Agitator 1: Drive Type | Reductor |
| Agitator 1: Speed (r / min) | 86 |
