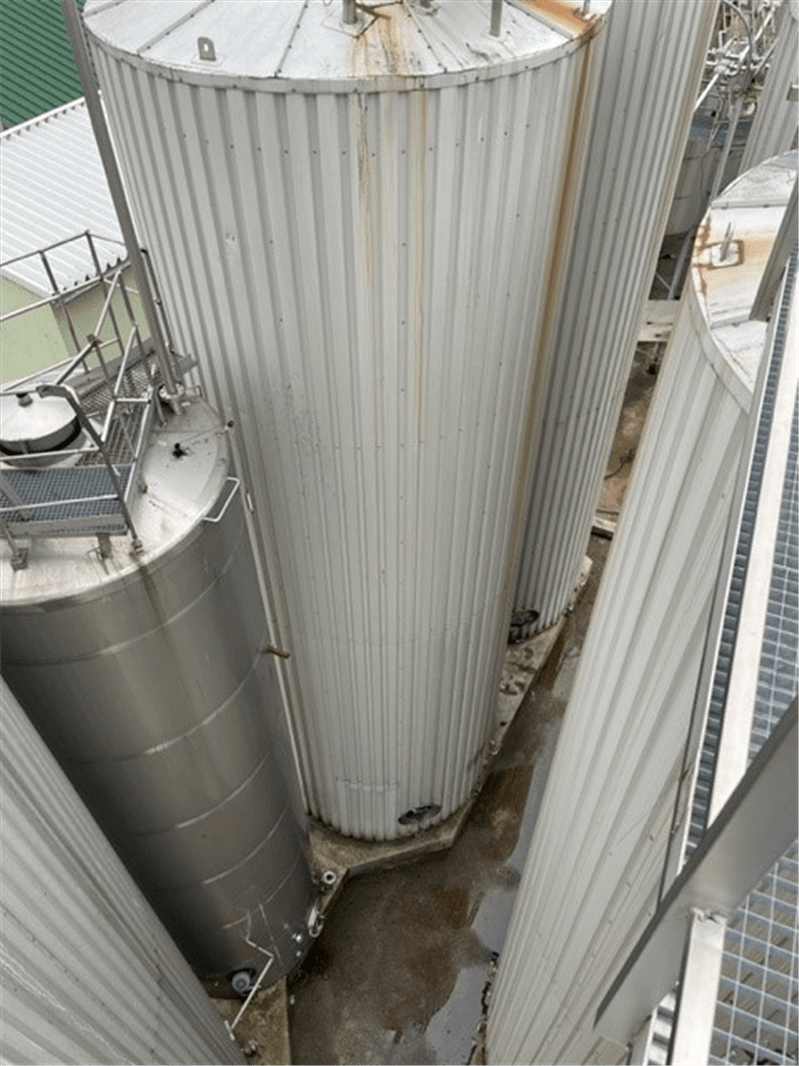

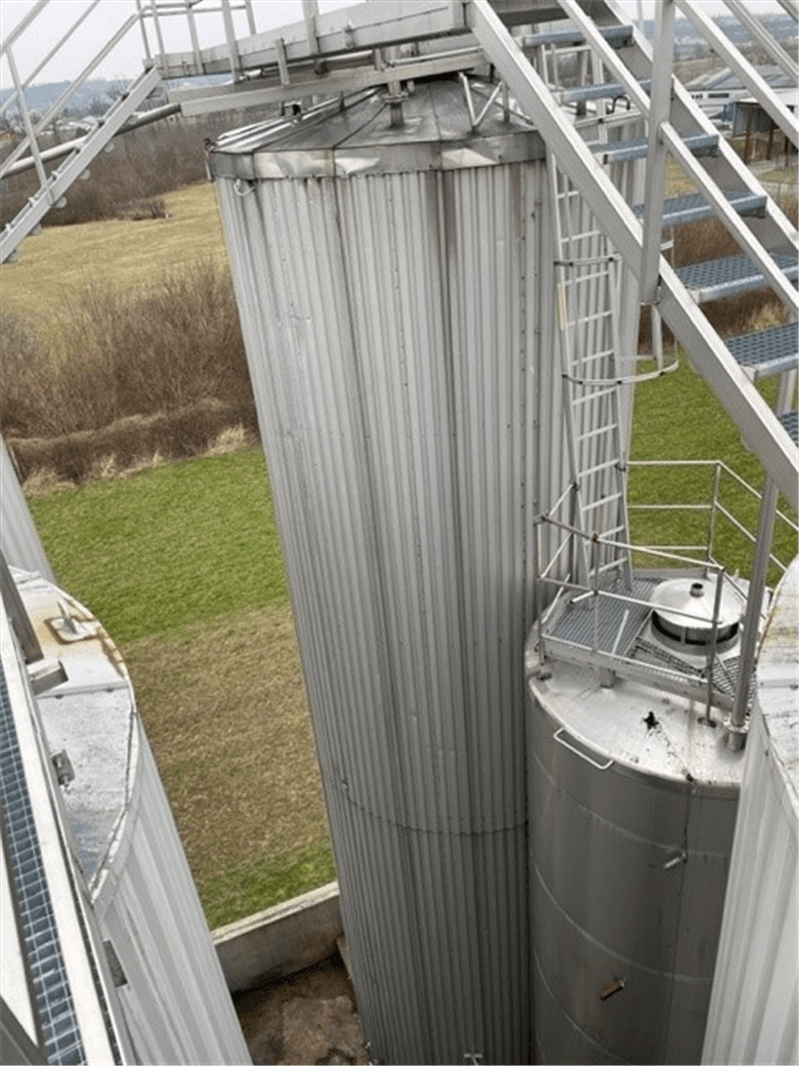

Used mixing vessel
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 152000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.43.WE.06 |
| Material | Stainless steel 304 |
| Number | 1 |
| Capacity (Liters) | 152000 |
| Type tank | Mixing vessel |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

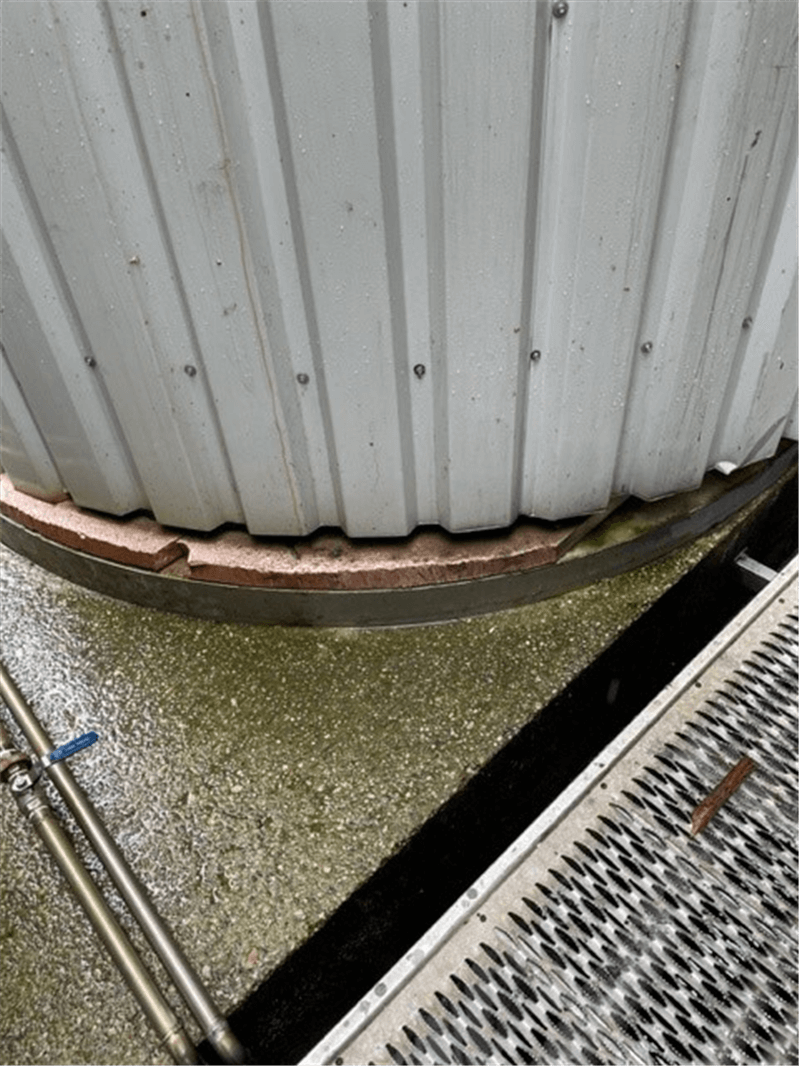

| Bottom | Inclined bottom |
| Tank model | Jacketed (Heating/Cooling) |
| Number lifting lugs | 4 |
| Density (kg/dm³) | 1 |
| Number of manhole | 1 |
| Position of manhole (s) | Top |
| locality | On location |
| Condition | Used |
| Type plate manufacturer | Yes |
| Manufacturer | Reyimpo |
| Year Built | 2009 |
| Construction data available | No |

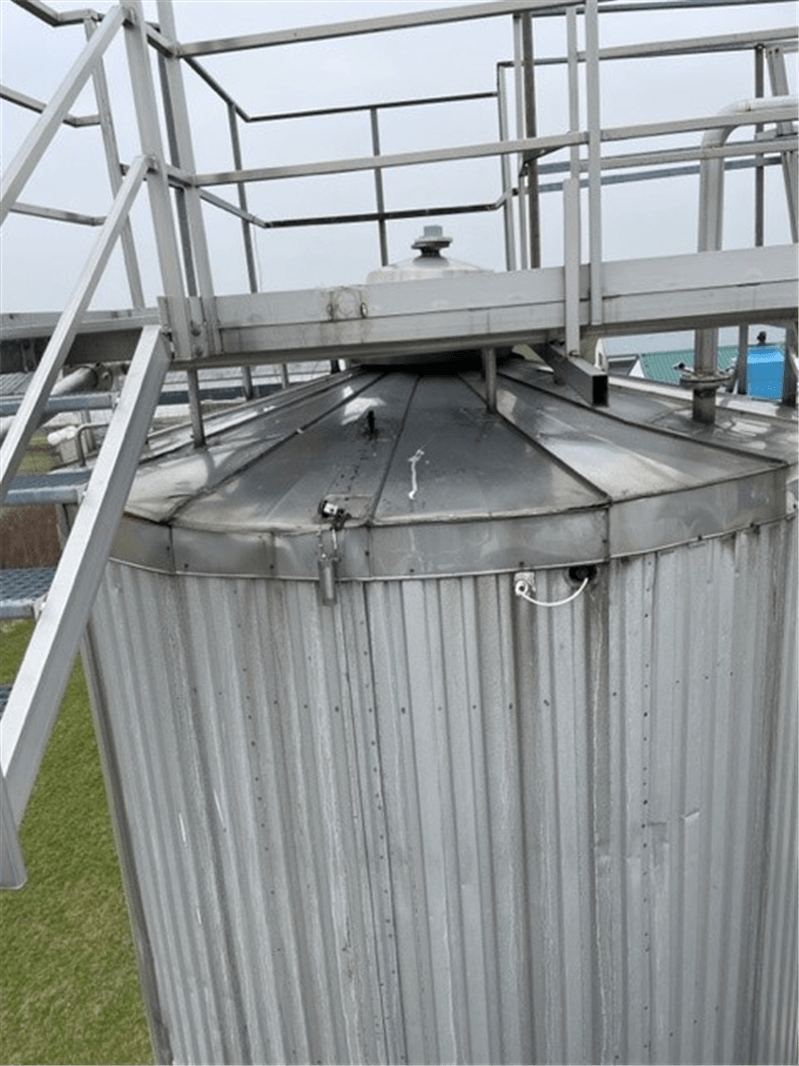

| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Dimensions | |
|---|---|
| Cylindrical length (mm) | 14000 |
| Outside diameter tank (mm) | 4200 |
| Total height (mm) | 14000 |
| Diameter tank (mm) | 4000 |
| Width (mm) | 4000 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | cylinder and top isolated |
| Type of insulation | Insulating wool |
| Finishing insulation | Profile Cladding |
| Insulation material | Aluminium |
| Heating | |
|---|---|
| Number of heating type | 1 |

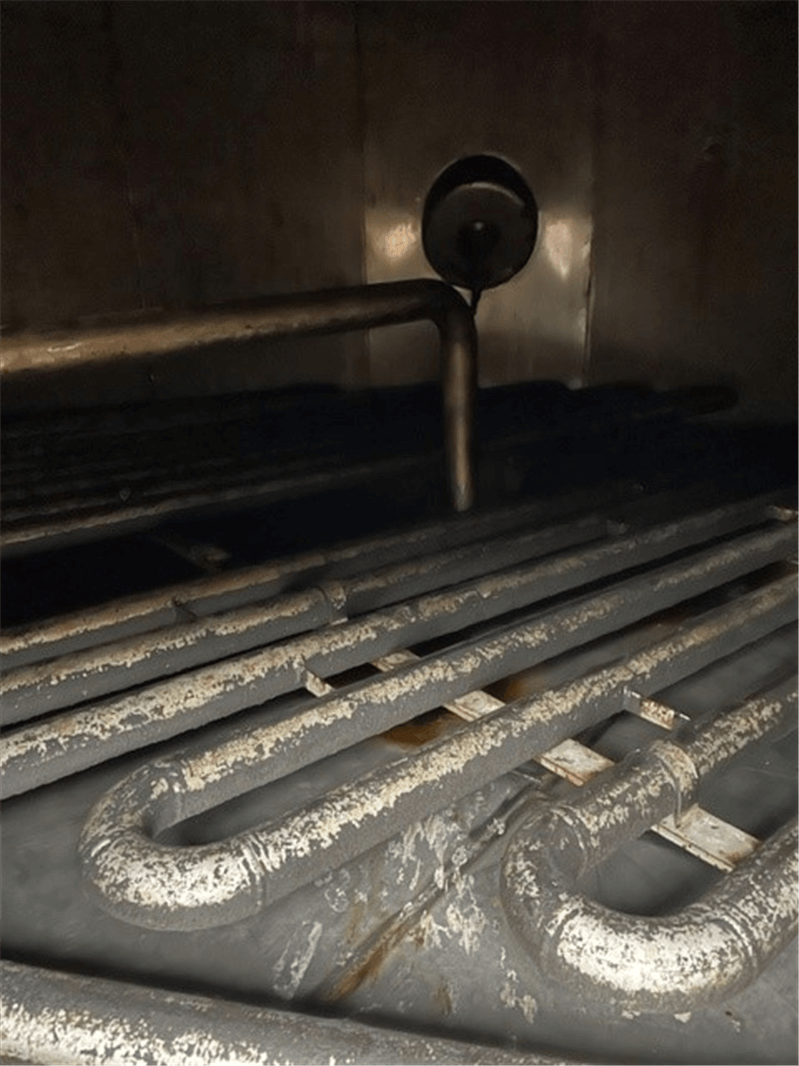

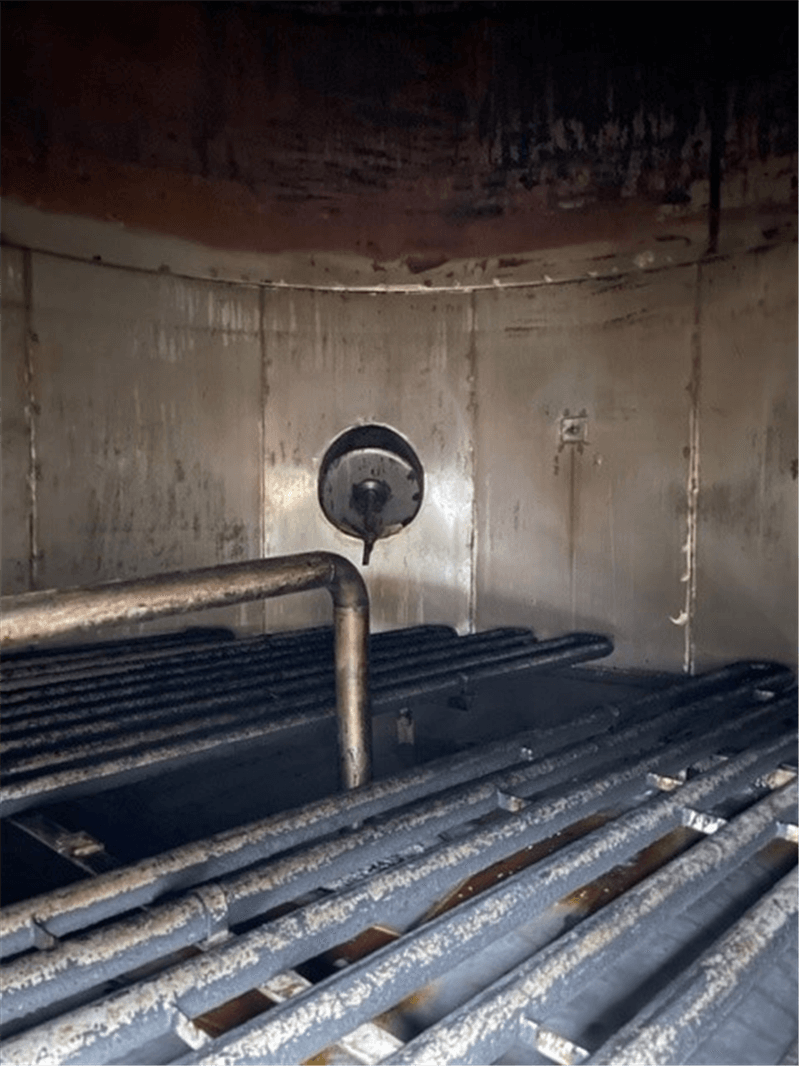

| Heating 1: Type | Heating coil only on the bottom |

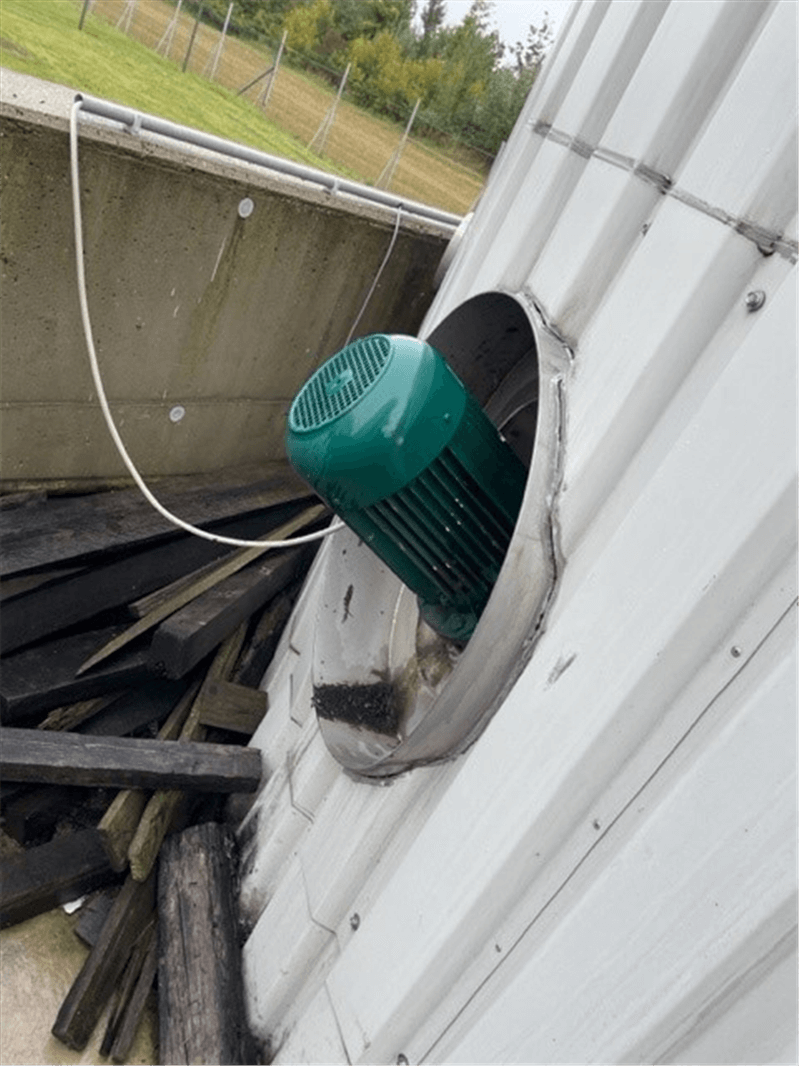

| Agitators | |
|---|---|
| Number of agitators | 1 |
| Agitator 1: Position | Side -entry |
