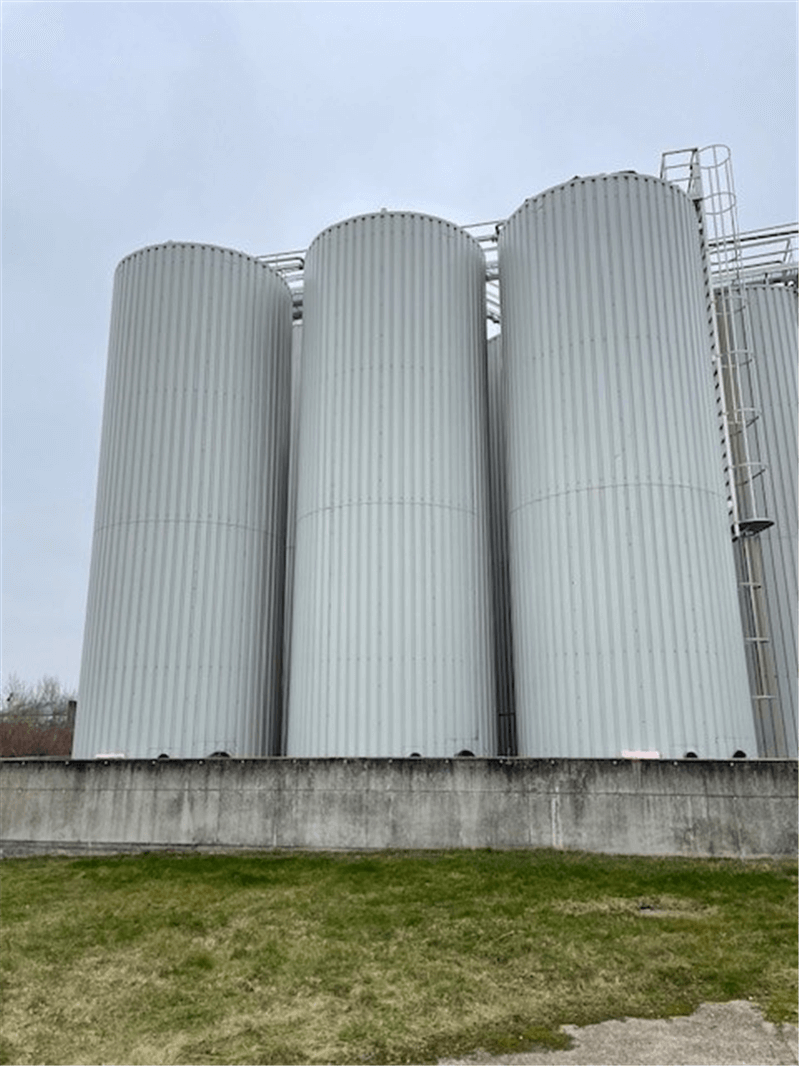

Used mixing vessel
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 150000 L
- In stock: 5
| General | |
|---|---|
| Item number | 03.43.WE.05 |
| Material | Stainless steel 304 |
| Number | 5 |
| Capacity (Liters) | 150000 |
| Type tank | Mixing vessel |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Inclined bottom |
| Tank model | Jacketed (Heating/Cooling) |
| Number lifting lugs | 4 |
| Density (kg/dm³) | 1 |

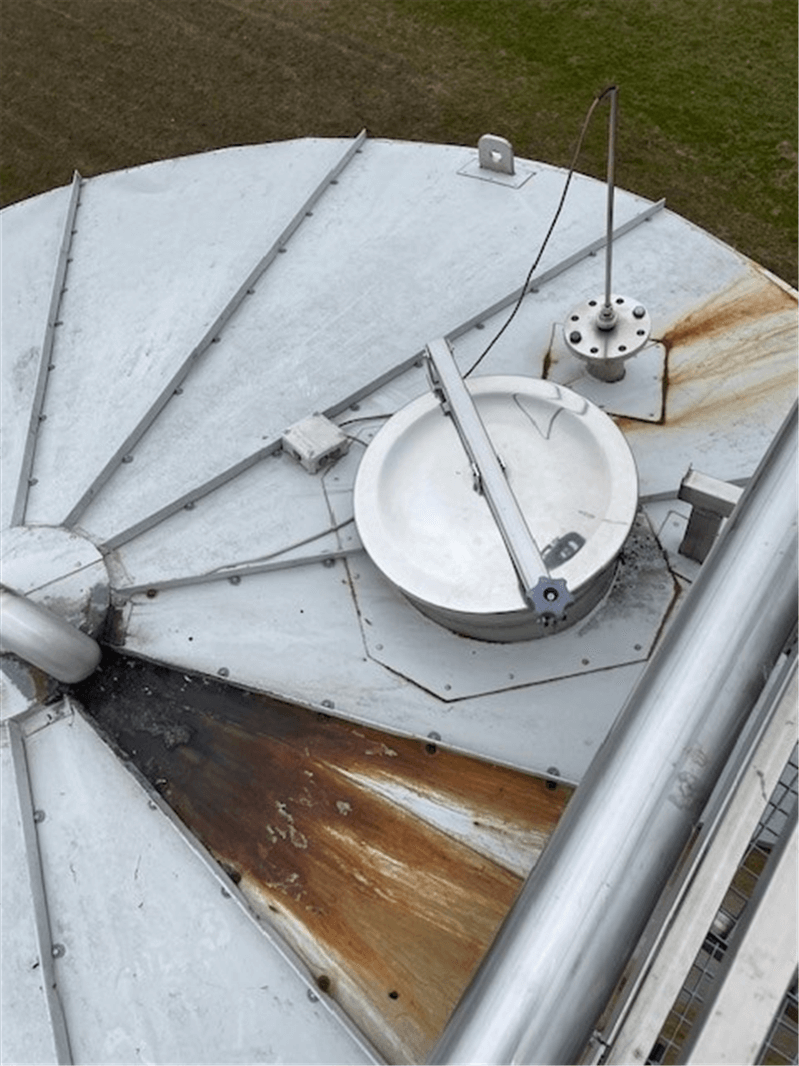

| Number of manhole | 2 |
| Position of manhole (s) | Top and Cylindrical part |
| Type of outlet (s) | DN100 |
| locality | On location |
| Last application | Oil / grease |
| Condition | Used |

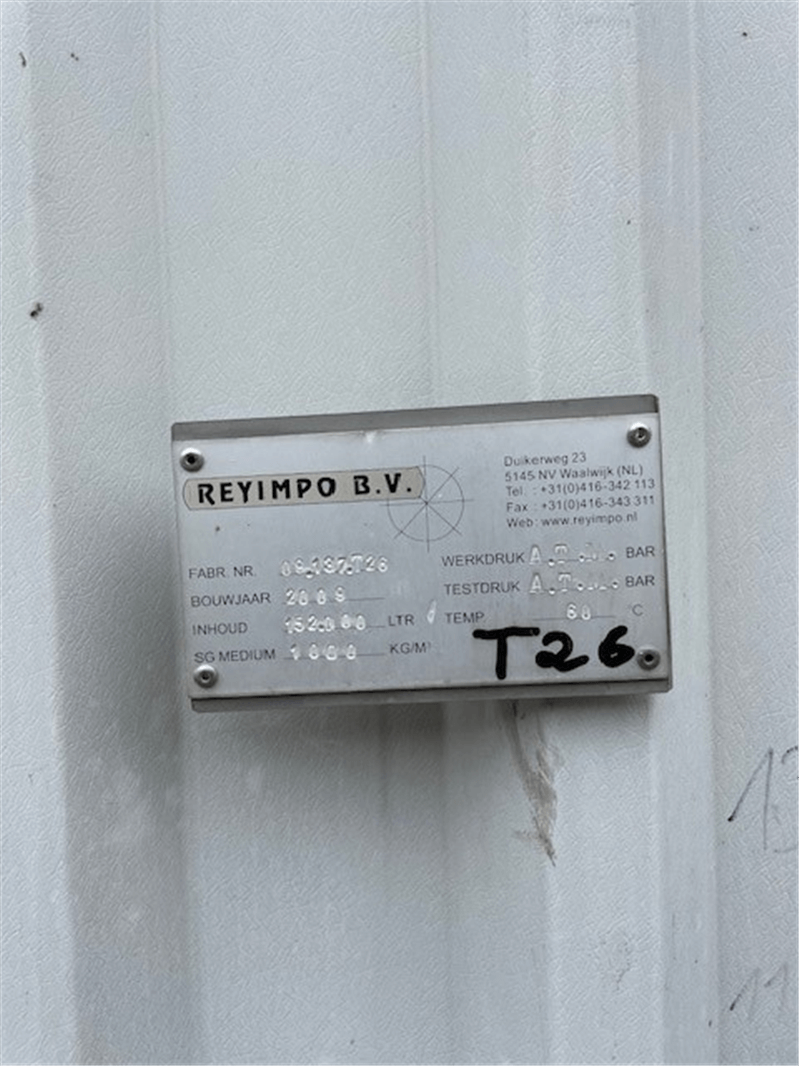

| Type plate manufacturer | Yes |
| Manufacturer | Reyimpo |
| Year Built | 2009 |
| Construction data available | No |
| Appendix 1 | 0343WE05_en_0343WE12_serpentin.pdf |
| Appendix 2 | 0343WE05_en_0343WE12_detailbodem.pdf |
| Top side | |
|---|---|

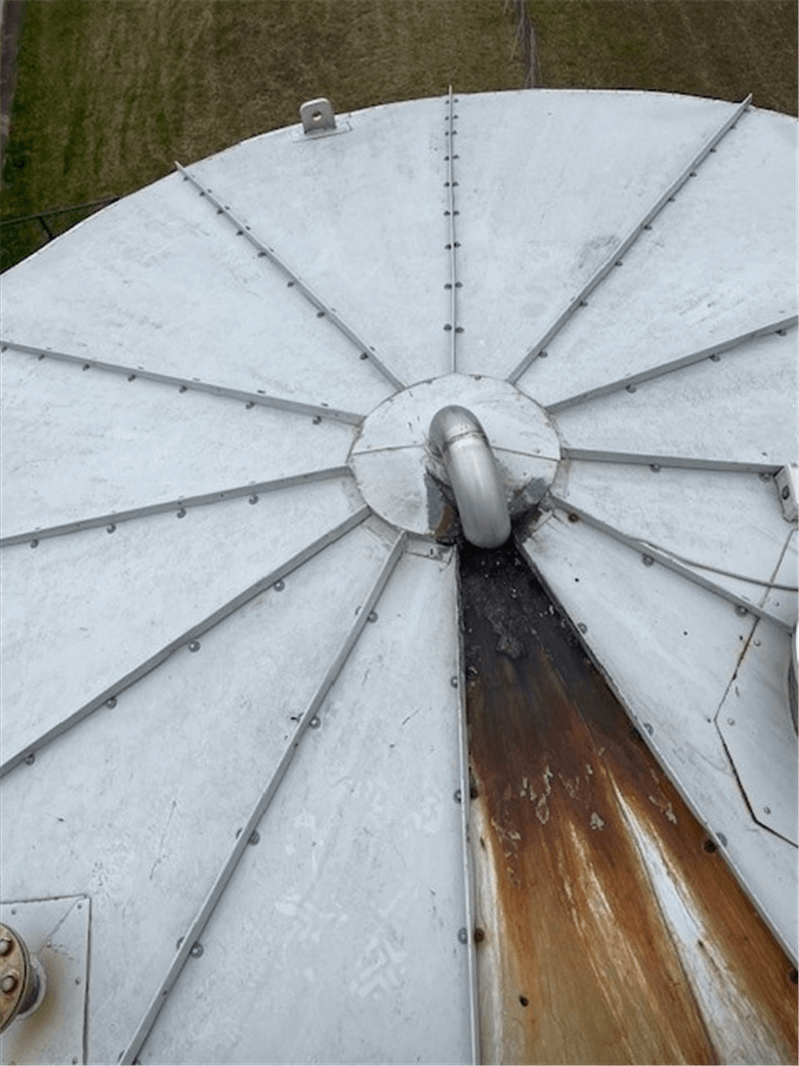

| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 3 |
| Bottom thickness (mm) | 3 |
| Cylindrical length (mm) | 12000 |
| Outside diameter tank (mm) | 4200 |
| Total height (mm) | 12650 |
| Diameter tank (mm) | 4000 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | cylinder and top isolated |
| Type of insulation | Insulating wool |
| Thickness (mm) | 80 |

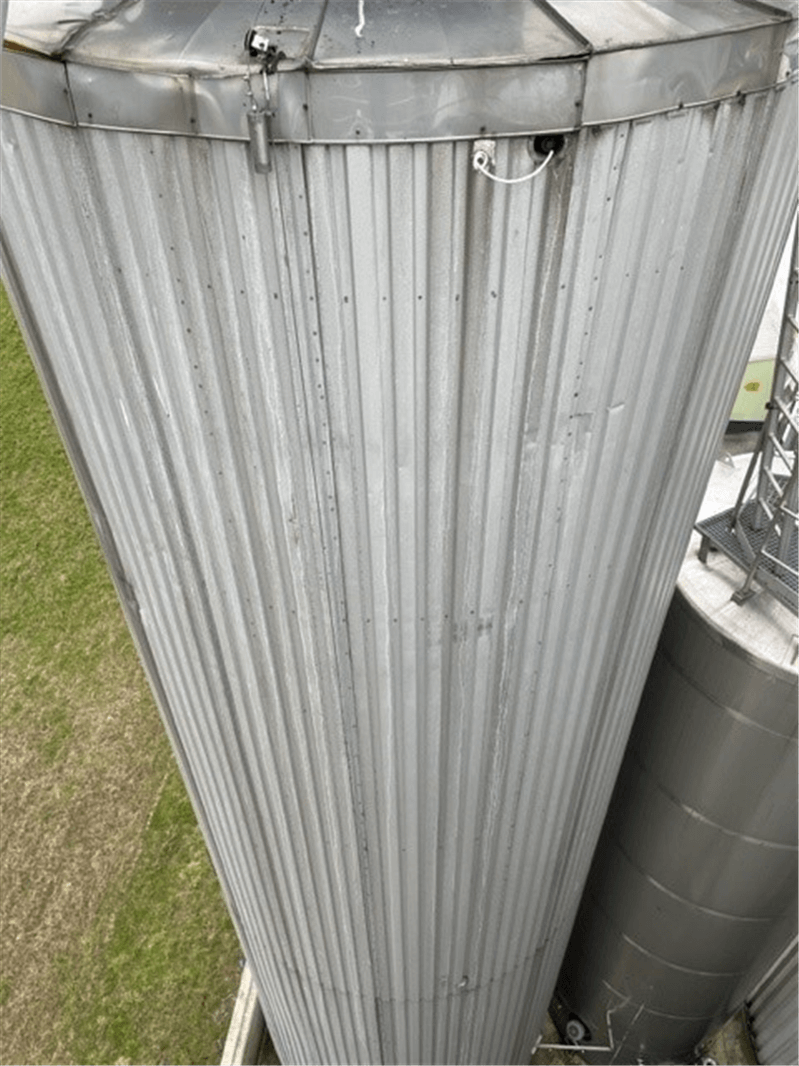

| Finishing insulation | Profile Cladding |
| Insulation material | Steel |
| Heating | |
|---|---|
| Number of heating type | 1 |

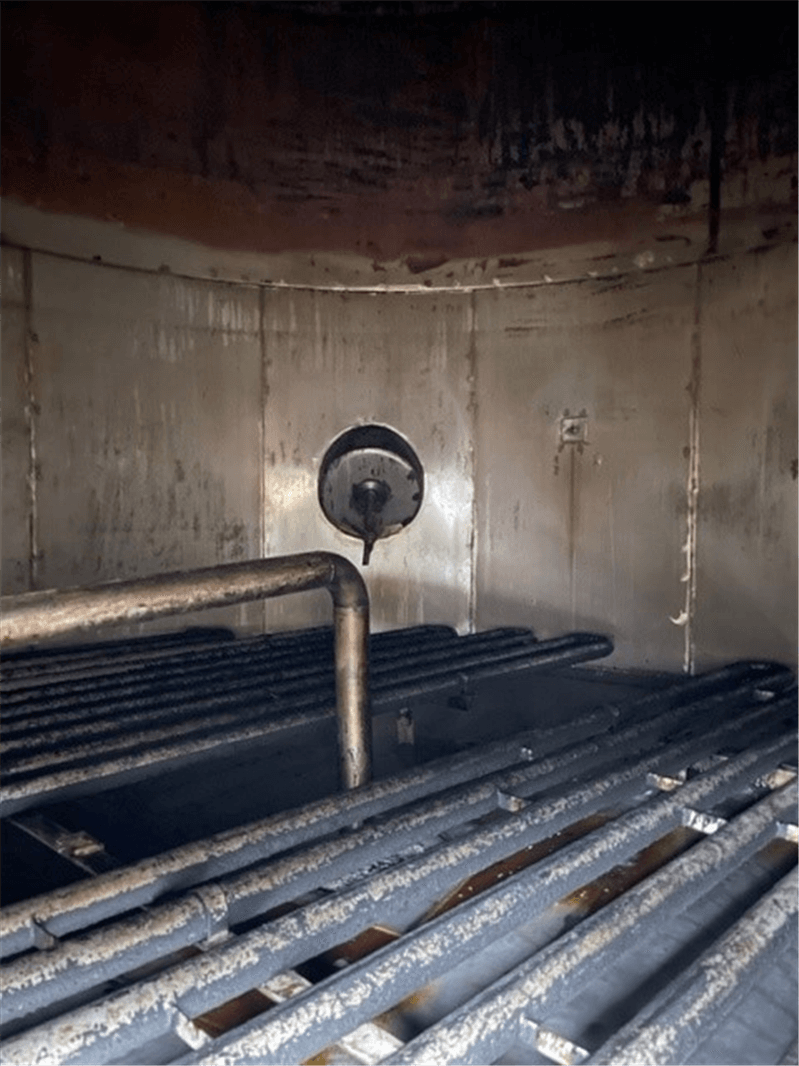

| Heating 1: Type | Heating coil only on the bottom |
| Heating 1: Max. service pressure | 8 |
| Heating 1: Max. test pressure | 10 |
| Heating 1: Max. design pressure °C | 95 |
| Agitators | |
|---|---|
| Number of agitators | 1 |

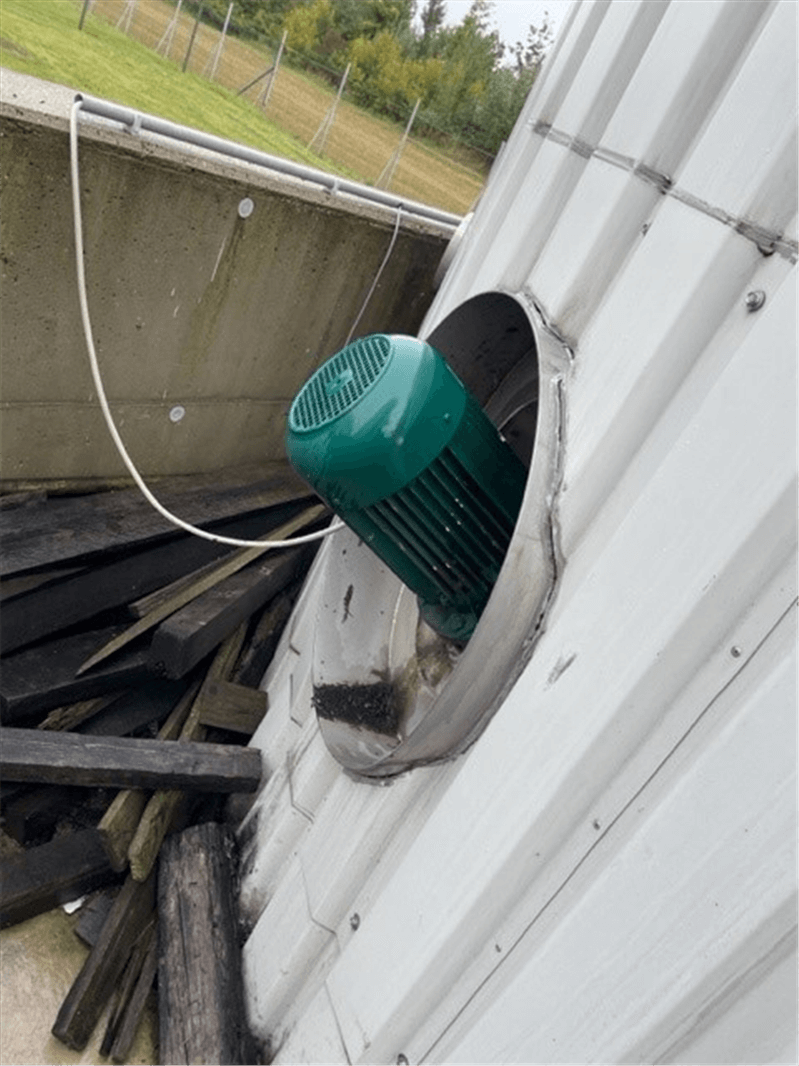

| Agitator 1: Position | Side -entry |
| Agitator 1: Power (kw) | 9,2 |
| Remarks | |
|---|---|

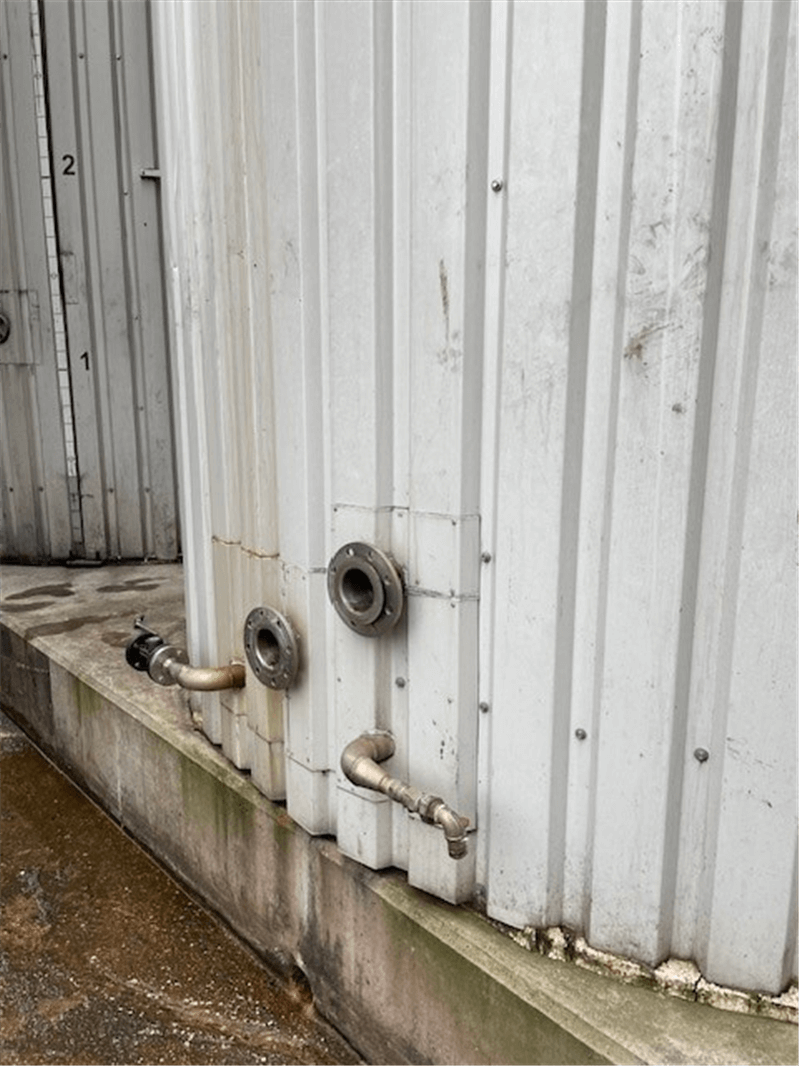

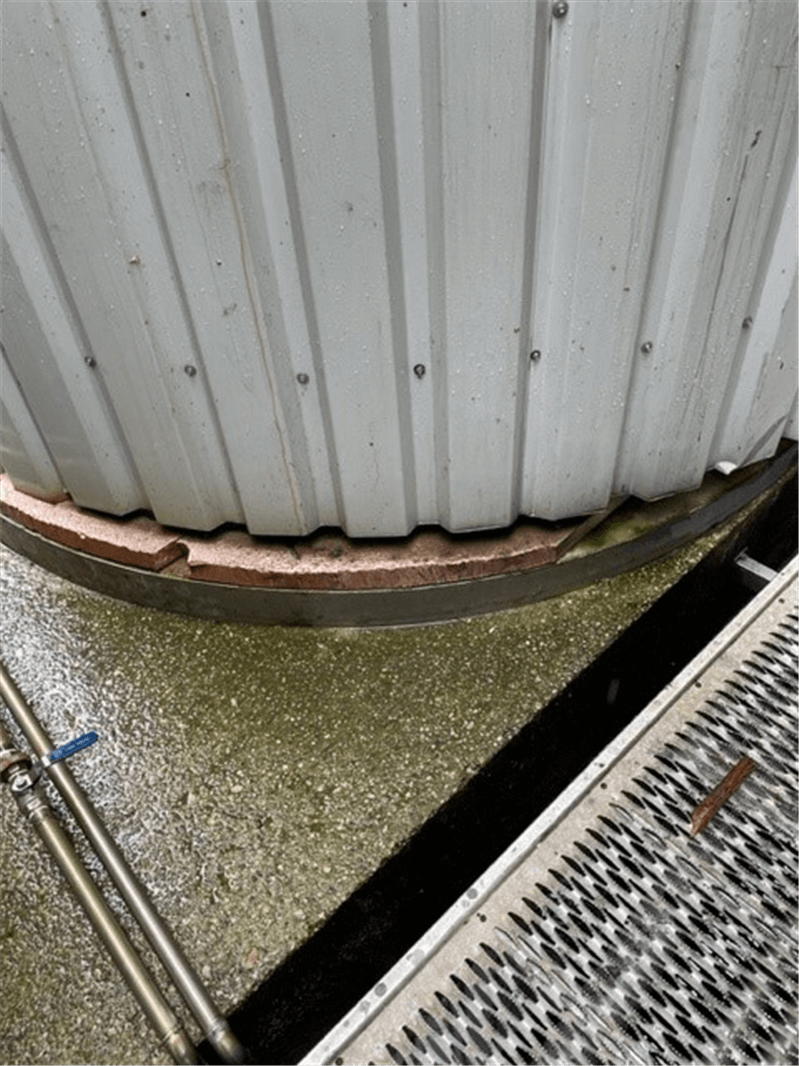

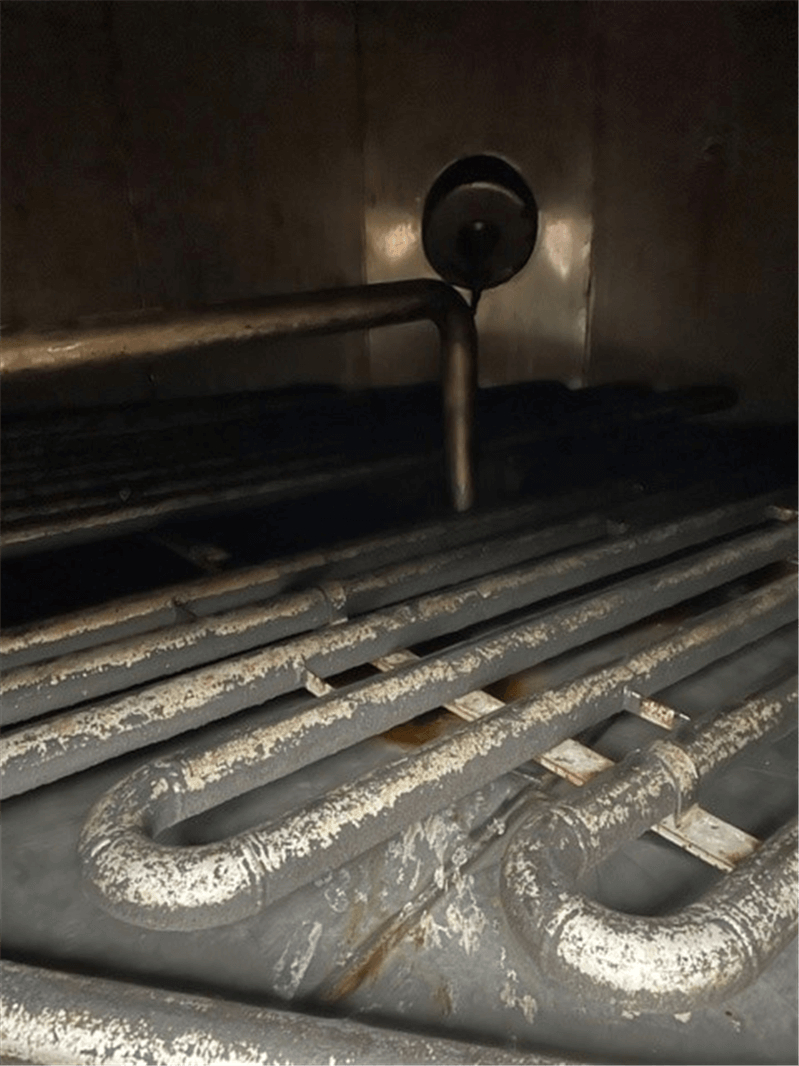

| Description (EN) | Outer diameter/width to be determined * Bottom very slightly inclined 3% - with collection tray centrally - tank was placed on top of insulation plate with recess for the collection tray * Connections: 2 x 1/2" welding socket - 1 nozzle DN80 - inspection hole - 4" vent nozzle DN100 - 3" nozzle DN100 - 4 nozzle DN100 * Heating coil out of RVS316 2" pipe, 60,33 x 2,77mm, nozzles DN50 - DIN2576, total meters ca 40m. |
