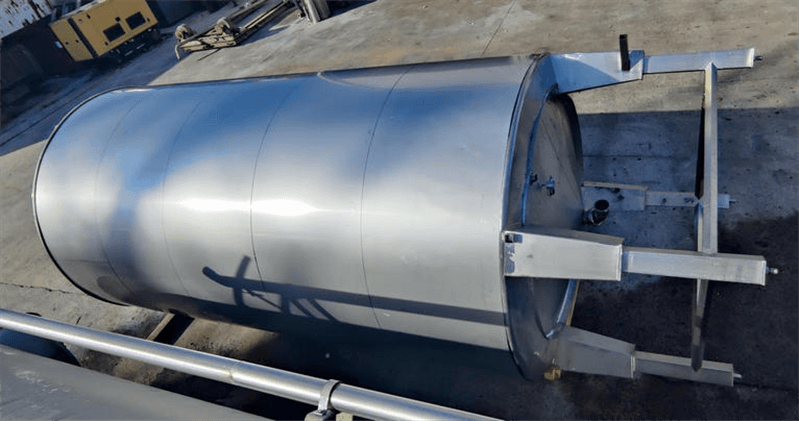

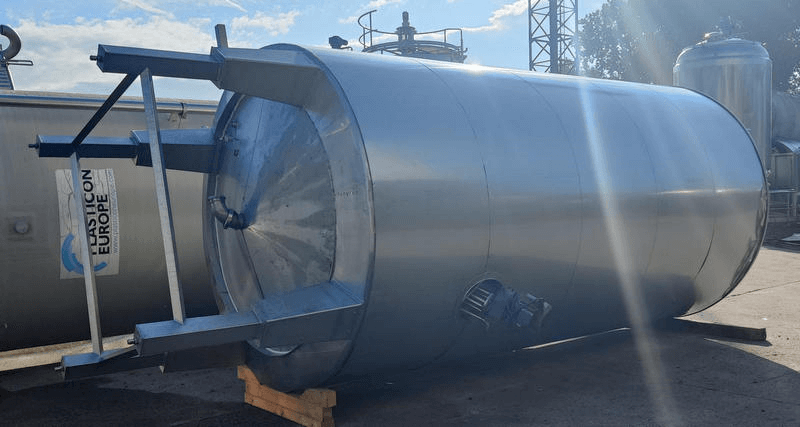

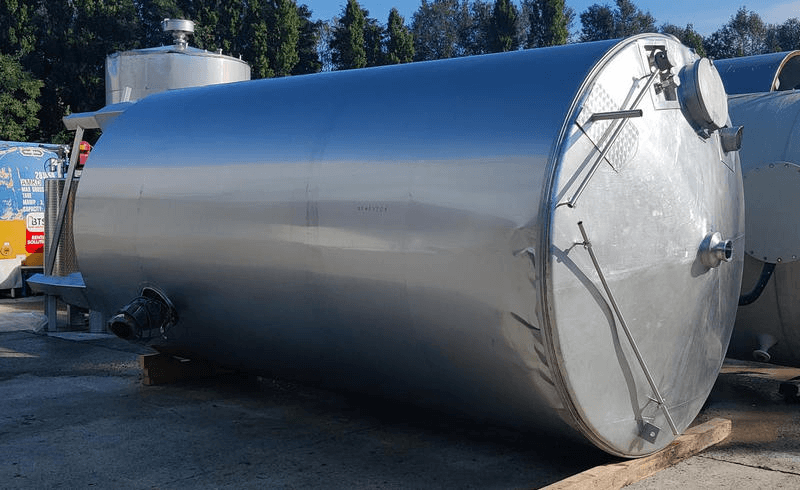

Used mixing vessel
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 21000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.43.VY.01 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 21000 |
| Type tank | Mixing vessel |
| Fixation | 4 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

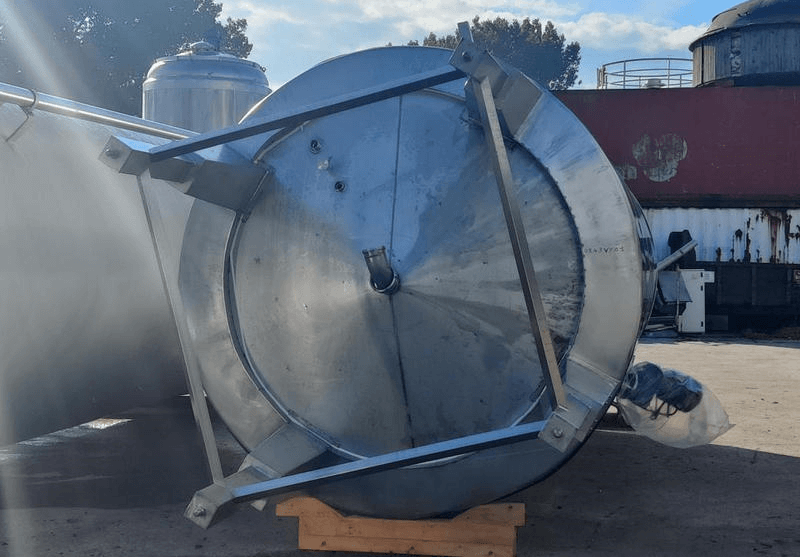

| Bottom | Conical bottom |
| Tank model | Single wall |
| Number lifting lugs | 2 |
| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | dia 400mm |
| Tank with total drain? | Yes |
| Diameter of outlet (mm) | 100 |
| locality | B-7711 Belgium |
| Provision tank cleaning | CIP ball |
| Weight (kg) | 2000 |
| Condition | Used |
| Type plate manufacturer | No |
| Top side | |
|---|---|

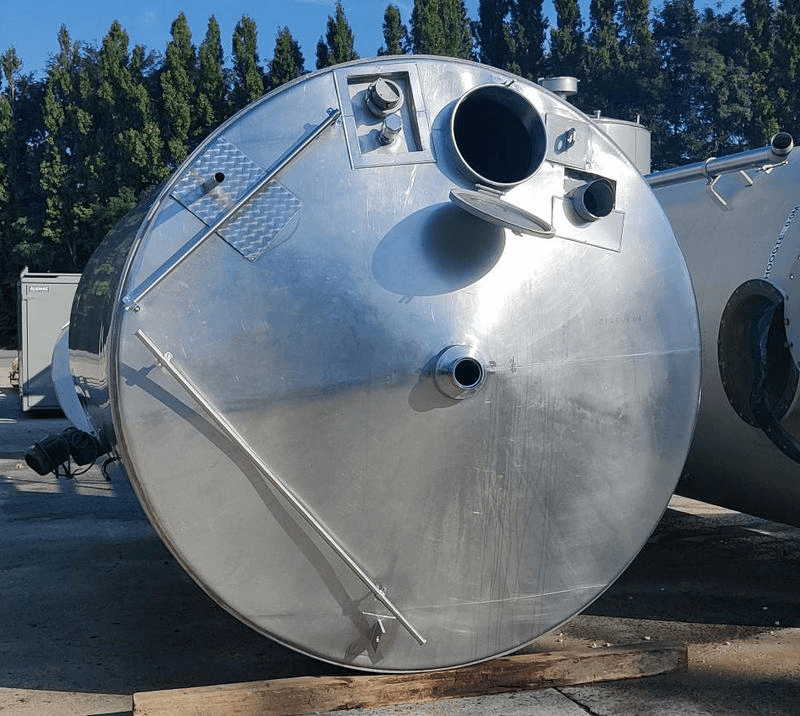

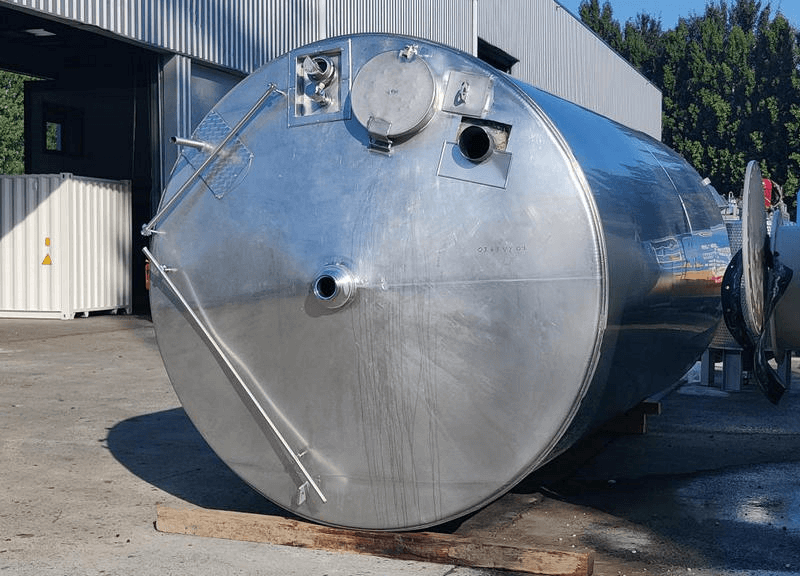

| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Thickness closed dome (mm) | 3,2 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 3 |
| Bottom thickness (mm) | 3,1 |
| Periphery (mm) | 7880 |
| Cylindrical length (mm) | 4550 |
| Height bottom (mm) | 300 |
| Outside diameter tank (mm) | 2500 |
| Total height (mm) | 6500 |
| Length (mm) | 3050 |
| Diameter tank (mm) | 2390 |
| Width (mm) | 2550 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | cylinder and top isolated |
| Thickness (mm) | 55 |
| Finishing insulation | Rivited sheet cladding |
| Insulation material | Stainless steel 304 |
| Agitators | |
|---|---|
| Number of agitators | 1 |

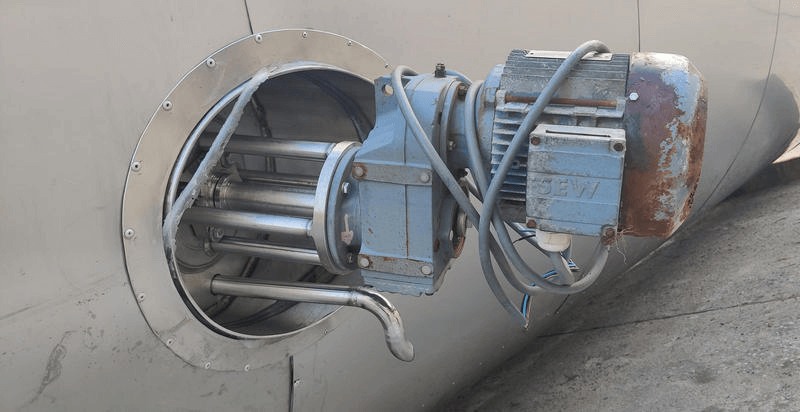

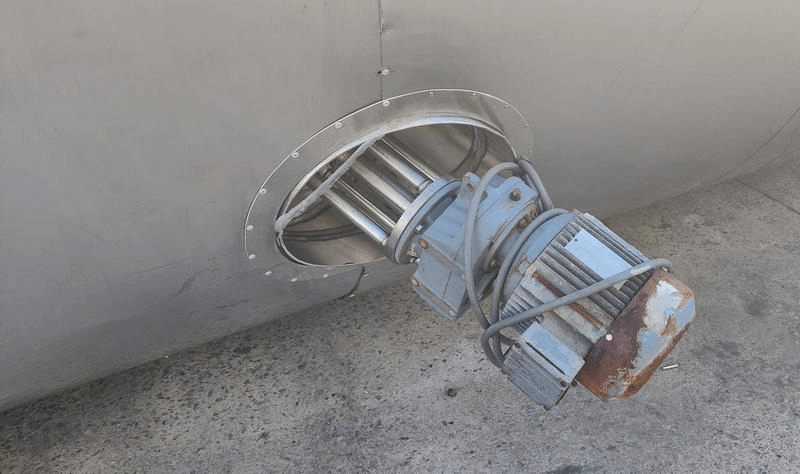

| Agitator 1: Type | Slowly rotating mixer |
| Agitator 1: Position | Side -entry |

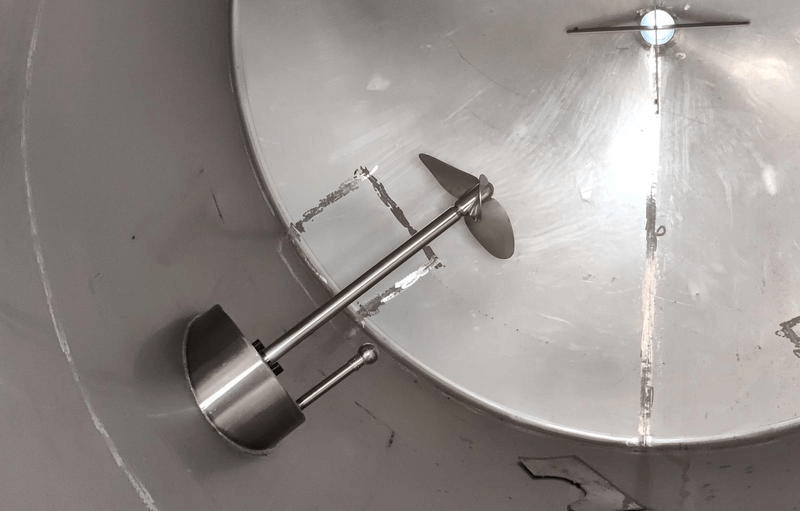

| Agitator 1: stirring element type | Propeller |
| Agitator 1: Length (mm) | 800 |

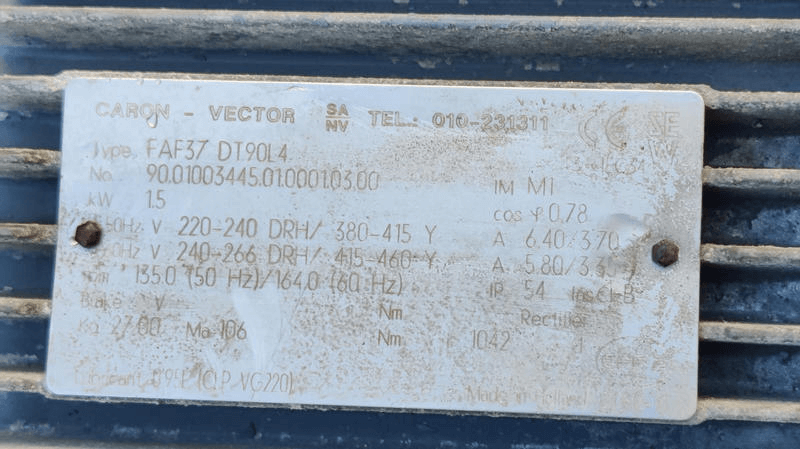

| Agitator 1: Engine Type | electric motor |
| Agitator 1: Voltage (V) | 240 / 380 |
| Agitator 1: Power (kw) | 1,5 |
| Agitator 1: Drive Type | Reductor |
| Agitator 1: Speed (r / min) | onbekend |
