Used storage tank
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 21000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.43.SI.04 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 21000 |
| Type tank | Storage tank |
| Fixation | 3 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Conical bottom |
| Tank model | Jacketed (Heating/Cooling) |
| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | 395 |
| Tank with total drain? | Yes |
| Diameter of outlet (mm) | 2 1/2" naar 2" |
| locality | B-7711 Belgium |
| Last application | Food |

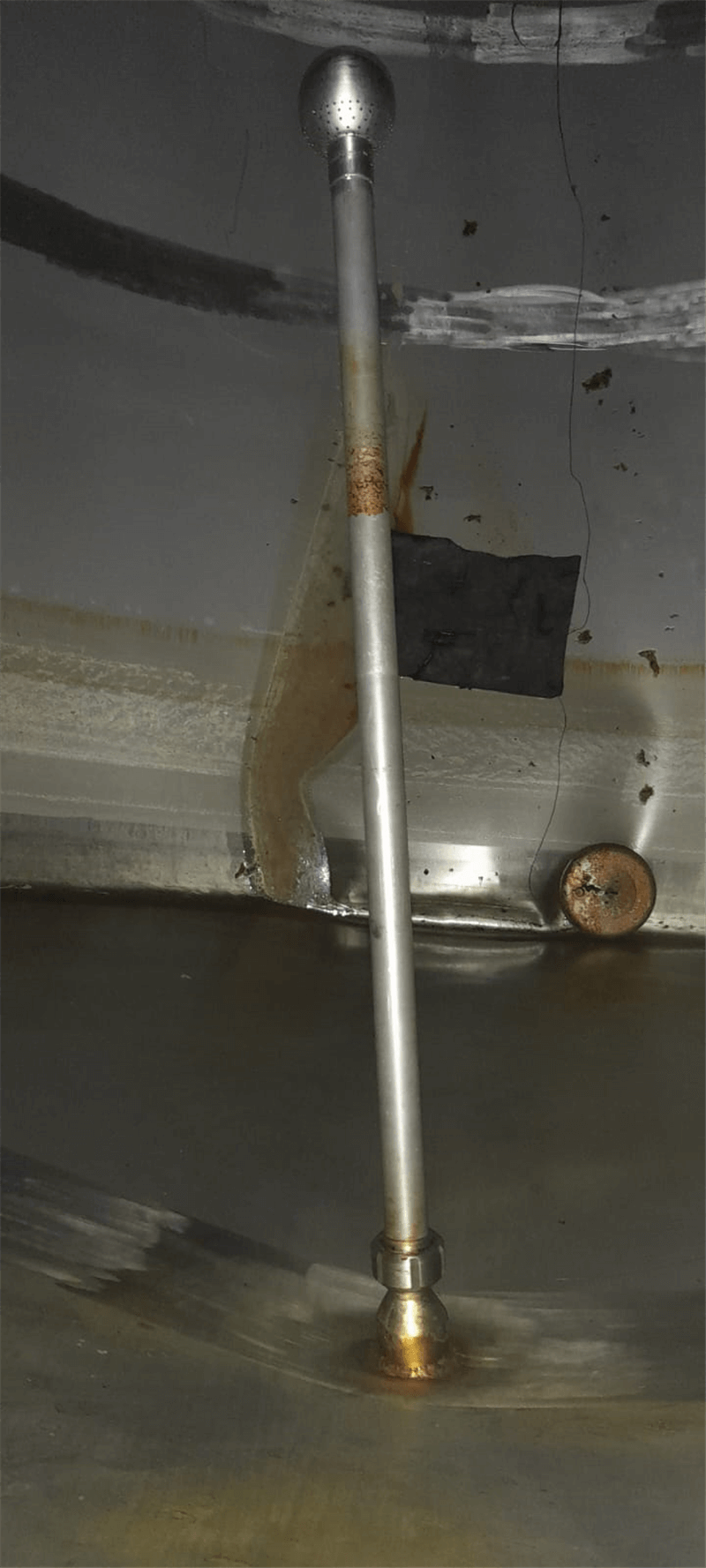

| Provision tank cleaning | CIP ball |
| Weight (kg) | 2500 |
| Condition | Used |
| Type plate manufacturer | No |
| Construction data available | No |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Thickness closed dome (mm) | 2,5 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 2,5 |
| Bottom thickness (mm) | 2,5 |
| Periphery (mm) | 9720 |
| Cylindrical length (mm) | 3350 |
| Height bottom (mm) | 230 |
| Outside diameter tank (mm) | 3130 |
| Total height (mm) | 4680 |
| Diameter tank (mm) | 3010 |
| Width (mm) | 3130 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | Fully insulated |
| Type of insulation | Insulating wool |
| Thickness (mm) | 50 |
| Finishing insulation | Rivited sheet cladding |
| Insulation material | Aluminium |
| Heating | |
|---|---|
| Number of heating type | 1 |
| Heating 1: Type | Electric heating resistors |
| Remarks | |
|---|---|
| Description (EN) | Isolation in bad shape |
