Used mixing vessel
- Material: Stainless steel 316
- Condition: Used
- Volume (in litres): 6000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.43.MA.01 |
| Material | Stainless steel 316 |
| Finishing weldings inside | Raw brushed |
| Number | 1 |
| Capacity (Liters) | 6000 |
| Type tank | Mixing vessel |
| Fixation | 4 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

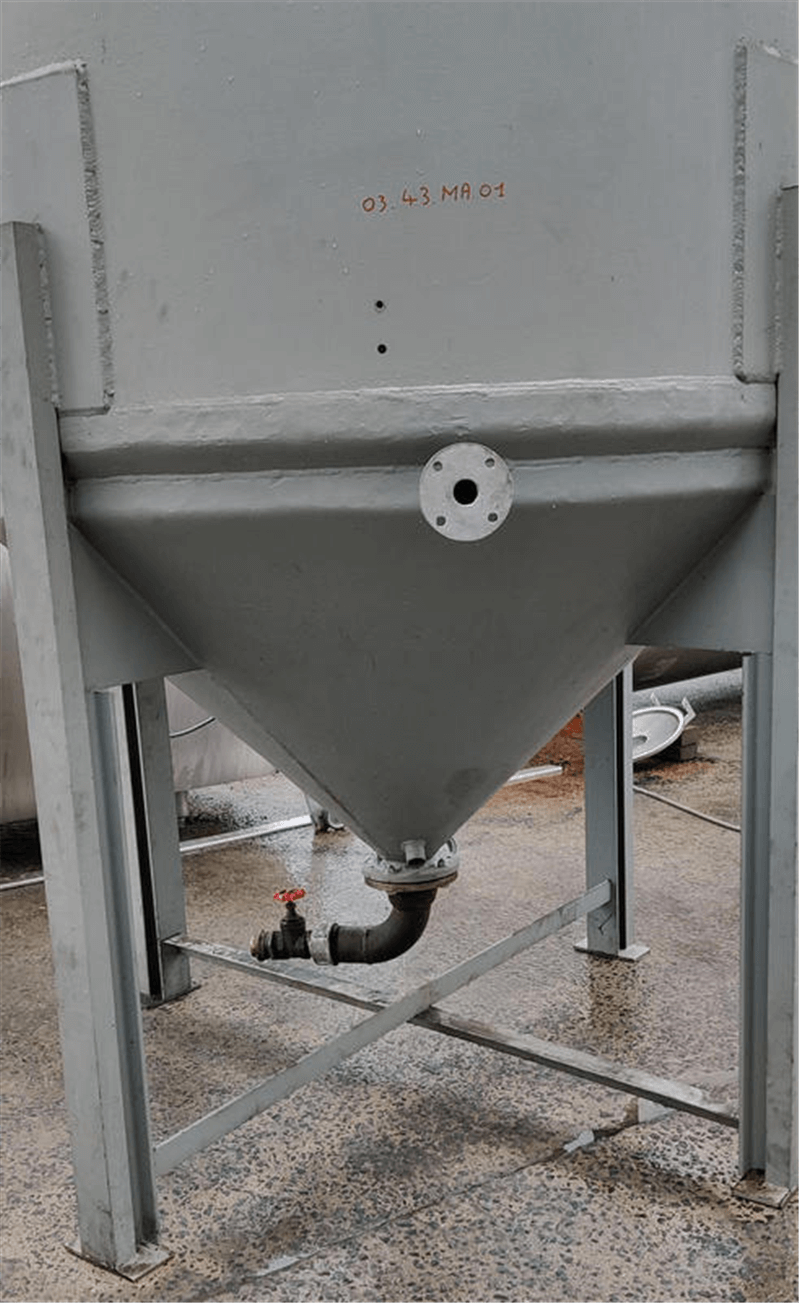

| Bottom | Conical bottom |
| Tank model | Jacketed (Heating/Cooling) |
| Tank with total drain? | Yes |
| Diameter of outlet (mm) | 50 + manuele schuifklep |
| locality | B-7711 Belgium |
| Last application | Food |
| Provision tank cleaning | None |
| Weight (kg) | 1600 |
| Condition | Used |
| Type plate manufacturer | No |
| Top side | |
|---|---|
| Configuration top-side | Open |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 1,8 |
| Periphery (mm) | 5700 |
| Cylindrical length (mm) | 2150 |
| Height bottom (mm) | 800 |
| Outside diameter tank (mm) | 1810 |
| Total height (mm) | 4100 |
| Diameter tank (mm) | 1795 |
| Width (mm) | 1980 |
| Insulation | |
|---|---|
| Insulation | No |
| Heating | |
|---|---|
| Number of heating type | 2 |

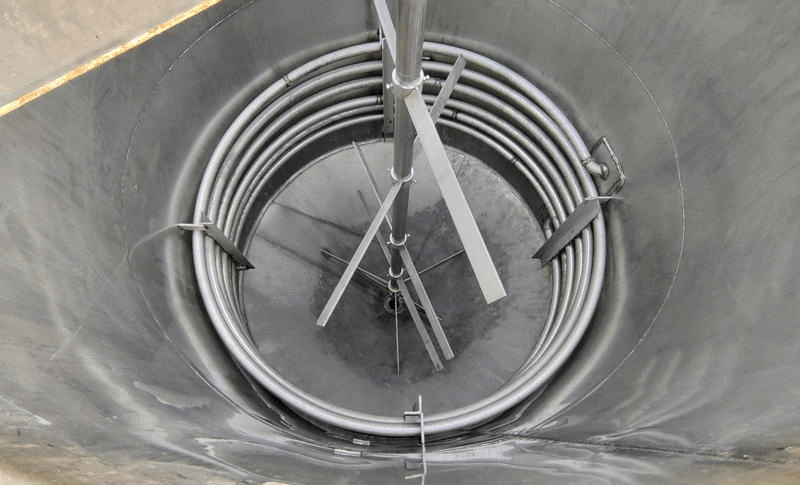

| Heating 1: Type | Heating coil on part of the cylinder |
| Heating 2: Type | jacket au bain-marie |
| Agitators | |
|---|---|
| Number of agitators | 1 |

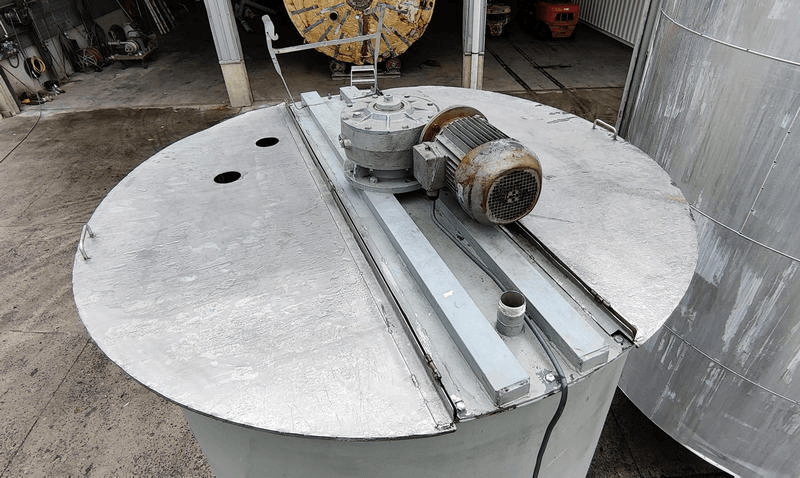

| Agitator 1: Type | Slowly rotating mixer |
| Agitator 1: Position | Centrally on the top |
| Agitator 1: stirring element type | Blade stirrer/Cross paddles |
| Agitator 1: Length (mm) | 2500 |
| Agitator 1: Engine Type | electric motor |
| Agitator 1: Voltage (V) | 400 |
| Agitator 1: Power (kw) | 5,5 |

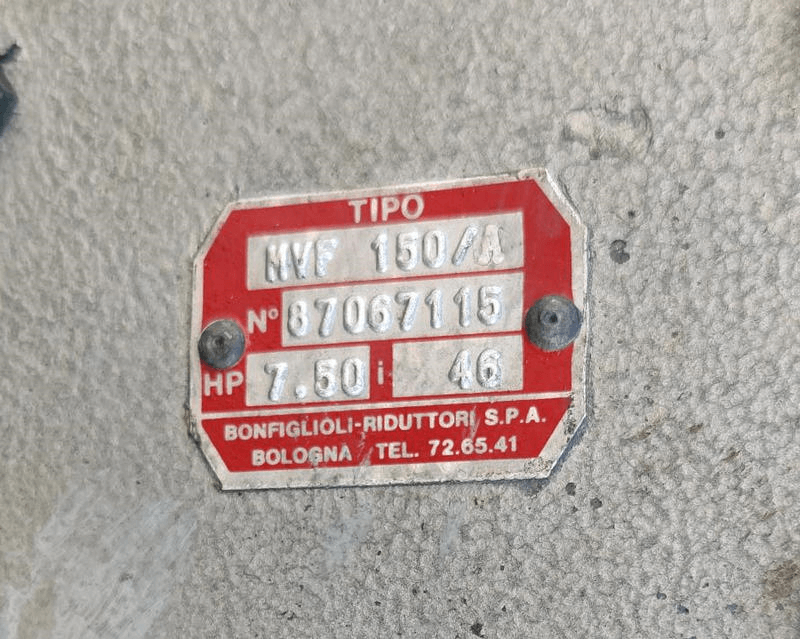

| Agitator 1: Drive Type | Reductor |
| Agitator 1: Speed (r / min) | i=46 |
