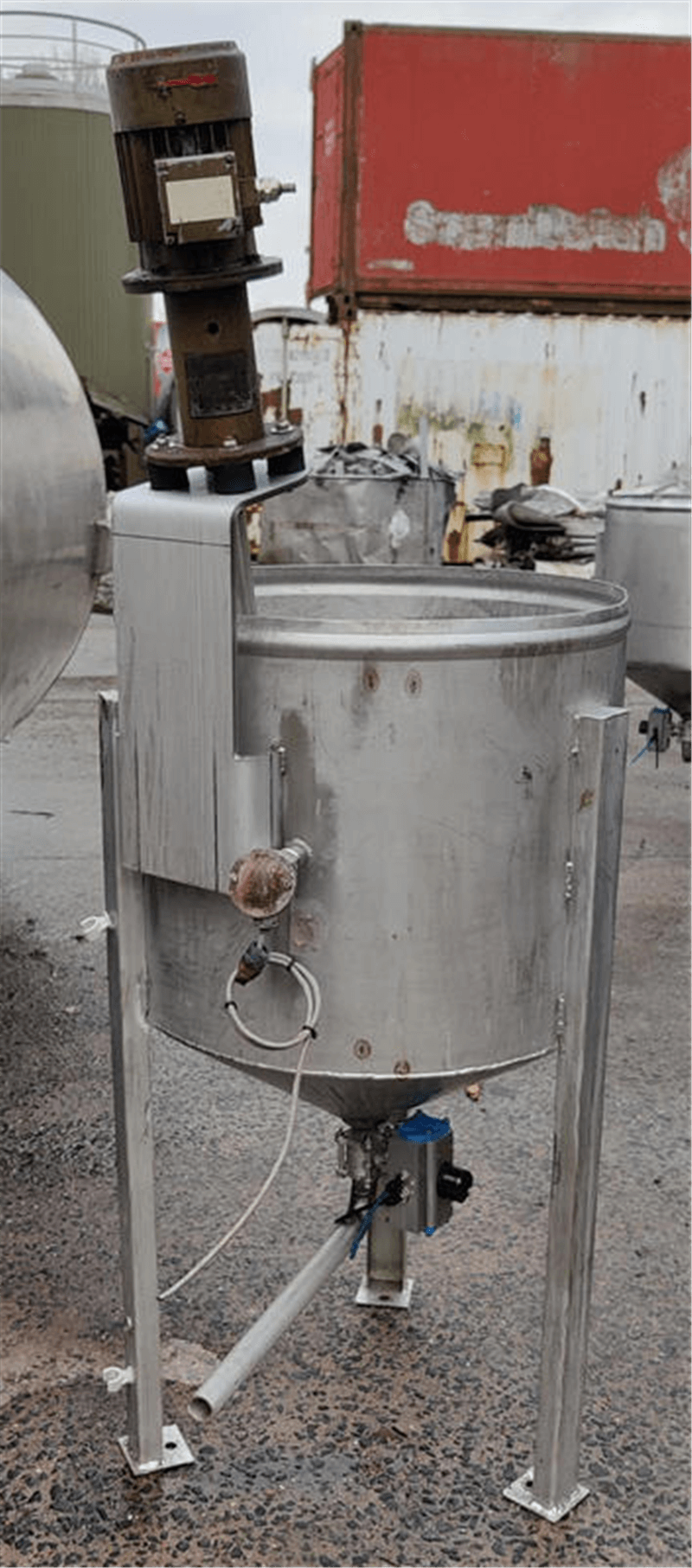

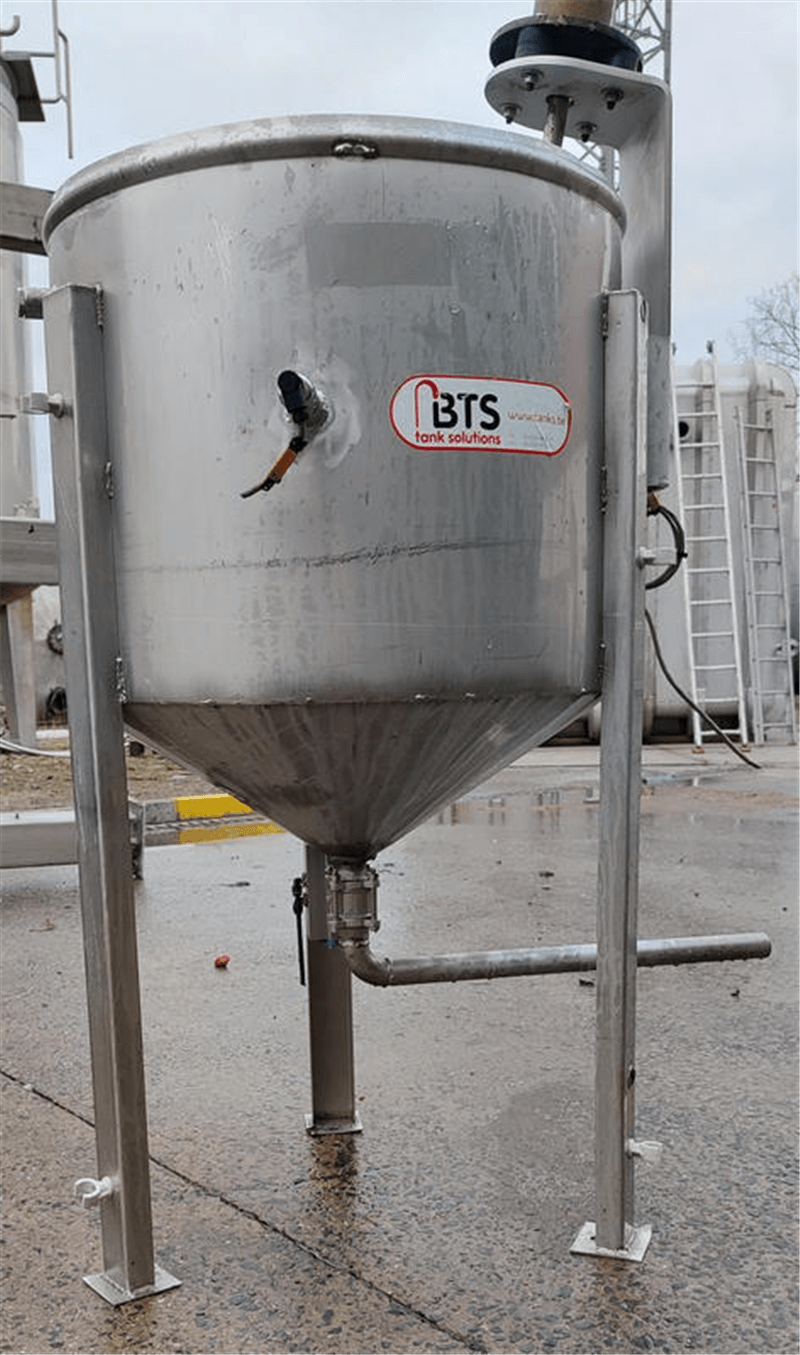

Used mixing vessel

  • Material: Stainless steel 304
  • Condition: Used
  • Volume (in litres): 150 L
  • In stock: 3
General
Item number 03.43.ID.14
Material Stainless steel 304
Finishing weldings inside Raw brushed
Number 3
Capacity (Liters) 150
Type tank Mixing vessel
Fixation 3 legs
Model of the tank Vertical
Shape of the tank Cylindrical
Bottom Conical bottom
Tank model Single wall
Tank with total drain? Yes
Type of outlet (s) 1" + pneumatische bolkraan
locality B-7711 Belgium
Last application Paint industry
Provision tank cleaning None
Weight (kg) 80
Condition Used
Type plate manufacturer No
03.43.ID.14 - Used mixing vessel
03.43.ID.14 - Used mixing vessel
03.43.ID.14 - Used mixing vessel
03.43.ID.14 - Used mixing vessel
03.43.ID.14 - Used mixing vessel
03.43.ID.14 - Used mixing vessel
03.43.ID.14 - Used mixing vessel
03.43.ID.14 - Used mixing vessel
03.43.ID.14 - Used mixing vessel
03.43.ID.14 - Used mixing vessel
03.43.ID.14 - Used mixing vessel
03.43.ID.14 - Used mixing vessel
Top side
Configuration top-side Open
Dimensions
Cylinder Thickness (mm) 2,2
Bottom thickness (mm) 2,1
Periphery (mm) 890
Cylindrical length (mm) 500
Height bottom (mm) 200
Total height (mm) 1650
Length (mm) 900
Diameter tank (mm) 595
Width (mm) 650
Insulation
Insulation No

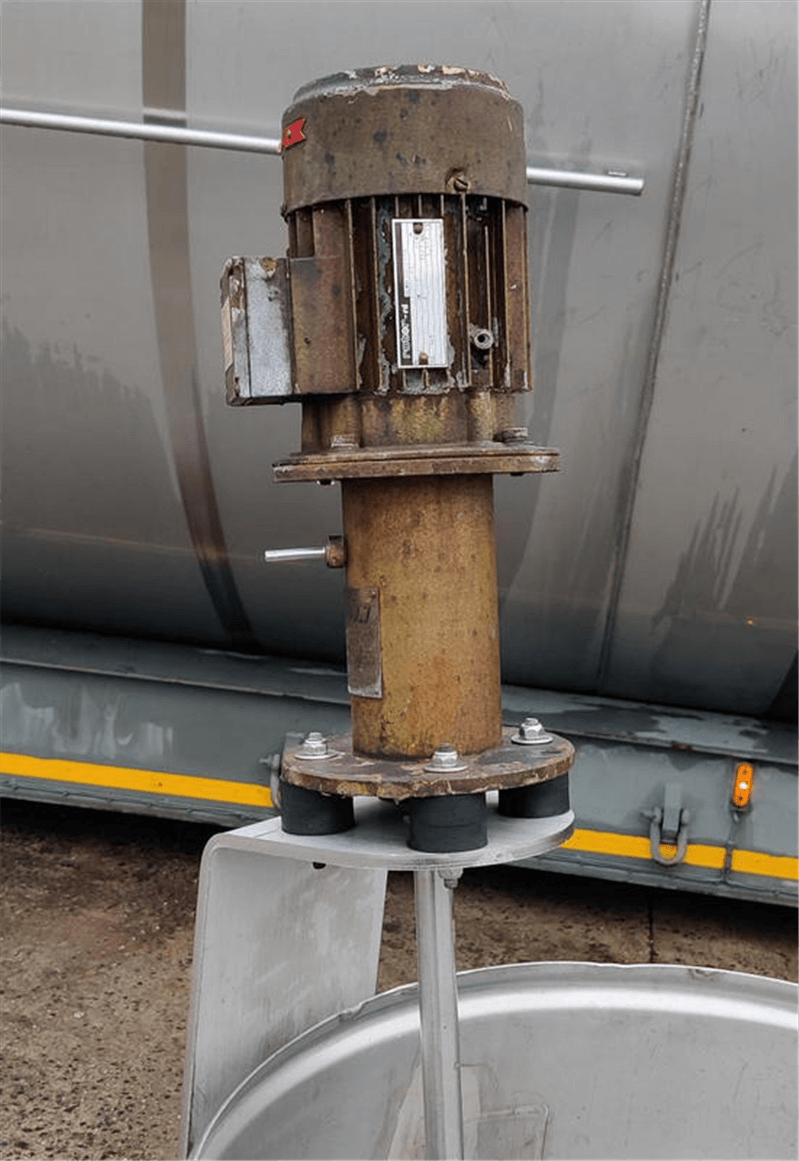

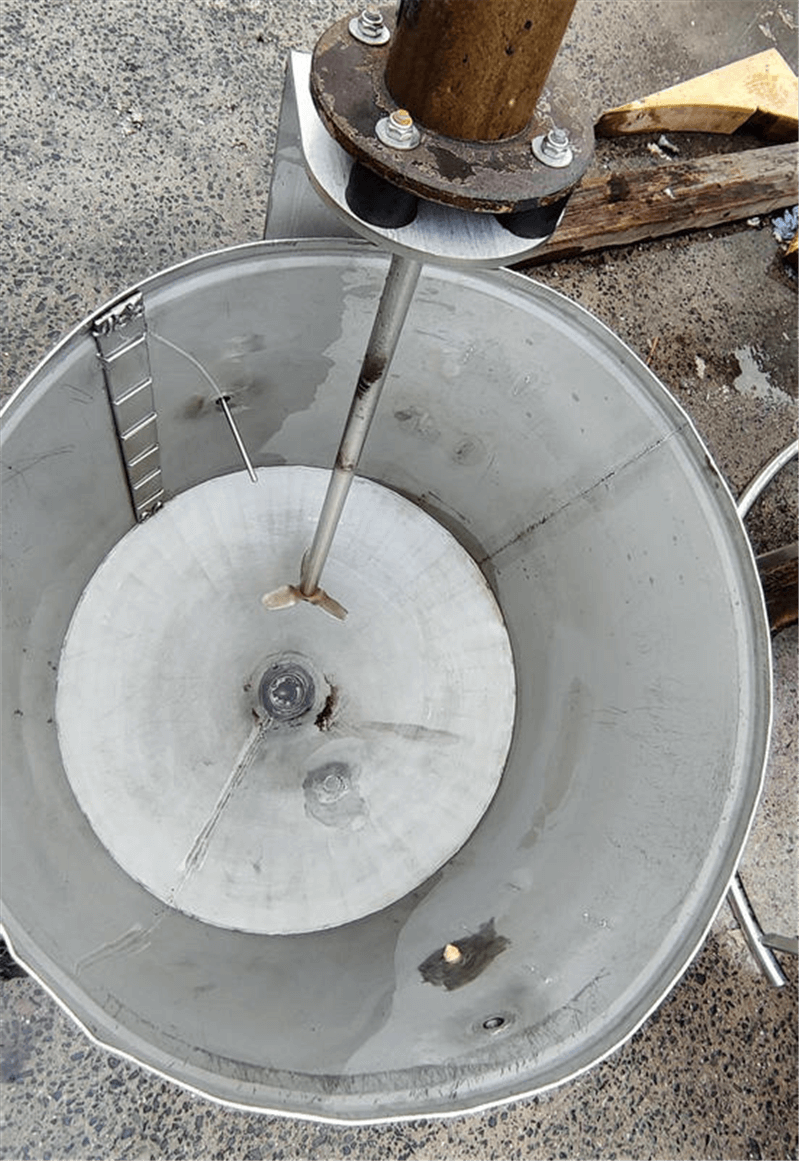

Agitators
Number of agitators 1
Agitator 1: Type Fast rotating mixer
Agitator 1: Position decentrally on the top
Agitator 1: stirring element type Propeller
Agitator 1: Length (mm) 700

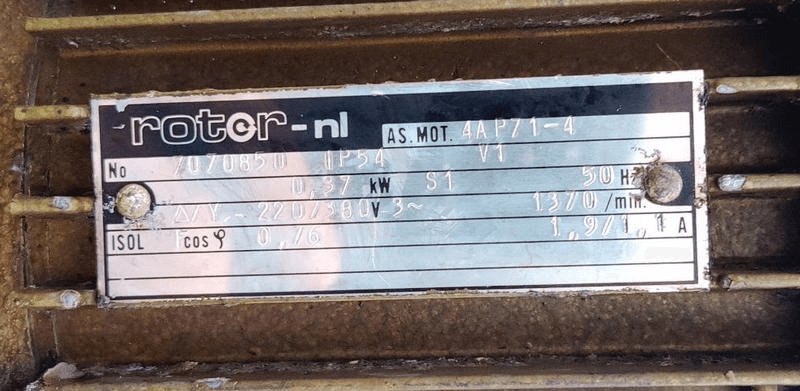

Agitator 1: Engine Type electric motor
Agitator 1: Voltage (V) 220/380
Agitator 1: Power (kw) 0,37
Agitator 1: Drive Type Direct
Agitator 1: Speed (r / min) 1370
