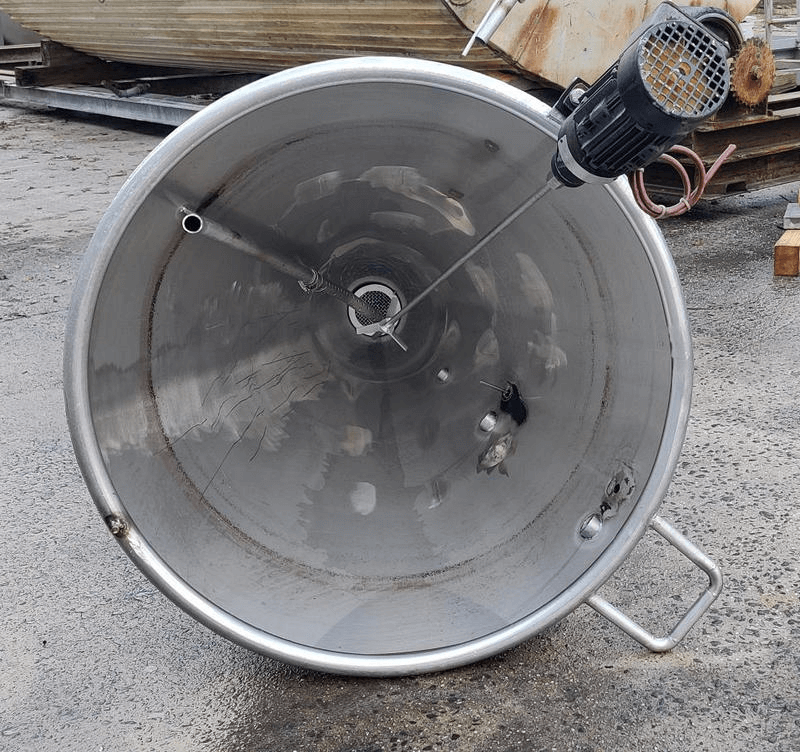

Used mixing vessel
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 190 L
- In stock: 4
| General | |
|---|---|
| Item number | 03.43.ID.02 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Grinded |
| Number | 4 |
| Capacity (Liters) | 190 |
| Type tank | Mixing vessel |
| Fixation | supports |
| Model of the tank | Vertical |
| Tank model | Single wall |

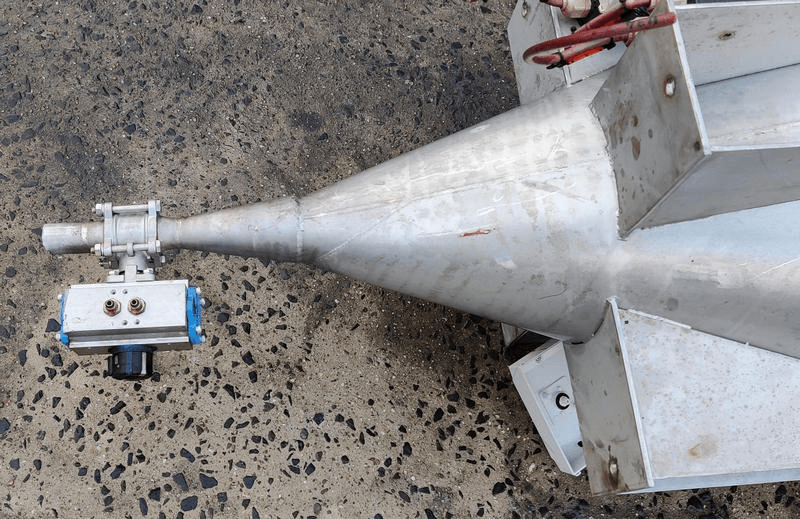

| Tank with total drain? | Yes |
| Diameter of outlet (mm) | dia 30mm -of- dia 65mm |
| locality | B-7711 Belgium |
| Last application | Paint industry |
| Provision tank cleaning | Spray tube (top) |
| Weight (kg) | 85 |
| Condition | Used |
| Type plate manufacturer | No |
| Top side | |
|---|---|
| Configuration top-side | Open |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 2,1 |
| Total height (mm) | 1800 |
| Width (mm) | 950 |
| Insulation | |
|---|---|
| Insulation | No |
| Agitators | |
|---|---|
| Number of agitators | 1 |
| Agitator 1: Type | Fast rotating mixer |
| Agitator 1: Position | decentrally on the top |
| Agitator 1: stirring element type | Propeller |
| Agitator 1: Length (mm) | 1000 |
| Agitator 1: Engine Type | electric motor |
| Agitator 1: Voltage (V) | 240 (D) / 380 (Y) |
| Agitator 1: Power (kw) | 0,25 |
| Agitator 1: Drive Type | Direct |
| Agitator 1: Speed (r / min) | 1380 |
