Used storage tank
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 10000 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.43.HG.15 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 10000 |
| Type tank | Storage tank |
| Fixation | 4 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

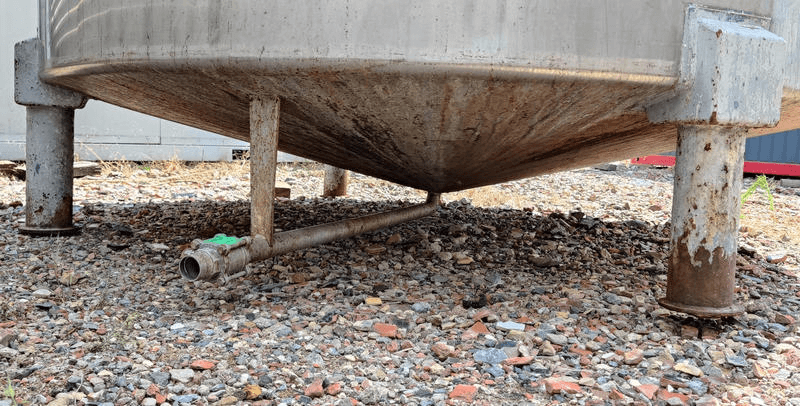

| Bottom | Conical bottom |
| Tank model | Single wall |
| Number of manhole | 2 |
| Position of manhole (s) | Top and Cylindrical part |
| Dimensions of manholes | dia 450mm / dia 400mm |
| Tank with total drain? | Yes |
| Diameter of outlet (mm) | 1 1/2" manuele vlinderkraan |
| locality | B-7711 Belgium |
| Last application | chemical industry |

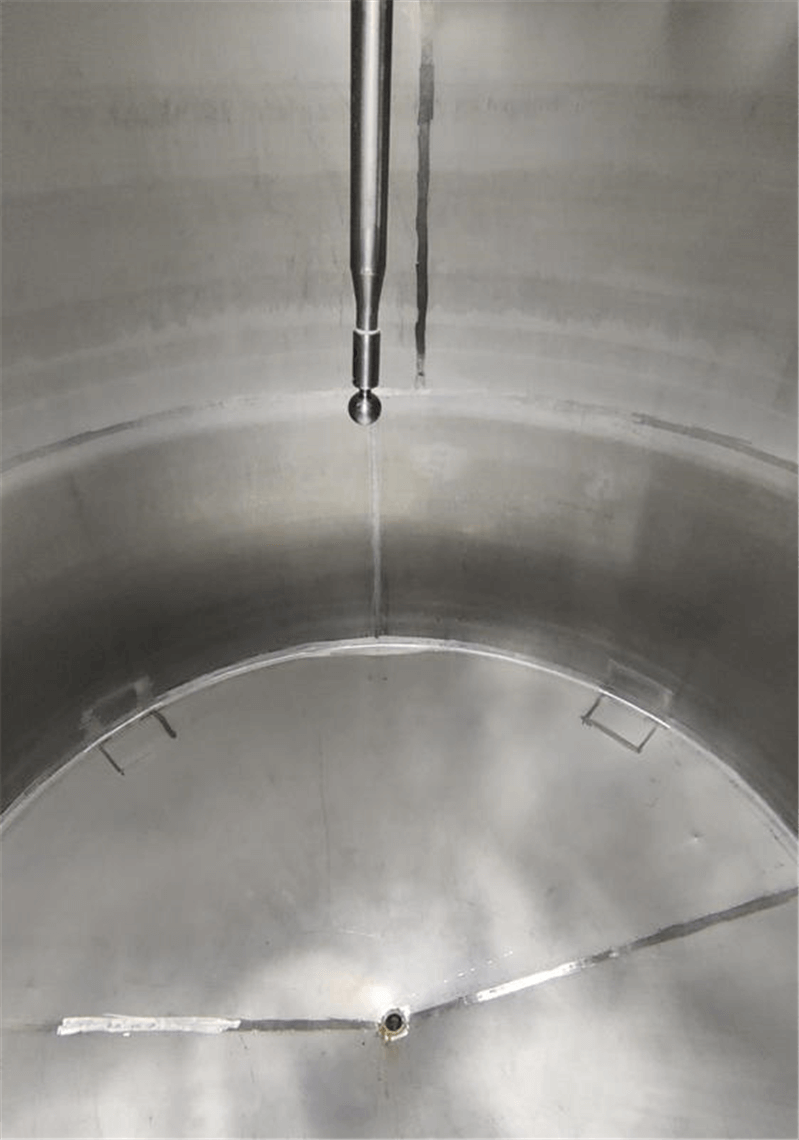

| Provision tank cleaning | CIP ball |
| Weight (kg) | 1100 |
| Condition | Used |

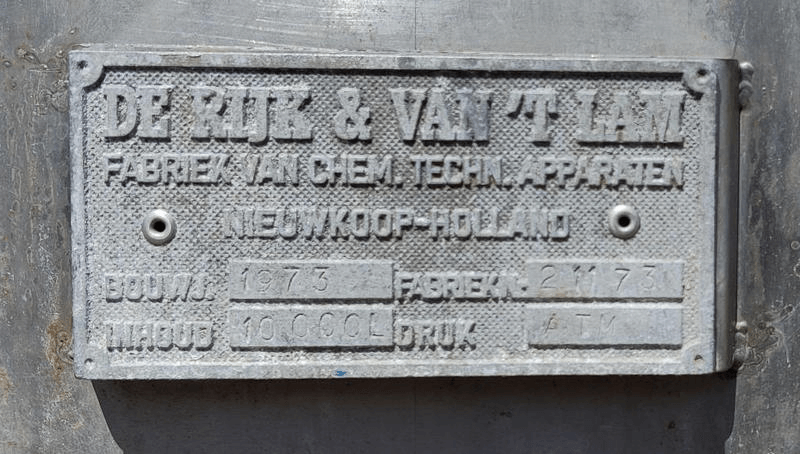

| Type plate manufacturer | Yes |
| Manufacturer | De Rijk & Van 't Lam |
| Year Built | 1973 |

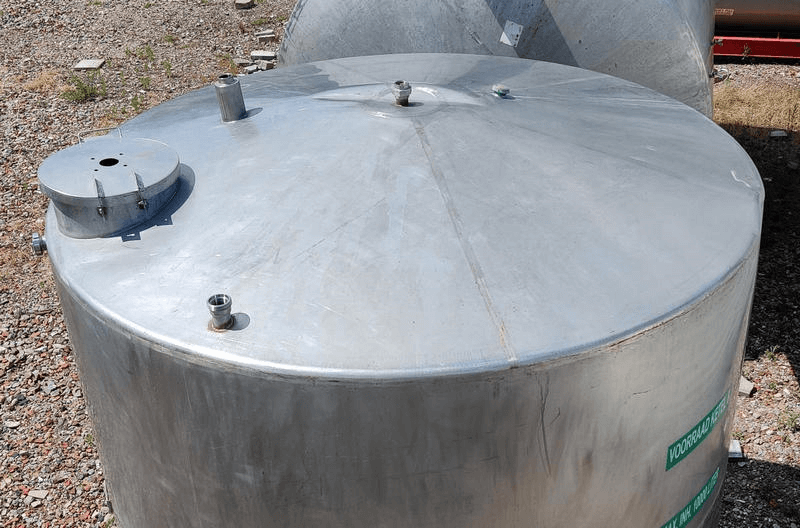

| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Thickness closed dome (mm) | 3,4 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 3,2 |
| Bottom thickness (mm) | 3,4 |
| Periphery (mm) | 7850 |
| Cylindrical length (mm) | 2000 |
| Height bottom (mm) | 300 |
| Total height (mm) | 2800 |
| Length (mm) | 2610 |
| Diameter tank (mm) | 2490 |
| Width (mm) | 2500 |
| Insulation | |
|---|---|
| Insulation | No |
