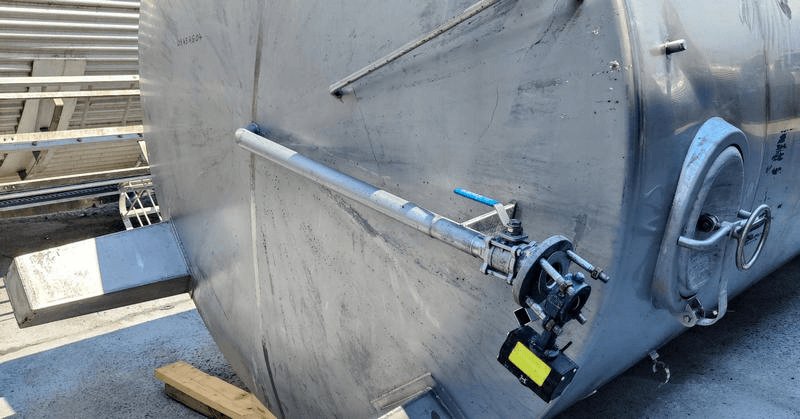

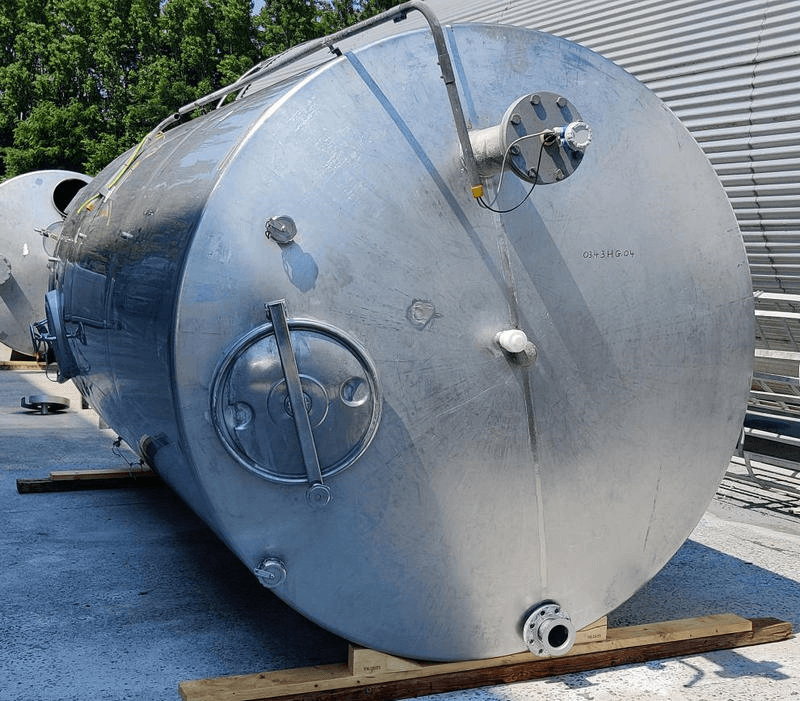

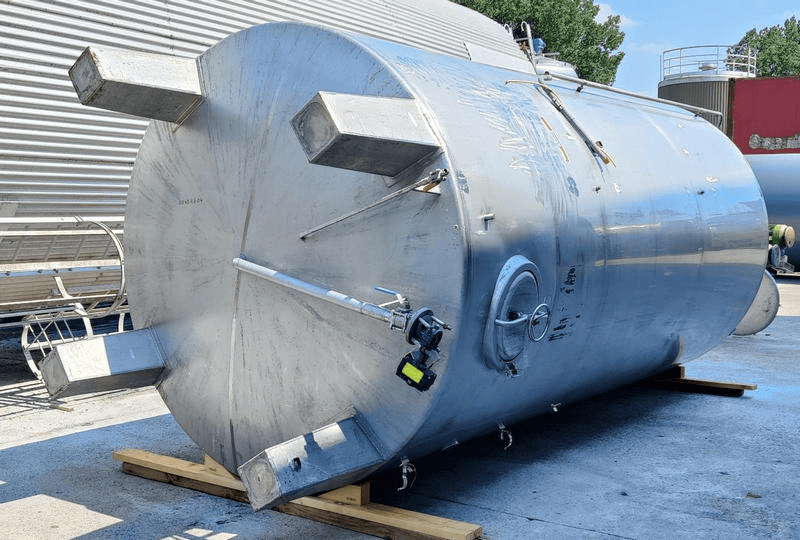

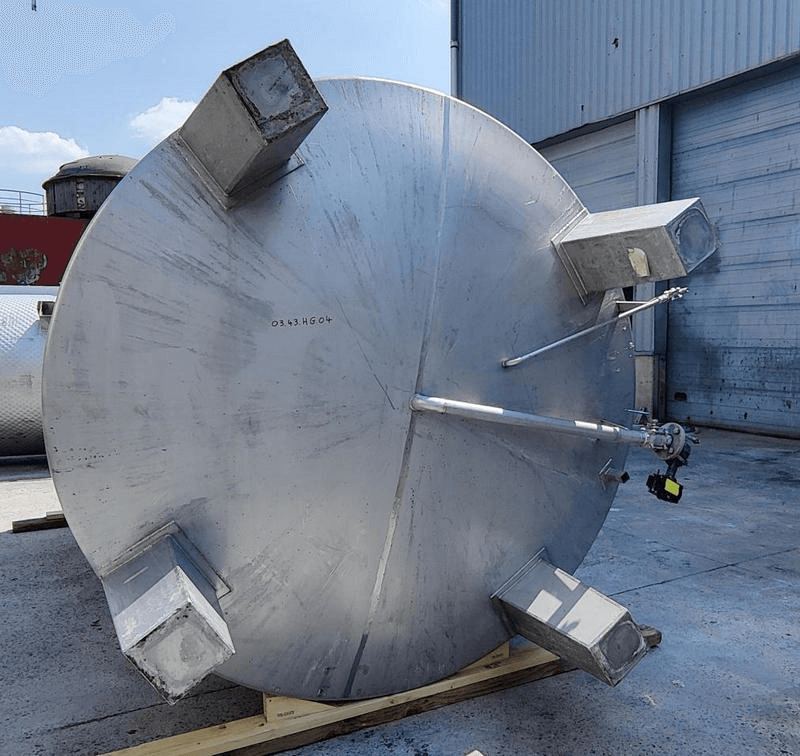

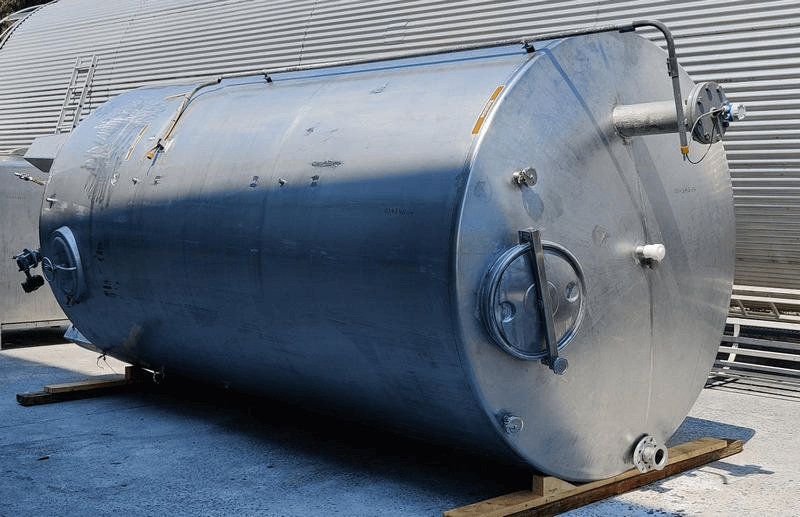

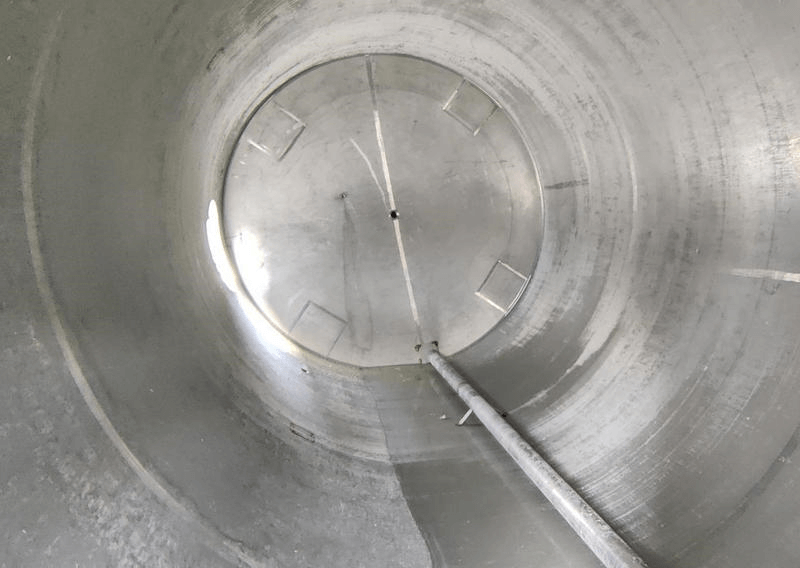

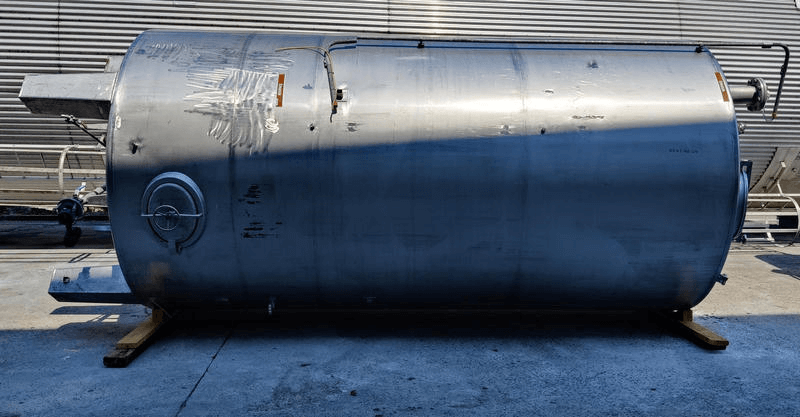

Used storage tank
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 19500 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.43.HG.04 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 19500 |
| Type tank | Storage tank |
| Fixation | 4 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Dished bottom |
| Tank model | Single wall |
| Number of manhole | 2 |
| Position of manhole (s) | Top and Cylindrical part |
| Dimensions of manholes | dia 510 / 345x445 |
| Tank with total drain? | Yes |
| Diameter of outlet (mm) | dia 50 + manuele bolkraan |
| locality | B-7711 Belgium |
| Last application | chemical industry |
| Provision tank cleaning | None |
| Weight (kg) | 1800 |
| Condition | Used |
| Type plate manufacturer | No |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Dished bottom |
| Thickness closed dome (mm) | 3,3 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 3,2 |
| Bottom thickness (mm) | 4,2 |
| Periphery (mm) | 7390 |
| Cylindrical length (mm) | 4350 |
| Height bottom (mm) | 250 |
| Total height (mm) | 5900 |
| Diameter tank (mm) | 2345 |
| Width (mm) | 2350 |
| Insulation | |
|---|---|
| Insulation | No |
