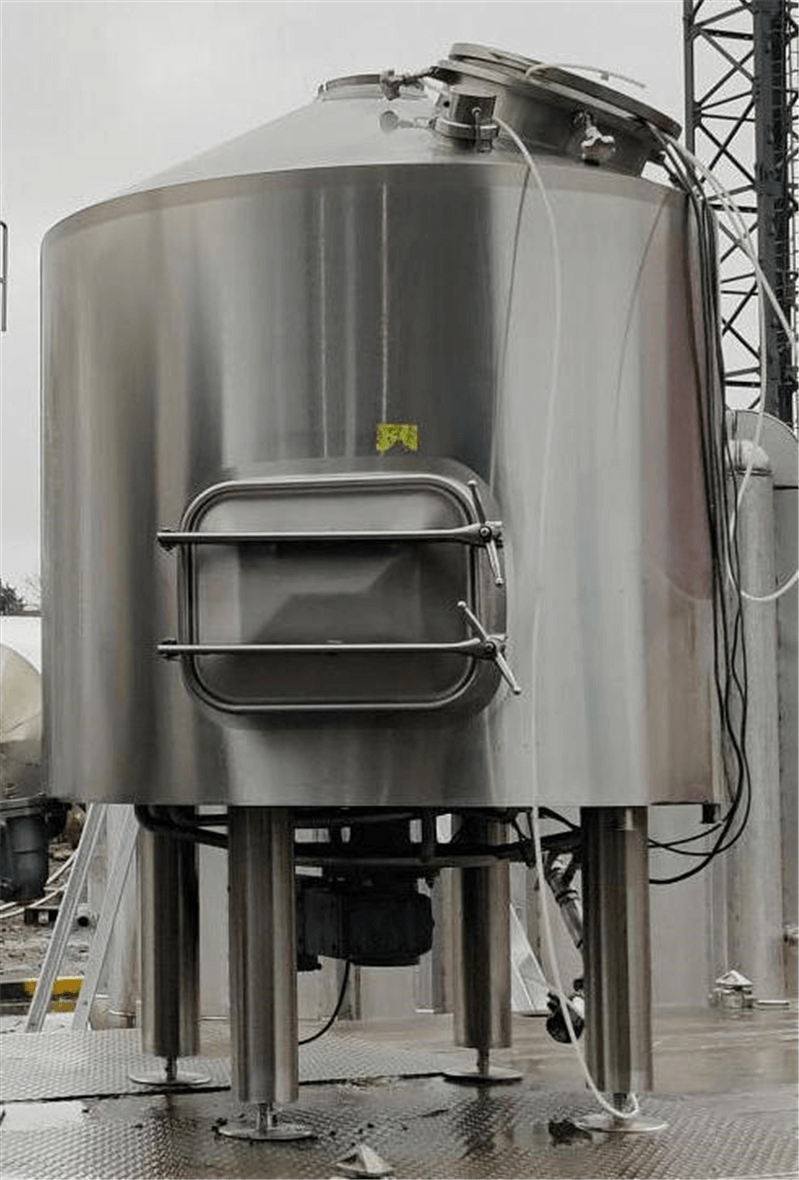

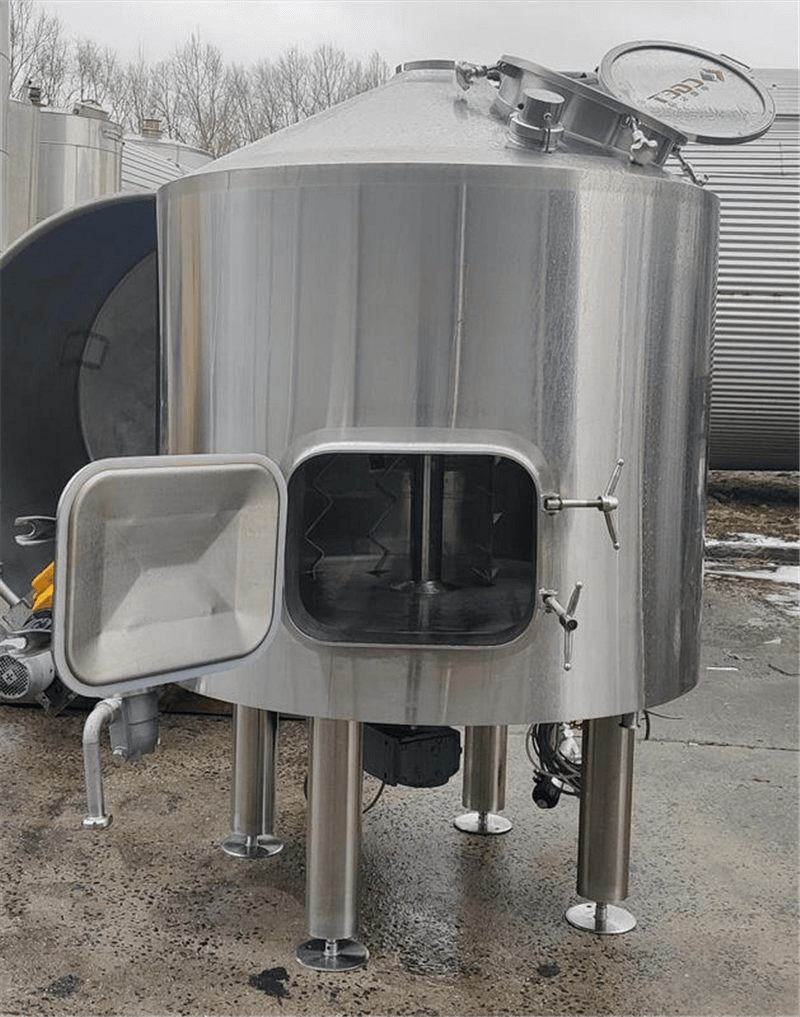

Used mixing vessel
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 1600 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.43.FE.02 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Raw brushed |
| Number | 1 |
| Capacity (Liters) | 1600 |
| Type tank | Mixing vessel |

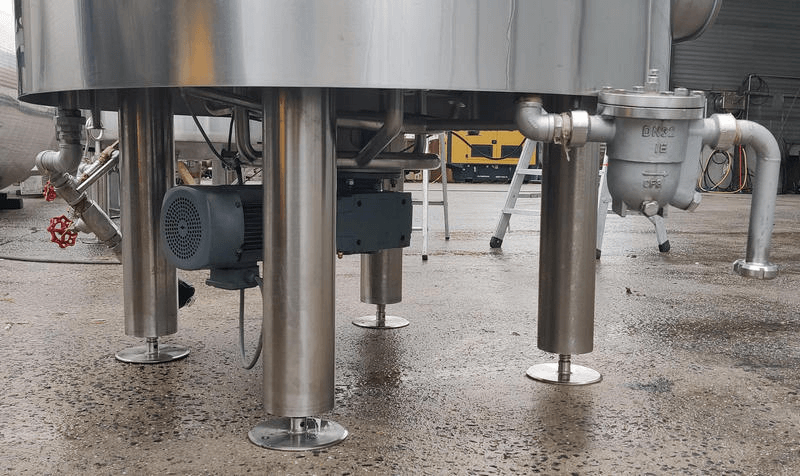

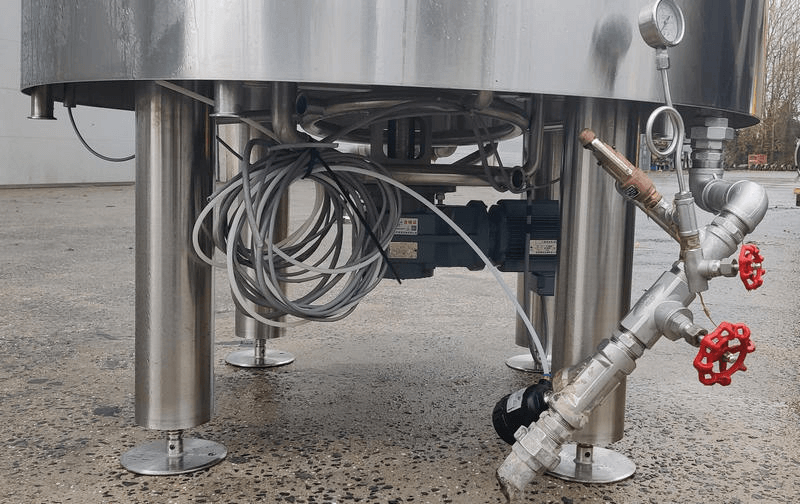

| Fixation | 4 legs |
| Shape of the tank | Cylindrical |
| Bottom | Flat bottom |
| Tank model | Jacketed (Heating/Cooling) |

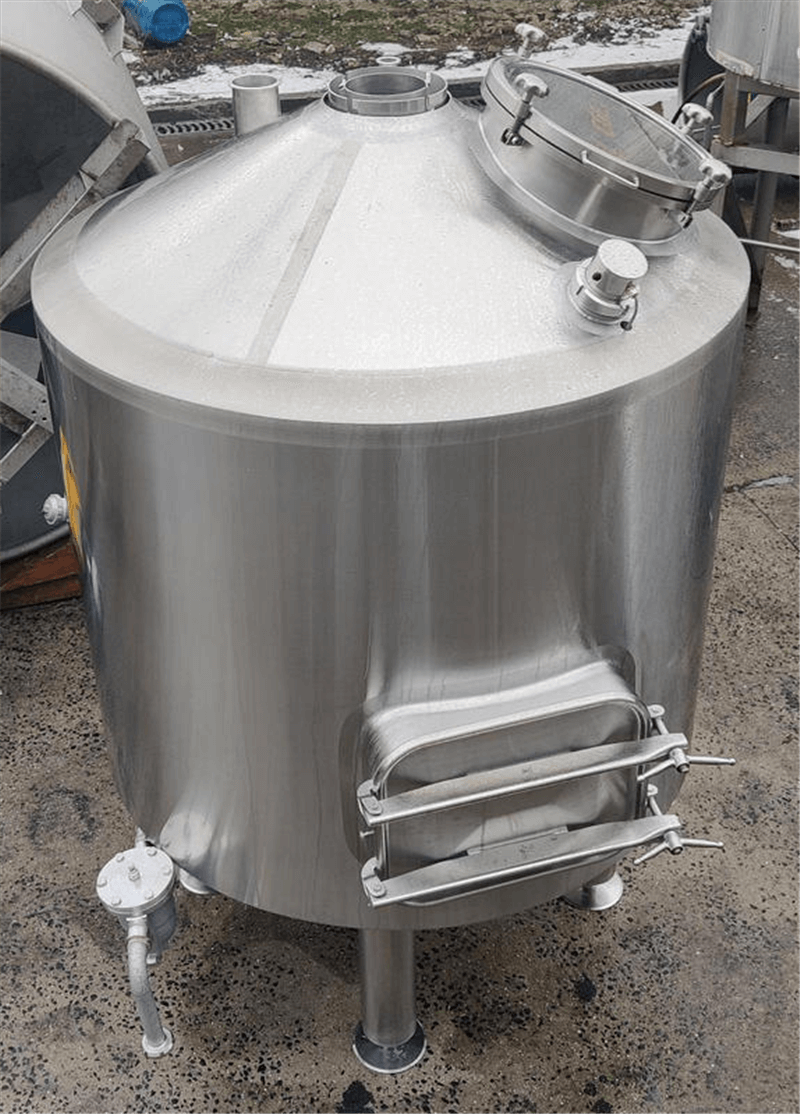

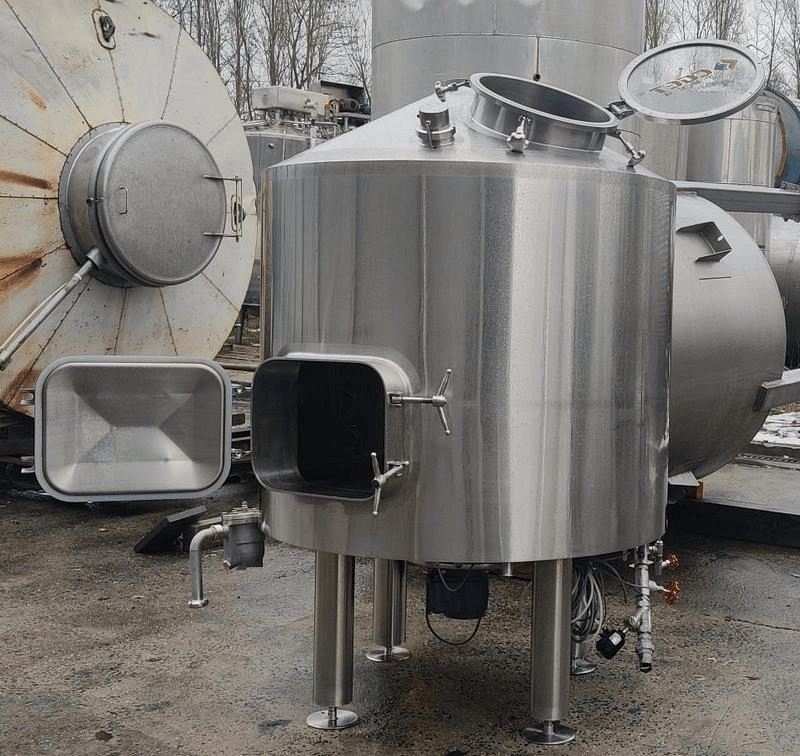

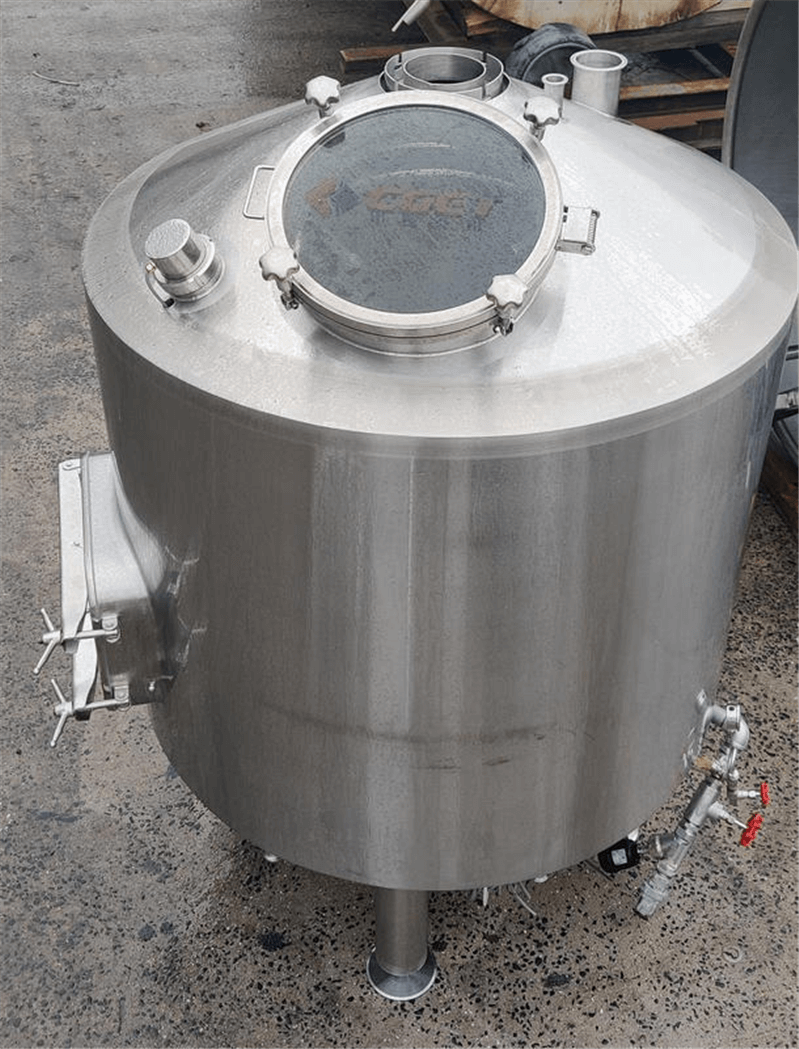

| Number of manhole | 2 |
| Position of manhole (s) | Top and Cylindrical part |
| Dimensions of manholes | dia 445mm --- 540 x 410mm |
| Tank with total drain? | Yes |
| Type of outlet (s) | 2 ringleidingen dia 32mm |
| locality | B-7711 Belgium |
| Last application | Food |

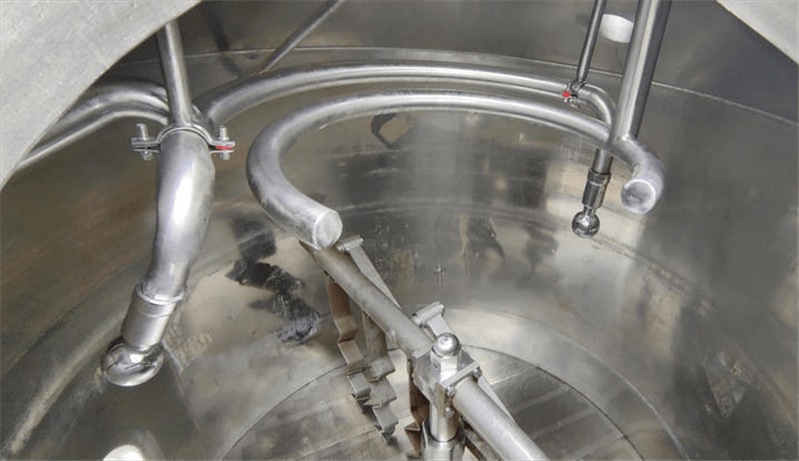

| Provision tank cleaning | CIP ball |
| Weight (kg) | 650 |
| Condition | Used |
| Type plate manufacturer | No |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 2,6 |
| Periphery (mm) | 4600 |
| Cylindrical length (mm) | 1200 |
| Outside diameter tank (mm) | 1465 |
| Total height (mm) | 2200 |
| Diameter tank (mm) | 1300 |
| Width (mm) | 1715 |
| Insulation | |
|---|---|
| Insulation | Yes |
| Performance insulation | Only cylindrical portion isolated |
| Thickness (mm) | 80 |
| Finishing insulation | fully welded cladding |
| Insulation material | Stainless steel 304 |
| Heating | |
|---|---|
| Number of heating type | 1 |
| Heating 1: Type | jacket au bain-marie |

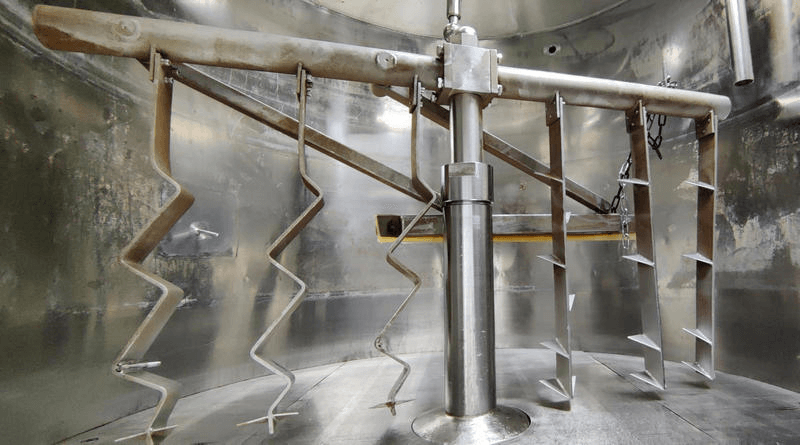

| Agitators | |
|---|---|
| Number of agitators | 1 |

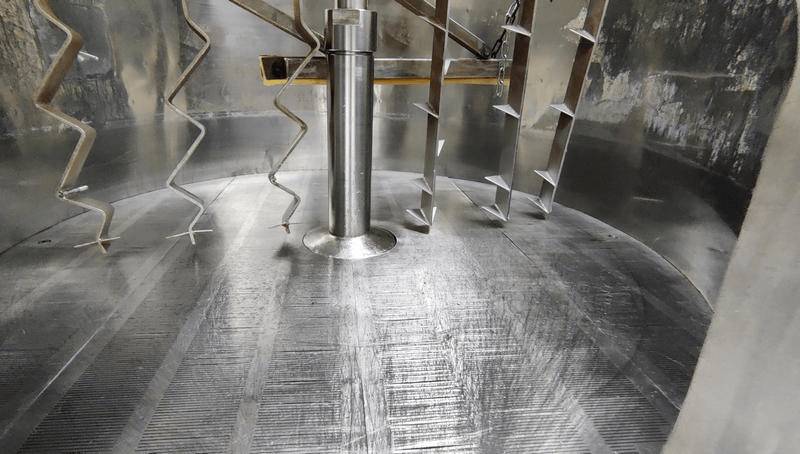

| Agitator 1: Type | anchor without scrapers |
| Agitator 1: Position | Centrally in the bottom |
| Agitator 1: stirring element type | Anchor |
| Agitator 1: Length (mm) | 600 |

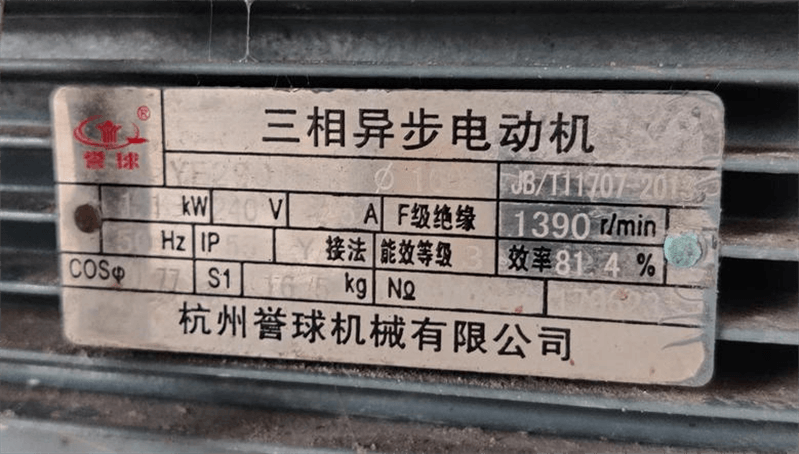

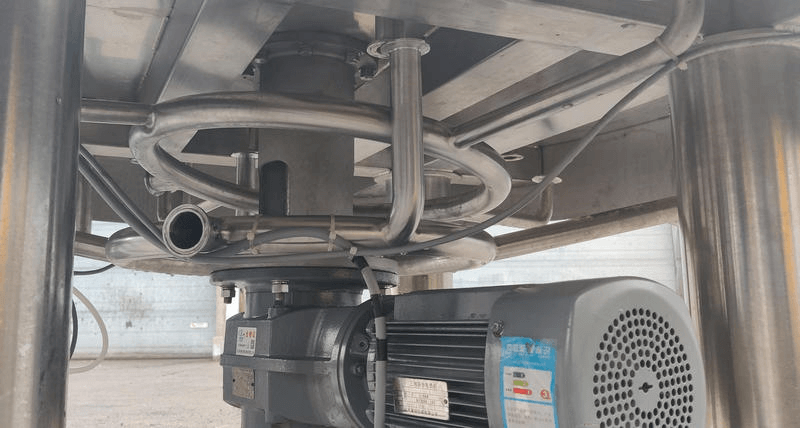

| Agitator 1: Engine Type | electric motor |
| Agitator 1: Voltage (V) | 240 |
| Agitator 1: Power (kw) | 1,1 |

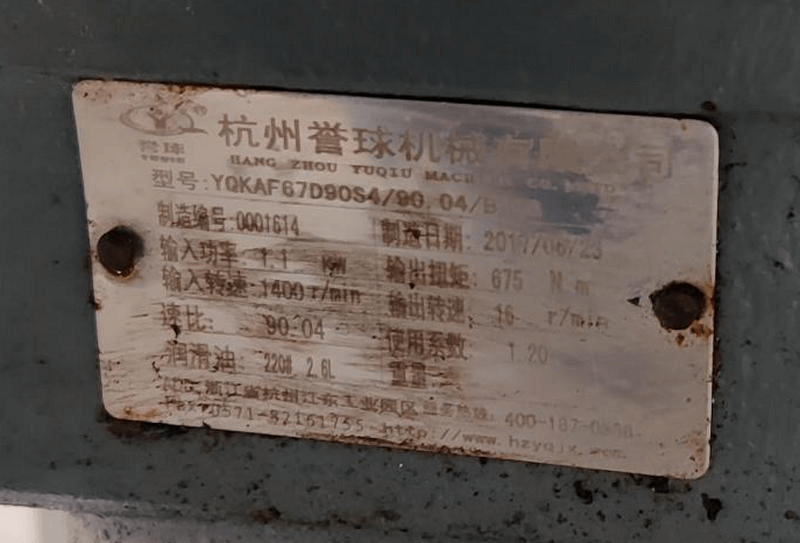

| Agitator 1: Drive Type | Reductor |
| Agitator 1: Speed (r / min) | 16 |
