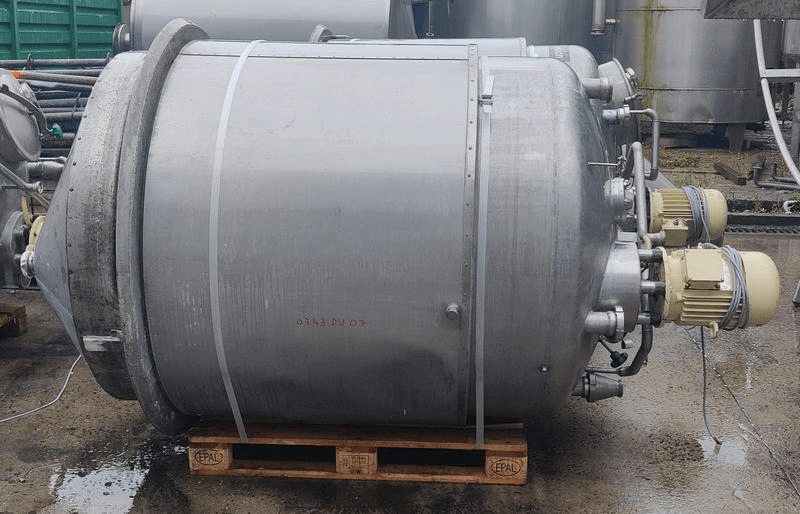

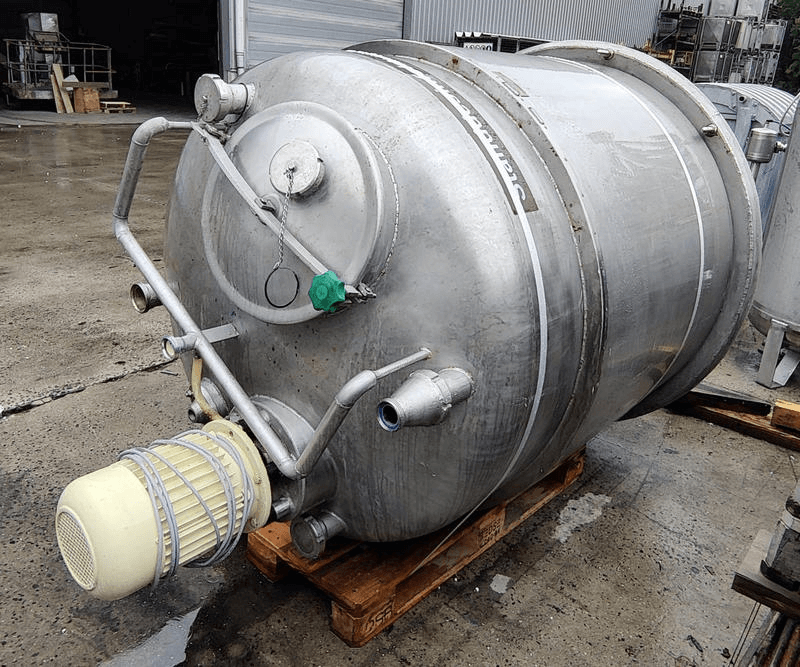

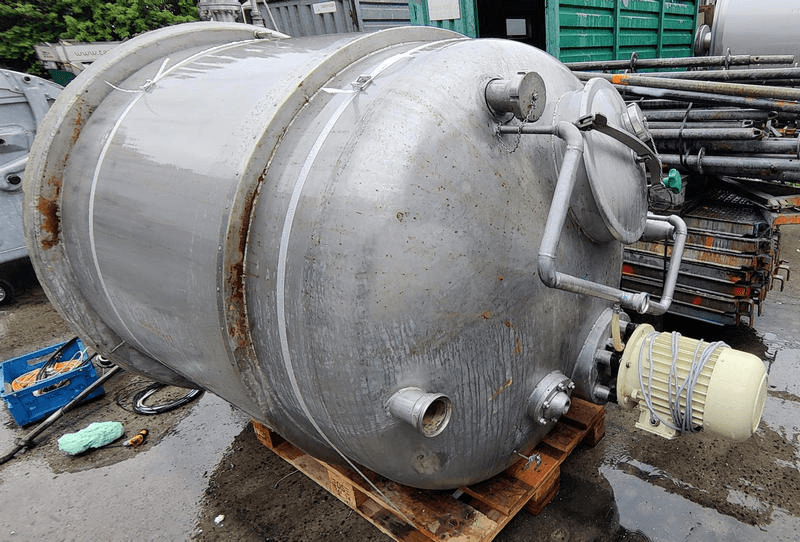

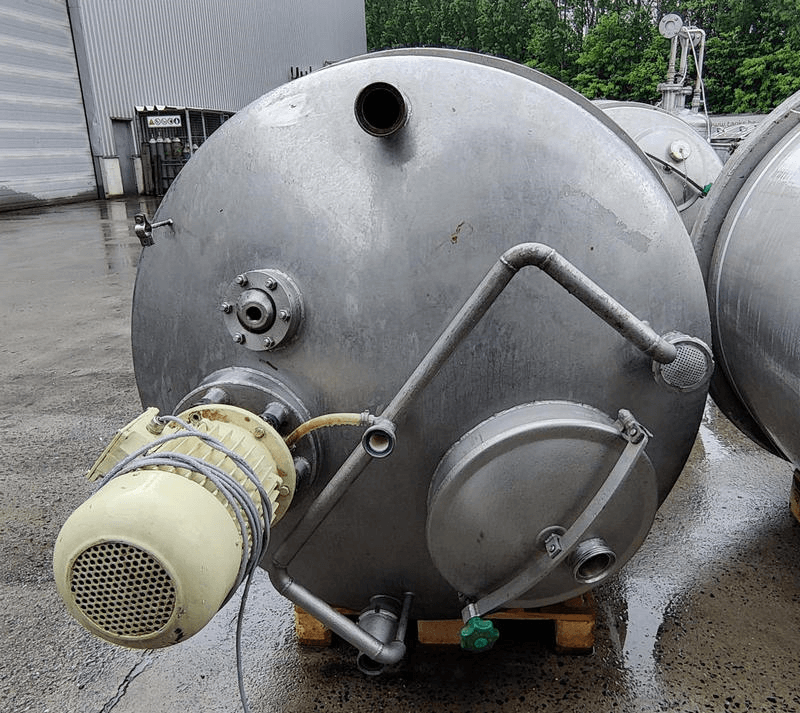

Used mixing vessel

  • Material: Stainless steel 304
  • Condition: Used
  • Volume (in litres): 2300 L
  • In stock: 3
General
Item number 03.43.DU.07
Material Stainless steel 304
Finishing weldings inside Raw brushed
Number 3
Capacity (Liters) 2300
Type tank Mixing vessel
Model of the tank Vertical
Shape of the tank Cylindrical

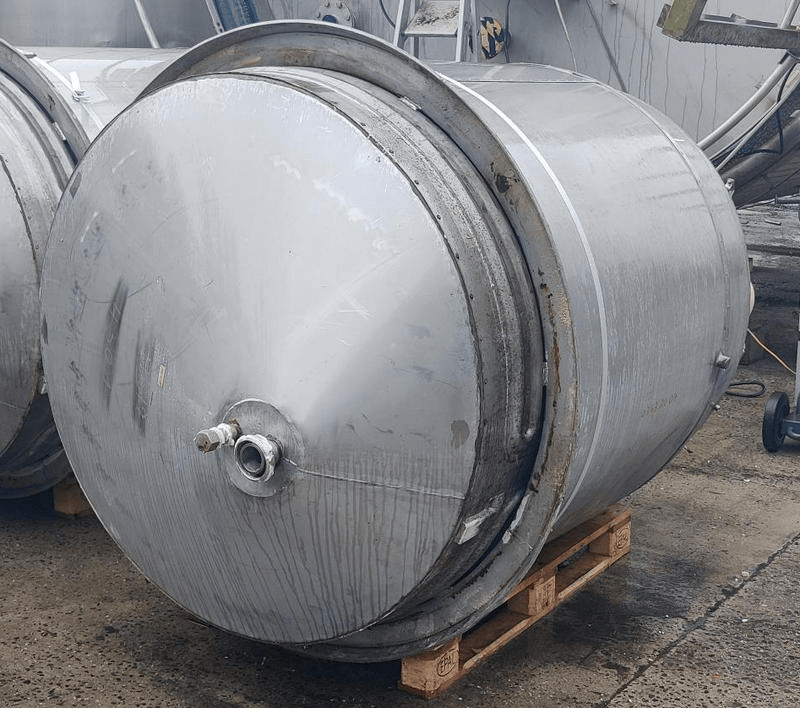

Bottom Conical bottom
Tank model Jacketed (Heating/Cooling)
Number of manhole 1
Position of manhole (s) Top
Dimensions of manholes 430
Tank with total drain? Yes
Diameter of outlet (mm) DN50
locality B-7711 Belgium
Provision tank cleaning CIP ball
Weight (kg) 500
Condition Used

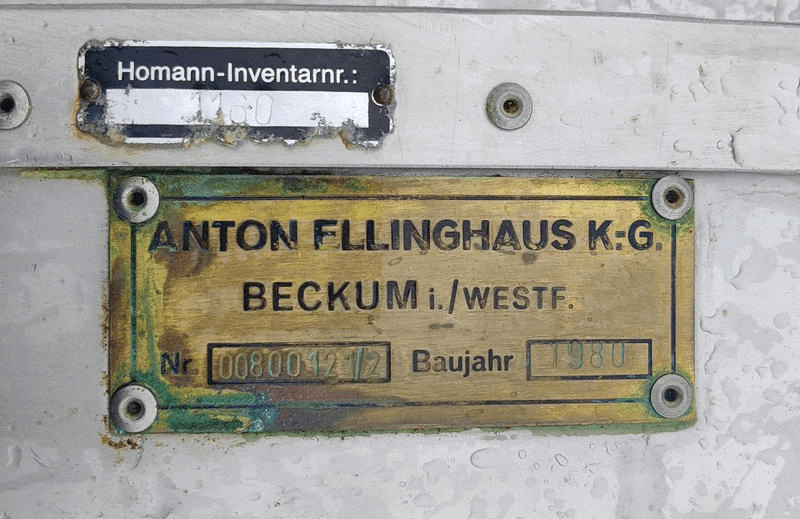

Type plate manufacturer Yes
Manufacturer Anton Ellinghaus K.G.
Year Built 1980
03.43.DU.07 - Used mixing vessel
03.43.DU.07 - Used mixing vessel
03.43.DU.07 - Used mixing vessel
03.43.DU.07 - Used mixing vessel
03.43.DU.07 - Used mixing vessel
03.43.DU.07 - Used mixing vessel
03.43.DU.07 - Used mixing vessel
03.43.DU.07 - Used mixing vessel
03.43.DU.07 - Used mixing vessel
03.43.DU.07 - Used mixing vessel
03.43.DU.07 - Used mixing vessel
03.43.DU.07 - Used mixing vessel
03.43.DU.07 - Used mixing vessel
03.43.DU.07 - Used mixing vessel
03.43.DU.07 - Used mixing vessel
03.43.DU.07 - Used mixing vessel
03.43.DU.07 - Used mixing vessel
03.43.DU.07 - Used mixing vessel
Top side
Configuration top-side Closed
Detail closed top side Dished bottom
Thickness closed dome (mm) 3
Dimensions
Cylinder Thickness (mm) 2,6
Bottom thickness (mm) 2,1
Periphery (mm) 4100
Cylindrical length (mm) 1500
Height bottom (mm) 250
Outer wall thickness (mm) 40
Total height (mm) 2600
Diameter tank (mm) 1300
Width (mm) 1600
Insulation
Insulation No
Heating
Number of heating type 1
Heating 1: Type Halfpipe
Agitators
Number of agitators 1

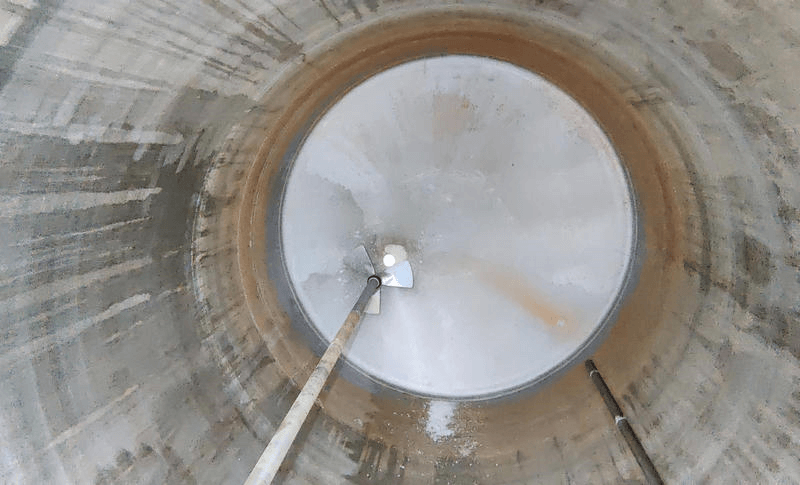

Agitator 1: Type Slowly rotating mixer
Agitator 1: Position decentrally on the top
Agitator 1: stirring element type Propeller
Agitator 1: Length (mm) 1800

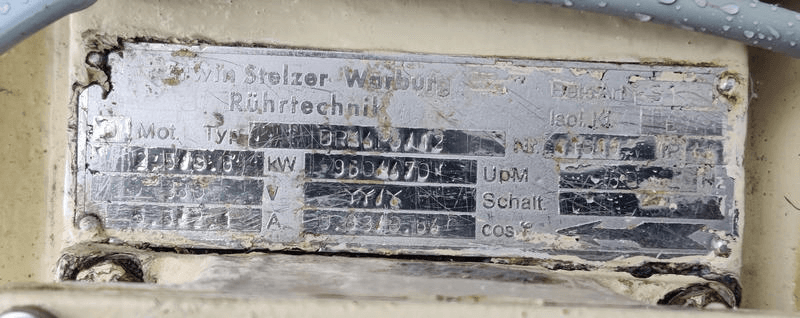

Agitator 1: Engine Type electric motor
Agitator 1: Voltage (V) 380
Agitator 1: Power (kw) 2,5
Agitator 1: Drive Type Direct
Agitator 1: Speed (r / min) 960/470
