New storage tank
- Material: Stainless steel 304
- Condition: New
- Volume (in litres): 118700 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.43.DU.03 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Grinded |
| Number | 1 |
| Capacity (Liters) | 118700 |
| Type tank | Storage tank |
| Fixation | 4 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

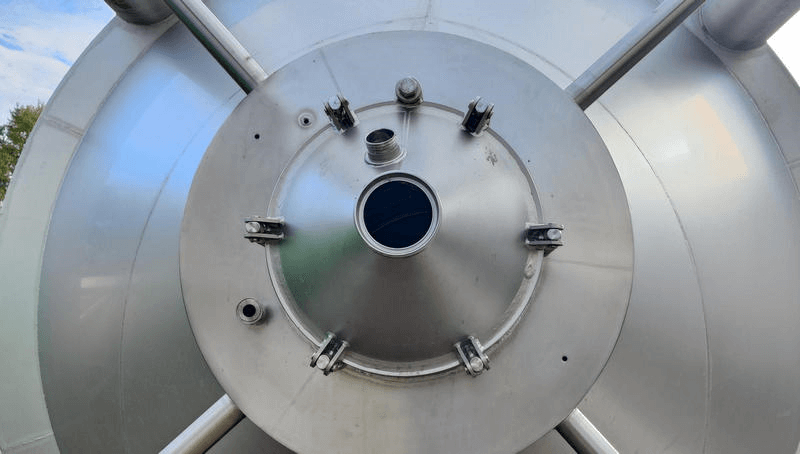

| Bottom | Conical bottom |
| Tank model | Jacketed (Heating/Cooling) |
| Number lifting lugs | 2 |
| Density (kg/dm³) | 1,05 |
| Number of manhole | 2 |
| Position of manhole (s) | Top and bottom |
| Dimensions of manholes | blokflens DN600 / conusflens Ø450mm |
| Tank with total drain? | Yes |
| Diameter of outlet (mm) | DN450 |
| locality | B-7711 Belgium |
| Provision tank cleaning | CIP ball |
| Weight (kg) | 10500 |
| Condition | New |
| Type plate manufacturer | Yes |
| Manufacturer | M. Roth GmbH & Co Kg |
| Year Built | 2022 |
| Construction data available | Yes |
| Drawing 1 | 0343DU01_tekening.pdf |
| Top side | |
|---|---|
| Configuration top-side | Closed |

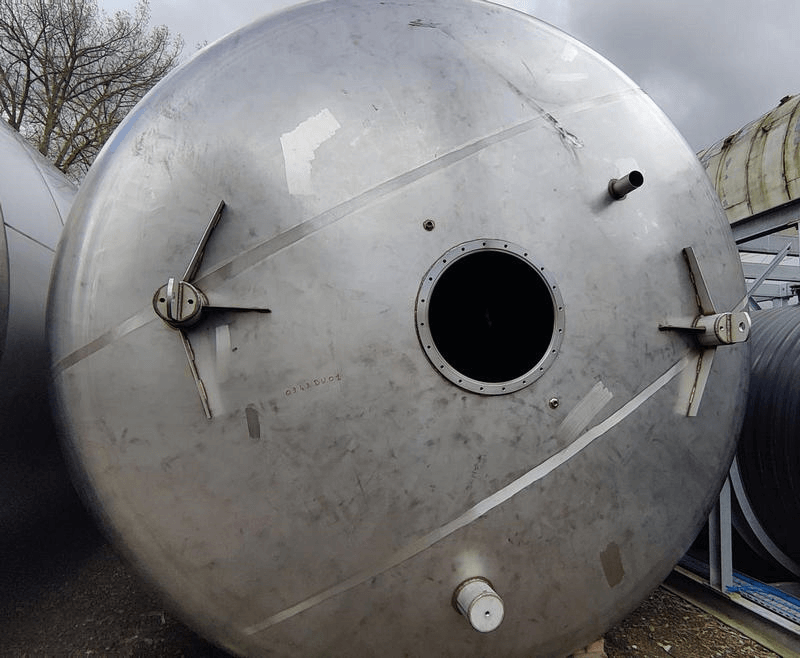

| Detail closed top side | Dished bottom |
| Thickness closed dome (mm) | 3 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 3 |
| Bottom thickness (mm) | 6 |
| Cylindrical length (mm) | 8500 |
| Slope bottom (°) | 55 |
| Height bottom (mm) | 2409 |
| Outside diameter tank (mm) | 4100 |
| Total height (mm) | 14100 |
| Diameter tank (mm) | 3900 |
| Width (mm) | 4100 |
| Insulation | |
|---|---|
| Insulation | No |
| Heating | |
|---|---|
| Number of heating type | 5 |
| Heating 1: Type | Dimple plate |
| Heating 1: Max. design pressure °C | 40 |
