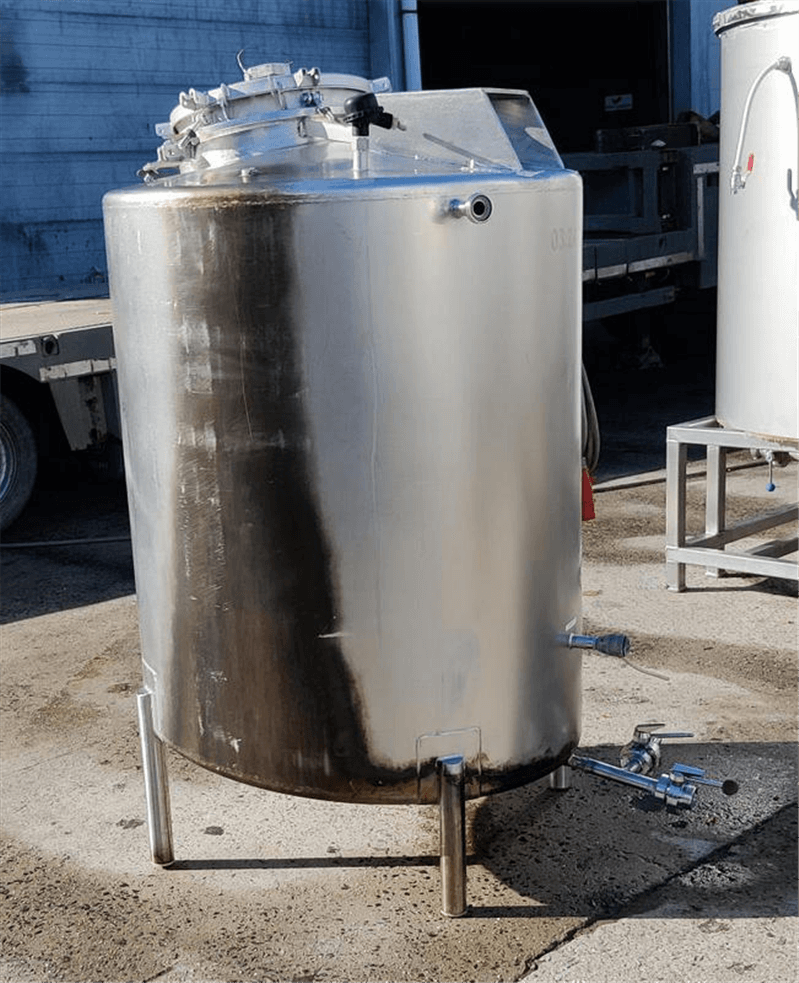

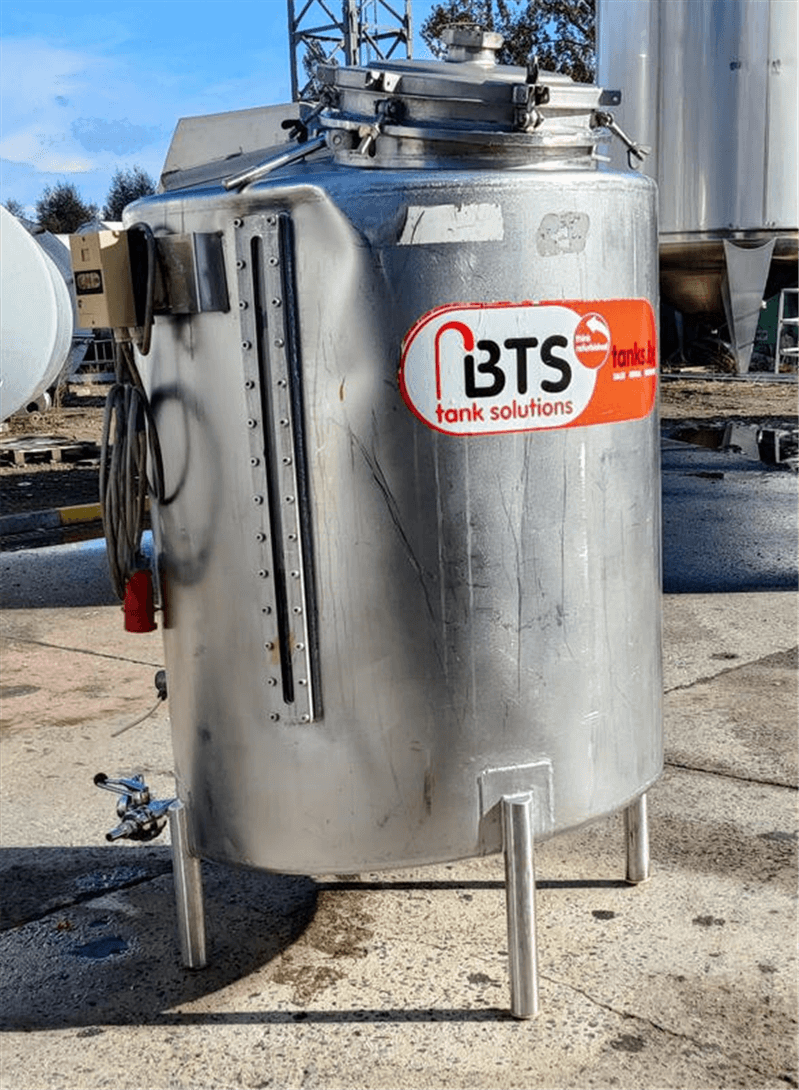

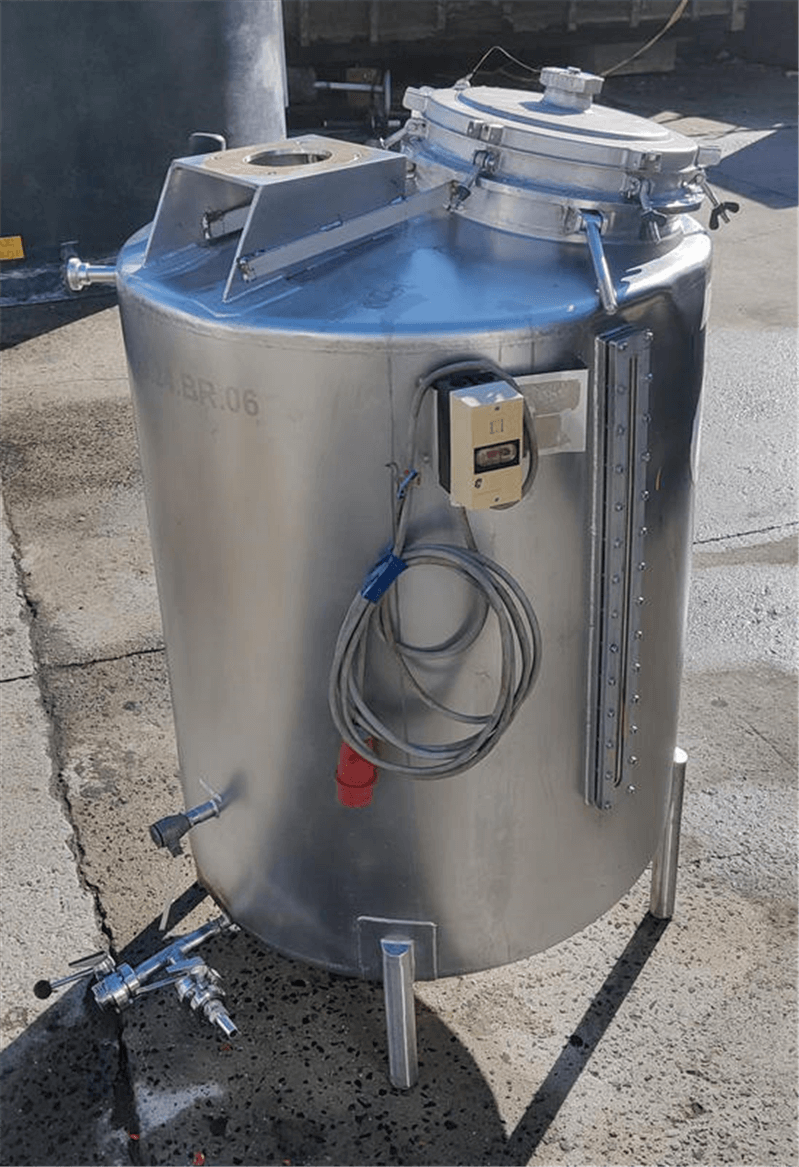

Used storage tank
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 770 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.43.BO.03 |
| Material | Stainless steel 304 |
| Finishing weldings inside | Raw brushed |
| Number | 1 |
| Capacity (Liters) | 770 |
| Type tank | Storage tank |

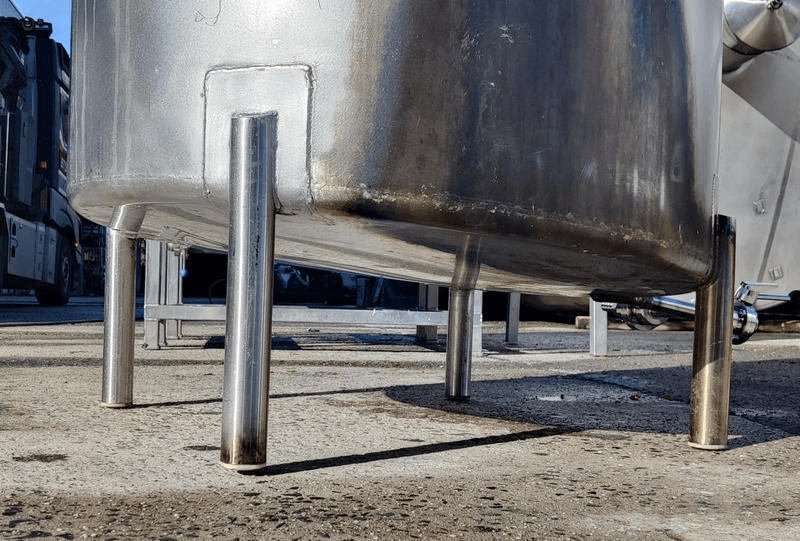

| Fixation | 4 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |

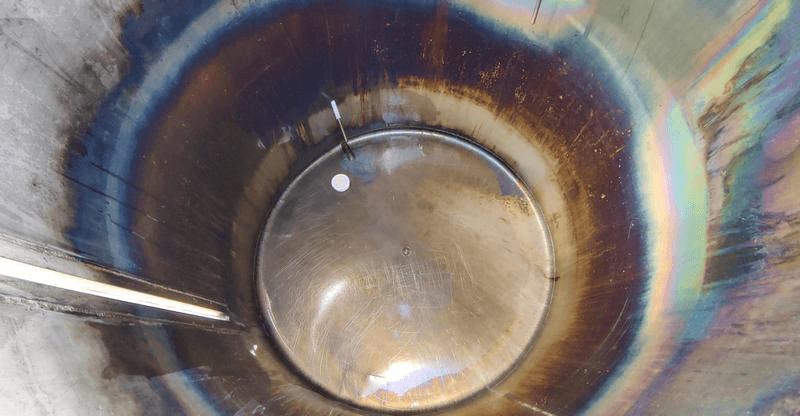

| Bottom | Inclined bottom |
| Tank model | Single wall |
| Number of manhole | 1 |
| Position of manhole (s) | Top |
| Dimensions of manholes | dia 400mm |
| Tank with total drain? | Yes |

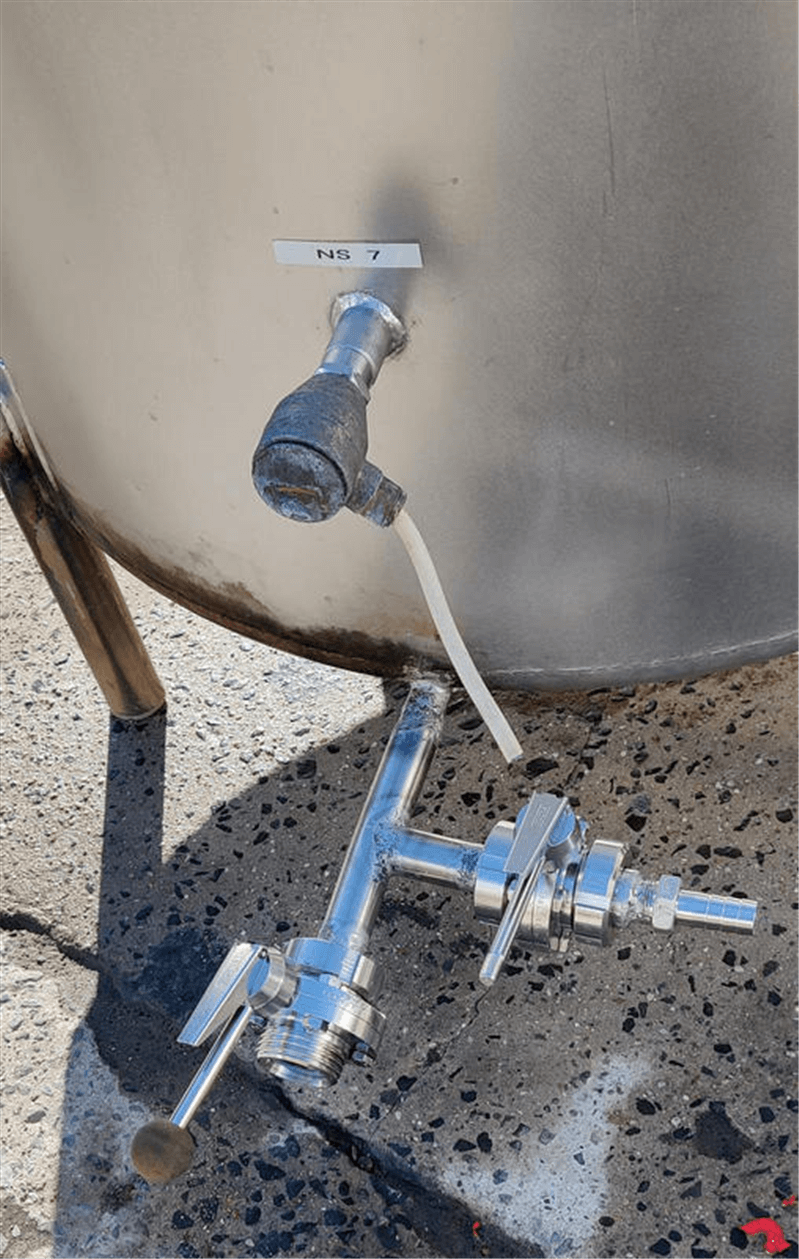

| Type of outlet (s) | DN25 (manuele vlinderklep) |
| locality | B-7711 Belgium |
| Last application | chemical industry |
| Provision tank cleaning | None |
| Weight (kg) | 250 |
| Condition | Used |
| Type plate manufacturer | No |
| Drawing 1 | t0324BR06.pdf |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Conical bottom |
| Thickness closed dome (mm) | 2,1 |
| Dimensions | |
|---|---|
| Cylinder Thickness (mm) | 2,1 |
| Bottom thickness (mm) | 2,2 |
| Periphery (mm) | 3000 |
| Cylindrical length (mm) | 1120 |
| Slope bottom (°) | 6 |
| Total height (mm) | 1700 |
| Length (mm) | 1300 |
| Diameter tank (mm) | 950 |
| Width (mm) | 1000 |
| Insulation | |
|---|---|
| Insulation | No |
