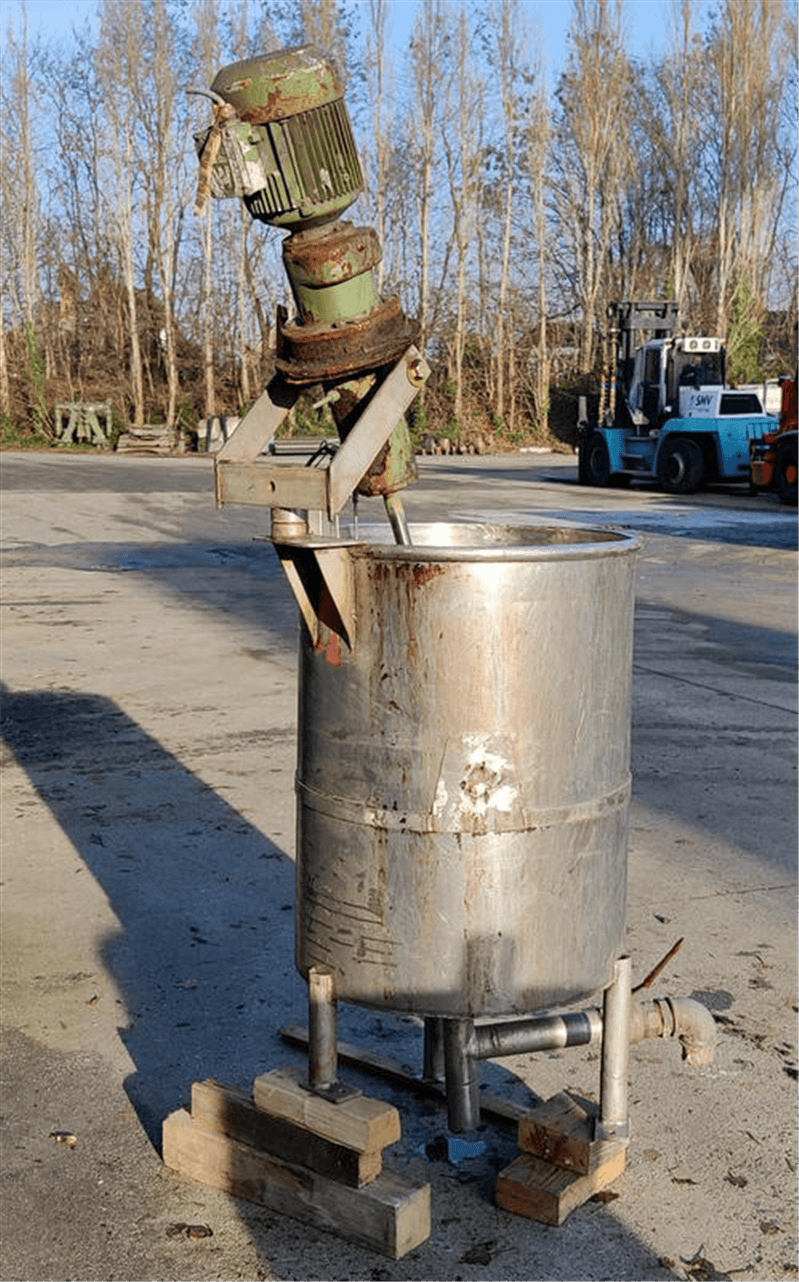

Used mixing vessel

  • Material: Stainless steel 304
  • Condition: Used
  • Volume (in litres): 230 L
  • In stock: 1
General
Material Stainless steel 304
Number 1
Group Tank
Co-owner Belgian Tanks Solutions
Condition Used
Show Online? Yes
03.43.BE.01 - Used mixing vessel
03.43.BE.01 - Used mixing vessel
03.43.BE.01 - Used mixing vessel
03.43.BE.01 - Used mixing vessel
03.43.BE.01 - Used mixing vessel
03.43.BE.01 - Used mixing vessel
03.43.BE.01 - Used mixing vessel
03.43.BE.01 - Used mixing vessel
03.43.BE.01 - Used mixing vessel
03.43.BE.01 - Used mixing vessel
03.43.BE.01 - Used mixing vessel
03.43.BE.01 - Used mixing vessel
03.43.BE.01 - Used mixing vessel
03.43.BE.01 - Used mixing vessel
Tank
Finishing weldings inside Untreated
Finishing weldings inside Untreated
Finishing weldings inside Untreated
Finishing weldings inside Untreated
Capacity (Liters) 230
Type tank Mixing vessel
Fixation 3 legs
Model of the tank Vertical
Shape of the tank Cylindrical
Bottom Conical bottom
Tank model Single wall
Tank with total drain? Yes

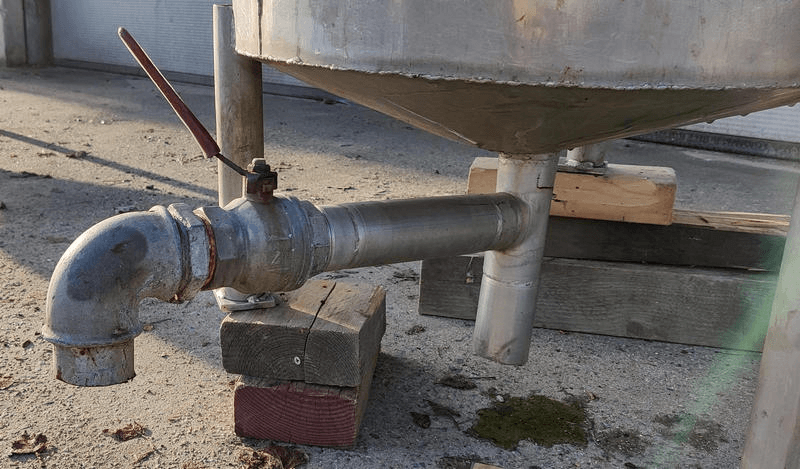

Diameter of outlet (mm) 60
locality B-7711 Belgium
Dimensions
Periphery (mm) 1910
Cylindrical length (mm) 780
height bottom (mm) 80
height bottom (mm) 80
height bottom (mm) 80
Total height (mm) 2000
Length (mm) 860
Diameter tank (mm) 605
Width (mm) 1000
Top side
Configuration top-side Open

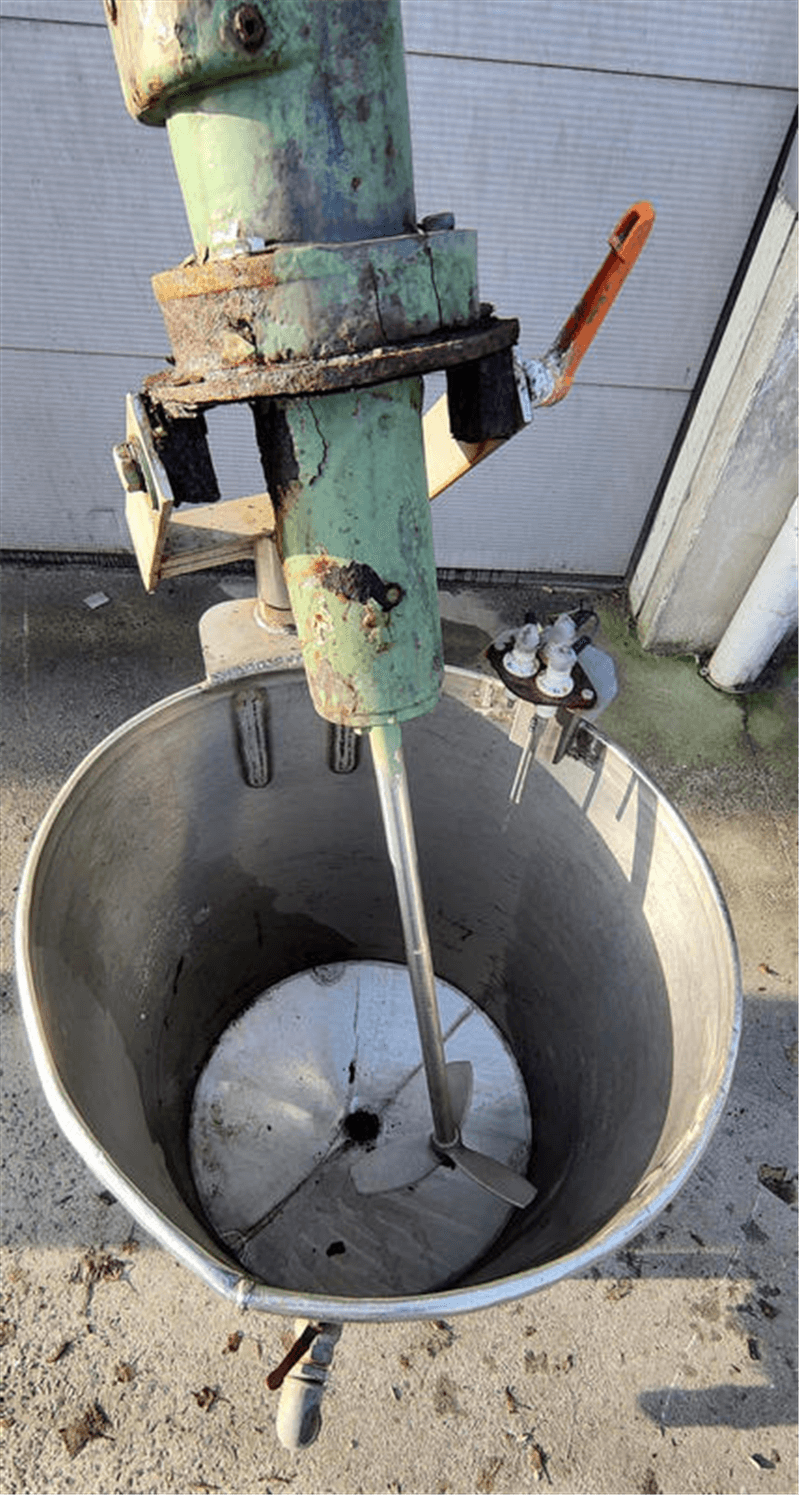

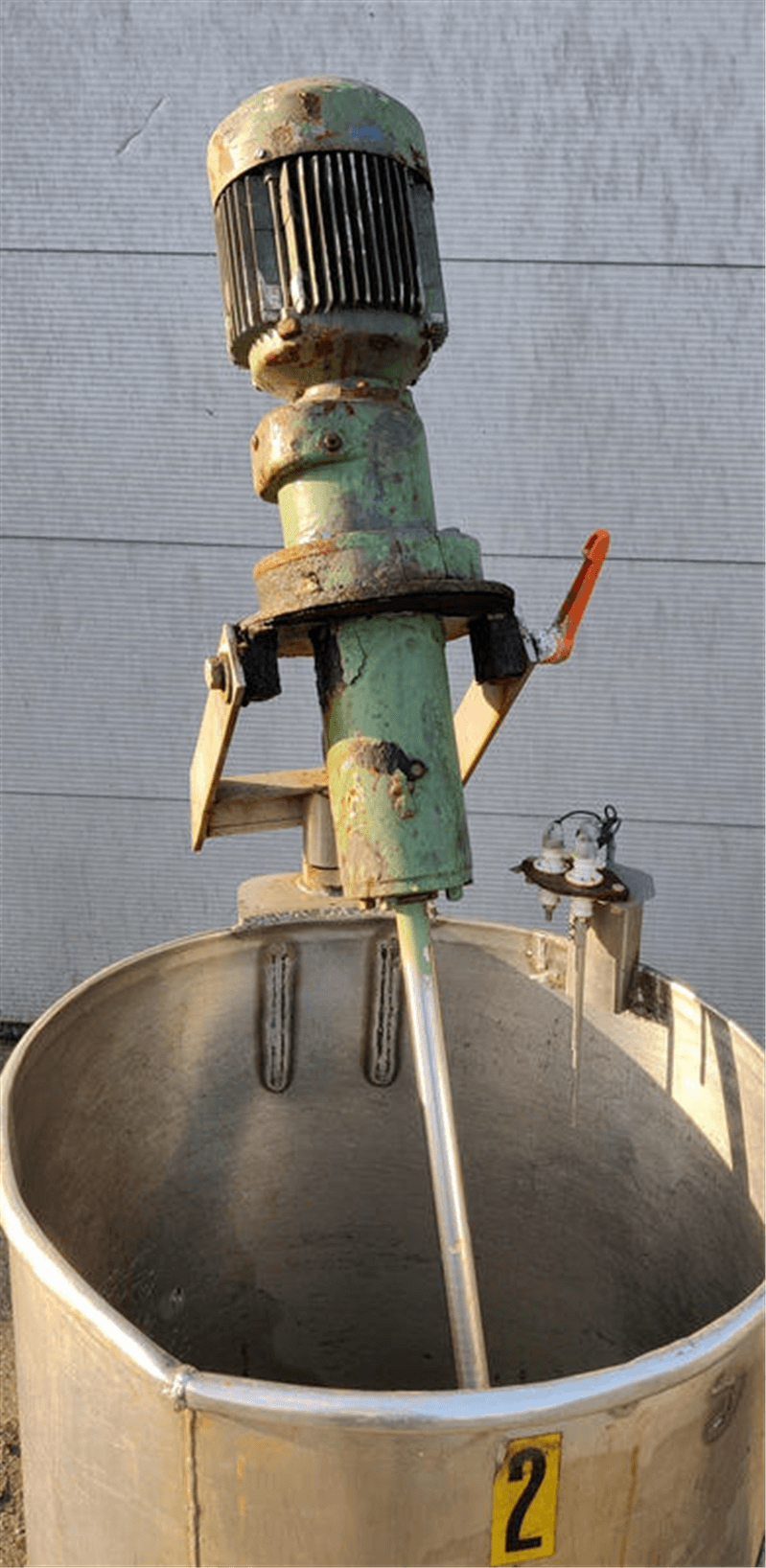

Agitators
Number of agitators 1
Agitator 1: Type Slowly rotating mixer
Agitator 1: Position decentrally on the top

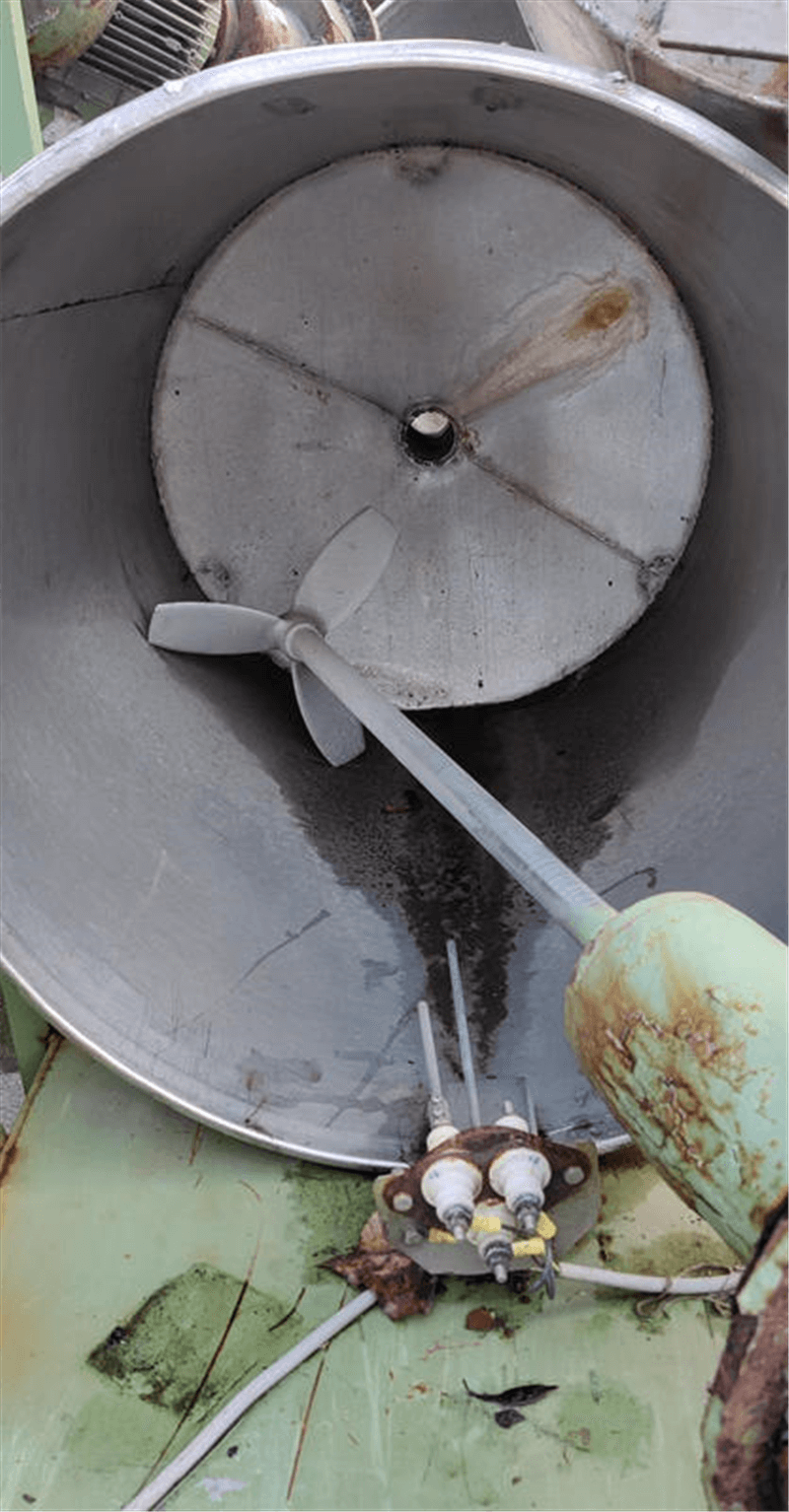

Agitator 1: stirring element type Propeller
Agitator 1: Length (mm) 730

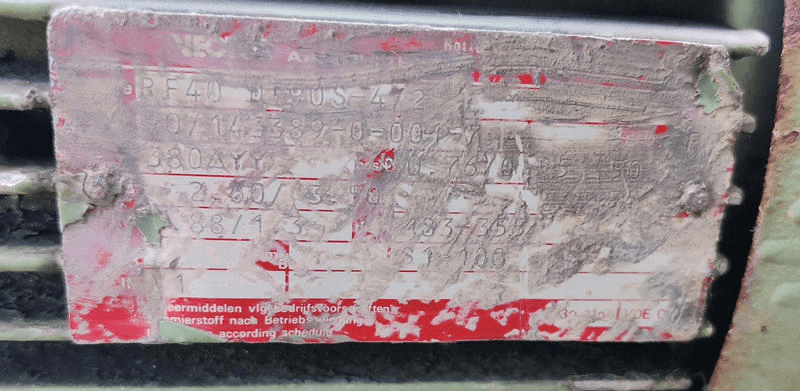

Agitator 1: Engine Type electric motor
Agitator 1: Voltage (V) 380
Agitator 1: Power (kw) 1.3
Agitator 1: Drive Type Reductor
Agitator 1: Speed (r / min) onbekend
