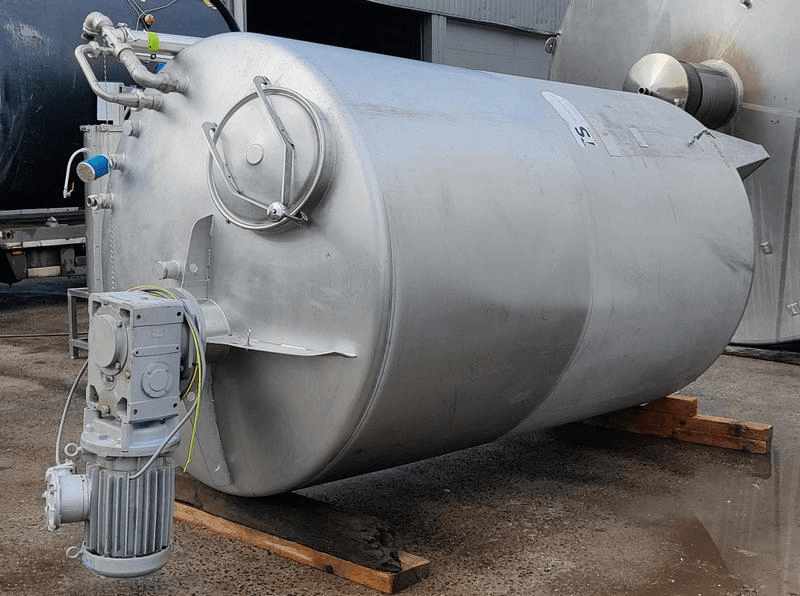

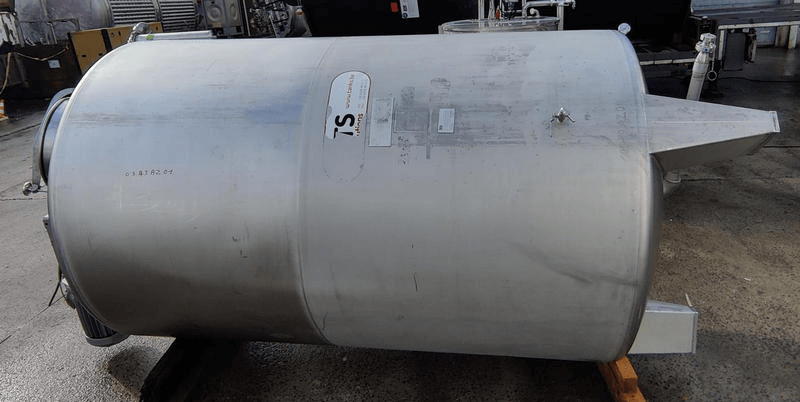

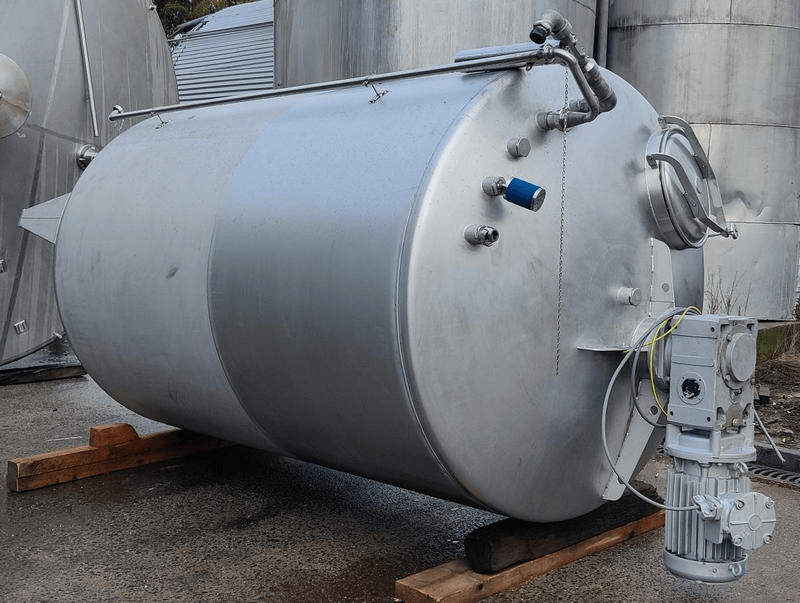

Used mixing vessel
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 8000 L
- In stock: 1
| General | |
|---|---|
| Material | Stainless steel 304 |
| Number | 1 |
| Group | Tank |
| Co-owner | Belgian Tanks Solutions |
| Condition | Used |

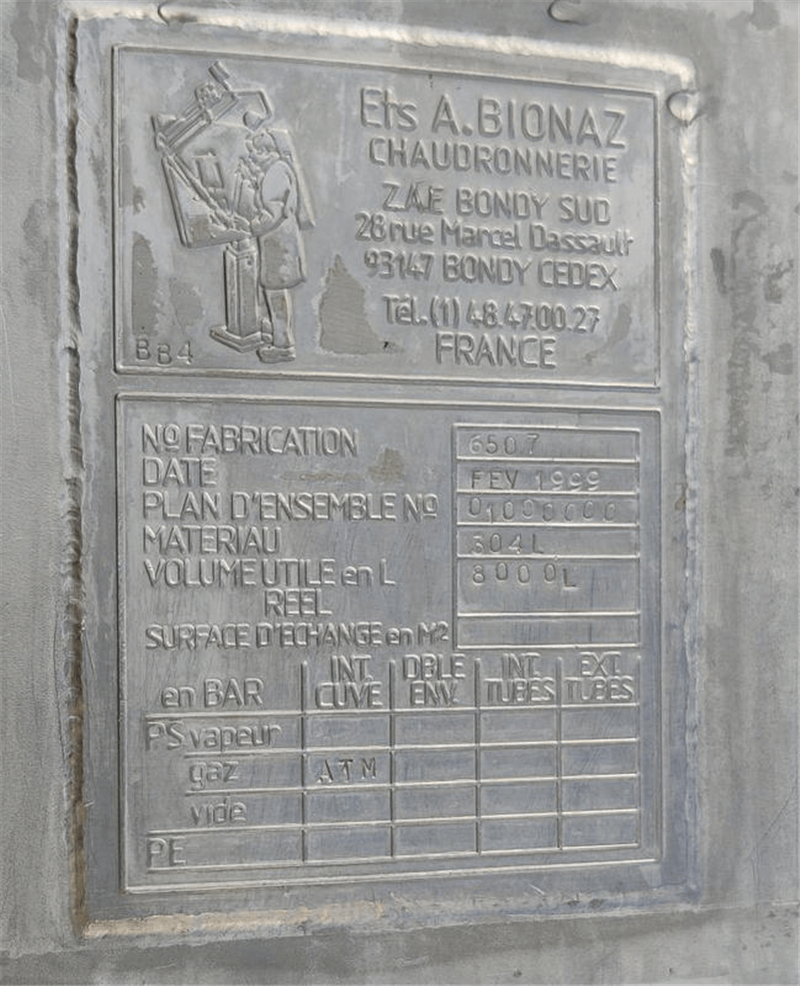

| Type plate manufacturer | Yes |
| Manufacturer | BIONAZ |
| Year Built | 1999 |
| Show Online? | Yes |
| Drawing 1 | t0329AZ06.pdf |
| Tank | |
|---|---|
| Finishing weldings inside | Grinded |
| Finishing weldings inside | Grinded |
| Finishing weldings inside | Grinded |
| Finishing weldings inside | Grinded |
| Capacity (Liters) | 8000 |
| Type tank | Mixing vessel |

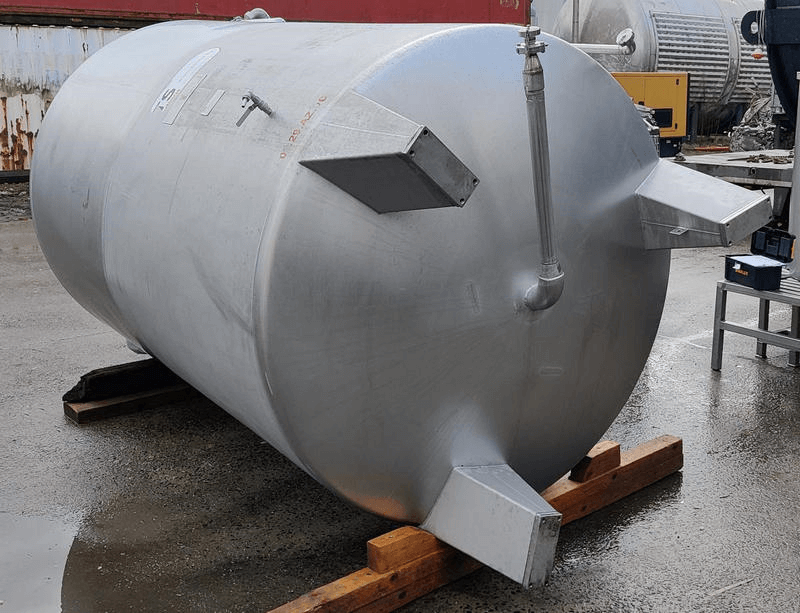

| Fixation | 3 legs |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Dished bottom |
| Tank model | Single wall |
| Tank with total drain? | Yes |
| Diameter of outlet (mm) | 60 |
| locality | B-7711 Belgium |
| Last application | chemical industry |
| Provision tank cleaning | None |
| Dimensions | |
|---|---|
| Thickness closed dome (mm) | 4.2 |
| Cylinder Thickness (mm) | 3.1 |
| Bottom thickness (mm) | 4.2 |
| Periphery (mm) | 5970 |
| Cylindrical length (mm) | 2750 |
| height bottom (mm) | 300 |
| height bottom (mm) | 300 |
| height bottom (mm) | 300 |
| Total height (mm) | 4340 |
| Length (mm) | 2100 |
| Diameter tank (mm) | 1895 |
| Width (mm) | 1900 |
| Top side | |
|---|---|
| Configuration top-side | Closed |

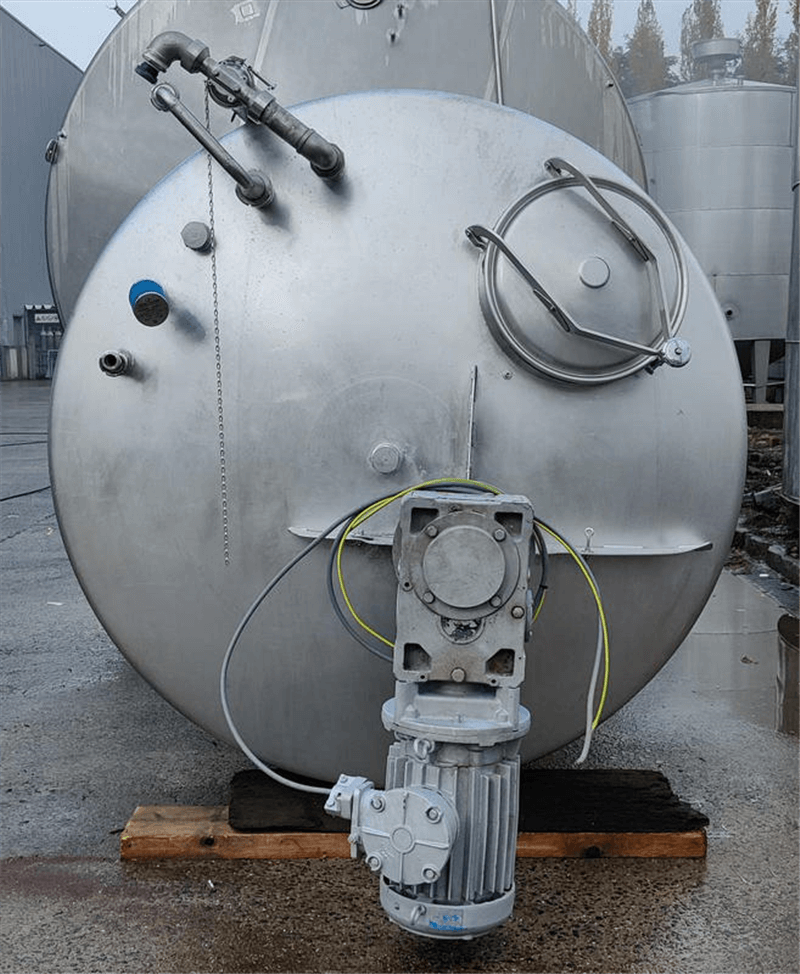

| Detail closed top side | Dished head |
| Agitators | |
|---|---|
| Number of agitators | 1 |

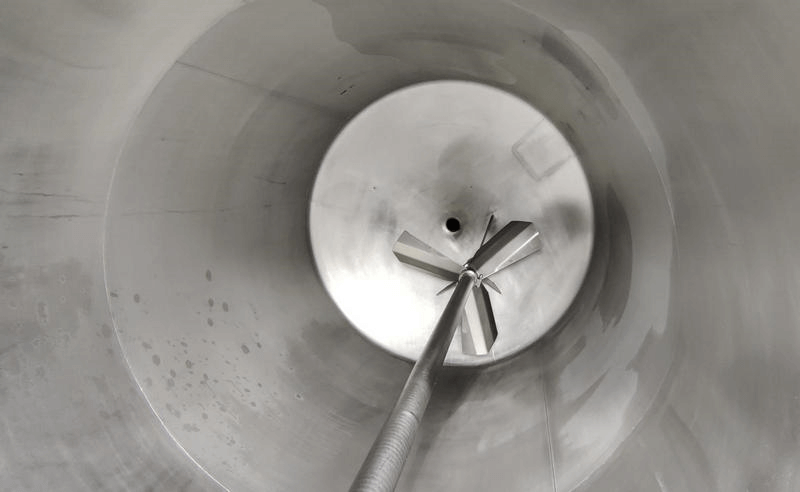

| Agitator 1: Type | Slowly rotating mixer |
| Agitator 1: Position | Centrally on the top |
| Agitator 1: stirring element type | Propeller |
| Agitator 1: Length (mm) | 2800 |

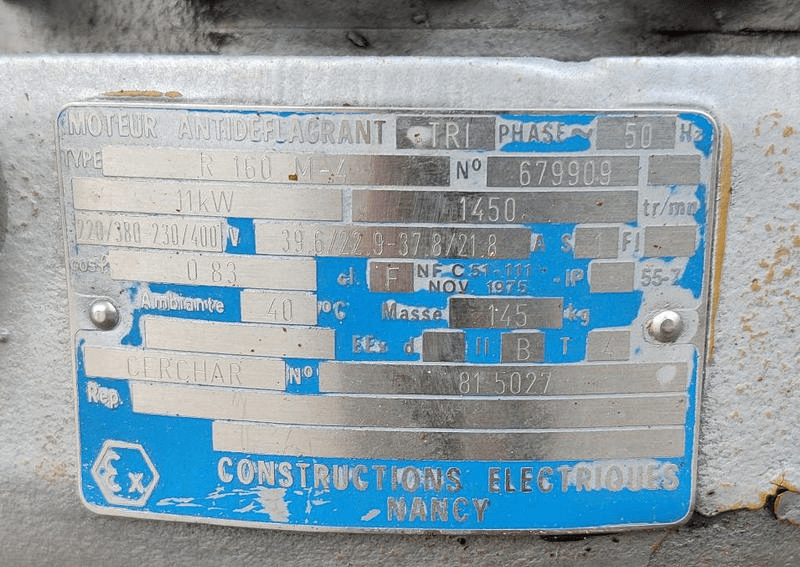

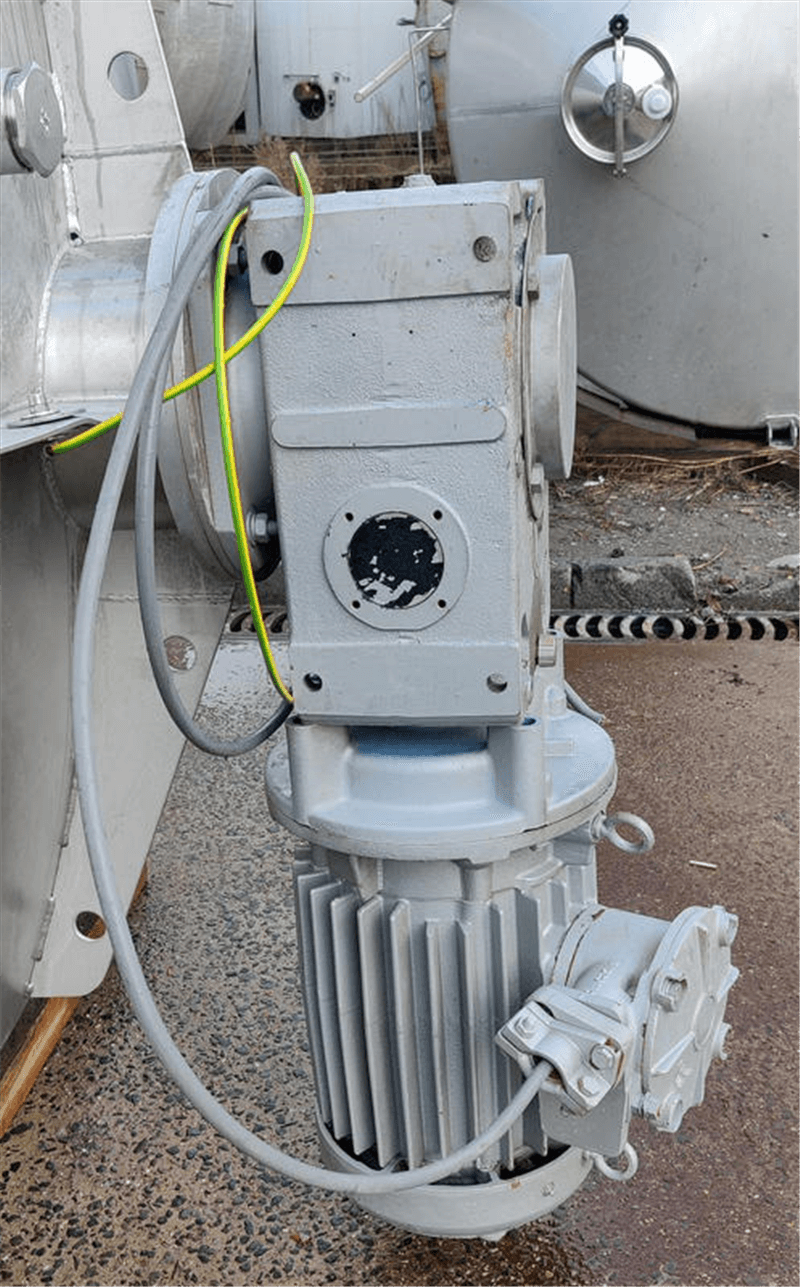

| Agitator 1: Engine Type | electric motor |
| Agitator 1: Voltage (V) | 380 |
| Agitator 1: Power (kw) | 11 |

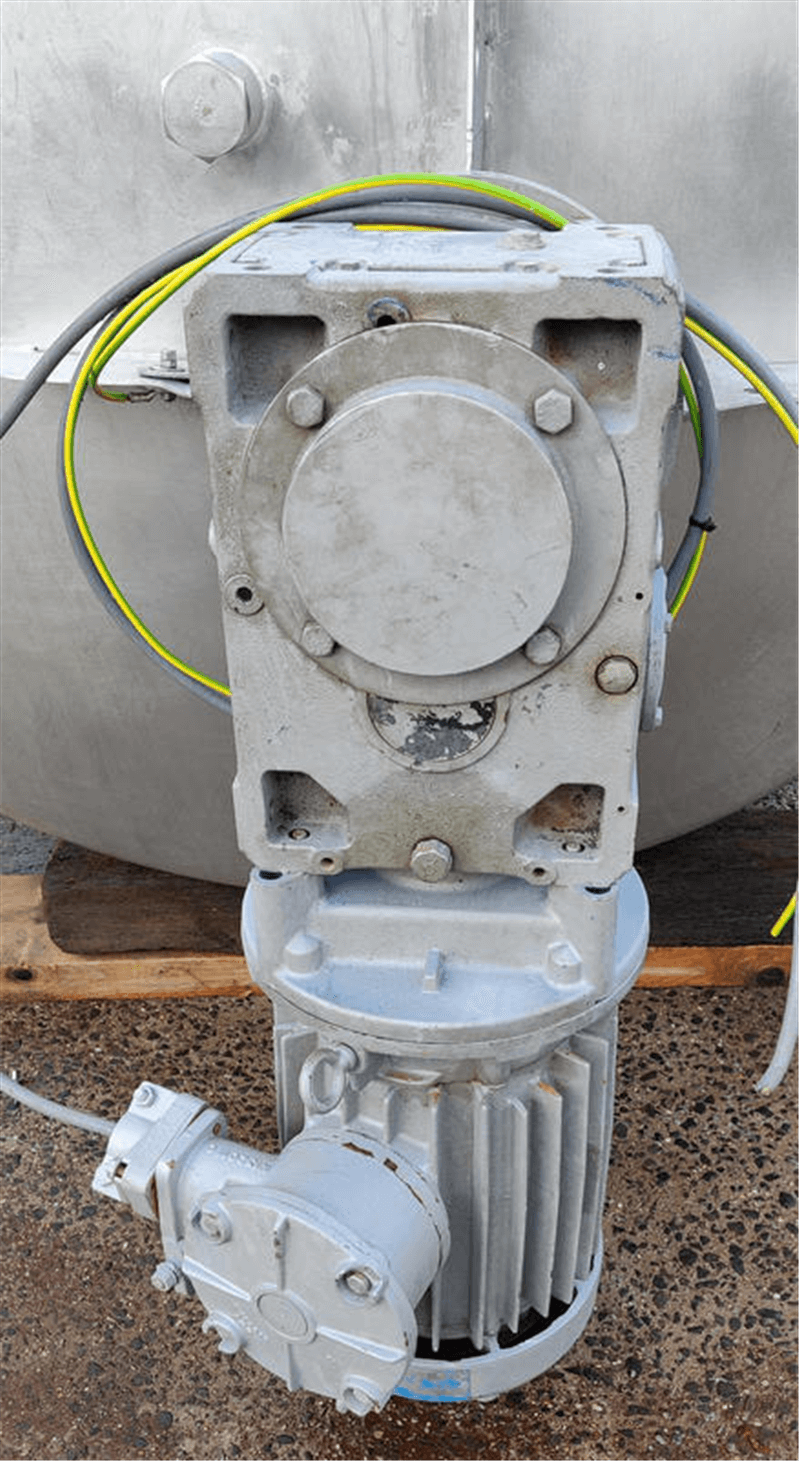

| Agitator 1: Drive Type | Reductor |
