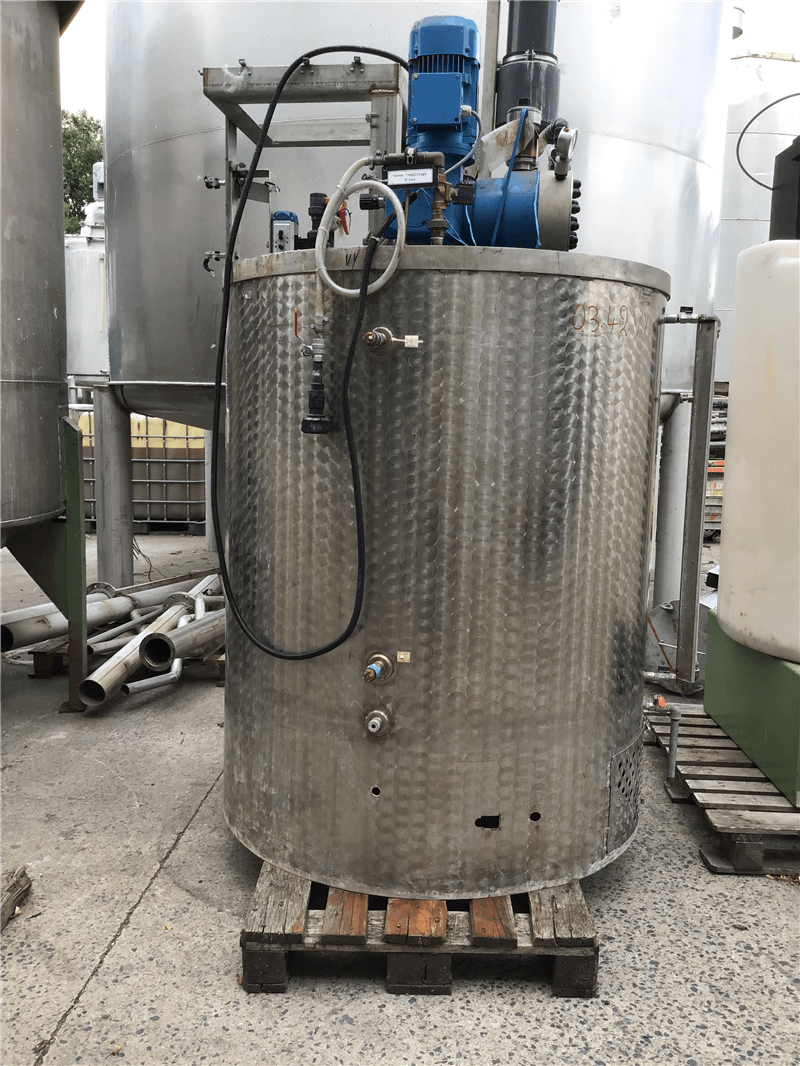

Used mixing vessel
- Material: Stainless steel 304
- Condition: Used
- Volume (in litres): 1050 L
- In stock: 1
| General | |
|---|---|
| Item number | 03.42.VY.01 |
| Material | Stainless steel 304 |
| Number | 1 |
| Capacity (Liters) | 1050 |
| Type tank | Mixing vessel |
| Fixation | Skirt |
| Model of the tank | Vertical |
| Shape of the tank | Cylindrical |
| Bottom | Flat bottom |
| Tank model | Single wall |
| Tank with total drain? | Yes |
| Type of outlet (s) | DN20 |
| locality | B-7711 Belgium |
| Weight (kg) | 250 |
| Condition | Used |
| Top side | |
|---|---|
| Configuration top-side | Closed |
| Detail closed top side | Flat bottom |
| Dimensions | |
|---|---|
| Cylindrical length (mm) | 1160 |
| Total height (mm) | 2550 |
| Diameter tank (mm) | 1200 |
| Width (mm) | 1380 |
| Insulation | |
|---|---|
| Insulation | No |
| Agitators | |
|---|---|

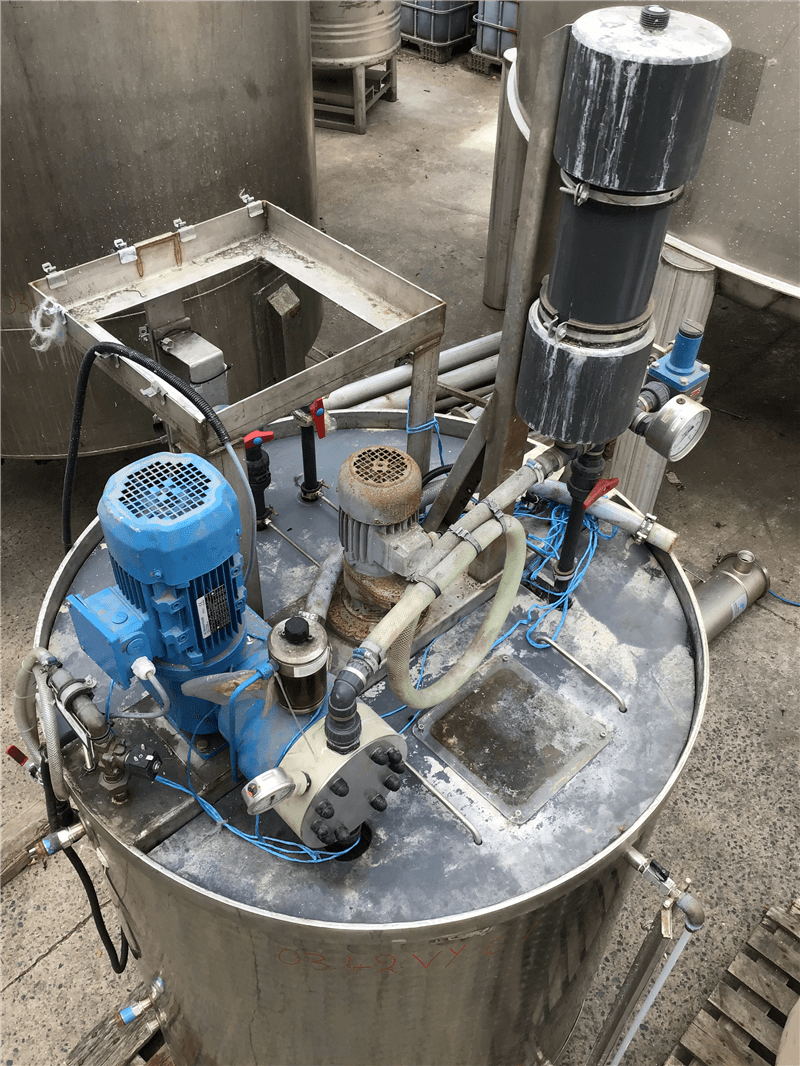

| Number of agitators | 1 |
| Agitator 1: Type | Slowly rotating mixer |
| Agitator 1: Position | Centrally on the top |

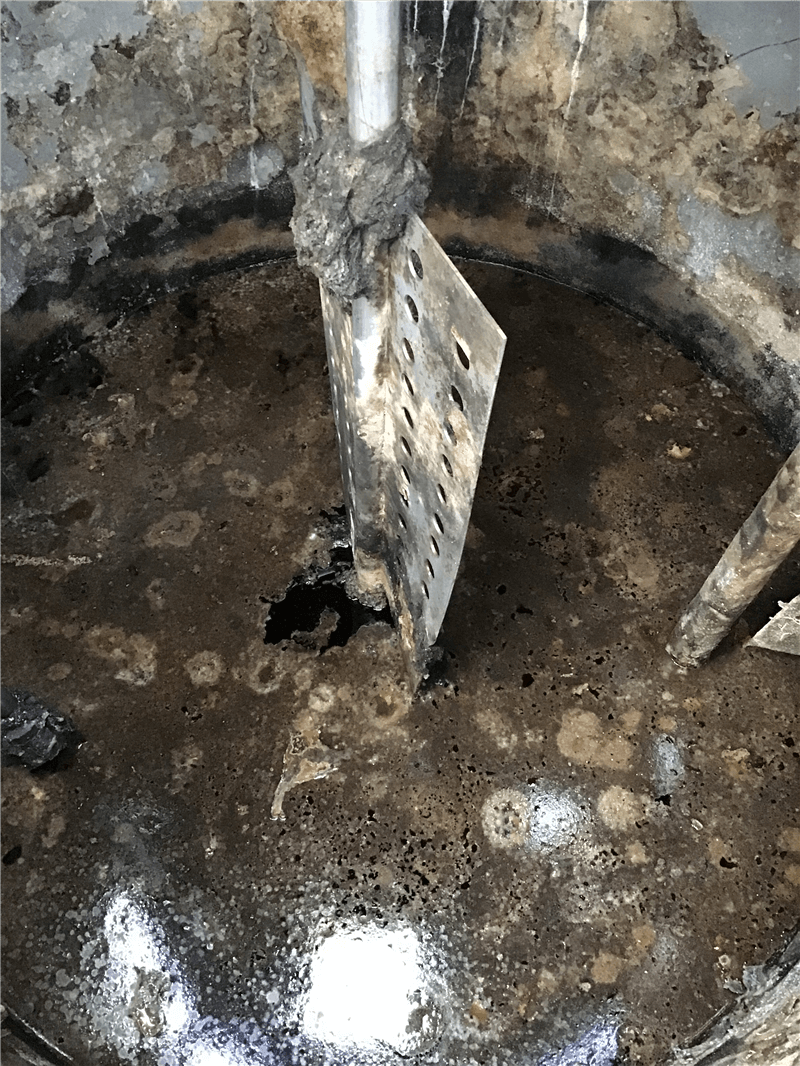

| Agitator 1: stirring element type | Anchor |

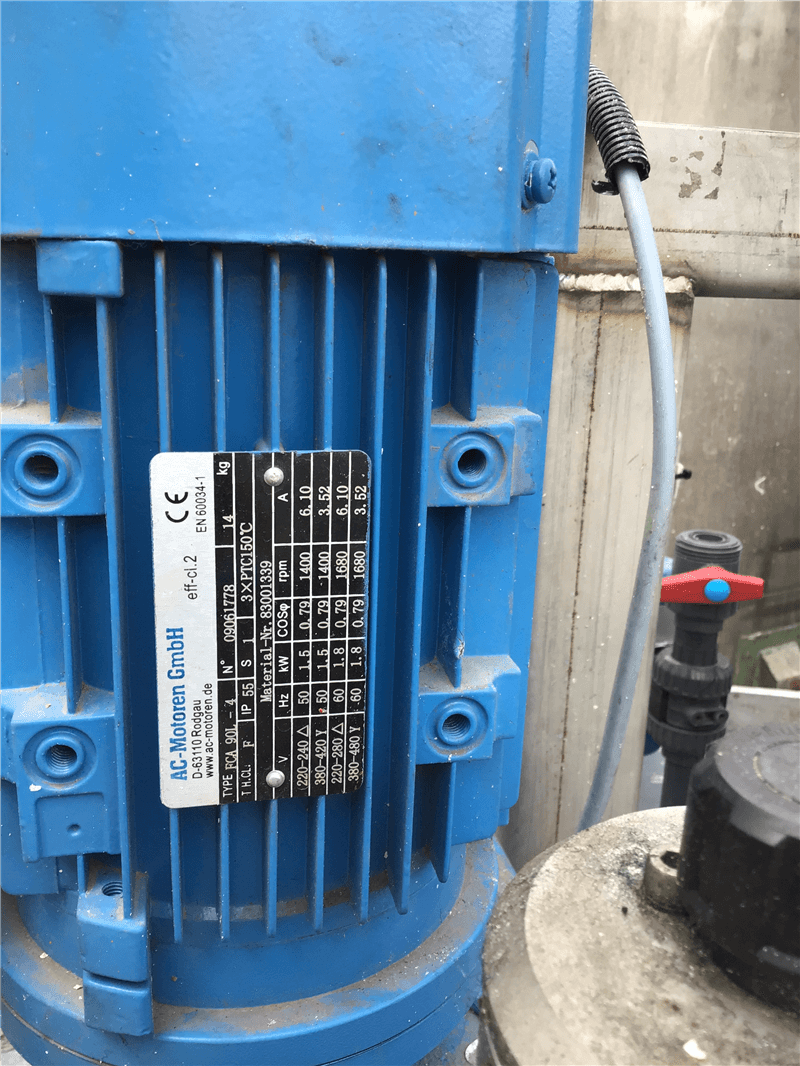

| Agitator 1: Engine Type | electric motor |
| Agitator 1: Power (kw) | 0,5 |
| Agitator 1: Drive Type | Reductor |
| Remarks | |
|---|---|
| Description (EN) | pump : 0 - 400 l/min (1.5 kW --- 76 RPM) |
